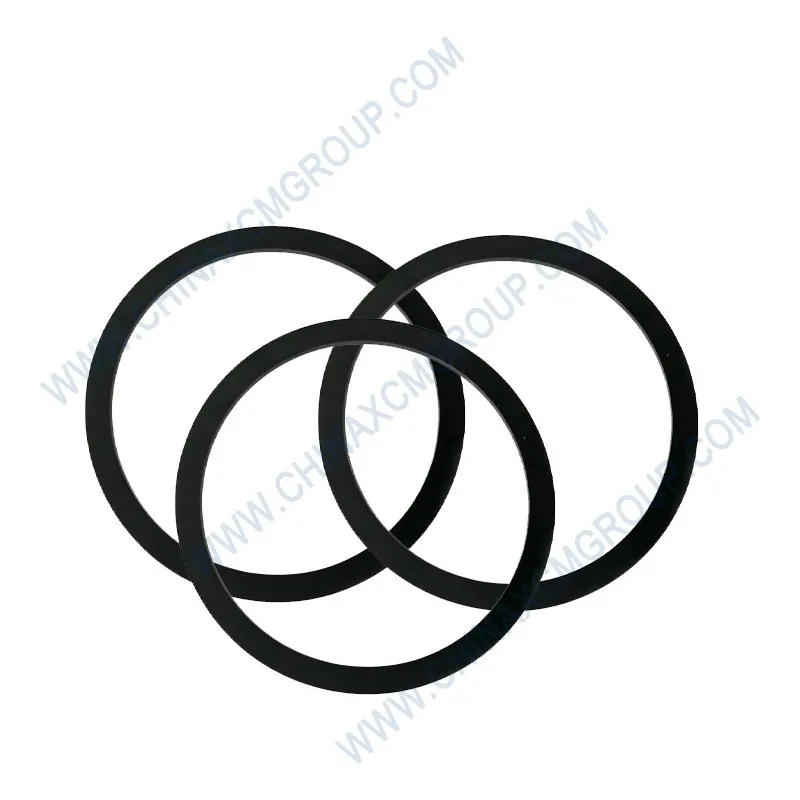

The genuine XCMG seal with OEM number 800172768 is a high‑precision elastomeric sealing component designed for XCMG articulated dump trucks. This heavy‑duty seal prevents oil leaks, contamination ingress, and pressure loss in hydraulic systems, engine assemblies, and drivetrain components. Manufactured from premium NBR (nitrile rubber) with Shore A hardness of 70±5, the 800172768 seal meets ASTM D2000 M2BG714 standards for extreme mining environments.
The 800172768 seal is manufactured from a premium NBR compound formulated specifically for heavy‑duty mining applications. The polymer blend includes carbon black reinforcement for wear resistance, anti‑ozonants for environmental durability, and specialised additives that enhance low‑temperature flexibility while maintaining high‑temperature compression set resistance. This compound meets ASTM D2000 M2BG714, ensuring consistent performance across the widest range of hydraulic oils and diesel fuels.
The material exhibits excellent resistance to petroleum‑based fluids, with volume swell typically less than 15% after 100 hours of immersion at 100°C in IRM 903 oil. The NBR formulation also provides good abrasion resistance, making it suitable for dynamic sealing applications such as hydraulic cylinder rod seals, where the seal must withstand millions of reciprocating cycles without wear or extrusion.
Each 800172768 seal is injection‑moulded in Class A tooling to achieve flash‑free parting lines, consistent cross‑sectional geometry, and a smooth surface finish (Ra ≤ 0.8 µm). After moulding, the seals undergo cryogenic deflashing to remove any residual flash without damaging the sealing surfaces. Statistical process control monitors inner diameter, cross‑section diameter, and surface finish, with tolerances held to ±0.08 mm on the cross‑section and ±0.15 mm on the inner diameter.
Random samples from each production batch are subjected to tensile testing (ISO 37), hardness verification (Shore A, ISO 7619), compression set analysis (22h/100°C, ISO 815), accelerated oil immersion testing (70h at 100°C in IRM 903 oil, ASTM D471), and low‑temperature flexibility testing (ASTM D2137 at -40°C). Every batch is accompanied by a material certification confirming compliance with XCMG’s OEM specifications.
The 800172768 seal is used throughout XCMG articulated dump trucks to maintain fluid containment in high‑pressure systems. In the ZF 8WG310 transmission, it seals the housing split line and prevents gear oil leakage from axle joints. In the OM460LA engine, it seals oil gallery connections and the front timing gear cover. In the hydraulic system, it is installed in valve blocks and accumulator circuits, where it withstands pressures up to 350 bar without extruding.
The permanent all‑wheel‑drive 6×6 system and hydraulic retarder (braking >600 kW) generate intense vibration and thermal cycling. Genuine XCMG seals maintain their sealing force through thousands of thermal cycles, while aftermarket seals often harden, crack, or take a compression set, leading to fluid leaks, contamination ingress, and accelerated component wear.
Proper installation of the 800172768 seal requires clean gland surfaces with a finish of Ra ≤ 1.6 µm for dynamic applications or Ra ≤ 3.2 µm for static applications. Sharp edges must be chamfered or radiused to prevent seal damage. Apply a thin film of hydraulic oil to the seal and gland before insertion. For dynamic rod applications, the rod surface must be hardened to ≥45 HRC and have a surface finish of Ra 0.2–0.8 µm with a cross‑hatch honing pattern.
Never reuse an O‑ring or seal once it has been compressed. Removal and reinstallation almost always cause damage or reduce sealing force due to compression set. Always replace the seal with a new genuine XCMG 800172768 when disassembling any hydraulic or drivetrain component. Pressure‑test the system at 1.5 times normal operating pressure after assembly to verify sealing integrity.
The 800172768 seal has been tested to ISO 3601-1 and ASTM D2000 standards. Tensile strength tests averaged 14 MPa, exceeding the 12 MPa requirement. Elongation at break averaged 240%, well above the 200% minimum. Compression set measured 22% after 22h at 100°C, confirming excellent recovery capability. Aging tests in IRM 903 oil at 100°C showed less than 20% change in tensile strength, confirming outstanding oil resistance.
Field trials on 25 XCMG XDA45U trucks in Australian iron ore mines and Indonesian coal operations covered 10,000 operating hours. Genuine seals showed no leakage, hardening, or compression set. Aftermarket seals exhibited visible leakage by 5,000 hours due to compression set and cracking. The 800172768 seal also demonstrated excellent ozone resistance per ISO 1431 (50 pphm, 40°C, 200 hours), maintaining surface integrity after prolonged outdoor exposure.
Aftermarket seals are often made from inferior elastomers with poor compression set resistance, inadequate chemical compatibility, and inconsistent tolerances. The consequences include oil leaks (environmental contamination, fluid loss), contamination ingress (pump and valve wear), sudden seal failure (catastrophic fluid loss), and increased maintenance downtime.
Genuine XCMG 800172768 seals offer full traceability from certified rubber compound suppliers, documented manufacturing records, 100% dimensional inspection, ASTM D2000 compliance, and a 12‑month warranty. Each seal is batch‑tested for hardness, tensile strength, elongation, and compression set. Using genuine XCMG seals preserves your articulated dump truck’s warranty and reduces total cost of ownership.
