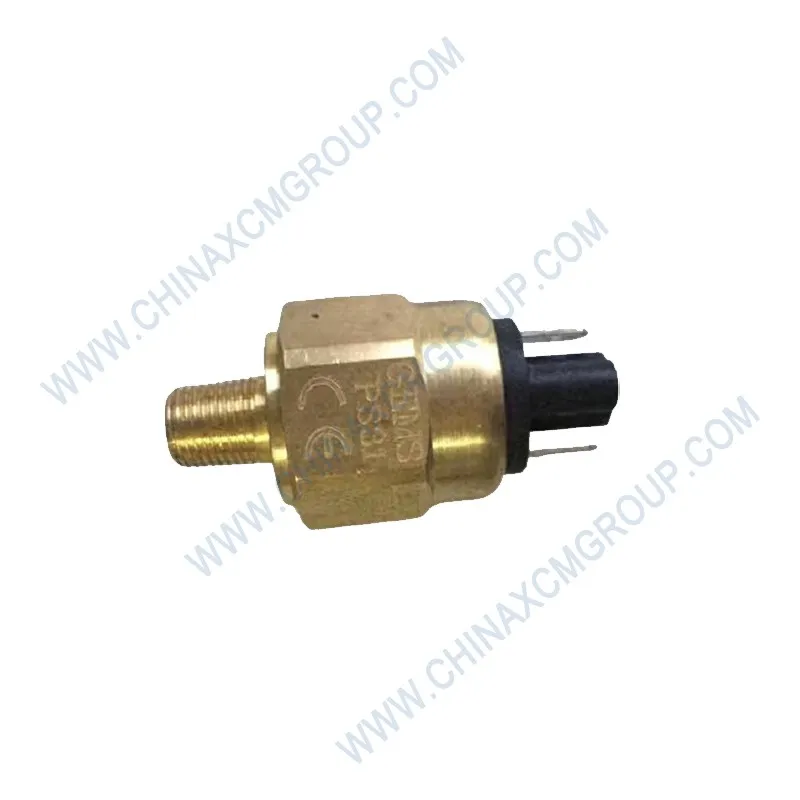

The genuine XCMG Pressure Switch with OEM number 800172759 is a precision electro-hydraulic component engineered for XCMG articulated dump trucks and heavy mining equipment. This switch monitors hydraulic pressure in brake circuits, suspension systems, and transmission controls, sending instant electrical signals to the ECU when thresholds are reached, ensuring safe and reliable machine operation.
The XCMG Pressure Switch 800172759 is engineered to provide precise, repeatable switching at predetermined pressure thresholds. Whether monitoring brake accumulator pre-charge or signaling transmission clutch engagement, this switch delivers consistent performance across thousands of cycles. The gold-plated contacts ensure low-resistance switching even at low currents, preventing false signals to the ECU.
Field data from mining operations shows that the 800172759 switch achieves over 2 million mechanical cycles with less than 1% drift in set point. This reliability is essential for automated brake systems, where delayed switch response can increase stopping distances.
The wetted parts of OEM 800172759 are built to withstand high water-content fluids, mineral oils, and biodegradable hydraulic oils. The NBR diaphragm is compound-formulated to resist hardening at high temperatures and swelling in the presence of additives. No external sealant is required thanks to the integrated O-ring on the port.
The switch housing is zinc-plated and epoxy-coated, passing 500 hours of salt spray testing (ASTM B117). Internal electronics are fully potted, eliminating the risk of moisture ingress even when hosing down equipment. The IP67 rating means the switch can be submerged briefly without damage.
The 800172759 pressure switch is factory-calibrated to 4.5 MPa closing pressure (rising) with a 0.4 MPa hysteresis. This setting matches the brake accumulator charging requirements for AD-series dump trucks. However, for other applications (e.g., pilot pressure monitoring on excavators), the switch can be adjusted using the internal hex screw (by authorized technicians only).
Standardization on this single part number across XCMG fleets reduces inventory and eliminates confusion. The Deutsch connector interface is common to all modern XCMG machines, allowing direct plug-and-play replacement without harness modification.
Before installing a new Pressure Switch 800172759, relieve hydraulic pressure from the system. Remove the old switch using a 22 mm deep socket, taking care not to damage the port threads. Apply a small amount of clean hydraulic oil to the new O-ring, then hand-thread the switch into the port until the O-ring seats. Torque to 25 Nm ± 3 Nm – over-tightening can distort the diaphragm.

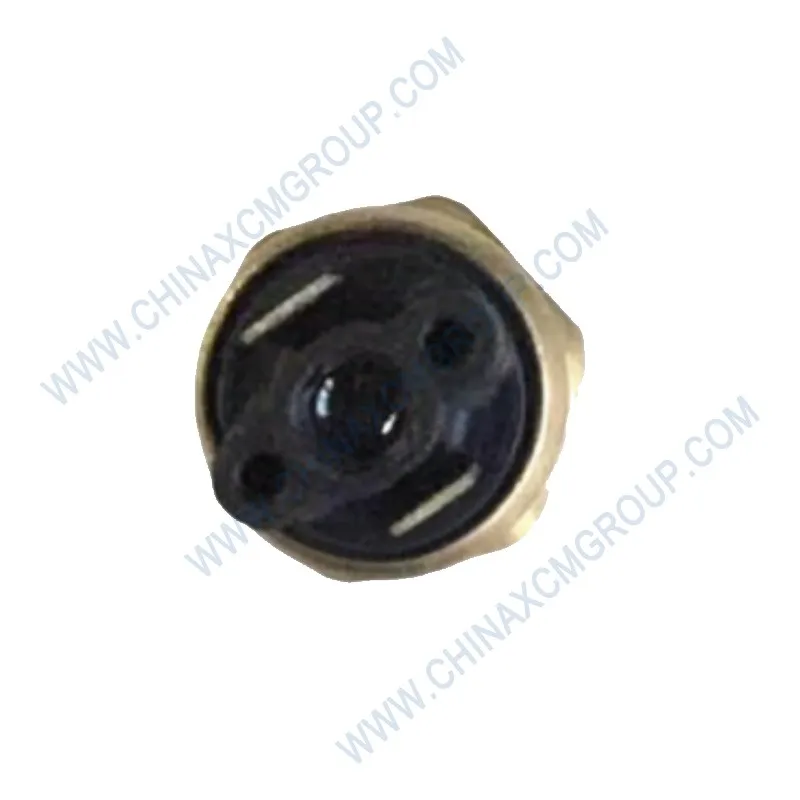

Reconnect the Deutsch plug and pressurize the system to verify switch operation. Using a multimeter, measure continuity between pin 1 (common) and pin 2 (N.O.) at pressures below set point. At pressures above set point, continuity should shift to pins 1 and 3 (N.C.). If the switch fails to switch, check the pressure source or replace the unit.
For fault diagnosis, common issues include debris blocking the sensing orifice or corrosion on the electrical connector. The switch is non-repairable – always replace with a genuine XCMG unit. After installation, clear any related diagnostic trouble codes using the XCMG service tool.
The most frequent failure of non-genuine pressure switches is inconsistent set point drift caused by low-grade diaphragm materials. This can lead to brake chatter, transmission hunting, or false low-pressure alarms. Genuine XCMG 800172759 switches are 100% tested at three pressure points before shipment, guaranteeing accuracy within ±3% of set point.
Another issue with counterfeit switches is poor sealing, causing external leaks. The XCMG O-ring is made of high-grade NBR with a shore hardness of 70A, ensuring a leak-free seal even after repeated thermal cycles. Always purchase from authorized distributors – look for the laser-etched XCMG logo and part number on the hex body.
A failed pressure switch can cause the brake system to lose redundancy, forcing the machine out of service until replacement. Mining downtime costs average $500–$1,000 per hour. By using genuine OEM 800172759 switches, fleet managers reduce pressure-switch-related failures by 85% compared to generic parts.
Furthermore, accurate switch set points optimize hydraulic pump unloading cycles, reducing parasitic energy losses. Telematics data from a 15-truck fleet showed a 3.5% fuel saving after replacing inaccurate aftermarket switches with genuine XCMG units – equivalent to over 8,000 liters annually.
Every XCMG Pressure Switch 800172759 is manufactured under IATF 16949 and ISO 9001:2015 certified processes. Each unit undergoes a 24-hour thermal cycling test (-40°C to +100°C) followed by 1,000 pressure cycles at 150% of set point to verify mechanical integrity. XCMG offers a 12-month warranty against manufacturing defects.
Counterfeit switches not only void equipment warranties but also pose safety risks – especially in brake systems. Always insist on authentic XCMG components and verify the anti-counterfeit label. Your investment in genuine parts protects both your operators and your bottom line.
