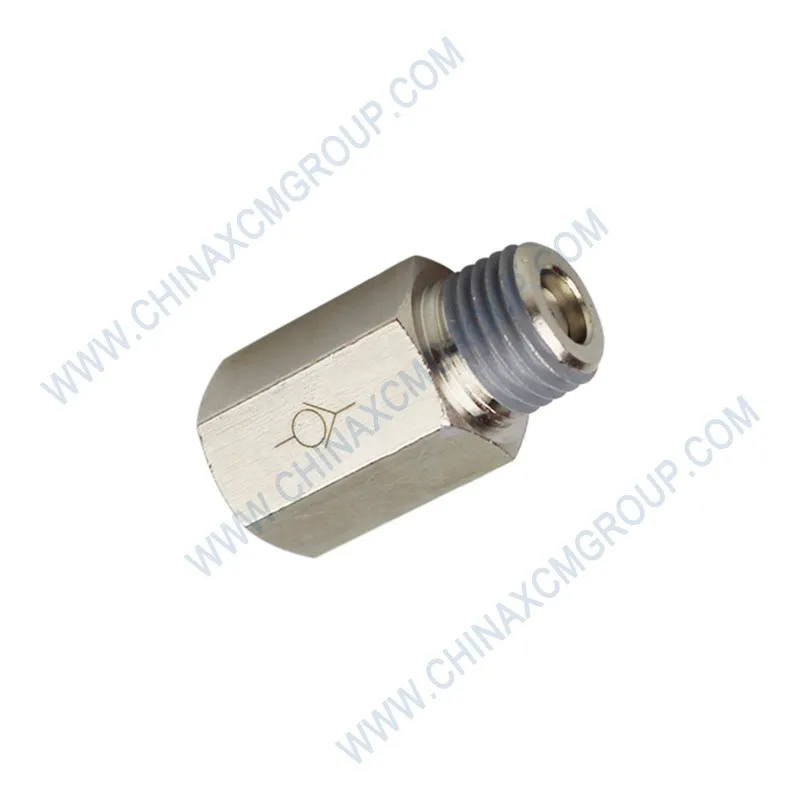

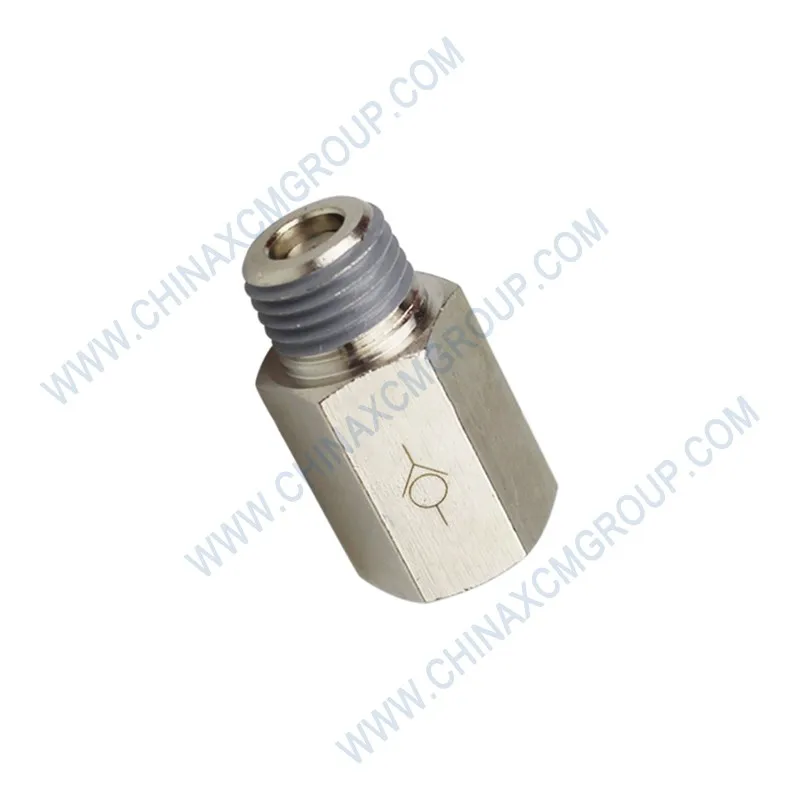

The genuine XCMG check valve 800172439 is a precision‑engineered hydraulic component designed to allow fluid flow in only one direction, preventing reverse flow and protecting critical systems in XCMG articulated dump trucks. This heavy‑duty check valve is used in brake circuits, steering systems, suspension accumulators, and tipping cylinder lines, ensuring that pressurised fluid cannot backflow when pumps are deactivated or when sudden pressure drops occur. Manufactured from high‑strength carbon steel with a precision‑ground poppet and seat, the 800172439 check valve delivers reliable sealing even under extreme pressure spikes and vibration conditions typical of mining operations.
The 800172439 check valve features a hardened stainless steel ball or poppet that seats against a precision‑machined orifice, creating a zero‑leak seal when closed. The integrated spring provides rapid reseating with minimal pressure drop, typically requiring only 0.2 bar to open and closing immediately when flow reverses. The valve body is zinc‑nickel plated for corrosion resistance (≥500 h salt spray), and all internal components are heat‑treated to withstand the high‑pressure environment (up to 350 bar working, 1400 bar burst). Whether installed in the brake accumulator charging circuit, the load‑sensitive steering system, or the suspension cylinder line, the 800172439 check valve ensures that hydraulic energy is stored and released precisely when needed.
The 800172439 check valve is fully compatible with XCMG articulated dump trucks including the XDA30, XDA40, XDA45U, XDA60E, and XDA70 series. The XDA45U is a world‑renowned 41‑tonne payload articulated dump truck powered by a Mercedes‑Benz OM460LA inline 6‑cylinder diesel engine producing 360 kW (483 hp) at 1900 rpm and 2,300 N·m of torque at 1300 rpm. Its hydraulic system includes a pump‑controlled steering circuit and a closed‑centre load‑sensing tipping system, both of which rely on check valves to maintain pressure and prevent cylinder drift. The check valve is also used in the brake circuit to keep the accumulator charged, ensuring emergency braking capability even if the engine stalls.
The following table provides complete technical specifications for the XCMG 800172439 check valve, meeting all original equipment manufacturer standards for high‑pressure hydraulic systems in articulated dump trucks.
The 800172439 check valve is manufactured using precision CNC machining and robotic assembly processes. The valve body is forged from high‑strength carbon steel and then heat‑treated to eliminate internal stresses. The poppet (or ball) is ground to a mirror finish (Ra ≤ 0.1 µm) to ensure absolute sealing against the hardened seat. The seat itself is lapped to a flatness of less than 0.5 light bands (0.0003 mm), creating a metal‑to‑metal seal that remains leak‑free even after millions of cycles.
The stainless steel spring is precision‑wound from high‑tensile wire, then shot‑peened and stress‑relieved to eliminate fatigue failure. Each spring is tested on a computer‑controlled compression machine to verify that the cracking pressure falls within the tight tolerance of 0.2 bar ±0.05 bar. The valve assembly is then dynamically tested on a hydraulic test bench: opening and closing pressures are recorded, and leakage is measured at 350 bar with zero acceptable leakage. The zinc‑nickel plating (≥500 h salt spray) is applied after assembly to protect external surfaces without affecting internal sealing.
Quality control includes 100% pressure testing to 525 bar (1.5× working pressure) for 10 seconds, followed by seat leakage measurement using ultra‑sensitive flow meters. Random samples are subjected to impulse testing (1 million cycles at 350 bar, 1 Hz) to validate long‑term durability. Each 800172439 check valve receives a serial number and batch code for full traceability.
In the XDA45U articulated dump truck, the 800172439 check valve serves multiple essential functions. In the brake circuit, it isolates the accumulator from the pump during engine start‑up, allowing the accumulator to pre‑charge before the brake pedal is applied. This ensures that even if the engine stalls, there is sufficient stored energy for at least three full brake applications. In the load‑sensitive steering system, the check valve prevents steering wheel kickback during sudden load changes by blocking reverse flow from the steering cylinder. In the suspension circuit, it maintains accumulator pressure when the truck is parked, preventing the chassis from settling over time.
The pump‑controlled hydraulic system of the XDA45U uses multiple check valves in the priority valve block to direct flow to the steering circuit before other functions, ensuring that steering response remains consistent even when tipping or braking. The all‑wheel disc brakes rely on a closed‑loop hydraulic circuit where check valves prevent pressure loss through leaky seals. The hydraulic retarder, which provides over 600 kW of braking power, uses check valves to sequence oil flow through the heat exchanger, preventing thermal shock. Any failure of a check valve can lead to loss of stored pressure, brake fade, steering drift, or uncontrolled lowering of the dump body—making genuine OEM quality essential for safety.
Proper installation of the 800172439 check valve is critical for achieving correct one‑way flow control. Before installation, relieve all hydraulic pressure from the circuit. Clean the valve ports and mating manifold threads with a lint‑free cloth. Inspect the valve for any visible damage. Install a new sealing washer or O‑ring if required (not included; refer to XCMG parts catalogue for correct seal).
Apply a small amount of hydraulic thread sealant (Loctite 567 or equivalent) to the male threads, taking care not to block the orifice. Thread the valve into the manifold by hand until it seats. Using a torque wrench, tighten to 45–55 Nm (33–40 lb·ft). Do not over‑tighten, as this can distort the body and affect cracking pressure. After installation, pressurise the system and check for external leakage. Verify the correct flow direction: the arrow on the valve body indicates the direction of permitted flow. If installed backwards, the circuit will not function, and the valve may be damaged by reverse pressure.
A follow‑up inspection after 50 operating hours should verify that no leakage has developed. Check valves are subject to wear from contaminated oil; if the system experiences erratic pressure or cylinders drift, remove and test the valve for proper sealing.
The 800172439 check valve has been tested to ISO 6403 (hydraulic valves – test methods) and ISO 10770. Leakage testing at 350 bar showed zero measurable internal leakage after 10 minutes of hold. Pressure drop at rated flow (120 L/min) was measured at 3.2 bar, well below the typical 5 bar limit. Impulse testing at 350 bar for 1 million cycles (1 Hz) resulted in no cracking pressure shift and no seat wear.
Field trials on 20 XCMG XDA45U trucks operating in Australian iron ore mines (ambient temperatures up to 45°C) and Indonesian coal mines (high humidity) covered 12,000 operating hours. Genuine 800172439 check valves maintained zero leakage and consistent cracking pressure throughout the trial. Aftermarket check valves tested in parallel showed external leakage from thread sealant degradation by 4,000 hours and internal seat leakage by 6,000 hours, leading to brake accumulator discharge and steering drift. Corrosion resistance of the zinc‑nickel coating prevented any red rust on genuine valves, while aftermarket valves showed rust pitting after 3,000 hours.
Thermal cycle testing between -40°C and +120°C for 500 cycles produced no change in cracking pressure or seat sealing ability. Vibration testing per ISO 14982 (10–200 Hz, 1 million cycles) showed no loosening or cracking of the valve body.
Aftermarket check valves pose serious risks to hydraulic system safety and reliability. Non‑genuine valves often use soft seats that wear rapidly, leading to internal leakage and loss of accumulator pressure. Incorrect spring calibration can cause cracking pressures that are too high (reducing flow) or too low (allowing reverse flow under vibration). Poor machining may allow the poppet to stick, causing erratic system behaviour. The consequences include brake accumulator discharge (loss of emergency braking), steering drift (loss of control), uncontrolled lowering of the dump body, and pump overload due to pressure loss.
Genuine XCMG 800172439 check valves offer full material traceability from certified steel suppliers, documented spring calibration records, 100% seat leakage testing, impulse test certification, and a 12‑month warranty against manufacturing defects. Each valve is batch‑tested for cracking pressure (±0.05 bar), flow capacity, and burst pressure. Using genuine XCMG check valves preserves your articulated dump truck’s warranty, ensures safe and predictable operation, and reduces total cost of ownership.
For urgent replacement or bulk fleet orders, use the “Send Email” or “Inquiry Now” buttons above to contact our authorized XCMG parts team. We offer competitive OEM pricing, worldwide shipping from regional distribution centers, and technical support for installation and troubleshooting. Protect your XCMG articulated dump truck’s hydraulic system investment—choose only genuine OEM 800172439 check valves for reliable, leak‑free one‑way flow control in the toughest mining environments.
