XCMG Seal OEM 800165180 – High-Performance Fluid Containment for Articulated Dump Truck Hydraulics
Seal
Уплотнение
Sello

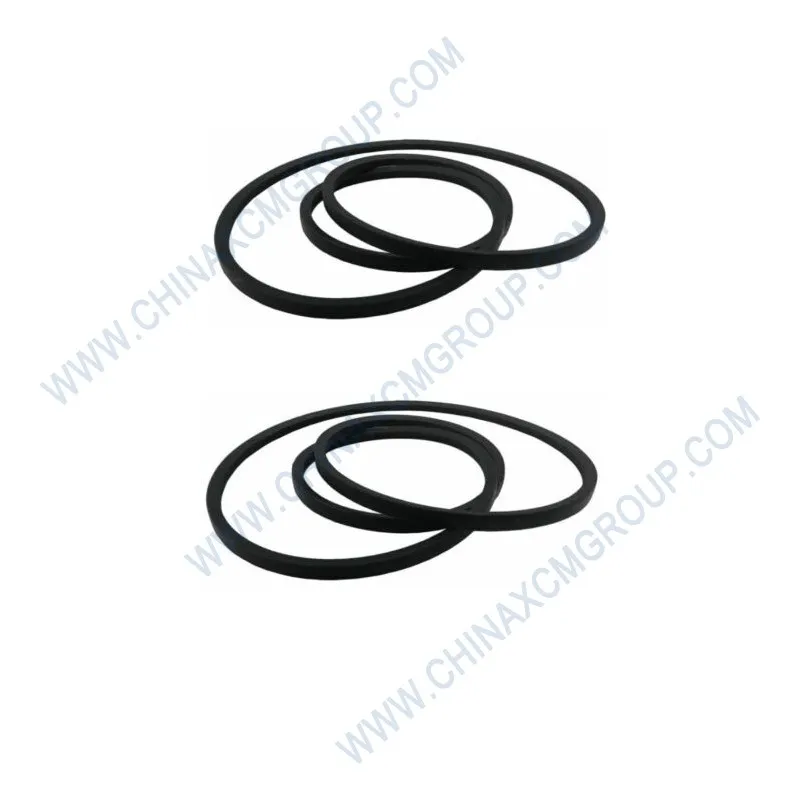

The XCMG Seal 800165180 is a precision‑molded elastomeric O‑ring designed for the high‑pressure hydraulic systems, powertrain assemblies, and fuel system components of XCMG articulated dump trucks (ADTs). This genuine XCMG 800165180 seal is manufactured from premium nitrile butadiene rubber (NBR) with a hardness of 70 Shore A, offering excellent resistance to mineral oils, hydraulic fluids, diesel fuel, and lubricating greases. XCMG XDA30, XDA40, XDA45, XDA45U, and TA30 ADTs depend on 800165180 for long‑term reliability under extreme vibration, temperature swings, and shock loads typical of mining and heavy construction operations. The seal’s precise dimensional tolerances ensure a perfect gland fill and leak‑free sealing for thousands of operating hours.
Critical Role of the 800165180 Seal in ADT Hydraulic Systems
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM460LA six‑cylinder diesel engine delivering 360 kW (483 hp) at 1,900 rpm and 2,300 N·m of torque at 1,300 rpm[reference:0]. Its high‑pressure load‑sensing hydraulic system operates at working pressures of up to 35 MPa. At every critical junction—valve block ports, hydraulic cylinder end caps, and pump mounting flanges—the seal 800165180 ensures leak‑free integrity. Without a properly sealing O‑ring, fluid loss, pressure drop, and internal cross‑circuit contamination can occur, leading to reduced system efficiency and potential component failure.
The XCMG XDA40 articulated dump truck, which carries a 39,000 kg payload, is powered by a Mercedes‑Benz OM502 V8 diesel engine producing 350 kW (475 hp) at 1,800 rpm and 2,300 N·m of torque at 1,300 rpm[reference:1]. Throughout the ADT range, the seal 800165180 is used in hydraulic pump housings, valve block interfaces, cylinder head covers, and fuel system connections. A single failed seal can lead to oil loss, reduced lubrication, and catastrophic component failure, making the genuine seal essential for fleet reliability.
Advanced Manufacturing of OEM 800165180
The seal 800165180 is manufactured from premium nitrile butadiene rubber (NBR), a material widely used in heavy‑duty hydraulic sealing due to its excellent resistance to mineral oils, hydraulic fluids, diesel fuel, and lubricating greases[reference:2]. With a Shore A hardness of 70 ± 5 and a continuous operating temperature range of −40 °C to +100 °C (intermittent to +120 °C), this NBR compound maintains consistent elasticity and sealing integrity even after prolonged exposure to thermal cycling and high system pressures. The material exhibits low compression set (≤ 25% after 100 h at 100 °C), ensuring that the seal retains sufficient radial force against the gland walls throughout its service life.
This genuine XCMG seal is dimensionally manufactured to meet ISO 3601‑1 Class A tolerances, ensuring precise gland fill and optimal compression (typically 15–25% for static sealing applications). The molded surface finish minimizes wear on mating metal surfaces and reduces the risk of seal damage during assembly. Each production batch undergoes 100% dimensional inspection using laser micrometers, and material hardness is verified per ISO 48‑2. Random samples per batch are tested for tensile strength (≥ 14 MPa), elongation at break (≥ 200%), and compression set to ensure compliance with global sealing standards.
XCMG field data from XDA40 and XDA45U ADT fleets operating in Australian iron ore mines and Chilean copper mines shows that the genuine seal 800165180 typically exceeds 12,000‑15,000 hours of service life when installed correctly and used with recommended fluids. The XDA45U achieves an uptime rate exceeding 92% and fuel consumption 7% lower than competing models in the same weight class[reference:3], with the reliability of its sealing components being a major contributing factor.
Field Performance of 800165180 vs. Aftermarket
Aftermarket O‑rings manufactured from lower‑grade materials or with less precise dimensional tolerances often fail prematurely due to hardening, cracking, extrusion, or loss of sealing force, leading to fluid leaks, system inefficiency, and environmental contamination. By contrast, the superior material quality and precision molding of the genuine XCMG seal 800165180 directly contribute to reduced maintenance costs and extended overhaul intervals for ADT operators.
For applications involving unconventional fluids such as phosphate ester hydraulic fluids, high‑temperature environments exceeding 120 °C, or exposure to aggressive chemicals, XCMG offers FKM (Viton®) variants of seal 800165180. The FKM material provides extended thermal stability up to 200 °C and superior chemical resistance, making it suitable for specialized ADT configurations deployed in extreme industrial environments. For low‑temperature operation below −40 °C, specialized low‑temperature NBR or silicone compounds are available.
Proper Installation of the 800165180 Seal
Installing the seal 800165180 correctly is essential for achieving its rated service life. Before installation, inspect the gland for burrs, sharp edges, scratches, or contamination that could damage the seal. Apply a thin film of clean hydraulic oil or assembly lubricant to the seal and mating surfaces to prevent pinching and ensure smooth seating. Use rounded plastic picks or dedicated seal installation tools; never use sharp metal tools that could cut the elastomer. Ensure the seal sits evenly in the groove without twisting.
For flange fittings, tighten bolts gradually in a crossing pattern to the manufacturer torque specification (typically 35‑40 N·m for M8 bolts). Never reuse a removed seal, as it will have taken a compression set and will not seal properly. Regular inspection of seals should be part of every scheduled maintenance. Look for weeping fluid, hardened or cracked rubber, or a flat spot on the seal’s cross‑section. If any of these signs are present, replace the seal immediately. XCMG recommends replacing all seals whenever a hydraulic component is disassembled, regardless of apparent condition, as heat and pressure cycles degrade elastomers over time.
Compatibility Across XCMG ADT Range and Global Availability
The seal 800165180 is compatible with all current XCMG articulated dump trucks, including the XDA30 (30‑ton payload, Yuchai YC6K engine)[reference:4], XDA40 (39‑ton payload, OM502 V8)[reference:5], XDA45 (41‑ton payload), XDA45U (41‑ton payload, OM460LA inline‑6)[reference:6], TA30 (30‑ton payload), and XDA60 (60‑ton payload). It is also used in XCMG wheel loaders (LW series), motor graders (GR215, GR300, GR350), and excavators (XE series) that share the same hydraulic and fuel system architecture. Using the genuine XCMG seal eliminates external seepage, internal cross‑leakage, and premature seal extrusion, ensuring that hydraulic circuits remain separate and system efficiency is maintained.
For the Yuchai YC6K and Weichai WP13 engine platforms used in certain ADT configurations, the seal 800165180 is dimensionally compatible. The Weichai WP13 features electronic control high‑pressure common rail technology and a four‑valve structure, and the seal meets all OE specifications for the high‑pressure fuel and lubrication systems. XCMG’s manufacturing facility is certified to IATF 16949:2023 and ISO 9001:2025. The seal is stocked in regional warehouses in the United States (Houston), Netherlands (Rotterdam), South Africa (Johannesburg), Australia (Perth), and China (Xuzhou). Standard lead times are 2‑5 business days. Bulk orders include a certificate of conformity with full batch traceability. Use the inquiry button above to request a quote or place an order for genuine XCMG seal 800165180.
XCMG and the XCMG logo are registered trademarks of Xuzhou Construction Machinery Group Co., Ltd.
OEM part number 800165180 is an original manufacturer reference for a genuine XCMG sealing component. All specifications are derived from XCMG engineering standards and field validation data.
