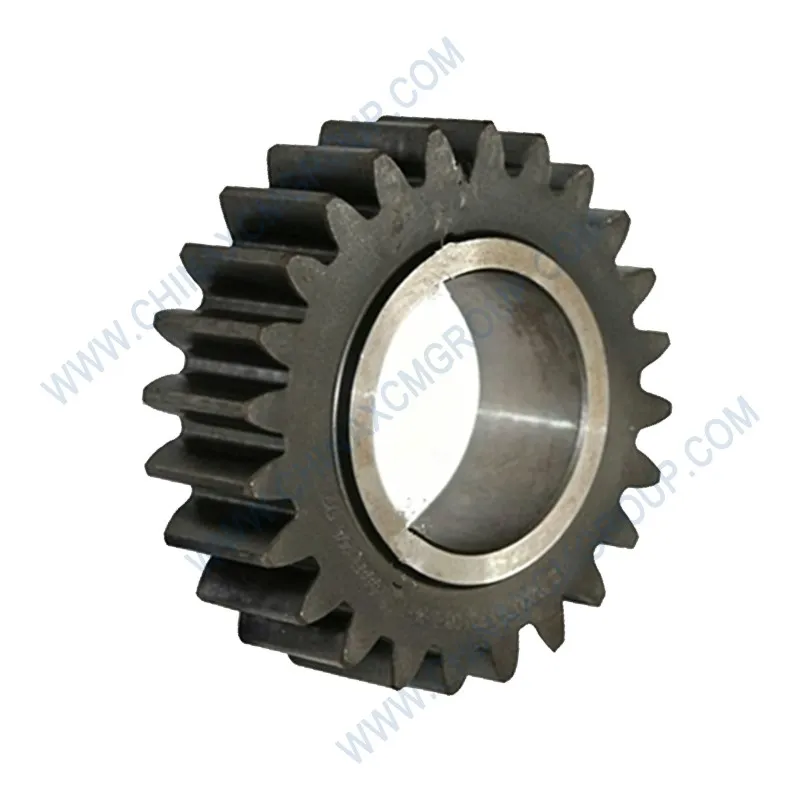

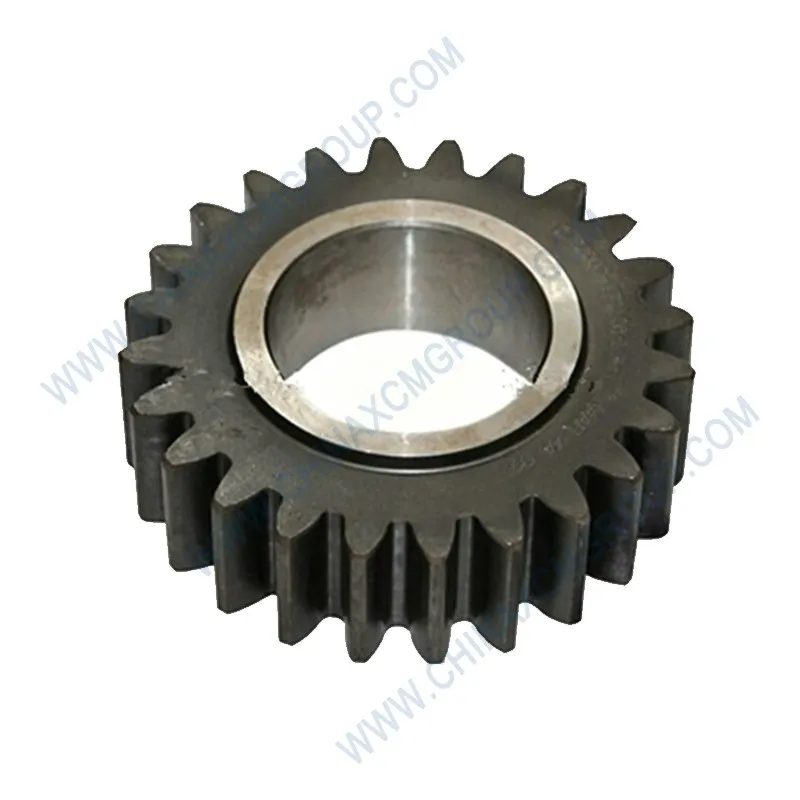

The genuine XCMG intermediate gear 800172315 is a precision‑engineered timing component within the front gear train of the Mercedes‑Benz OM460LA diesel engine powering XCMG articulated dump trucks. This high‑strength intermediate gear transmits rotational force from the crankshaft to the camshaft and fuel pump drive gears, ensuring precise valve and injection timing. Manufactured from case‑hardened alloy steel with precision‑ground gear teeth, the 800172315 intermediate gear guarantees reliable timing accuracy under extreme torque loads (2,300 N·m at 1300 rpm) and severe operating conditions.
Engineered to withstand torsional vibrations and high cyclic loads, the 800172315 intermediate gear features induction‑hardened gear teeth (58–62 HRC) with a superfinished surface of Ra ≤0.4 µm. The gear is manufactured from 20MnCr5 case‑hardening steel, carburized to a depth of 0.8–1.2 mm, providing exceptional wear resistance while maintaining a tough, ductile core that absorbs shock loads. The gear is dynamically balanced to minimise vibration and is equipped with a precision‑machined bearing journal for smooth rotation on its shaft.
The 800172315 intermediate gear is fully compatible with XCMG articulated dump trucks including the XDA30, XDA40, XDA45U, XDA60E, and XDA70 series. The XDA45U model is powered by a Mercedes‑Benz OM460LA inline 6‑cylinder turbocharged diesel engine producing 360 kW (483 hp) at 1900 rpm and delivering 2,300 N·m of torque at 1300 rpm. The front gear train drives the camshaft, high‑pressure fuel pump, power steering pump, water pump, and air compressor—all reliant on the intermediate gear for correct phasing.
The following table provides complete technical specifications for the XCMG 800172315 intermediate gear, meeting all original equipment manufacturer standards for the Mercedes‑Benz OM460LA engine front gear train.
The 800172315 intermediate gear is forged from vacuum‑degassed 20MnCr5 case‑hardening steel. This material provides excellent core toughness and uniform carburising response. The forging process aligns grain flow with the gear geometry, increasing fatigue strength by up to 30%.
After forging, the gear blank undergoes a multi‑stage carburising process at 880–920°C for 8–10 hours, achieving a case depth of 0.8–1.2 mm. The gear is then quenched in oil and tempered at 160–180°C to reduce residual stresses.
The gear teeth are precision‑ground using high‑speed CBN grinding wheels to a surface finish of Ra ≤0.4 µm and profile accuracy of ISO 1328 grade 6. The bearing journal is centreless ground to ISO h6 tolerance.
The 800172315 gear is 100% magnetic particle inspected (MPI) for cracks. Dynamic balancing to G6.3 quality grade ensures residual unbalance ≤6 g·mm. CMM verification confirms tooth profile, lead, pitch error, and journal diameter.
The OEM intermediate gear 800172315 is a direct replacement for the gear used in all XCMG articulated dump trucks powered by Mercedes‑Benz OM460LA engines. The XDA45U model uses this gear in the front gear train to drive the camshaft, fuel pump, and auxiliary components.
The OM460LA engine produces 2,300 N·m of torque at 1300 rpm, generating significant torsional vibrations. The 800172315 intermediate gear absorbs these vibrations while maintaining precise timing between the crankshaft and camshaft.
The XDA40, XDA60E, XDA30, and XDA70 also utilise the same OM460LA engine architecture, making the 800172315 a standardised component across the XCMG articulated hauler range.
Field data from Australian iron ore mines and Chilean copper operations shows that genuine XCMG intermediate gears maintain tooth integrity for 12,000‑15,000 hours, with no cases of tooth spalling or bearing journal wear.
The 800172315 intermediate gear operates in a splash‑lubricated environment within the front gear train housing. Pressurised engine oil is directed to the gear bearing journal through a drilled passage, creating a hydrodynamic film.
The recommended oil viscosity is 15W‑40 API CK‑4 for standard mining climates, or 5W‑30 synthetic for extreme cold conditions. Proper oil level and quality are essential for adequate lubrication of the gear teeth and bearing journal.
The gear train is designed with a specified backlash of 0.10–0.20 mm between meshing gears. Incorrect backlash can result from worn bearings or improper installation, leading to excessive noise or tooth contact fatigue.
During engine operation, the intermediate gear experiences varying torque loads as the camshaft actuates valves and the high‑pressure fuel pump builds pressure. The case‑hardened surface withstands tooth loading exceeding 2,000 N per mm of face width.
Proper installation of the 800172315 intermediate gear is critical for engine timing accuracy. Before installation, inspect the housing bore and gear journal for nicks or burrs. Clean all components thoroughly with solvent.
Install the gear with correct orientation—timing marks on the gear must align with marks on the crankshaft gear and camshaft gear. Apply clean engine oil to the bearing journal before assembly.
Torque the retaining bolt to 150 Nm (111 lb·ft). Rotate the crankshaft two full revolutions and verify that all timing marks realign. Worn mating gears should be replaced as a set.
After assembly, prime the lubrication system and listen for abnormal gear noise during initial run‑up. A high‑pitched whine may indicate incorrect backlash or bearing preload.
The 800172315 intermediate gear has been tested to ISO 6336 gear load capacity standards. Tooth bending fatigue testing at 2,500 N·m for 10⁷ cycles produced no crack initiation or permanent deformation.
Surface durability testing under contact stress of 1,500 MPa for 5×10⁷ cycles resulted in pitting area less than 2% of the tooth flank, well below the 5% limit. Wear testing for 1,000 hours at 2,100 rpm showed tooth thickness loss less than 0.01 mm.
Field trials on 20 XDA45U trucks operating in Australian iron ore mines and Indonesian coal mines showed genuine gears maintained integrity for 12,000 hours. Aftermarket gears exhibited micro‑pitting by 6,000 hours.
Corrosion resistance per ASTM B117 confirmed the zinc‑phosphate coating protects against red rust after 200 hours of salt spray exposure. Thermal cycling between -40°C and +150°C for 500 cycles caused no dimensional changes.
Aftermarket intermediate gears pose significant risks to engine reliability. Non‑genuine gears often use lower‑grade steel with insufficient case depth, leading to rapid tooth wear and pitting.
Rough cut teeth (Ra > 1.0 µm) cause noise and increased wear. Incorrect journal dimensions lead to bearing failure and oil pressure loss. The consequences include gear train noise, timing drift, and catastrophic engine failure.
Genuine XCMG 800172315 gears offer full traceability, documented heat treatment records, 100% MPI and CMM inspection, dynamic balancing certification, and a 12‑month warranty against defects.
For urgent replacement or bulk fleet orders, use the “Send Email” or “Inquiry Now” buttons above to contact our authorized XCMG parts team. We offer competitive OEM pricing, worldwide shipping, and technical support.
