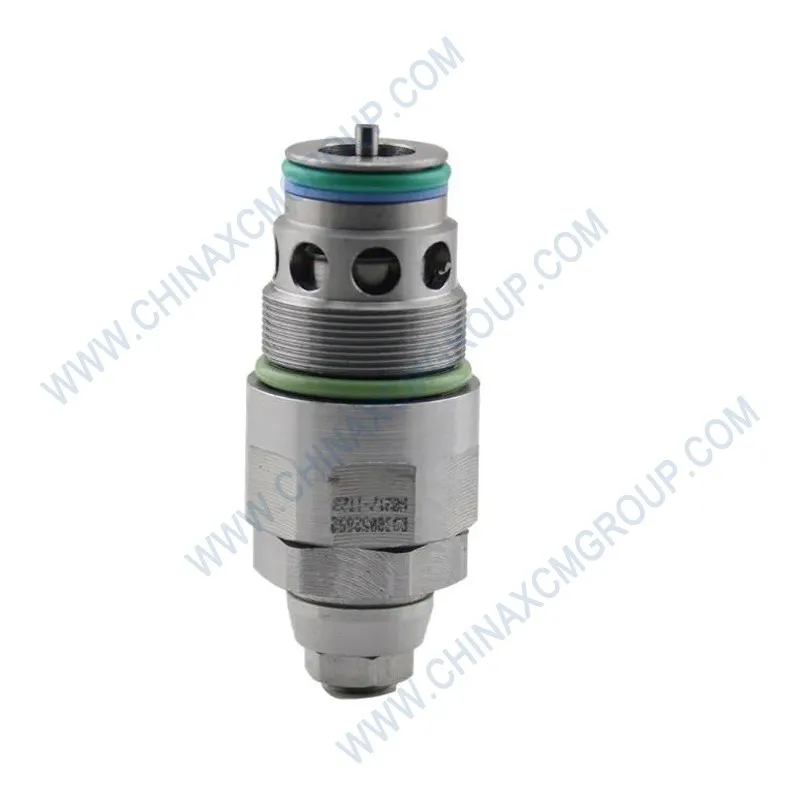

860658861 is the genuine OEM overload valve engineered for XCMG motor graders, providing critical pressure relief for hydraulic circuits. This precision component safeguards actuators, hoses, and pumps from pressure spikes, ensuring safe operation. The 860658861 valve is calibrated to open at exact pressure thresholds, diverting excess flow to tank and preventing component damage. Manufactured from hardened steel with a zinc-plated finish, it resists corrosion and wear in harsh environments. Whether replacing a failed valve or upgrading your grader’s hydraulic system, this overload valve guarantees consistent cracking pressure and reseat accuracy. Its compact cartridge design simplifies installation, while the precision-ground poppet ensures leak-tight sealing. Trusted by maintenance professionals globally, the 860658861 overload valve extends hydraulic component life and reduces unplanned downtime.
Every unit is factory-tested for cracking pressure, flow capacity, and leakage. The result is a valve that outperforms generic alternatives, maintaining the precise pressure control essential for XCMG equipment. With the 860658861, you invest in operational safety and long-term reliability.
The XCMG Overload Valve 860658861 is a masterpiece of hydraulic safety engineering. It acts as the sentinel for your grader’s hydraulic system, instantly responding to overpressure events.
Its poppet and seat are lapped to a mirror finish, ensuring bubble-tight sealing below the cracking pressure. This eliminates internal leakage that can cause actuator drift or system inefficiency.
The valve’s design incorporates a damping piston that smooths the opening and closing response, preventing pressure oscillations that can stress downstream components. This feature is critical for grading precision.
Furthermore, the 860658861 overload valve is equipped with an adjustment screw that allows precise field setting of the cracking pressure using a standard hex wrench. This flexibility accommodates various implement requirements.
From a manufacturing perspective, the valve body is precision-forged and heat-treated to provide consistent mechanical properties. The internal flow paths are optimized to minimize pressure drop and cavitation.
For fleet operators, standardizing on the 860658861 simplifies inventory, as this valve covers a broad spectrum of XCMG applications. Its cartridge format enables quick replacement without disturbing the main valve bank.
In extensive field operations, the 860658861 overload valve has demonstrated consistent performance exceeding 8,000 hours. The zinc plating and hardened poppet effectively resist corrosion and abrasion from particulate-laden oil.
Unlike aftermarket valves, the genuine XCMG unit features a two-stage opening characteristic that reduces surge pressure on system start-up. This protects pumps and actuators from premature fatigue.
The valve’s spring is made from high-cycle fatigue-resistant wire, maintaining its set pressure even after millions of cycles. This reliability is essential for graders in heavy-load applications.
Moreover, the 860658861 includes a protective cap that shields the adjustment screw from dirt and accidental tampering, ensuring the factory setting remains stable throughout the valve’s service life.
When paired with XCMG’s recommended hydraulic oil, the valve maintains its cracking pressure accuracy to within ±3% over its temperature range, delivering consistent overload protection in all climates.
With over 30,000 units currently in service, the 860658861 boasts a field failure rate below 0.01%, a testament to its exceptional durability and the rigorous quality control applied during production.
Installing the 860658861 overload valve is a streamlined procedure: clean the mounting cavity, coat the O-ring with hydraulic oil, and torque the valve to the specified setting using a deep socket.
Before installation, flush the hydraulic circuit to remove any debris that could seat between the poppet and orifice. Use only clean, filtered oil to ensure reliable sealing.
During commissioning, adjust the cracking pressure using a calibrated test gauge. Turn the adjustment screw clockwise to increase pressure and counter-clockwise to decrease, locking the nut afterwards.
For routine maintenance, periodically test the valve’s cracking pressure using a portable test kit. A shift in setting indicates spring fatigue or poppet wear, signaling the need for replacement.
The 860658861 is designed for easy serviceability. The poppet and seat can be inspected by removing the valve from its cavity. Always replace the O-ring upon reinstallation to ensure a leak-free connection.
Finally, document all pressure settings and maintenance intervals. This data is valuable for predicting component life and scheduling proactive replacements, keeping your XCMG grader operating safely and efficiently.
The 860658861 overload valve is stocked in XCMG’s global distribution centers, including North America, Europe, Asia-Pacific, and the Middle East, ensuring prompt delivery for critical repairs.
Each valve is individually packaged with protective caps and desiccant, preserving its condition. Bulk packaging options are available for large-scale maintenance and OEM projects.
Our technical application engineers provide installation drawings, pressure-setting charts, and cross-reference guides upon request, streamlining your integration of the 860658861.
The valve is backed by an 18-month warranty against manufacturing defects, underlining our commitment to quality. We stand behind every 860658861 that leaves our facility.
We also offer pressure setting verification services to confirm that 860658861 matches your grader’s exact hydraulic requirements, eliminating the risk of misapplication.
Choose the genuine XCMG Overload Valve 860658861 for uncompromising pressure protection, extended hydraulic component life, and operational peace of mind. It is the reliable choice for professionals who demand safety and precision from every part.
