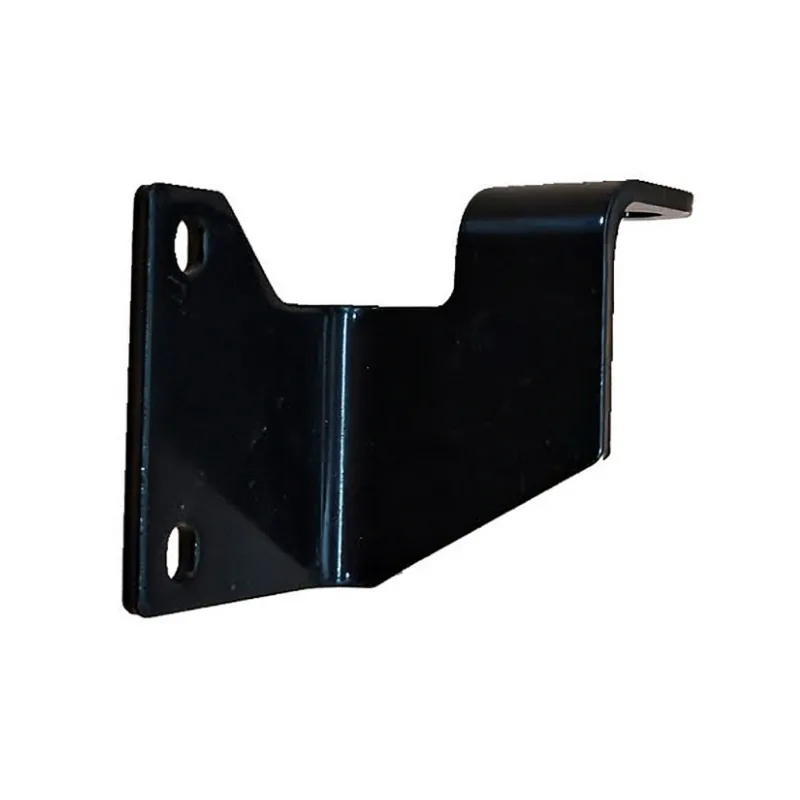

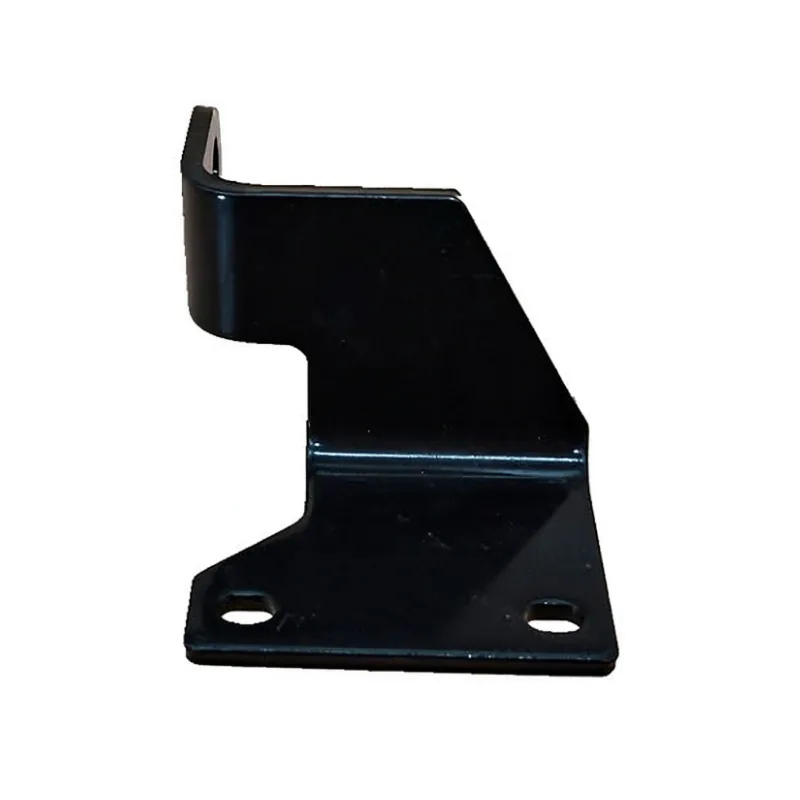

The 800167673 Magnetic Switch Bracket is an OEM replacement mounting component for XCMG hydraulic excavators. It secures the magnetic switch used in the engine starting circuit and keeps the switch stable under vibration.
This bracket is formed from durable steel and finished with an anti-corrosion coating. Its mounting holes and bend angles match the original part, so it fits the factory mounting position without drilling or modification.
The bracket supports the magnetic switch firmly and helps maintain correct alignment with the starter wiring. A stable switch mounting reduces intermittent starting faults caused by loose parts, vibration and dirt.
The 800167673 bracket is suitable for XCMG excavators that use this mounting layout. It is a direct replacement for a cracked, bent or rusted original bracket and restores the correct switch position.
Common signs of a worn bracket include visible cracks near the bolt holes, a loose switch, rust around the mounting points and erratic starter operation. Replacing the bracket removes these mounting faults.
A new bracket protects the switch from excess movement and keeps the starting circuit stable. It is a low-cost repair that supports reliable engine starting in daily excavation work and on remote job sites.
| Parameter | Specification |
|---|---|
| OEM Number | 800167673 |
| Product Name | Magnetic Switch Bracket |
| Brand | XCMG |
| Component Type | Electrical Mounting Bracket |
| Material | Formed steel with anti-corrosion coating |
| Mounting Position | Engine starting circuit, magnetic switch location |
| Installation Method | Bolt-on to original mounting points |
| Surface Finish | Anti-rust coating |
| Application | XCMG hydraulic excavators |
| Vibration Resistance | Designed for continuous machine vibration |
| Corrosion Resistance | Coated for dust, water and mud exposure |
| Certification | OEM validated |
The 800167673 bracket is a small but important part of the starting system. It holds the magnetic switch in the correct position so the switch can engage the starter circuit without movement or misalignment.
On a working excavator, the engine bay is exposed to vibration, dust, mud and temperature changes. The bracket must remain rigid so the switch body and wiring terminals stay stable during digging, lifting and travel.
This replacement bracket is shaped to the original mounting pattern. It supports the switch at the factory angle and keeps clearance around the terminals, making inspection and wiring checks easier during service.
The part is suitable for maintenance programs that replace worn electrical mounting hardware before it causes starting faults. It is a practical item to keep with other XCMG starting system components.
The bracket is designed for stable mounting, simple installation and long service in harsh jobsite conditions. Its main features are listed below for quick comparison.
The 800167673 Magnetic Switch Bracket is intended for XCMG hydraulic excavators with the matching starting system layout. It fits the original mounting points and supports the magnetic switch used in the starter circuit.
Typical use includes general excavation, trenching, loading, site preparation and utility work. In these applications, reliable starting is essential because a machine that will not start can delay the whole work sequence.
The bracket also suits maintenance planning for machines that work in dusty or wet conditions. Inspecting the mounting hardware during electrical service helps prevent unexpected starting problems.
Always confirm the OEM number and mounting layout before fitting. The 800167673 part is a direct replacement for the matching bracket position and helps keep the starting circuit close to factory specification.
Before installation, park the excavator on level ground, lower the equipment to the ground and switch off the engine. Disconnect the battery negative terminal to protect the starting circuit during work.
Remove the old bracket and keep the mounting bolts for inspection. Clean the mounting area and check the switch body, terminals and wiring for damage, corrosion or loose connections before fitting the new part.
Position the 800167673 bracket on the original mounting points, install the bolts finger-tight and check switch alignment. Tighten the fasteners to the workshop torque value and confirm the terminals have enough clearance.
Reconnect the battery, test the starting circuit and check that the switch is secure. During routine service, inspect the bracket for cracks, rust and loose bolts to keep the starting system reliable.
The 800167673 bracket is produced to match the original mounting dimensions. Material thickness, hole spacing and bend angles are checked so the part fits the intended switch position.
The anti-corrosion coating helps protect the steel from mud, water and dust. This is important for excavators that work outdoors and are washed or exposed to rain during normal operation.
Each bracket is checked for surface quality, mounting hole alignment and overall shape. Batch inspection supports consistent fit and helps reduce installation time in the workshop.
A secure bracket protects the magnetic switch from unnecessary movement. This supports stable electrical contact and helps avoid intermittent starting symptoms caused by a loose or damaged mount.
A damaged bracket can cause a loose switch, poor electrical contact and difficult starting. Replacing the bracket early is a simple way to protect the starting circuit and avoid unnecessary downtime.
The 800167673 part offers a direct fit, durable steel construction and a coated finish. It is designed for the practical demands of XCMG hydraulic excavators in construction and earthmoving work.
For maintenance teams, stocking this bracket with other starting system parts helps reduce waiting time when a machine needs repair. It supports planned service and quick replacement.
Choose the 800167673 Magnetic Switch Bracket for a secure switch mount, correct alignment and dependable starting performance on compatible XCMG excavators. Confirm the OEM number before ordering.
