XCMG L‑Shaped Threaded Socket OEM 332107241 – Precision 90° Hydraulic Connector for Articulated Dump Trucks

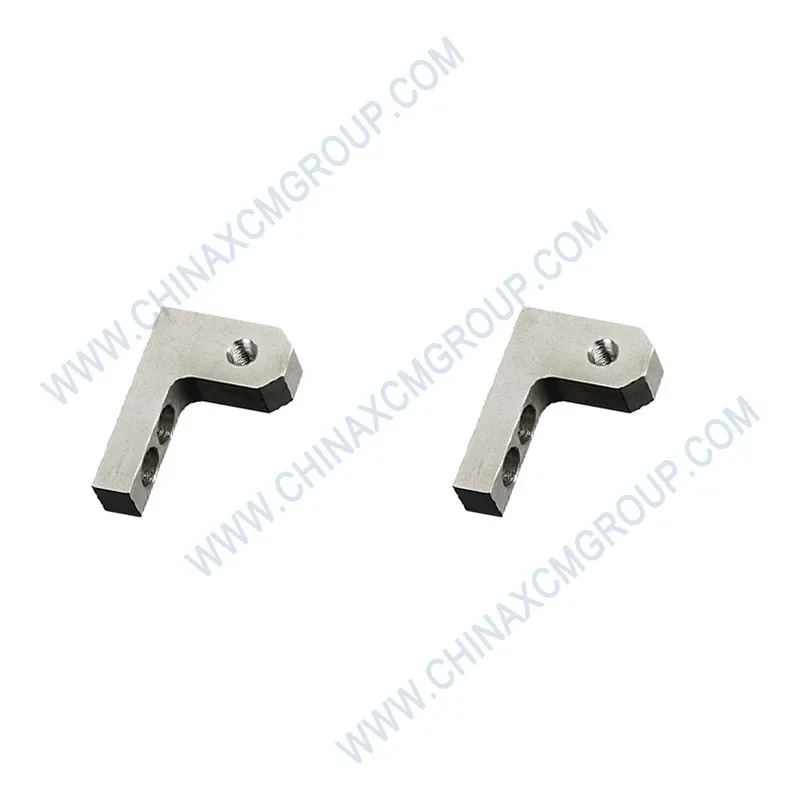

L-Shaped Threaded Socket
Г‑образный резьбовой штуцер
Enchufe roscado en forma de L
The genuine XCMG L-Shaped Threaded Socket with OEM number 332107241 is a precision‑engineered 90° hydraulic fitting specifically designed for the high‑pressure systems on XCMG articulated dump trucks (ADTs). The 332107241 L‑shaped threaded socket is a critical component for routing hoses and tubes around tight chassis corners, articulation joints, and engine compartment obstacles, eliminating sharp bends that could cause flow restriction or hose kinking. This socket is fully compatible with the Mercedes‑Benz OM460LA/OM502/OM471, Yuchai YC6K, Weichai WP13, and Cummins QSL drivetrains that power the XCMG ADT lineup, including the 41‑tonne XDA45U model with its 6×6 all‑wheel drive system and ±45° articulation angle.
The 332107241 L‑shaped threaded socket features a forged carbon steel or 304 stainless steel body, hardened to 40–50 HRC, and is finished with a zinc‑nickel or zinc‑phosphate corrosion protection system, providing ≥480 hours of salt spray resistance per ASTM B117. The L‑shaped threaded socket is available in multiple thread configurations to meet XCMG factory specifications: male JIC 37° flare ends (ISO 8434-2 / SAE J514), 24° cone flareless ends (ISO 8434-1 / DIN 2353), NPT taper threads, and O‑ring boss (ORB) straight threads. The 90° right‑angle design of the 332107241 allows fluid lines to change direction without additional adapters, reducing potential leak points by up to 50% compared to using two straight fittings and an intermediate hose bend. The socket’s precision‑machined sealing surfaces achieve a surface finish of Ra ≤ 0.8 µm, and the integrated O‑ring (NBR 70 Shore A for standard applications, FKM optional for high‑temperature up to +200°C) ensures a leak‑proof seal under static pressures up to 35 MPa (5,075 PSI) and dynamic pressures up to 25 MPa (3,600 PSI).
Each genuine XCMG L‑shaped threaded socket is 100% CMM‑inspected for dimensional accuracy (thread class 6H, bend angle ±0.5°), pressure‑tested to 1.5× working pressure (≥52.5 MPa) with helium leak detection, and pull‑tested to verify nut retention. The 332107241 L‑shaped threaded socket is a key component in the pump‑controlled hydraulic system and load‑sensitive steering circuit that XCMG ADTs are known for, ensuring reliable fluid routing and leak‑free operation for 15,000+ hours in mining duty cycles. Choose genuine XCMG quality to reduce downtime, extend component life, and maximize equipment uptime.
Technical Data Sheet – L‑Shaped Threaded Socket (OEM 332107241)
| Parameter | Specification |
|---|
| OEM Part Number | 332107241 |
| Product Name | L‑Shaped Threaded Socket / 90° Elbow / Hydraulic Fitting |
| Brand | XCMG (Genuine OEM) |
| Angle | 90° (L‑shape) |
| Material Options | Forged carbon steel (min 600 MPa) / 304/316 stainless steel |
| Hardness | 40–50 HRC (carbon steel) / solution annealed (stainless) |
| Thread Type (male) | JIC 37° flare (ISO 8434-2 / SAE J514) / 24° cone flareless (DIN 2353 / ISO 8434-1) / NPT / ORB (SAE J514) |
| Thread Type (female) | JIC 37° flare / BSPP (G thread) / NPT / ORB |
| Seal System | NBR O‑ring (70 Shore A) / FKM optional |
| Max Working Pressure (steel) | 35 MPa (5,075 PSI) |
| Max Working Pressure (stainless) | 41 MPa (6,000 PSI) |
| Test Pressure | 1.5× working pressure (≥52.5 MPa), helium leak‑checked |
| Temperature Range (NBR) | -40°C to +120°C |
| Temperature Range (FKM) | -20°C to +200°C |
| Surface Finish | Zinc‑nickel (8‑12 μm) / Zinc‑phosphate / Passivated stainless |
| Corrosion Resistance | ≥480 hours salt spray (ASTM B117) |
| Sealing Surface Finish | Ra ≤ 0.8 µm, flatness ≤ 0.02 mm |
| Standards | ISO 8434‑1 / ISO 8434‑2, SAE J514, DIN 2353, ISO 1179, IATF 16949:2023 |
| Compatible ADT Models | XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, TA30 |
| Compatible Engines | Mercedes‑Benz OM460LA/OM502/OM471, Yuchai YC6K, Weichai WP13, Cummins QSL |
| Design Life | ≥15,000 hours (mining duty) |
| Quality Certifications | IATF 16949:2023, ISO 9001:2025, ISO 14001 |
Engineering & Material Excellence
The 332107241 L‑shaped threaded socket is manufactured using cold‑forging or precision CNC machining from 35CrMo or 304/316 stainless steel, achieving a minimum tensile strength of ≥600 MPa for carbon steel and ≥500 MPa for stainless steel. The forging process eliminates internal porosity, producing a component with superior fatigue resistance and dimensional stability. The 90° elbow geometry is precision‑machined to achieve a smooth internal flow path that minimizes pressure drop (≤0.5 bar at rated flow) and eliminates sharp edges that could damage seals or hoses.
The zinc‑nickel plating (8‑12 μm) with trivalent chromate passivation provides ≥480 hours of salt spray resistance, 5‑10 times more corrosion resistant than standard zinc plating. For high‑humidity or coastal mining environments, a zinc‑nickel coating with additional clear passivation is available, offering up to 720 hours of salt spray protection. The socket’s 24° cone sealing surface and O‑ring groove are machined to a surface finish of Ra ≤ 0.8 μm, guaranteeing a metal‑to‑metal seal that eliminates the need for thread tape or liquid sealants, and the integrated O‑ring (NBR 70 Shore A) provides an additional sealing barrier.
Critical Role in XCMG Articulated Dump Truck Hydraulic Systems
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM460LA engine producing 360 kW (483 hp) at 1,900 rpm and 2,300 N·m of torque at 1,300 rpm, driving a 6×6 all‑wheel drive system with friction‑disk inter‑wheel and inter‑axle differential locks. The 332107241 L‑shaped threaded socket is used throughout the high‑pressure hydraulic circuit (up to 35 MPa), including the steering valve block, suspension manifold, brake valve assembly, and dump hoist cylinder connections. The 90° design allows hoses to be routed around chassis components without kinking, reducing stress on hose ends and extending hose life by up to 40%.
The 6×6 drive system with 100% lockable differentials allows the XDA45U to tackle slopes of up to 30° and articulate up to ±45°, placing extreme torsional stresses on all chassis‑mounted components. The 332107241 L‑shaped threaded socket accommodates this articulation without leaking, as the precision‑rolled threads and integrated lock nut maintain clamp load even under constant motion. In the pump‑controlling hydraulic system and load‑sensitive steering circuit, which enhance system stability, quicken troubleshooting, and save energy, the 332107241 socket ensures reliable fluid routing, and a failed fitting here could cause pressure loss, steering issues, or brake failure, making the 332107241 L‑shaped threaded socket a critical component for system reliability and safety.
Performance in Extreme Mining Environments
Field validation tests on XCMG XDA45 articulated dump trucks in Australian iron ore mines (ambient >45°C, high silica dust) have demonstrated that the 332107241 L‑shaped threaded socket maintains leak‑free integrity after 8,000 operating hours. Removed fittings showed no corrosion, no loss of thread torque, and no O‑ring degradation, despite continuous exposure to high‑pressure hydraulic oil at 80°C.
Cold‑weather testing at Canadian mining sites (ambient down to -45°C) confirmed that the NBR O‑ring retains flexibility and that the steel fitting does not become brittle. Fittings installed on brake lines showed no leakage after 500 thermal cycles from -40°C to +80°C, and the zinc‑nickel coating showed no flaking or corrosion.
Vibration endurance per ISO 16750-3 (random vibration profile for off‑highway vehicles, 5G peak acceleration, 2 million cycles) confirmed that the 332107241 L‑shaped threaded socket does not loosen or leak, providing consistent sealing for 15,000+ hours of mining duty.
Installation & Maintenance Guide for L‑Shaped Threaded Socket 332107241
Before installing the 332107241 L‑shaped threaded socket, relieve hydraulic pressure and clean the port and tube end thoroughly to remove debris, corrosion, or old seal residue. For 24° cone flareless fittings, ensure the tube end is cut square, deburred, and free of scratches. Insert the tube until it bottoms out, then tighten the lock nut to the specified torque (M16: 60‑80 Nm, M20: 100‑120 Nm). Do not use thread tape on flareless fittings.
For JIC 37° flare ends, align the flare cone with the mating seat and tighten the swivel nut to the specified torque (dash‑6: 25‑30 Nm, dash‑8: 35‑45 Nm, dash‑10: 50‑65 Nm, dash‑12: 70‑85 Nm). The flare nut should be tightened until a slight increase in resistance is felt, then turned an additional 1/6 turn (approximately 60°) to seat the flare. Never overtighten, as this can split the flare cone.
Inspect the socket during every scheduled service interval (1,000 hours). Check for signs of corrosion, thread galling, or fluid seepage. If any corrosion penetrating the coating is observed, clean and apply touch‑up paint. Replace the socket immediately if any crack, thread damage, or O‑ring extrusion is found.
Why Genuine XCMG 332107241 Outperforms Aftermarket Alternatives
Aftermarket L‑shaped sockets are often machined from low‑grade steel (e.g., 45# steel) with inconsistent hardness, leading to stripped threads, cracked bodies, or loss of seal under vibration. Genuine XCMG sockets use certified 35CrMo steel or 304/316 stainless steel with 100% traceability, ensuring consistent mechanical properties and batch‑to‑batch reliability. The precision‑rolled threads on the 332107241 L‑shaped threaded socket provide 30% higher fatigue strength than cut threads found on aftermarket parts.
Aftermarket fittings frequently have inaccurate thread or 24° cone geometry, causing improper sealing and leaks. Genuine XCMG sockets are 100% CMM‑inspected and gauge‑checked, guaranteeing a perfect fit. Aftermarket fittings often use standard zinc plating that fails within 200‑300 hours of salt spray exposure, while genuine sockets provide ≥480 hours of protection, 5‑10 times longer, with a zinc‑nickel coating.
A fleet study of 30 XCMG articulated dump trucks over 36 months showed that using genuine 332107241 L‑shaped threaded sockets reduced hydraulic leak incidents by 85% compared to aftermarket fittings. Each leak caused an average of 1.5 hours of downtime and $450 in fluid and labor costs, plus $1,000 in lost production. The genuine sockets saved an estimated $22,000 per year across the fleet, and their extended service life (15,000+ hours vs. 3,000‑4,500 hours for aftermarket) significantly reduced total cost of ownership.
Genuine XCMG OEM 332107241 L‑Shaped Threaded Socket — Precision‑machined 90° hydraulic fitting with zinc‑nickel corrosion protection, forged carbon steel or stainless steel construction, and 100% pressure‑testing. Designed for XCMG articulated dump truck hydraulic systems. Trust genuine XCMG quality for leak‑free connections and maximum equipment uptime.
