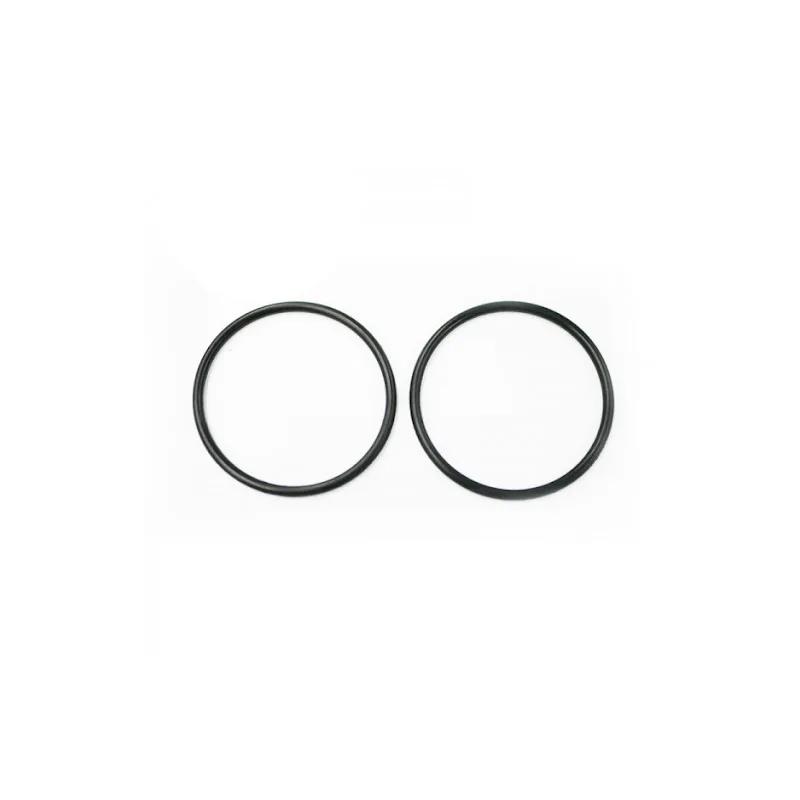

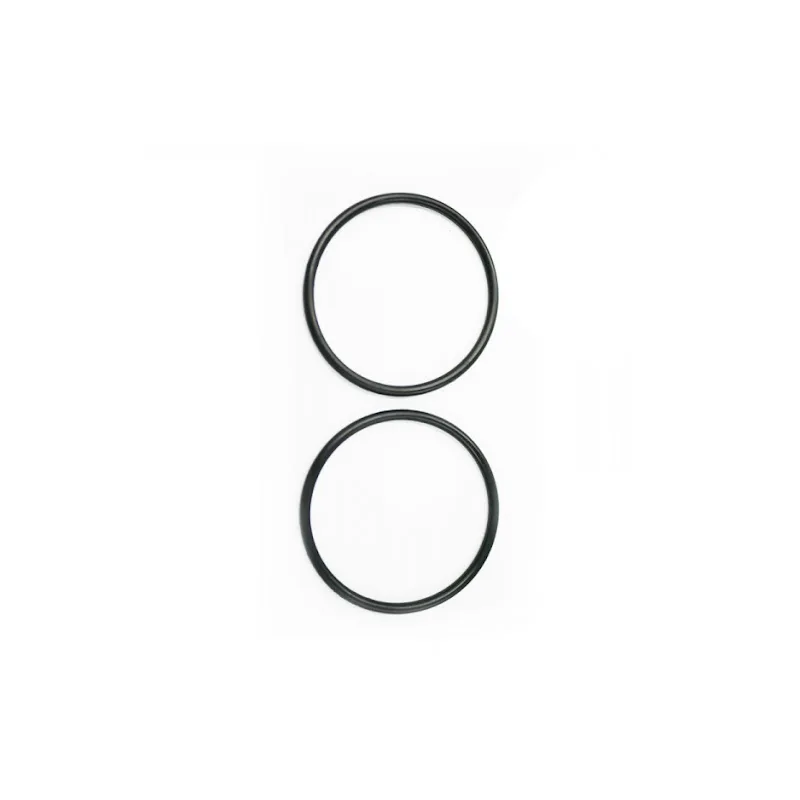

The 800161824 Water Jacket Heating Washer, cross-referenced as 3637731, is an OEM replacement sealing washer for XCMG hydraulic excavators. It sits at the water jacket connection and helps seal the coolant passage in the engine block.
This washer is produced from heat-resistant, coolant-resistant material. It holds its shape under the temperature swings of a working diesel engine and resists swelling from long-term contact with antifreeze mixture.
The 3637731 washer is precision-formed to match the original sealing face and bolt position. Its thickness and diameter are checked so the joint compresses evenly and seals tightly under clamp load.
On an excavator, the water jacket carries coolant around the cylinders to control engine temperature. A failed washer can allow coolant to seep out, causing low level, overheating and corrosion around the joint.
Common replacement signs include coolant stains near the water jacket, a sweet smell around the engine bay, low coolant level with no visible hose leak, white residue on the engine block and rising temperature under load.
Fitting a new 800161824 washer restores a clean seal at the water jacket joint. This supports correct cooling, helps prevent overheating and protects the engine block from corrosion in daily excavation work.
| Parameter | Specification |
|---|---|
| OEM Number | 800161824 |
| Cross Reference | 3637731 |
| Product Name | Water Jacket Heating Washer |
| Brand | XCMG |
| Component Type | Cooling System Sealing Washer |
| Material | Heat and coolant resistant sealing compound |
| Application | XCMG hydraulic excavators |
| Engine Compatibility | Cummins QSK series, model dependent |
| Installation Position | Water jacket connection, engine block |
| Coolant Resistance | Resistant to antifreeze mixture and glycol |
| Temperature Resistance | High-temperature engine cooling service |
| Installation Method | Direct fit at original sealing face |
| Quality Standard | OEM validated |
The water jacket is the coolant passage that surrounds the engine cylinders. It carries heat away from the combustion chamber and keeps the engine at a safe working temperature.
The heating washer seals a connection point on this jacket. It fills the gap between the mating surfaces and prevents coolant from seeping out under pressure and heat.
In an excavator, the engine works under changing load during digging, lifting and travel. The 800161824 washer must hold its seal through heat cycles, vibration and pressure changes.
The 3637731 washer is shaped to match the original sealing face. This supports even compression, correct bolt clamping and a tight barrier against coolant weep.
A failed washer can allow coolant to reach the engine block surface, where it may cause corrosion, staining and a slow drop in coolant level that is hard to trace.
Replacing the washer during cooling system service is a low-cost preventive step. It avoids a second repair later and protects the engine block from long-term corrosion damage.
The washer is built for coolant resistance, heat tolerance and a precise fit. The main features are listed below for quick comparison.
The 800161824 Water Jacket Heating Washer is intended for XCMG hydraulic excavators with the matching cooling system layout. It fits the original sealing face and bolt position.
The 3637731 cross-reference covers Cummins QSK-series engine platforms used in large mining and construction excavators. This makes the washer suitable for machines in heavy-duty work.
Typical use includes general excavation, trenching, loading, site preparation and quarry work. These jobs demand stable engine temperature through long shifts and changing loads.
Always confirm the OEM number and engine model before fitting. The 800161824 part is a direct replacement for the matching position and keeps cooling system sealing close to factory specification.
Park the excavator on level ground, lower the attachment and switch off the engine. Allow the engine to cool completely and disconnect the battery before working on the cooling system.
Release the cooling system pressure and drain the coolant to a safe level. Clean the area around the joint to keep dirt out of the coolant passages before removing the old washer.
Clean the sealing faces, fit the new 800161824 washer and tighten the retaining parts to the workshop torque value. Avoid over-tightening, which can distort the sealing face.
Refill with the correct coolant mixture, run the engine and check for leaks around the joint. A pressure test helps confirm the seal is holding before the machine returns to work.
The 800161824 washer is produced to match the original sealing dimensions. Inner diameter, outer diameter and thickness are checked for correct fit and compression.
The sealing material is selected for coolant and heat resistance. This is important for excavators that work long shifts and are exposed to mud, water and dust.
Each batch is inspected for surface quality, material density and dimensional accuracy. Batch checks support consistent fit and help reduce installation time in the workshop.
A correct washer protects the engine block from coolant seepage and corrosion. This supports stable cooling and helps avoid overheating during heavy excavation work.
A failed sealing washer can seem like a small problem, but it can allow coolant to escape and lead to overheating. Ignoring it may cause head gasket damage and costly engine repairs.
The 800161824 replacement washer offers a direct fit, coolant-resistant material and a clean sealing surface. It is designed for the practical demands of XCMG excavators in earthmoving work.
For maintenance teams, stocking this washer number helps reduce waiting time when a cooling leak appears. It supports planned service and quick replacement.
Choose the 800161824 3637731 Water Jacket Heating Washer for correct sealing, stable cooling and dependable performance on compatible XCMG excavators. Confirm the OEM number before ordering.
