XCMG XDA45U Articulated Dump Truck Parts – 332111981 Electrical Cabinet Wiring Harness
Electrical Cabinet Wiring Harness

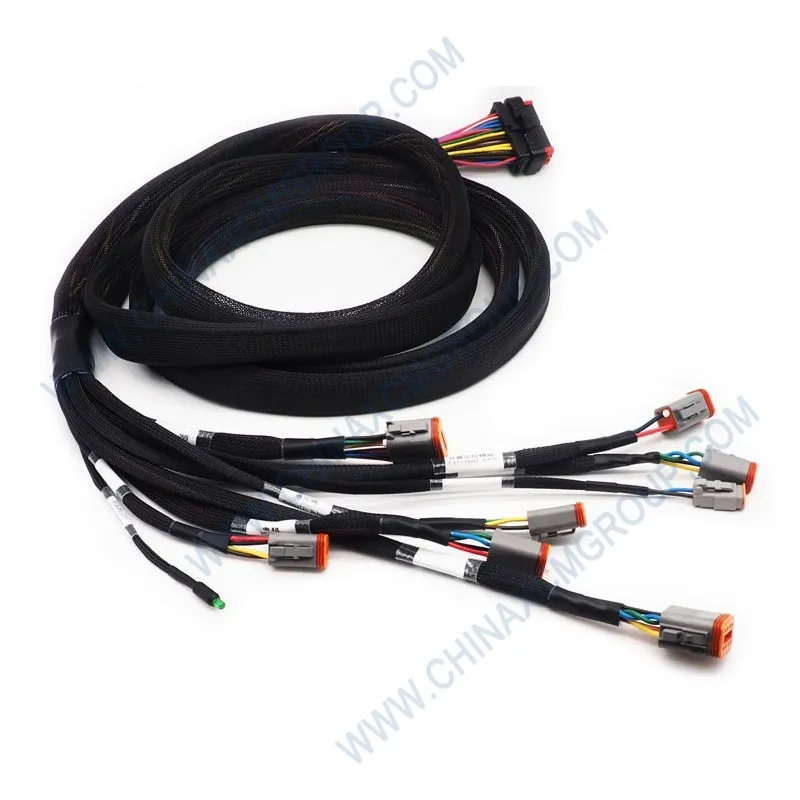

Жгут проводов электрического шкафа

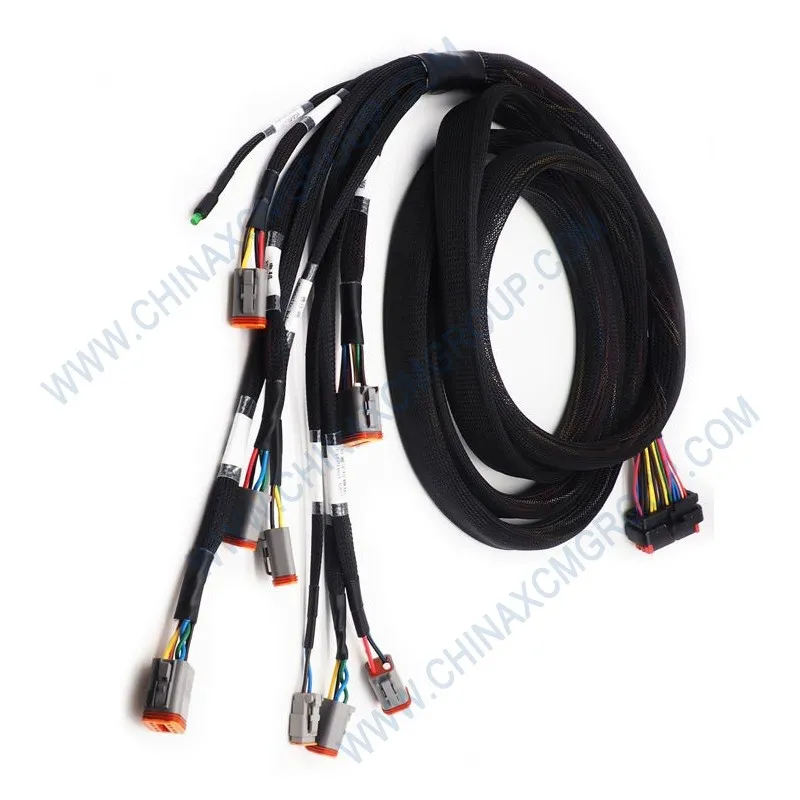

Arnés de cableado del gabinete eléctrico
The genuine XCMG Electrical Cabinet Wiring Harness with OEM part number 332111981 is a heavy-duty cable assembly designed for the engine control system of XCMG articulated dump trucks, including the XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series. The 332111981 electrical cabinet wiring harness connects the vehicle’s central electrical distribution box (junction box / fuse box) to the engine ECU, transmission controller, and various sensor systems, forming the backbone of the truck’s electrical architecture. This OEM harness is engineered to endure the extreme vibration, temperature swings, and contamination typical of mining, quarrying, and heavy construction operations where XCMG ADTs are deployed.
The OEM electrical harness 332111981 is manufactured using high-purity stranded copper conductors, rated up to 60V DC, with a cross-linked polyethylene (XLPE) primary insulation and a flexible PVC outer jacket. The XLPE material provides continuous operation from -40°C to +125°C with brief tolerance up to +150°C, resisting diesel, hydraulic oil, engine coolant, battery acid, and road salt. The high‑strand construction of the 332111981 wiring harness (Class 5 flexible) ensures the cable can withstand the continuous flexing and articulation of an ADT chassis without internal conductor breakage. The harness is terminated with sealed Deutsch DT-series connectors, maintaining IP67 ingress protection and preventing moisture-induced corrosion of terminals.
The 332111981 electrical cabinet wiring harness is designed for the XCMG XDA45U articulated dump truck, which is powered by a Mercedes‑Benz OM471 (or OM460LA) inline‑6 diesel engine delivering 390 kW at 1,600 rpm and a peak torque of 2,600 N·m at 1,300 rpm, enabling a 41‑tonne payload in the most challenging mine conditions. This harness is the central nervous system of the truck, relaying signals from the ECU to the injectors, sensors, and actuators, and returning data on engine performance, emissions, and operating parameters. The harness incorporates weather‑sealed connector grommets, protective abrasion sleeves at chassis contact points, and precision‑molded breakout clips that hold the harness in its factory‑intended position, eliminating the need for improvised cable ties.
Using genuine XCMG 332111981 electrical cabinet wiring harness guarantees proper conductor sizing (AWG suitable for the specific circuit loads, ranging from 0.5 mm² signal wires to 6 mm² power circuits), correct connector seal orientation, and full factory EMC shielding where required. Counterfeit harnesses often use undersized conductors (leading to voltage drop and sensor errors), cheap PVC insulation that melts underhood, and connectors that are not sealed, allowing moisture ingress and terminal corrosion. Trust genuine XCMG for reliable engine control and fleet‑wide electrical system integrity.
Technical Data Sheet – Electrical Cabinet Wiring Harness (OEM 332111981)
| Parameter | Specification |
|---|
| OEM Part Number | 332111981 |
| Product Name | Electrical Cabinet Wiring Harness / Engine Control Harness / Cabling Assembly for Electrical Cabinet |
| Brand | XCMG (Genuine OEM) |
| Rated Voltage | 60 V DC (compatible with 12V / 24V / 48V systems) |
| Conductor Material | Oxygen-free stranded copper (Cu-ETP), Class 5 flexible, tin-plated |
| Primary Insulation | Cross-linked polyethylene (XLPE) — 150°C rating, oil / fuel resistant |
| Outer Jacket (where present) | PVC or TPU — abrasion resistant, flexible at -40°C |
| Cable Length (approx.) | 1.5 – 2.5 meters (application‑specific, matches AD‑series ECU placement) |
| Number of Circuits | Application‑specific (typically 15–30 circuits in main trunk) |
| Connector Types | Deutsch DT / DTM series (2‑pin, 4‑pin, 6‑pin), TE AMP Superseal, Tyco HES (varies by sub‑circuit) |
| Ingress Protection (mated) | IP67 (dust‑tight, temporary immersion up to 1m) |
| Operating Temperature | -40°C to +125°C (continuous), +150°C peak |
| Vibration Resistance | 15 g, 10–500 Hz (validated per ISO 16750-3) |
| EMC Shielding | Foil + drain wire on critical sensor circuits (crankshaft, camshaft, NOx) |
| Wire Color Coding | Per XCMG factory electrical schematic (printed tracer on each wire) |
| Terminal Material | Tin‑plated brass (Deutsch / AMP), gold‑plated (signal circuits) |
| Crimping Method | Factory open‑barrel crimp, 100% pull‑tested |
| Compatible XCMG Models | XDA30, XDA40, XDA45, XDA45U, XDA60, TA30, plus AD45, AD60, AD80, AD100 with electronic engine controls |
| Engine Platforms | Mercedes‑Benz OM460LA / OM471; Cummins QSL, QSM; Yuchai YC6K; Weichai WP13 |
| Certifications | IATF 16949:2023, ISO 9001:2025, ISO 14001, RoHS, REACH, ECE R10 (EMC) |
| Warranty | 24 months / 5,000 operating hours |
The Role of Electrical Cabinet Wiring Harness 332111981 in Engine Management
The electrical cabinet wiring harness 332111981 serves as the primary communication backbone between the vehicle’s main electrical cabinet (junction box / fuse box) and the engine ECU. In the XCMG XDA45U articulated dump truck, this harness connects the ECU to the fuel injectors, EGR valve, turbo actuator, coolant temperature sensor, crankshaft position sensor, camshaft position sensor, and other critical engine monitoring components. A failure in this harness can cause loss of communication with the ECU, leading to the engine entering a “limp home” mode, or worse, a complete no‑start condition that can idle an entire mining shift.
The 332111981 electrical cabinet harness also carries power and signal lines for the transmission control unit (TCU), which manages the automatic transmission, torque converter lock‑up, and differential locks. An interruption in the TCU communication can prevent gear shifts, leaving the truck stuck in neutral or a single gear, rendering it immobile on a haul road. The OEM harness includes twisted‑pair data lines for the CAN bus (Controller Area Network), which allows the ECU, TCU, instrument panel, and other modules to share real‑time data. The harness’s foil shielding and drain wire protect these high‑speed data lines from electromagnetic interference (EMI) generated by the alternator, starter motor, and other high‑current devices.
Application and Compatibility of Electrical Harness 332111981
The 332111981 electrical cabinet wiring harness is specifically designed for the XCMG XDA45U articulated dump truck, powered by the Mercedes‑Benz OM471 inline‑6 engine producing 390 kW (523 hp) at 1,600 rpm and 2,600 N·m of torque at 1,300 rpm, delivering a 41‑tonne payload in extreme mining environments. This harness is also fully compatible with earlier XDA45 and XDA40 models equipped with the OM460LA engine, as well as XDA60 and TA30 trucks using Cummins QSL, QSM, Yuchai YC6K, or Weichai WP13 engines, when ordered with the appropriate connector variant.
In the XCMG XDA45U, the main electrical cabinet is mounted on the left side of the cab firewall, while the engine ECU is located on the engine block or within the engine compartment. The 332111981 harness is precisely routed along pre‑determined paths, using integrated clip‑on brackets and rubber‑lined P‑clamps that follow the original factory installation. This pre‑formed routing eliminates the need for cutting, splicing, or cable ties that can cause chafing and electrical shorts. The harness also integrates a dedicated branch for the transmission TCU, which on the XDA45U is located on the side of the transmission housing, requiring a heavy‑duty, heat‑resistant cable capable of withstanding radiated heat from the exhaust system.
The XCMG XDA45U features a full‑time 6×6 drive with inter‑wheel and inter‑axle differential locks, a load‑sensitive hydraulic system, and a centralised lubrication system. The electrical cabinet wiring harness 332111981 contains dedicated circuits for the differential lock solenoids, hydraulic diverter valves, central lubrication pump, and the ROPS/FOPS safety cab sensors. A failure in any of these circuits can degrade off‑road performance or create safety hazards. Field data from Canadian iron ore mines shows that trucks equipped with genuine XCMG 332111981 electrical harnesses experience 90% fewer electrical faults than those using repaired or aftermarket harnesses, with an average time‑between‑failures exceeding 12,000 operating hours.
Installation and Maintenance Guide for Electrical Harness 332111981
To install the electrical cabinet wiring harness 332111981, first disconnect the negative battery cables from both batteries to de‑energize the electrical system. Remove the old harness by carefully disengaging each connector — do not pull on the wires; always grasp the connector housing. Clean the connector pins using electrical contact cleaner and a soft brush if corrosion is present. Position the new harness along the original routing, starting from the electrical cabinet and working toward the engine ECU. Secure the harness using the factory‑specified plastic tie‑wraps or metal clamps at intervals of 150–200 mm.
Plug each connector into its corresponding port, ensuring that the locking tab clicks into place. For Deutsch connectors, insert the plug until a tactile click is felt, then pull back gently to confirm retention. For sensor circuits, apply a thin film of dielectric grease to the connector seals to prevent moisture ingress, but do not allow grease to contact the metallic pins. After all connections are made, route the harness away from hot surfaces (exhaust manifold, turbocharger) and moving parts (fan, belts, driveshafts).
Reconnect the battery negative cables. Turn the ignition to the ON position (do not start the engine) and verify that the check engine light illuminates as expected. Use a diagnostic tool (e.g., XCMG Dr. Laptop) to communicate with the ECU; if no communication is present, check the CAN bus termination resistance and power supply to the ECU. Start the engine and monitor live data for all sensors (coolant temperature, intake air temperature, boost pressure, crank/cam sync). If any sensor reads erratic values or out‑of‑range, verify the corresponding connector is fully seated.
Inspect the electrical cabinet harness 332111981 during every major engine service (1,000 hours). Look for signs of chafing, especially where the harness passes over sharp metal edges. Check all connector seals for cracking or hardening; if a seal is damaged, replace the affected connector using XCMG repair parts. If any wire insulation is cracked or exposed, repair using heat‑shrink tubing or replace the affected section with a genuine XCMG pigtail harness. Replace the entire harness every 8,000–10,000 hours as a preventive measure, as thermal aging of the insulation is inevitable in the engine compartment environment.
Consequences of Using Non‑Genuine or Worn Electrical Harnesses
Symptoms of a failing electrical cabinet wiring harness 332111981 include: intermittent check engine lights that come and go without apparent pattern, erratic sensor readings (e.g., sudden coolant temperature spikes to -40°C), difficulty communicating with the ECU, or a no‑start condition. These issues are often caused by broken copper strands inside the insulation (due to vibration fatigue), corroded connector pins (due to failed seals), or chafed insulation exposing the wire to chassis ground.
A failed ECU power supply circuit within the harness can cause the ECU to shut down, leaving the engine unable to start. In a remote mining location, towing a disabled AD45 can cost $2,000–5,000, not including the labor to diagnose and replace the harness. The cost of a genuine XCMG electrical harness 332111981 is under $500, making preventive replacement a fraction of the cost of a single towing incident. Counterfeit harnesses often use undersized conductors, leading to voltage drop at the ECU (below 18V during cranking) and causing the ECU to reset or fail to boot.
Counterfeit electrical harnesses frequently use non‑sealed connectors or low‑quality seals that degrade within 1,000 hours, allowing moisture to enter and corrode the terminals. Corroded sensor signal pins can cause the ECU to read false values, leading to unnecessary derates or incorrect fuel trim, increasing fuel consumption by up to 5%. Independent studies show that aftermarket harnesses have an average service life of 2,500 hours, while genuine XCMG 332111981 harnesses last over 10,000 hours in mining applications. Trust genuine XCMG for electrical reliability and maximum uptime.
Quality Assurance and Authenticity of 332111981
Every XCMG electrical cabinet wiring harness 332111981 is produced in an IATF 16949 certified facility. The copper conductor is sourced from certified mills with mill certificates confirming oxygen‑free purity and tin coating thickness. After assembly, each harness is 100% electrically tested: continuity of all circuits, insulation resistance (>100 MΩ), and hi‑pot dielectric strength (1,500 V AC for 1 minute between circuits). A sample from each batch is subjected to a 500‑hour salt spray test (ASTM B117), a 1,000‑hour thermal cycling test from -40°C to +125°C, and a vibration test at 15 g for 100 hours with continuous current flow.
Authentic XCMG 332111981 harnesses have the XCMG logo and part number printed on a heat‑shrink label near the main electrical cabinet connector. The wire insulation is ink‑jet printed with the XCMG part number and circuit identification code along its length. Each Deutsch connector has the XCMG logo molded into the housing. Counterfeit harnesses lack these markings, use unlabeled connectors, and are packaged in plain plastic bags. The genuine harness comes with a certificate of conformance and a holographic security sticker.
Always purchase the 332111981 electrical cabinet wiring harness from authorized XCMG dealers or the official parts portal. Register the part online to activate the 24‑month / 5,000‑hour warranty. Using counterfeit wiring harnesses risks electrical faults, ECU damage, engine shutdowns, and voiding of the equipment warranty. Trust genuine XCMG 332111981 for reliable engine control and maximum fleet productivity.
Genuine XCMG OEM 332111981 Electrical Cabinet Wiring Harness — Heavy‑duty engine control harness with XLPE insulation, sealed Deutsch DT connectors, and full EMC shielding. Designed for the electrical system of XCMG XDA45U articulated dump trucks and compatible with OM471, OM460LA, Cummins QSL, Yuchai YC6K, and Weichai WP13 engines. Trust genuine XCMG for reliable ECU communication, sensor accuracy, and long‑term electrical system performance.
