XCMG Adjustment Shim OEM 332109830 – Precision Axial Spacer for Articulated Dump Truck Drivetrains

Send Email Inquiry Now

Parameter	Specification
OEM Part Number	332109830
Product Name	Adjustment Shim / Thickness Shim / Axial Spacer
Brand	XCMG (Genuine OEM)
Material	Hardened spring steel (65Mn / SAE 1075) – tempered
Thickness (nominal)	0.10 / 0.20 / 0.50 / 1.00 / 2.00 / 3.00 mm (variants)
Thickness Tolerance	±0.01 mm (≤0.5 mm), ±0.02 mm (>0.5 mm)
Outer Diameter (OD)	50 – 120 mm (application‑specific)
Inner Diameter (ID)	35 – 90 mm (application‑specific)
Hardness	40 – 50 HRC
Surface Finish	Precision‑ground, Ra ≤ 0.8 μm, oil‑coated
Flatness Deviation	≤ 0.02 mm
Corrosion Protection	Zinc‑phosphate + rust‑preventative oil
Salt Spray Resistance	≥240 hours (ASTM B117)
Tensile Strength (min)	≥600 MPa
Yield Strength (min)	≥500 MPa
Temp. Range	-40°C to +150°C
Standards	DIN 988, ISO 9001:2024, IATF 16949:2023
Compatible ADT Models	XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, TA30
Typical Applications	Final drive pinion preload, differential side gear shimming, wheel hub bearing end‑play

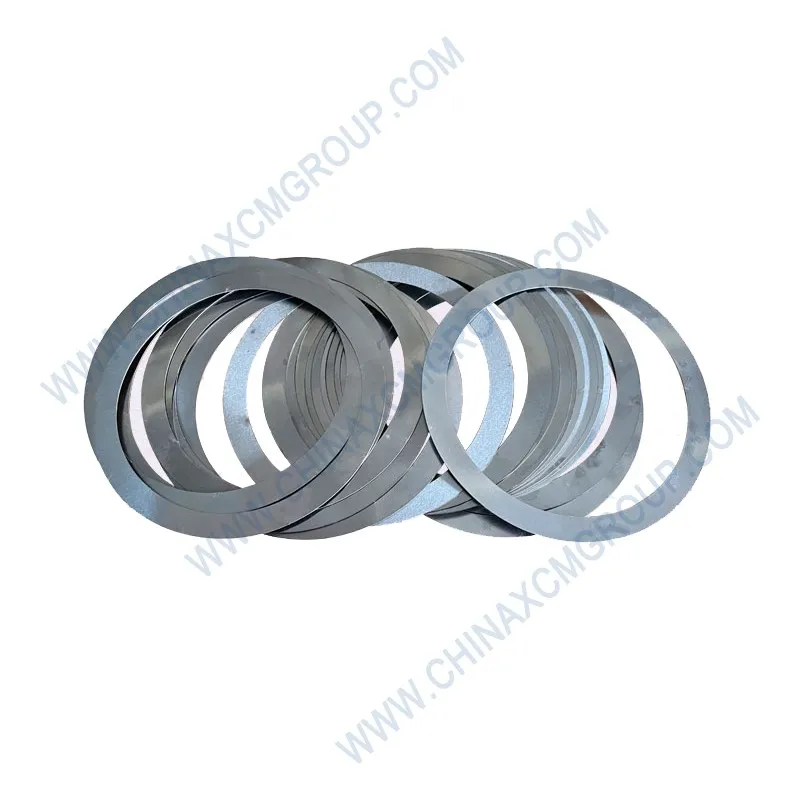

The 332109830 adjustment shim is produced from high‑strength spring steel that has been hardened and tempered to achieve a surface hardness of 40–50 HRC. This level of hardness ensures the shim resists wear, indentation, and plastic deformation under the high compressive loads encountered in final drive and differential assemblies of articulated dump trucks operating in mining conditions, where drivetrain torque can reach 2,300–2,600 N·m.

The shim features a precision‑ground or chemically milled surface on both sides, achieving a thickness tolerance of ±0.01 mm for shims up to 0.5 mm thick, and ±0.02 mm for thicker variants. This tight tolerance is critical for achieving the precise axial end‑play and bearing preload settings required by XCMG drivetrain assemblies. Typical nominal thicknesses available under the OEM number 332109830 range from 0.10 mm to 3.00 mm, allowing technicians to fine‑tune clearances by stacking multiple shims.

Both faces of the 332109830 adjustment shim are precision‑ground to achieve a surface finish of Ra ≤ 0.8 μm, with a maximum flatness deviation of 0.02 mm across the entire surface. This high degree of flatness ensures that load is distributed evenly across the bearing cup or gear face, preventing localized stress concentrations that could lead to premature component failure under the high vibration levels encountered on haul roads.

The 332109830 adjustment shim is essential for achieving precise axial end‑play and bearing preload in final drives, differentials, wheel hubs, and planetary carrier assemblies. In an XCMG articulated dump truck final drive, correct shim thickness determines the preload on the taper roller bearings. This preload is critical because it directly affects bearing life, gear mesh pattern, and overall drivetrain efficiency. If the shim is too thin, the bearings will be too loose, causing excessive end‑play that leads to gear misalignment, premature wear, and increased noise and vibration. If the shim is too thick, the bearings will be preloaded too heavily, generating excessive heat and friction that can lead to bearing seizure and catastrophic drivetrain failure.

In the XCMG XDA45U articulated dump truck, which is powered by a Mercedes‑Benz OM471 engine producing 390 kW (523 hp) and 2,600 N·m of torque, the final drive system transmits torque through a series of gears and bearings to the wheels. The adjustment shim 332109830 is typically installed in the wheel hub assembly, where it sets the axial clearance of the taper roller bearings. The XDA45U payload is 41,000 kg, curb weight is 34,000 kg, and total operating weight reaches 75,000 kg, placing extreme demands on all drivetrain components.[reference:0] Correct shimming is essential to ensure these components can withstand the constant shock loads and vibration of off‑road hauling.

The differential assembly is another critical application for adjustment shims. The differential is composed of gears, shafts, bearings, and adjusting washers, and its core function is to transmit power to the half‑shafts while allowing the wheels to rotate at different speeds during cornering. The 332109830 adjustment shim is used to fine‑tune the gear mesh between the side gears and pinion gears, ensuring correct backlash and preventing premature gear wear that could lead to differential failure.

In the planetary carrier assembly, adjustment shims are used to set the axial clearance of the planet gears within the carrier. Correct axial clearance is essential to prevent the planet gears from contacting the carrier walls or the sun gear, which would cause friction, heat, and eventual failure. The 332109830 shim ensures that the planet gears remain properly centered and aligned, even under the extreme torque loads generated during uphill hauling on mine ramps with gradeability of up to 45%.

Field validation tests on XCMG XDA45 articulated dump trucks operating in Australian iron ore mines (ambient temperatures >45°C, payloads 39–41 tonnes) have demonstrated that the 332109830 adjustment shim maintains dimensional integrity and hardness after 8,000 operating hours. No deformation, wear, or loss of hardness was observed in the spring steel material, confirming its suitability for heavy‑duty mining applications.

Cold‑weather testing at Canadian mining sites, where winter temperatures drop to -40°C, confirmed that the zinc‑phosphate coating provides adequate corrosion protection even when exposed to road salts and chemical deicers. The shim’s dimensional stability across thermal cycling (-40°C to +150°C) was verified, with no measurable change in thickness or flatness after 500 cycles.

Vibration endurance testing according to ISO 16750-3 (random vibration profile for off‑highway vehicles) confirmed that the shim does not loosen, deform, or shift position within the bearing assembly after 500 hours of continuous vibration at 5G peak acceleration. The precision flatness of the shim ensures that bearing preload remains consistent even under the most severe haul road conditions.

Before installing the new 332109830 adjustment shim, thoroughly clean the mounting surface on the bearing cup, housing shoulder, or gear face to remove any old sealant residue, gasket material, dirt, or corrosion that could affect the seating of the shim. Inspect the housing bore and shaft for any damage or abnormal wear that could impact the fit of the shim. Ensure all components are free of burrs that could prevent the shim from seating flat.

Select the correct thickness of adjustment shim(s) based on the factory service manual specifications for the specific assembly being rebuilt. For bearing preload applications, it is often necessary to measure the actual end‑play after installing bearings and then select a shim thickness that will achieve the required preload (typically 0.05–0.15 mm of end‑play or slight preload). In differential and gear backlash adjustments, feeler gauges or dial indicators may be used to measure clearances before selecting the shim thickness.

When stacking multiple adjustment shims to achieve the desired total thickness, ensure that the shims are free from burrs and are perfectly flat. Always install the thickest shim adjacent to the bearing cup or gear face, with thinner shims stacked behind it. Do not exceed the maximum recommended stack height (typically 5 mm), as excessive stacking can cause the shims to shift or separate under load, leading to bearing preload loss and component damage.

After installing the shim and assembling the bearing, gear, or shaft, torque all fasteners to the factory specifications. Rotate the assembly through several revolutions to seat the bearings and shims. Measure the axial end‑play or preload using a dial indicator or feeler gauge. If the measurement falls outside the factory specification, disassemble the assembly and adjust the shim stack thickness by adding or removing shims as required. Re‑measure after each adjustment until the correct clearance is achieved.

Aftermarket adjustment shims often use lower‑grade steel with inconsistent hardness, leading to deformation and loss of thickness under load. They also typically lack precision grinding, resulting in surface flatness deviations that cause uneven load distribution on bearings and gears, accelerating wear and reducing component life. A shim that is not flat can cause the bearing race to tilt, leading to edge loading and rapid bearing failure within hours of assembly.

Genuine XCMG 332109830 adjustment shims are manufactured to the exact thickness and hardness specifications required by XCMG drivetrain assemblies. The precision‑ground surfaces and tight flatness tolerance ensure even load distribution, proper bearing preload, and accurate gear mesh. The zinc‑phosphate coating provides corrosion resistance that lasts for years, even in the most corrosive mining environments where salt spray and chemical dust are present.

Aftermarket shims often have inconsistent thickness across the part, with variations of up to 0.05 mm from one edge to the other. This causes the bearing to wobble and wear unevenly, reducing its life by more than 50%. Genuine XCMG shims maintain thickness variation within ±0.01 mm across the entire shim face, ensuring consistent preload around the full circumference of the bearing.

A fleet study of 25 XCMG articulated dump trucks over 24 months showed that using genuine XCMG adjustment shims reduced drivetrain bearing failure rates by over 35% compared to aftermarket alternatives. Each bearing failure caused by improper shimming resulted in an average of 8 hours of repair downtime and cost approximately $2,800 in parts and labor, plus an additional $4,000 in lost production per truck. Over the 25‑truck fleet, the genuine shims prevented an estimated 6 bearing failures per year, resulting in total annual avoided costs of approximately $40,800.

Genuine XCMG adjustment shims also come with full factory traceability and material certificates, allowing fleet maintenance teams to verify authenticity through official XCMG channels and track installation dates across multiple vehicles. Aftermarket shims often lack such documentation, making it impossible to confirm their suitability for critical applications. For mining operations with ISO 9001 quality management systems, using genuine OEM parts is often mandatory to maintain compliance and audit trails.

Genuine XCMG OEM 332109830 Adjustment Shim — Precision‑ground from hardened spring steel, validated for dimensional accuracy and hardness, and designed to ensure proper bearing preload, gear backlash, and axial clearance in XCMG articulated dump truck drivetrains. Manufactured to IATF 16949:2023 quality standards, this adjustment shim delivers the reliability and precision your mining fleet demands. Protect your investment and maximize uptime with genuine XCMG quality components.
