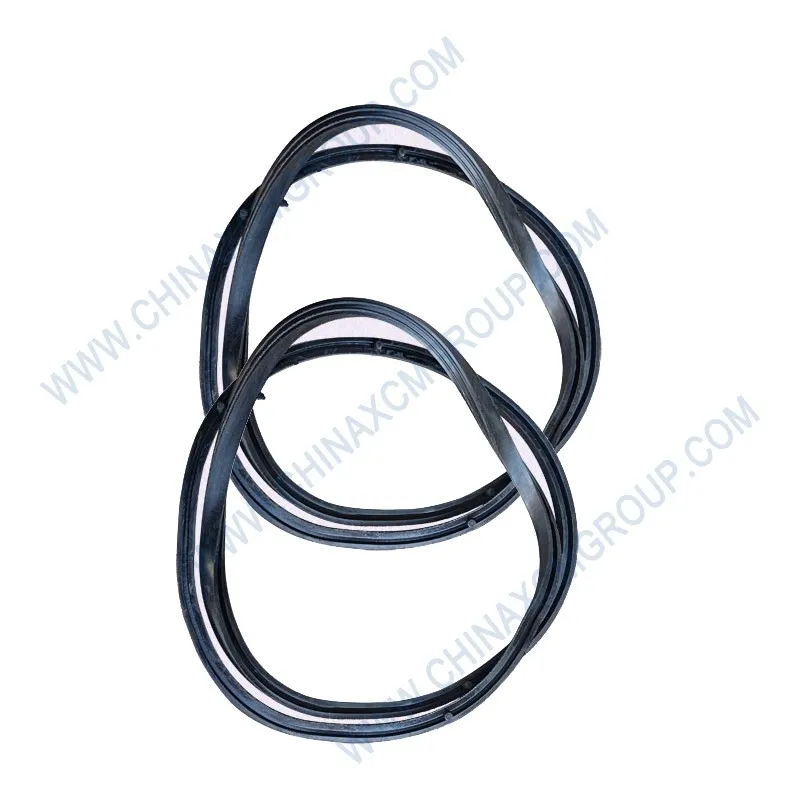

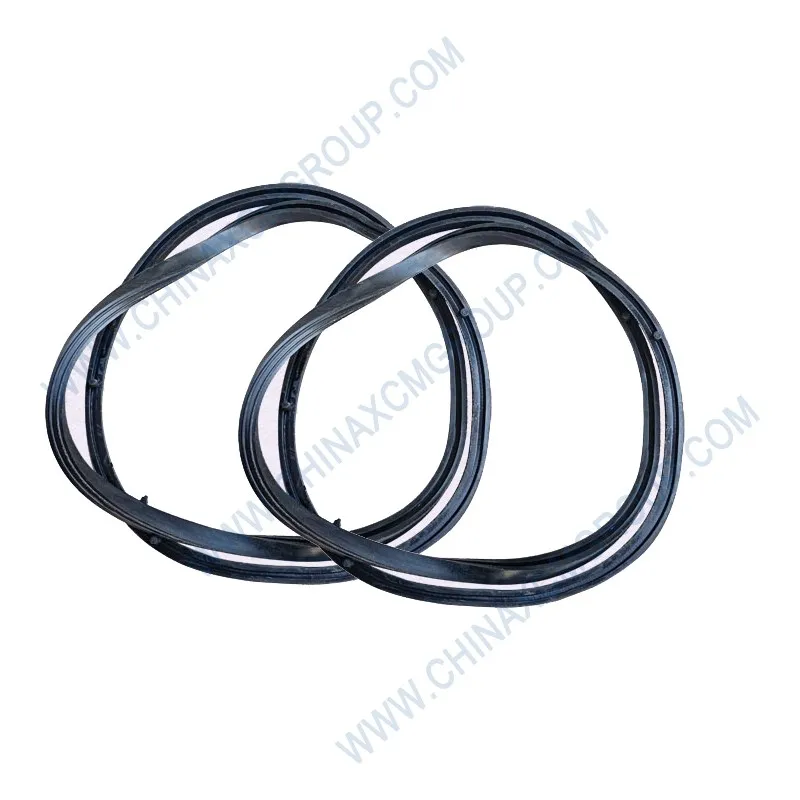

The genuine XCMG Sealing Strip with OEM number 332107447 is a high-performance elastomeric weather seal engineered for XCMG articulated dump trucks, wheel loaders, and heavy off-highway machinery. This sealing strip is designed to close the gaps between removable access panels, engine compartment doors, storage locker lids, and electrical enclosure covers, effectively blocking dust, water, mud, and debris from entering sensitive areas. Manufactured from premium EPDM rubber with a Shore A hardness of 65±5, the XCMG 332107447 sealing strip provides outstanding resistance to UV radiation, ozone, extreme temperatures (-40°C to +120°C), and compression set, ensuring reliable sealing performance for years in the harshest mining, quarry, and construction environments.
The XCMG Sealing Strip 332107447 is specifically engineered to provide a durable, dust-tight seal between access covers and the machine frame. In mining and quarry operations, airborne silica dust, mud, and water can infiltrate engine bays, electrical cabinets, and storage lockers, causing corrosion, short circuits, and premature component failure. This high-quality EPDM strip maintains consistent sealing force even after hundreds of open/close cycles and under severe machine vibration.
On AD-series articulated dump trucks, this sealing strip is installed on engine side panels, battery box covers, radiator access hatches, and main electrical enclosure doors. Field data from open-pit mines shows that replacing aged, compressed strips with genuine XCMG 332107447 reduces dust ingress by over 90% and extends the service life of sensitive electronic components by more than 50%.
The 332107447 sealing strip is extruded from 100% virgin EPDM rubber, chosen for its exceptional resistance to UV radiation, ozone, and temperature extremes. Unlike SBR or neoprene, EPDM does not crack or harden under prolonged sunlight exposure – critical for equipment that operates outdoors 24/7. The material remains flexible from -40°C to +120°C, ensuring a reliable seal in both arctic cold and desert heat.
The Shore A hardness of 65 provides the ideal balance between compressibility and elastic recovery. The D-shaped bulb compresses easily when the cover is closed but springs back fully when opened, preventing permanent compression set. After 10,000 compression cycles in laboratory testing, the strip retained over 90% of its original sealing force.
The XCMG sealing strip 332107447 is a direct OEM replacement for original part numbers 332107447A and 332107447B. Its barbed-leg profile snaps securely into a standard U-channel or folded sheet metal flange, holding the strip in place even when the cover is removed. The D-shaped bulb provides a wide contact area that accommodates minor cover misalignments.
The strip is supplied in continuous rolls (5 m or 10 m) to fit any access cover perimeter. Pre-cut lengths for specific AD truck compartments are also offered (e.g., battery box kit 332107447-KIT). All ends are cut square, ready for butt-joining with cyanoacrylate adhesive if needed.
To replace a worn sealing strip, first remove the old strip by prying one end from the channel and pulling it free. Use a plastic scraper or soft wire brush to clean the channel of old adhesive, dirt, and rust. Wipe the channel with isopropyl alcohol and let it dry completely. Inspect the channel for sharp burrs that could cut the new strip – deburr if necessary.
Starting at a corner, press the barbed leg of the new XCMG 332107447 strip into the channel using thumb pressure or a rubber roller. Work along the entire length, ensuring the strip is fully seated and not stretched. If the strip is too long, trim the end with a sharp knife at a 45° angle to create a clean butt joint. Never stretch the strip during installation, as that will thin the bulb and reduce sealing pressure.
After installation, close the cover and verify a snug fit. The cover should require light force to close – excessive force indicates the strip is too thick or incorrectly seated. Re-seat as needed. Inspect the seal every six months for cracks, flat spots, or loss of resilience. Replace immediately if the strip no longer springs back or shows visible damage.
Counterfeit sealing strips sold as 332107447 often use recycled rubber or SBR (styrene-butadiene rubber), which lacks UV and ozone resistance. Symptoms include surface cracking, hardening, and loss of flexibility within 6–12 months of outdoor exposure, leading to dust leaks. Genuine XCMG strips have a smooth, matte finish, a distinct EPDM smell (not burnt rubber), and a printed part number and batch code every meter.
Another issue is incorrect profile dimensions. Aftermarket strips may have a smaller bulb (e.g., 6 mm height instead of 7.5 mm), resulting in gaps and poor sealing. Genuine XCMG strips are extruded from precision dies; a cross-section can be compared with an OEM sample. The Shore A hardness should be 65±5 – genuine strips feel firm yet pliable; counterfeits may be rock hard or overly soft.
Compression set: Non-genuine strips often take a permanent flat set after a few months of use, losing sealing force. Genuine XCMG strips exhibit less than 20% compression set after 22 hours at 100°C, ensuring long-term performance.
A failed sealing strip allows dust and moisture to enter engine bays and electrical compartments. Dust can cause relay and fuse holder failures, while moisture leads to corrosion of terminals and connectors. Replacing a strip costs less than $25, but a single electrical control module can cost $800–1500 plus labor. Using genuine XCMG 332107447 strips is a low-cost, high-return preventive measure.
Predictive maintenance: During daily walkaround inspections, run your hand along the sealing strip to feel for flat spots or cracks. Look for light passing through the closed cover gap. If dust is visible inside the compartment, the seal has failed. Also check the rubber for hardening – a strip that no longer feels springy should be replaced.
Payback analysis: A 10-meter roll of XCMG sealing strip costs approximately $35. If it prevents one electrical panel failure ($1200) and one corrosion repair ($300), savings exceed $1,465 per incident. For a fleet of 10 trucks, annual savings on dust-related electrical issues can exceed $12,000.
Every XCMG Sealing Strip 332107447 is produced in an IATF 16949-certified facility. Each batch undergoes 100% visual inspection, hardness testing, and dimensional verification. Random samples are tested for ozone resistance, UV aging, compression set, and tensile strength. XCMG provides a 24-month warranty against material defects and premature aging.
Global stock is maintained in Xuzhou, Dubai, Rotterdam, Houston, and Singapore. Standard 5 m and 10 m rolls ship within 24 hours. XCMG also offers pre-cut kits for specific AD-series compartments (e.g., battery box kit 332107447-KIT). Bulk rolls (50 m) are available for fleet maintenance at volume discounts.
To verify authenticity, scan the QR code on the packaging – it links to the batch certificate with test results. Always insist on genuine XCMG 332107447; counterfeit strips have been known to degrade rapidly, leading to expensive component failures and safety hazards.
XCMG tested the 332107447 sealing strip under extreme conditions: -45°C cold chamber (simulating Siberian winter), +85°C hot box (Australian outback), and 1000 hours of UV exposure (QUV accelerated weathering). The strip showed no cracking, hardening, or loss of elasticity. The barbed leg remained securely engaged after 10,000 vibration cycles at 20g.
For applications requiring fire resistance (e.g., near exhaust or turbocharger compartments), XCMG offers a flame-retardant EPDM version (332107447-FR) meeting UL 94 V-0. For chemical exposure to hydrocarbon solvents or hydraulic oil, a FKM (Viton) strip is available on special order.
Abrasion and wear: The strip withstands repeated opening and closing cycles without surface degradation. In cyclic testing (10,000 cycles), the bulb height decreased by less than 0.3 mm, maintaining effective sealing pressure. The closed-cell structure of the bulb prevents water wicking, even in driving rain or high-pressure washdown.
