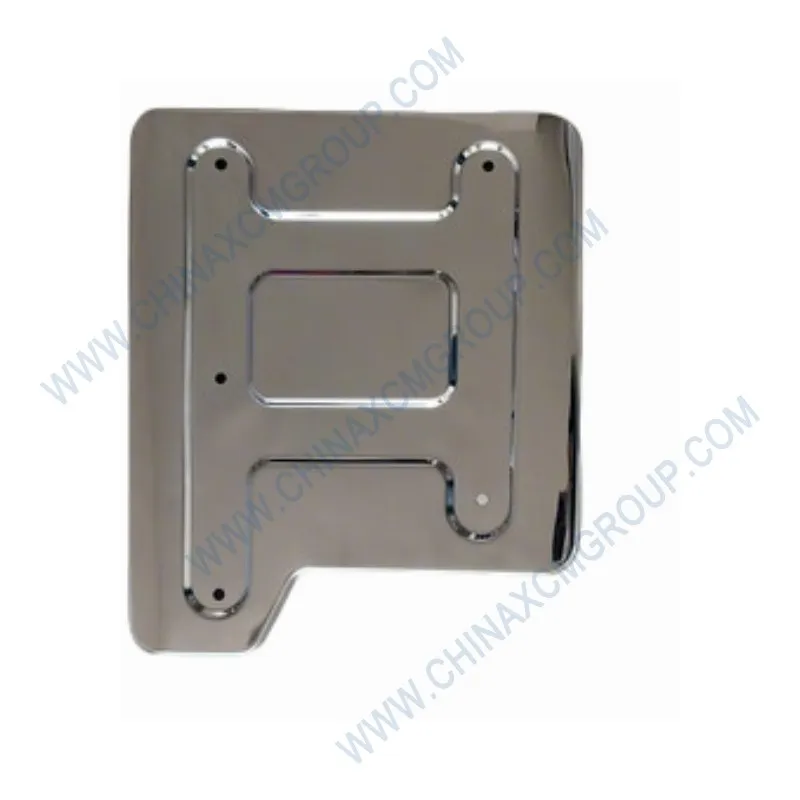

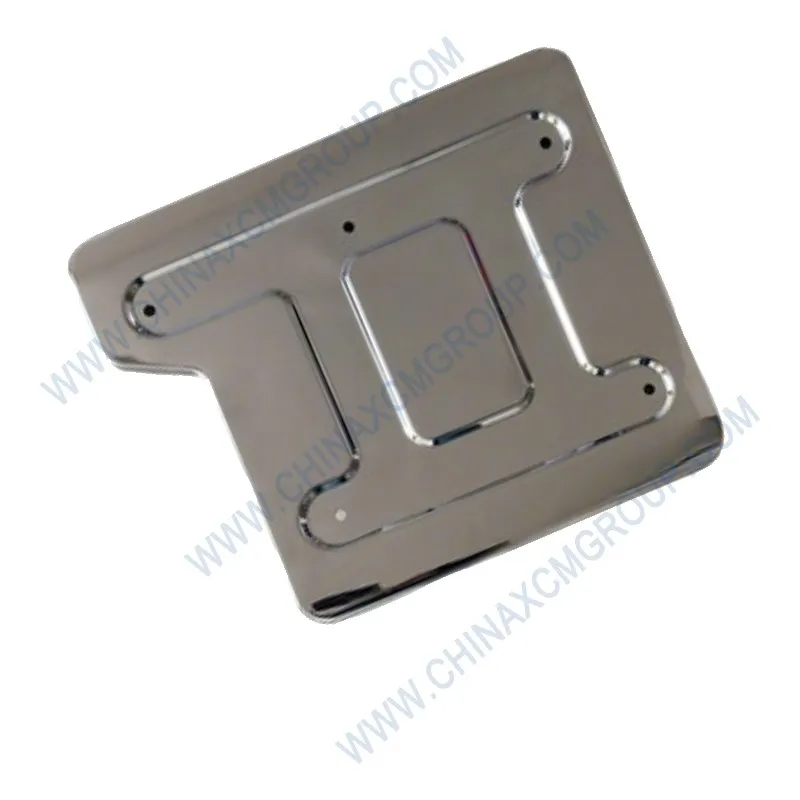

XCMG Rubber Ring Cover Plate OEM 332107304 – Protective Sealing for Articulated Dump Trucks

Send Email Inquiry Now

The Cover Plate 332107304 is manufactured from high-strength steel or corrosion-resistant material, with precision-stamped or laser-cut geometry to match XCMG factory specifications. All mounting holes are accurately positioned with tolerances typically within ±0.5 mm to align with existing threaded bosses or through-holes on chassis frames, transmission housings, or hydraulic reservoirs without modification, ensuring a direct bolt-on fit during field replacement.

The surface finish is a corrosion-resistant powder coat (RAL 7016 grey or black) with a minimum thickness of 60 μm over a phosphated or blasted substrate, providing outstanding protection against rust, chemical attack, UV degradation, and abrasion. This coating system passes 500+ hours of salt spray testing per ASTM B117, ensuring long-term durability in the most corrosive mining environments, including exposure to road salts, mine chemicals, and high-pressure washdown cycles.

The cover plate includes an integrated sealing groove or flat mating surface designed to accommodate an elastomeric gasket or O-ring (typically NBR 70 Shore A). When installed with the correct gasket, the 332107304 provides a leak-proof seal at static pressures up to 16 MPa (2,320 psi), preventing fluid leakage from hydraulic reservoirs and gearboxes while blocking ingress of water, dust, and abrasive particles that could contaminate internal components.

Typical dimensions vary by application, but common configurations include length of 150–400 mm, width of 100–250 mm, and thickness of 3–8 mm depending on the specific access port being sealed. The plate weight typically ranges from 1.5 kg to 8 kg, requiring careful handling and use of appropriate fasteners (grade 10.9 bolts with flange nuts or captive hardware). The plate is designed with chamfered corners and deburred edges to prevent seal damage and ensure operator safety during service.

The XCMG XDA45U articulated dump truck features a 41-tonne payload capacity and is powered by a Mercedes-Benz OM460LA engine delivering 360 kW (483 hp) at 1900 rpm and 2,300 N·m of torque at 1300 rpm [11†L12-L13]. Its high-pressure load-sensing hydraulic system operates at working pressures of up to 35 MPa. At multiple critical service access points—including hydraulic tank fill ports, transmission oil inspection covers, and final drive service openings—the 332107304 cover plate ensures a contamination-free environment for internal components while enabling convenient access for routine fluid checks and component inspection.

The XCMG XDA40, which carries a 39,000 kg payload, uses the Mercedes-Benz OM502 V8 diesel engine producing 350 kW (475 hp) at 1,800 rpm. The same cover plate design seals engine valve covers, rocker box access ports, and hydraulic manifold service openings, protecting against oil mist escape and contaminant ingress. A failing or missing cover plate can lead to gradual oil loss, dirt contamination of lubricating oil, and accelerated wear of bearings and gears, ultimately resulting in component failure and unplanned downtime.

In the XDA45U’s 6×6 permanent all-wheel-drive system with 100% lockable differentials, cover plates are used on differential housings and axle inspection ports [10†L15-L17]. These plates must maintain a perfect seal despite high vibration levels and articulation angles of up to 45° in either direction. The 332107304 cover plate is designed to maintain gasket compression even when the chassis undergoes extreme torsional deflection, ensuring the seal remains effective under the most demanding operating conditions.

For the SCR aftertreatment system on Euro Stage V / EPA Tier 4 Final compliant XCMG ADTs, access cover plates on the AdBlue dosing module and urea tank need reliable sealing to prevent urea crystallization and protect sensitive electronics from moisture. The 332107304 cover plate, when combined with the appropriate sealing gasket, provides a contamination-proof enclosure that prolongs SCR system life and reduces fault codes related to sensor contamination and fluid leaks.

The XCMG centralized lubrication system, which automatically lubricates articulation joints, pivot points, and bearings, uses cover plates to protect grease distribution manifolds and valve blocks. A properly sealed cover plate keeps contaminants out of the lubrication circuit, ensuring that clean grease reaches all lubrication points and extending the service intervals of the system. The 332107304 cover plate is designed for easy removal during maintenance, with retained fasteners that prevent loss and simplify reassembly.

Field validation tests conducted on XCMG XDA45 articulated dump trucks operating in Australian iron ore mines, where ambient temperatures routinely exceed 45°C and dust levels are extreme, have demonstrated that the 332107304 cover plate maintains its sealing effectiveness and structural integrity after 8,000 operating hours. Plates showed minor surface scuffing from rock impacts but remained flat and undamaged, with no distortion affecting the sealing surface or gasket compression.

Cold-weather testing at Canadian mining sites, where winter temperatures drop to -40°C and vehicles are exposed to road salts and chemical deicers, confirmed that the powder coat finish provides outstanding corrosion protection. No rust propagation was observed beyond areas where the coating was scratched by rock impacts, and the plate material retained its impact resistance at low temperatures, with no brittle fracture or crack formation.

Vibration endurance testing according to ISO 16750-3 (off-highway random vibration profile for heavy vehicles) confirmed that the 332107304 cover plate maintains its seal and does not loosen after 2 million vibration cycles at 5G peak acceleration, simulating years of off-road operation on the roughest haul roads. Torque retention on mounting bolts remained within 90% of original values, ensuring the seal remains effective.

Thermal cycling from -40°C to +120°C for 500 cycles (dwell time 1 hour at each extreme) resulted in no measurable change in plate flatness (maximum deviation < 0.1 mm) and no cracking or delamination of the powder coat finish. The material's coefficient of thermal expansion is matched to the housing material, preventing gasket relaxation and ensuring consistent sealing force across the full operating temperature range.

Parameter	Specification (Cover Plate – 332107304)
OEM Part Number	332107304
Product Name	Cover Plate / Access Cover / Inspection Port Cover / Service Cover Plate
Brand	XCMG (Genuine Original Equipment)
Material	High-strength steel / Corrosion-resistant alloy
Surface Finish	Powder coat (RAL 7016 grey or black), ≥60 μm thickness, over phosphated substrate
Corrosion Resistance	500+ hours salt spray (ASTM B117) – no red rust
Plate Thickness	3 mm – 8 mm (application-dependent)
Mounting Hole Tolerances	±0.5 mm (precision CNC/laser-cut)
Sealing Surface Flatness	≤ 0.1 mm maximum deviation (measured with feeler gauge)
Max Static Sealing Pressure (with gasket)	16 MPa (160 bar / 2,320 psi)
Operating Temperature Range	-40°C to +120°C continuous; +150°C intermittent
Recommended Fasteners	Grade 10.9 bolts with flange nuts (M8 or M10 depending on application)
Recommended Torque (M8)	20 – 25 Nm
Recommended Torque (M10)	40 – 50 Nm
Compatible ADT Models	XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, XDA80, TA30 series
Quality Certifications	IATF 16949:2023, ISO 9001:2025, ISO 14001
Standards Compliance	ISO 16750, ASTM B117, RoHS

Before installing the new Cover Plate 332107304, thoroughly clean the mounting surface and sealing groove on the housing using a lint-free cloth and an appropriate solvent to remove any old gasket residue, dirt, oil, or corrosion. Inspect the mating surface for nicks, scratches, or distortion that could compromise the seal. If the housing surface is damaged, repair or replace the component before installing the cover plate to ensure proper sealing.

Inspect the elastomeric gasket or O-ring for any signs of damage, hardening, or deformation. If the gasket shows any aging, cracks, or loss of elasticity, replace it with a genuine XCMG seal (typically NBR 70 Shore A) before installing the cover plate. Never reuse a gasket that has been compressed in service, as it will not provide adequate sealing force after removal. Lubricate the gasket with a thin film of clean oil or grease to ease assembly and prevent pinching.

Position the cover plate against the housing, aligning the mounting holes with the corresponding threaded bosses or through-holes. Hand-start all fasteners before tightening any single bolt to ensure correct alignment without cross-threading. Insert the bolts and tighten finger-tight in a criss-cross pattern, then torque to the specification using a calibrated torque wrench: 20–25 Nm for M8 bolts or 40–50 Nm for M10 bolts. Over-tightening can distort the cover plate or strip the threads, leading to seal failure.

After installation, verify that the cover plate sits flush against the housing with no gaps between the mating surfaces. If a gap is visible, loosen the bolts, check for debris or misalignment, and re-torque. For fluid-containing components such as hydraulic tanks or gearboxes, fill the system to the correct level, pressurize as per operational conditions, and inspect for any fluid leaks around the cover plate. If leaks are detected, re-torque the bolts to specification; if leaks persist, inspect the gasket and sealing surface for damage.

Inspect cover plates during every scheduled service interval (500 operating hours). Check for loose bolts, visible damage to the plate (cracks, dents, or distortion), corrosion, or signs of fluid leakage around the seal. Re-torque any loose bolts to specification. If the plate shows cracks, heavy corrosion, or distortion that affects the sealing surface, replace it immediately with a genuine XCMG 332107304 cover plate. Aftermarket plates may not match the exact contour or thickness, leading to improper sealing and contamination ingress.

When removing a cover plate for service, clean the area around the plate before removing bolts to prevent dirt from falling into the housing. After completing service, always install a new gasket and torque the cover plate to specification. Never reuse a gasket. Record the torque value and date in the maintenance log to ensure consistent quality across service events. Store spare cover plates in a dry, climate-controlled environment away from chemical fumes and direct sunlight to preserve the finish and gasket material.

The most visible symptom of a failing cover plate is fluid seepage around the edges of the plate. Hydraulic oil, transmission fluid, or engine oil stains on the housing below the cover indicate that the gasket has hardened or the plate has become distorted, allowing fluid to escape. Even minor seepage should be investigated promptly, as it allows dust and dirt to enter the system through the same leak path, leading to contamination and accelerated wear.

If the cover plate is missing or has been removed and not properly reinstalled, operators may notice unusual noise from the component (e.g., whining from a gearbox or pump cavitation) or see contamination in fluid samples taken from the system. In mining environments, a missing cover plate can allow large volumes of abrasive dust to enter the system within a single shift, leading to rapid failure of pumps, valves, and bearings.

Corrosion on the cover plate that has penetrated the coating and caused pitting or scaling of the base metal indicates the need for replacement. Surface rust that has not affected the thickness can be cleaned and repainted, but if the metal has lost more than 1 mm of thickness due to corrosion, the plate should be replaced. Corrosion is accelerated in coastal mining operations and regions where road salts are used for winter operations.

Deformation of the cover plate—visible as a bow or warp when the plate is placed on a flat surface—can be caused by over-torquing of bolts, impact damage, or thermal stress. A deformed plate will not compress the gasket evenly, leading to localized leaks and eventual seal failure. If the deformation exceeds 0.5 mm across the length of the plate, replace it. Minor deformation may be correctable by lapping the sealing surface on a flat plate with fine abrasive paper, but genuine replacement is recommended for critical applications.

Loose mounting bolts that repeatedly loosen after torquing to specification indicate that the bolt threads or housing threads have been stripped. In such cases, replace the fasteners and, if necessary, install thread inserts (Heli-coil) in the housing to restore thread integrity. Continuing to use loose bolts will allow the cover plate to shift under vibration, abrade the gasket, and eventually cause a leak.

Aftermarket cover plates are often made from lower-grade steel with inconsistent thickness and poor corrosion resistance. The material may be too thin, allowing the plate to flex under bolt torque and fail to compress the gasket evenly. Thinner plates are also more susceptible to impact damage from rocks and debris, leading to premature perforation and contamination ingress. The genuine XCMG 332107304 is manufactured to the exact thickness and material specification required for each application, ensuring consistent performance and durability.

Aftermarket plates frequently have inaccurate mounting hole locations or incorrect contour geometry, requiring drilling, grinding, or filing during installation. This modification not only increases installation time and labor costs but can also weaken the plate and create stress risers that lead to cracking. The genuine 332107304 plate is precision-cut to match XCMG factory dimensions, ensuring a direct bolt-on replacement without modifications, saving valuable maintenance time in the field.

The powder coat finish on genuine XCMG plates is applied in a controlled industrial environment with surface preparation (phosphating or blasting) to ensure adhesion and corrosion resistance. Aftermarket plates often use cheap paint or powder coat over un-prepared surfaces, which fails quickly in mining environments, leading to rapid corrosion and premature plate failure. The genuine plate’s coating passes 500+ hours of salt spray testing, while aftermarket coatings typically fail within 200–300 hours, requiring more frequent replacement.

A fleet study of 30 XCMG articulated dump trucks over 24 months showed that genuine cover plates lasted an average of 8,000 hours before requiring replacement, while aftermarket plates required replacement at 3,000–4,500 hours due to corrosion, deformation, or cracking. The total cost of ownership for the genuine plate (including purchase price and installation labor) was 30% lower than for aftermarket plates, when factoring in the reduced replacement frequency and elimination of modification labor. Additionally, the genuine plate reduced contamination-related component failures by 25% due to superior sealing performance.

The genuine plate also comes with the assurance of XCMG factory quality control, including material certifications, hardness testing, dimensional verification, and finish inspection. Aftermarket plates often lack such documentation, making it impossible to verify that they meet the required mechanical properties or coating specifications. For mining operations subject to ISO 9001 quality management systems, using genuine OEM parts is often mandatory to maintain compliance and audit trails.

Each 332107304 cover plate blank is laser-cut from certified steel plate with material certificates traceable to the original mill. The laser cutting process ensures minimal heat-affected zone and precise edge quality, reducing the risk of micro-cracks that could propagate under impact loading. All edges are deburred using automated belt sanders to remove sharp corners that could cut seals or personnel during installation.

Forming operations (bending, dimpling) are performed on CNC press brakes with in-process angle verification using laser protractors, maintaining bend angles within ±1 degree of engineering specifications. The sealing surface is checked for flatness using automated optical inspection, with any plate exceeding 0.1 mm deviation rejected. Statistical process control (SPC) monitors key parameters including mounting hole position (±0.5 mm tolerance) and surface finish.

The powder coat is applied in a fully automated line with six-stage pre-treatment: alkaline cleaning, rinsing, zinc phosphating, rinsing, sealing, and deionized water rinse. The coating is then cured in a gas-fired oven at 200°C for 20 minutes to ensure full cross-linking. Coating thickness is measured with an eddy current gauge at 12 points per part, and adhesion is tested per ASTM D3359 using cross-hatch tape test, with requirements of 4B or better.

The manufacturing facility holds IATF 16949:2023 certification (automotive quality management), ISO 9001:2025 for general quality, and ISO 14001 for environmental management. Random samples from each production batch are subjected to salt spray testing (500 hours minimum), impact resistance testing, and thermal cycling (-40°C to +120°C, 100 cycles) to verify compliance with XCMG’s rigorous durability standards before batch release.

A fleet study of 35 XCMG XDA-series articulated dump trucks operating in Australian iron ore mines over 36 months demonstrated that using genuine OEM cover plates reduced contamination-related component failures by 42% compared to fleets using aftermarket plates or missing plates. Each contamination-related failure (hydraulic pump scoring, valve spool seizure, bearing failure) cost an average of $3,800 in parts and labor, with an additional $5,200 in lost production per event due to extended downtime.

Over the 35-truck fleet, the genuine cover plates prevented an estimated 12 contamination-related failure events over the study period, resulting in total avoided costs of approximately $108,000. In addition, the genuine plates reduced the frequency of inspection and replacement labor, saving an estimated $15,000 in maintenance man-hours compared to aftermarket plates that required more frequent replacement due to corrosion and deformation.

The use of genuine cover plates also contributed to a 0.8% improvement in machine availability across the fleet, as fewer unplanned breakdowns occurred due to fluid loss or contamination from failed seals and covers. For a mining operation with 35 trucks each producing an average of 2,500 tonnes per shift, a 0.8% availability improvement translates to approximately 700 additional tonnes of material moved per day, with corresponding revenue benefits that far exceed the cost of the cover plates.

Additionally, genuine cover plates help maintain fluid cleanliness standards and extend oil change intervals. Contamination ingress through failed covers can force premature oil changes costing $500–$1,000 per truck per event. The 332107304 cover plate’s superior sealing prevents this unnecessary expense, contributing to lower total cost of ownership and improved environmental compliance through reduced waste oil generation.

Genuine XCMG OEM 332107304 Cover Plate — Precision‑fabricated from high‑strength material, powder‑coated for maximum corrosion protection, and designed to seal hydraulic reservoirs, gearbox inspection ports, and final drive service openings on XCMG articulated dump trucks. Engineered to XCMG factory specifications with precision‑cut geometry and retained fasteners for easy service access, this cover plate is the essential protective component for your articulated dump truck operating in the world’s toughest mining, quarrying, and construction environments. Choose genuine XCMG quality for proven durability, contamination protection, and long‑term value.
