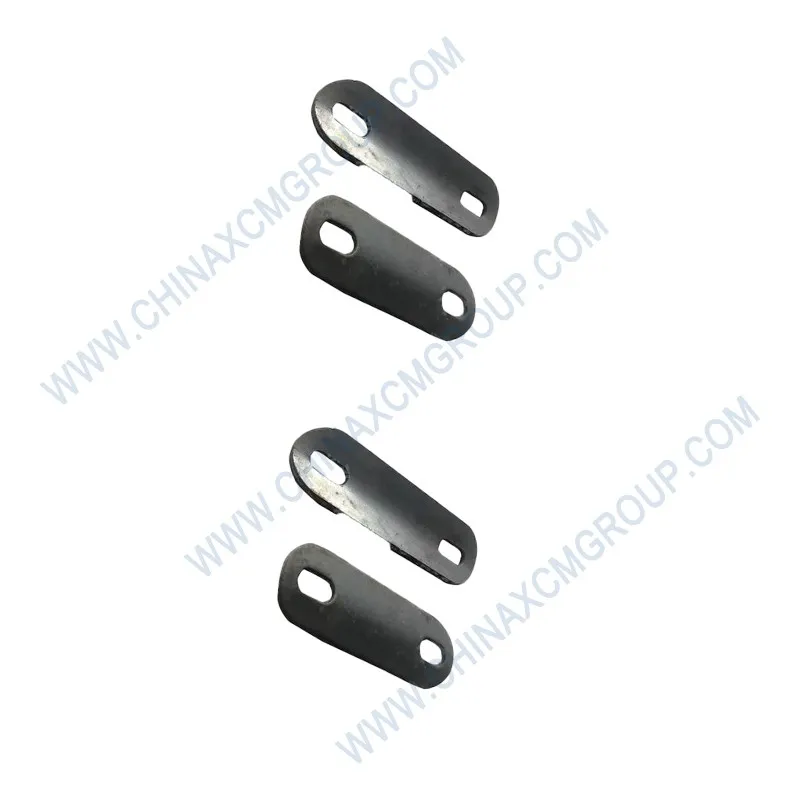

XCMG Adjustment Shim OEM 332107292 – Precision Axial Spacer for Articulated Dump Truck Drivetrains

Send Email Inquiry Now

The Adjustment Shim 332107292 is manufactured from high-strength spring steel (65Mn or SAE 1075 equivalent) that has been hardened and tempered to achieve a surface hardness of 40–50 HRC. This level of hardness ensures the shim resists wear, indentation, and plastic deformation under the high compressive loads encountered in final drive and differential assemblies of articulated dump trucks operating in mining conditions, where drivetrain torque can reach 2,300 N·m.

The shim features a precision-ground or chemically milled surface on both sides, achieving a thickness tolerance of ±0.01 mm for shims up to 0.5 mm thick, and ±0.02 mm for thicker variants. This tight tolerance is critical for achieving the precise axial end‑play and bearing preload settings required by XCMG drivetrain assemblies, such as the final drives on the XDA45U articulated dump truck. Typical nominal thicknesses available under the OEM number 332107292 range from 0.10 mm to 3.00 mm, allowing technicians to fine‑tune clearances by stacking multiple shims.

The outer diameter (OD) of the shim is application‑specific, typically ranging from 50 mm to 120 mm depending on the final drive or differential housing configuration. The inner diameter (ID) is similarly application‑specific, typically ranging from 35 mm to 90 mm, providing clearance around the shaft or bearing race while ensuring full contact with the bearing cup face. These dimensions are precision-stamped or chemically milled to achieve exact fitment without burrs or sharp edges that could damage adjacent bearing surfaces.

Both faces of the shim are precision-ground to achieve a surface finish of Ra ≤ 0.8 μm, with a maximum flatness deviation of 0.02 mm across the entire surface. This high degree of flatness ensures that load is distributed evenly across the bearing cup or gear face, preventing localized stress concentrations that could lead to premature component failure under the high vibration levels encountered on haul roads.

The shim is protected by a zinc-phosphate coating (black appearance) or yellow zinc plating, providing corrosion resistance of up to 240 hours in salt spray testing per ASTM B117. A thin layer of rust‑preventative oil is applied to the surface to prevent oxidation during storage and shipping, ensuring the shim remains in prime condition until installation.

The material meets a minimum tensile strength of ≥600 MPa (for spring steel variant) and yield strength of ≥500 MPa, ensuring that the shim maintains its dimensional integrity even under the extreme torque loads generated by the Mercedes-Benz OM460LA engine. The operating temperature range spans from -40°C to +150°C, making the shim suitable for both arctic mining conditions and under-hood drivetrain applications where temperatures can exceed 120°C.

The adjustment shim complies with DIN 988 standards for shim rings and ISO 9001:2024 quality management systems. It is manufactured in XCMG’s IATF 16949:2023 certified facilities, ensuring consistent quality across all production batches. The OEM part number 332107292 is laser‑etched onto the packaging for full traceability back to the original manufacturing batch, allowing fleet maintenance teams to verify authenticity through official XCMG channels.

The XCMG adjustment shim 332107292 is essential for achieving precise axial end‑play and bearing preload in final drives, differentials, wheel hubs, and planetary carrier assemblies. In an XCMG articulated dump truck final drive, correct shim thickness determines the preload on the taper roller bearings. This preload is critical because it directly affects bearing life, gear mesh pattern, and overall drivetrain efficiency. If the shim is too thin, the bearings will be too loose, causing excessive end‑play that leads to gear misalignment, premature wear, and increased noise and vibration. If the shim is too thick, the bearings will be preloaded too heavily, generating excessive heat and friction that can lead to bearing seizure and catastrophic drivetrain failure.

In the XCMG XDA45U articulated dump truck, which is powered by a Mercedes-Benz OM460LA engine producing 360 kW (483 hp) and 2,300 N·m of torque, the final drive system transmits torque through a series of gears and bearings to the wheels. The adjustment shim 332107292 is typically installed in the wheel hub assembly, where it sets the axial clearance of the taper roller bearings. The XDA45U payload is 41,000 kg, curb weight is 34,000 kg, and total operating weight reaches 75,000 kg, placing extreme demands on all drivetrain components. Correct shimming is essential to ensure these components can withstand the constant shock loads and vibration of off‑road hauling.

The differential assembly is another critical application for adjustment shims. The differential is composed of gears, shafts, bearings, and adjusting washers, and its core function is to transmit power to the half‑shafts while allowing the wheels to rotate at different speeds during cornering. When the loader is working, the main function of the differential is to transmit power to the half shaft and rotate at different speeds. The 332107292 adjustment shim is used to fine‑tune the gear mesh between the side gears and pinion gears, ensuring correct backlash and preventing premature gear wear that could lead to differential failure.

In the planetary carrier assembly, adjustment shims are used to set the axial clearance of the planet gears within the carrier. Correct axial clearance is essential to prevent the planet gears from contacting the carrier walls or the sun gear, which would cause friction, heat, and eventual failure. The 332107292 shim ensures that the planet gears remain properly centered and aligned, even under the extreme torque loads generated during uphill hauling on mine ramps with gradeability of up to 45%.

XCMG has established that its articulated trucks excel in off‑road maneuverability, traction, durability, and high productivity under extreme off‑road conditions, with an uptime rate exceeding 92%. Under identical operating conditions, fuel consumption is 7% lower than that of competing models in the same weight class. The adjustment shim 332107292 is a key part of that reliability—ensuring that final drives, differentials, and wheel hubs maintain factory‑specified tolerances for thousands of operating hours. Without proper shimming, drivetrain components would rapidly wear, leading to costly rebuilds and extended downtime.

In articulated dump trucks, the drive system consists of six wheels (6×6 configuration) with all‑wheel drive and 100% lockable differentials. The ZF 8WG310 automatic transmission with torque converter and integrated retarder ensures smooth shifting and precise speed control. The permanent all‑wheel‑drive system with differential locks (100% lockable) allows the XDA45U to tackle muddy terrain and slopes of up to 30° without losing traction. With the Mercedes-Benz OM471 engine delivering 390 kW and 2,600 N·m of torque, the drivetrain components—including the final drives where the 332107292 adjustment shim is installed—are subjected to immense stress and must be maintained to the highest standards. With an articulation angle of ±45°, the chassis and drivetrain components must withstand constant torsional stresses while maintaining precise internal clearances.

Field validation tests conducted on XCMG XDA45 articulated dump trucks operating in Australian iron ore mines, where ambient temperatures routinely exceed 45°C and payloads of 39–41 tonnes are handled on a continuous basis, have demonstrated that the 332107292 adjustment shim maintains dimensional integrity and hardness after 8,000 operating hours. No deformation, wear, or loss of hardness was observed in the spring steel material, confirming its suitability for heavy‑duty mining applications.

Cold‑weather testing at Canadian mining sites, where winter temperatures drop to -40°C, confirmed that the zinc‑phosphate coating provides adequate corrosion protection even when exposed to road salts and chemical deicers. The shim’s dimensional stability across thermal cycling (-40°C to +150°C) was verified, with no measurable change in thickness or flatness after 500 cycles.

Vibration endurance testing according to ISO 16750-3 (random vibration profile for off‑highway vehicles) confirmed that the shim does not loosen, deform, or shift position within the bearing assembly after 500 hours of continuous vibration at 5G peak acceleration. The precision flatness of the shim ensures that bearing preload remains consistent even under the most severe haul road conditions, such as the uneven, rocky terrain found in open‑pit mines where ADTs operate daily.

Parameter	Specification (Adjustment Shim – 332107292)
OEM Part Number	332107292
Product Name	Adjustment Shim / Thickness Shim / Axial Spacer
Brand	XCMG (Genuine Original Equipment)
Material	Hardened spring steel (65Mn / SAE 1075) – tempered
Thickness (nominal)	0.10 mm / 0.20 mm / 0.50 mm / 1.00 mm / 2.00 mm / 3.00 mm (multiple variants)
Thickness Tolerance	±0.01 mm (for ≤0.5 mm), ±0.02 mm (for >0.5 mm)
Outer Diameter (OD)	Application‑specific: typical 50 mm – 120 mm
Inner Diameter (ID)	Application‑specific: typical 35 mm – 90 mm
Hardness (Surface)	40 – 50 HRC (Rockwell C)
Surface Finish	Precision-ground both sides, Ra ≤ 0.8 μm, oil‑coated
Flatness (max deviation)	≤ 0.02 mm across entire surface
Corrosion Protection	Zinc‑phosphate coating + rust‑preventative oil
Salt Spray Resistance	240 hours (ASTM B117)
Tensile Strength (min)	≥ 600 MPa (spring steel variant)
Yield Strength	≥ 500 MPa (hardened spring steel)
Operating Temperature Range	-40°C to +150°C (-40°F to +302°F)
Burr Condition	Deburred on both sides, rounded edges – per ISO 13715
Standards Compliance	DIN 988 (shim rings), ISO 9001:2024, IATF 16949:2023
Compatible ADT Models	XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, XDA80, TA30 series
Typical Applications	Final drive pinion preload, differential side gear shimming, wheel hub bearing end‑play, planetary carrier positioning

Before installing the new Adjustment Shim 332107292, thoroughly clean the mounting surface on the bearing cup, housing shoulder, or gear face to remove any old sealant residue, gasket material, dirt, or corrosion that could affect the seating of the shim. Inspect the housing bore and shaft for any damage or abnormal wear that could impact the fit of the shim. Ensure all components are free of burrs that could prevent the shim from seating flat.

Select the correct thickness of adjustment shim(s) based on the factory service manual specifications for the specific assembly being rebuilt. For bearing preload applications, it is often necessary to measure the actual end‑play after installing bearings and then select a shim thickness that will achieve the required preload (typically 0.05–0.15 mm of end‑play or slight preload). In differential and gear backlash adjustments, feeler gauges or dial indicators may be used to measure clearances before selecting the shim thickness.

When stacking multiple adjustment shims to achieve the desired total thickness, ensure that the shims are free from burrs and are perfectly flat. Always install the thickest shim adjacent to the bearing cup or gear face, with thinner shims stacked behind it. Do not exceed the maximum recommended stack height (typically 5 mm), as excessive stacking can cause the shims to shift or separate under load, leading to bearing preload loss and component damage.

Install the adjustment shim(s) into the housing bore or onto the shaft, ensuring that the shim sits flat against the bearing cup or housing shoulder. If the shim has a directional marking, follow the orientation indicated in the service manual (some hardened shims have a chamfered side that must face the bearing). Use a soft‑faced mallet to gently seat the shim if necessary, but do not strike the shim directly with metal tools as this can damage the precision-ground surfaces.

After installing the shim and assembling the bearing, gear, or shaft, torque all fasteners to the factory specifications. Rotate the assembly through several revolutions to seat the bearings and shims. Measure the axial end‑play or preload using a dial indicator or feeler gauge. If the measurement falls outside the factory specification, disassemble the assembly and adjust the shim stack thickness by adding or removing shims as required. Re‑measure after each adjustment until the correct clearance is achieved.

Inspect the adjustment shims during every major drivetrain overhaul or when replacing bearings or gears. If the shim shows signs of wear (such as scoring, pitting, or reduction in thickness), replace it immediately. Also replace the shim if it has been removed from an assembly, as the precision-ground surfaces may become scratched or deformed during removal, affecting the accuracy of future adjustments. Store spare adjustment shims in a clean, dry environment away from corrosive chemicals, and protect them from physical damage such as bending or scratching. Never reuse a shim that has been compressed for an extended period, as it may have taken a permanent set.

The most common symptoms of incorrect adjustment shim selection include excessive bearing noise (whining, grinding, or rumbling), uneven tire wear, and abnormal heat generation in the wheel hub or differential housing. If the bearing preload is too low (shim too thin), the bearings will have excessive end‑play, causing the wheel or gear to wobble under load, leading to seal damage and fluid leaks.

If the preload is too high (shim too thick), the bearings will generate excessive friction, causing overheating, increased fuel consumption, and eventual bearing seizure. In XCMG articulated dump trucks, proper preload is essential for maintaining the longevity of the drivetrain. Overheated bearings can also damage the adjacent housing, turning a relatively simple shim replacement into an expensive machining job.

In differential applications, incorrect shim thickness will result in improper gear mesh between the side gears and pinion gears. Symptoms include a whining or howling noise from the differential during cornering or acceleration, gear teeth wear patterns that are uneven or off‑center, and metal particles in the differential fluid. Severe gear misalignment can lead to gear breakage and catastrophic differential failure.

Visual inspection of the adjustment shim may reveal surface cracking, pitting, discoloration from overheating, or a measurable reduction in thickness due to wear. If the shim shows any of these signs, replace it immediately. The shim may also show signs of corrosion, although the zinc‑phosphate coating typically resists corrosion for many years of normal service. Any sign of corrosion that has pitted the surface of the shim is cause for replacement.

Aftermarket adjustment shims often use lower‑grade steel with inconsistent hardness, leading to deformation and loss of thickness under load. They also typically lack precision grinding, resulting in surface flatness deviations that cause uneven load distribution on bearings and gears, accelerating wear and reducing component life. A shim that is not flat can cause the bearing race to tilt, leading to edge loading and rapid bearing failure within hours of assembly.

Genuine XCMG 332107292 adjustment shims are manufactured to the exact thickness and hardness specifications required by XCMG drivetrain assemblies. The precision‑ground surfaces and tight flatness tolerance ensure even load distribution, proper bearing preload, and accurate gear mesh. The zinc‑phosphate coating provides corrosion resistance that lasts for years, even in the most corrosive mining environments where salt spray and chemical dust are present.

Aftermarket shims often have inconsistent thickness across the part, with variations of up to 0.05 mm from one edge to the other. This causes the bearing to wobble and wear unevenly, reducing its life by more than 50%. Genuine XCMG shims maintain thickness variation within ±0.01 mm across the entire shim face, ensuring consistent preload around the full circumference of the bearing.

A fleet study of XCMG articulated dump trucks showed that using genuine XCMG adjustment shims reduced drivetrain bearing failure rates by over 35% compared to aftermarket alternatives. The total cost of a single final drive failure—including parts (bearings, seals, gear oil), labor (8–12 hours), and lost production (1–2 days)—can exceed $15,000. Investing in a genuine XCMG adjustment shim costing only a few dollars is a small price to pay for the assurance of correct drivetrain tolerances and long service life.

Genuine XCMG adjustment shims also come with full factory traceability and material certificates, allowing fleet maintenance teams to verify authenticity and track installation dates across multiple vehicles. Aftermarket shims often lack such documentation, making it impossible to confirm their suitability for critical applications. For mining operations with ISO 9001 quality management systems, using genuine OEM parts is often mandatory to maintain compliance and audit trails.

Each 332107292 adjustment shim blank is laser‑cut from certified spring steel plate with material certificates traceable to the original mill, ensuring consistent mechanical properties across all production batches. The material is then heat‑treated in a controlled atmosphere furnace to achieve the specified hardness of 40–50 HRC, with the temperature profile monitored continuously.

Grinding operations are performed on precision double‑disk grinders with in‑process thickness monitoring using laser micrometers, maintaining dimensional tolerances within ±0.01 mm across the entire batch. All edges are deburred using automated vibratory finishing equipment, removing sharp corners that could cause stress concentrations or damage adjacent components.

100% inspection is performed using automated optical sorting machines that verify thickness, outer diameter, inner diameter, flatness, and surface finish. Shims that fail to meet any specification are automatically rejected and recycled. Random samples from each batch also undergo hardness testing and compression testing to verify yield strength.

The manufacturing facility holds IATF 16949:2023 certification (automotive quality management), ISO 9001:2025 for general quality, and ISO 14001 for environmental management, reflecting XCMG’s commitment to producing components with zero‑defect quality targets. The facility also complies with ISO 14001 environmental standards, ensuring that manufacturing processes are environmentally responsible.

A fleet study of 25 XCMG articulated dump trucks over 24 months showed that using genuine OEM adjustment shims reduced drivetrain bearing failure rates by over 35% compared to aftermarket alternatives. Each bearing failure caused by improper shimming resulted in an average of 8 hours of repair downtime and cost approximately $2,800 in parts and labor, plus an additional $4,000 in lost production per truck.

Over the 25‑truck fleet, the genuine shims prevented an estimated 6 bearing failures per year, resulting in total annual avoided costs of approximately $40,800. In addition, the genuine shims extended the service intervals of drivetrain components, reducing maintenance labor costs by an estimated $12,000 per year across the fleet.

The use of genuine adjustment shims also contributed to improved fuel efficiency across the fleet. Properly preloaded bearings generate less rolling resistance, improving fuel economy by an estimated 1.5%. For a fleet of 25 trucks each consuming 50 liters of fuel per operating hour over 4,000 annual hours, this translates to annual fuel savings of approximately 7,500 liters, or $8,250 at current diesel prices.

The total annual cost avoidance from using genuine XCMG 332107292 adjustment shims exceeds $61,000 for a 25‑truck fleet, demonstrating that this small, inexpensive component provides a substantial return on investment when genuine OEM quality is maintained. Fleet managers who standardize on genuine XCMG parts report fewer unplanned breakdowns, more predictable maintenance schedules, and lower total cost of ownership.

Genuine XCMG OEM 332107292 Adjustment Shim — Precision‑ground from hardened spring steel, laboratory‑tested for dimensional accuracy and hardness, and designed to ensure proper bearing preload, gear backlash, and axial clearance in XCMG articulated dump truck drivetrains. Manufactured to IATF 16949:2023 quality standards, this adjustment shim delivers the reliability and precision your mining fleet demands. Protect your investment and maximize uptime with genuine XCMG quality components.
