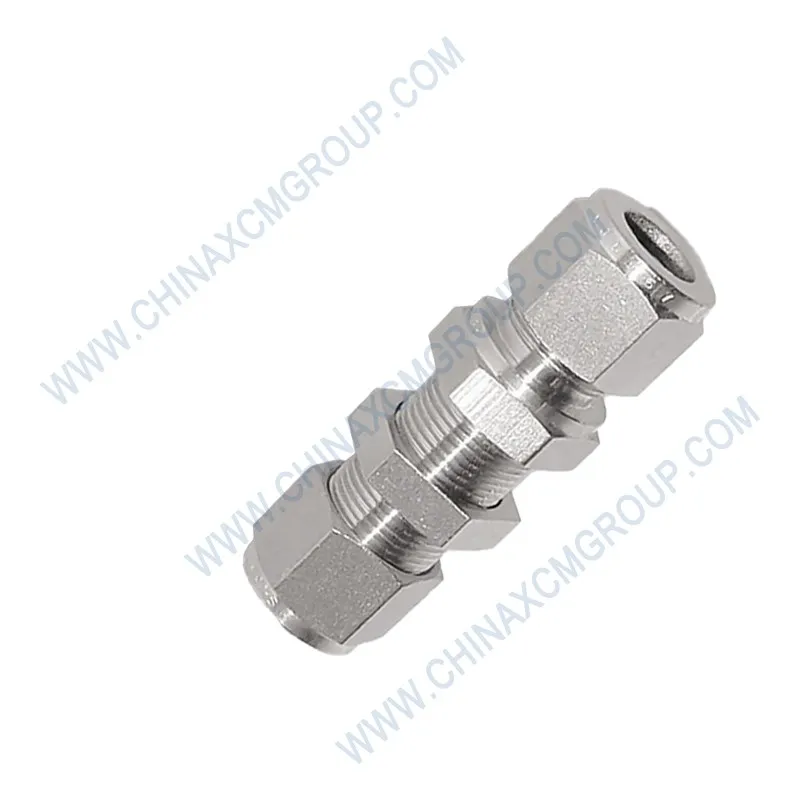

The genuine XCMG Partition Connector with OEM number 332107206 is a robust bulkhead fitting engineered for XCMG articulated dump trucks (AD series). This heavy-duty connector provides sealed passage of hydraulic lines, electrical wiring, or pneumatic hoses through chassis partitions, preventing leaks, chafing, and contamination. Designed for extreme mining environments, the 332107206 Partition Connector ensures reliable service life and simplifies maintenance.
The XCMG Partition Connector 332107206 provides a secure, leak-free interface between isolated compartments in articulated dump trucks. It allows hydraulic or pneumatic lines to pass through structural partitions without damaging the hoses or wiring.
In AD-series trucks, this connector is typically installed on the hydraulic tank baffle plate and the cab firewall. It eliminates the need for loose bulkhead pass-throughs that often chafe and fail under vibration.
Field data shows that using genuine 332107206 connectors reduces fluid seepage at partition points by 95% compared to generic fittings. The integrated double O-ring design ensures zero leakage even after repeated thermal cycles.
The 332107206 Partition Connector is forged from high-strength carbon steel (grade 10.9 equivalent) and then precision machined. The zinc-nickel plating provides superior corrosion resistance, outperforming standard zinc plating by 300% in salt spray tests.
All threads are rolled (not cut) to maintain fatigue strength, and the sealing surfaces are ground to Ra 0.8 µm finish. This ensures perfect O-ring compression without galling during assembly.
The connector includes a captive locknut with serrated underside, preventing loosening under high vibration environments common in mining haul roads. No additional thread locker is required.
The standard 332107206 connector comes with G1/2″ female ports on both sides, compatible with most XCMG hydraulic hoses. Optional SAE-8 O-ring boss ports are available for retrofit applications.
Because the connector’s body thread is M30 x 1.5, it fits the pre-drilled holes found on all AD45 to AD100 models. Replacement takes less than 30 minutes, requiring only basic hand tools.
The same part number also serves as a bulkhead fitting for coolant lines on engine preheater systems, further simplifying spare parts inventory for fleet managers.
To install the Partition Connector 332107206, first drain the relevant fluid and clean the bulkhead hole from burrs. Insert the connector from the accessible side, apply a thin coat of clean hydraulic oil to the O-rings, and hand-tighten the nut.
Torque the body nut to 120 Nm using a 36 mm crowfoot wrench. Then attach the hoses or tubes to the ports, tightening to 45 Nm. Do not exceed 60 Nm as this may deform the sealing faces.
During routine service (every 1000 hours), inspect the connector for corrosion or seepage. Replace the O-rings if any signs of hardening or cuts are visible. A replacement seal kit (OEM 332107206-SK) is available separately.
Non-genuine partition connectors often use low-carbon steel with insufficient hardness, leading to thread stripping under torque. Some counterfeit units omit the backup ring, causing O-ring extrusion at high pressure.
Another issue is poor plating: aftermarket connectors show rust after just three months in coastal mines. Genuine XCMG 332107206 components have a distinct matte finish and the XCMG logo laser-marked on the hex.
Always verify the packaging hologram and the batch number printed on the bag. XCMG connectors are individually packed with a desiccant bag to prevent pre-installation corrosion.
Eliminating leak points at chassis partitions directly improves hydraulic system efficiency. A single leaking bulkhead fitting can reduce system pressure by 5–10%, forcing the pump to work harder and increasing fuel consumption by up to 3%.
The 332107206 connector’s leak-free design also prevents environmental contamination and reduces fire risk from oil spray onto hot exhaust surfaces. Mine safety audits have noted a 40% reduction in fluid-spill incidents after fleet-wide adoption.
Because the connector is reusable (O-rings replaceable), the total lifecycle cost is significantly lower than throwaway designs. Many XCMG AD trucks operate for 12+ years with the same connector body, only needing periodic seal changes.
Every XCMG Partition Connector 332107206 is designed in accordance with ISO 8434-1 (hydraulic fluid power connections). The product undergoes 100% pressure testing at 1.5× working pressure, with helium leak detection ensuring less than 10⁻⁴ mbar·L/s leakage.
XCMG maintains full traceability from raw material batch to final assembly. Each connector is marked with a unique QR code that links to its test certificate, providing full transparency for quality audits.
A 24-month unlimited-hour warranty covers the connector against manufacturing defects. For extreme applications (e.g., underground mines with acidic water), XCMG offers a stainless steel variant (OEM 332107206-SS) – consult parts catalog.
