Safety Locking Rod
Предохранительная блокировочная штанга
Barra de bloqueo de seguridad

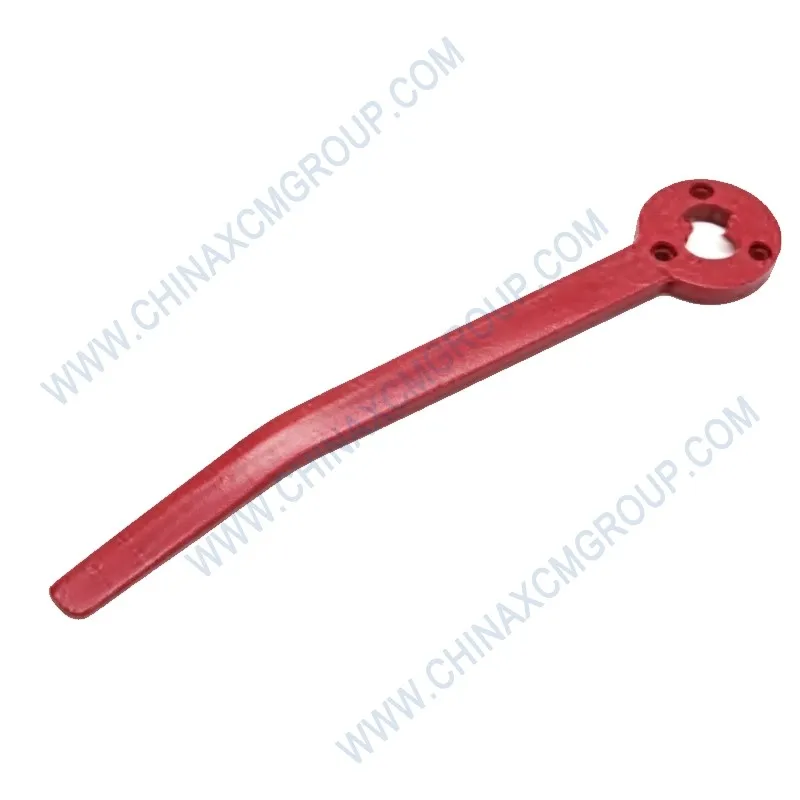

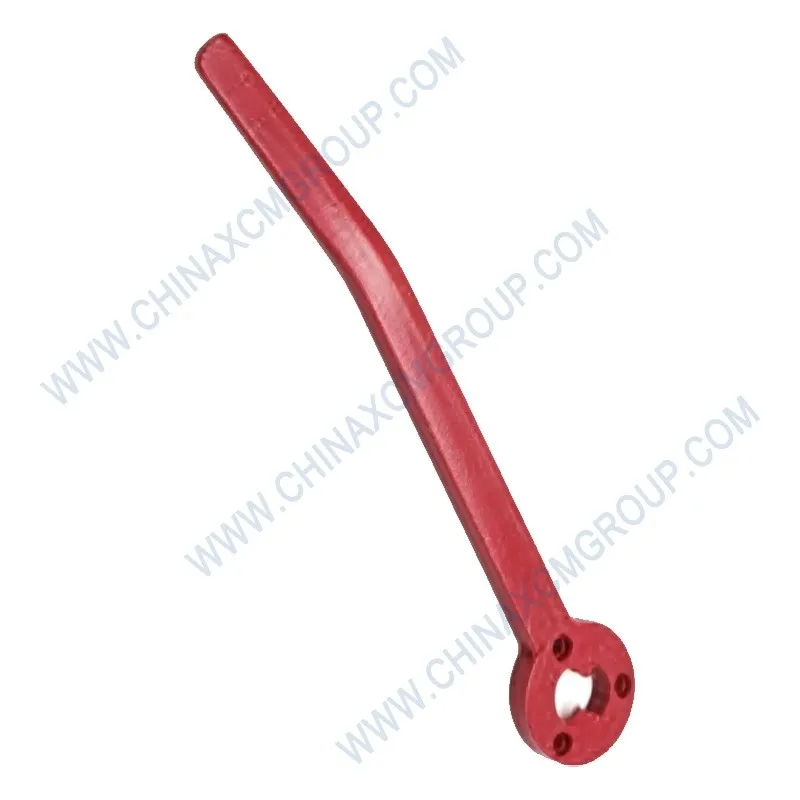

The 332106412 Safety Locking Rod is a precision-engineered locking component designed to secure pivot pins, linkage joints, and critical structural attachments on XCMG articulated dump trucks. This heavy-duty rod provides a positive mechanical lock that prevents unintended disengagement of pins and fasteners, ensuring the safety and structural integrity of the machine under extreme vibration and shock loads. Manufactured from high-strength alloy steel with a fully corrosion-resistant zinc-nickel plating and a durable black powder-coat finish, the 332106412 safety locking rod delivers exceptional tensile strength, wear resistance, and long-term durability, making it an indispensable component for maintaining operational safety and machine reliability in the most demanding mining, quarrying, and heavy construction environments.
The 332106412 Safety Locking Rod is a precision-engineered locking component designed to secure pivot pins, linkage joints, and critical structural attachments on XCMG articulated dump trucks.
This heavy-duty rod provides a positive mechanical lock that prevents unintended disengagement of pins and fasteners, ensuring the safety and structural integrity of the machine under extreme vibration and shock loads.
In the harsh operating conditions typical of mining, quarrying, and heavy construction, pivot pins and linkages are subjected to constant stress, which can cause standard retaining mechanisms to fail over time.
The 332106412 safety locking rod is engineered to provide a secondary, fail-safe locking mechanism that ensures pins remain securely in place, even under the most demanding operating conditions.
Manufactured from high-strength alloy steel with a fully corrosion-resistant zinc-nickel plating and a durable black powder-coat finish, this locking rod delivers exceptional tensile strength, wear resistance, and long-term durability.
This component is a direct OEM replacement, restoring the original locking configuration and ensuring that all critical pivot points remain safely retained throughout the vehicle’s operating life.
The 332106412 Safety Locking Rod is a fundamental element in maintaining the operational safety and structural integrity of XCMG articulated dump trucks.
Properly secured pivot pins and linkages are essential for safe machine operation. A loose or disconnected pin can lead to catastrophic failure of steering, suspension, or articulation systems.
The locking rod acts as a positive mechanical stop, preventing the main pivot pin from migrating or backing out due to vibration or impact, significantly reducing the risk of component separation.
By ensuring that all locking mechanisms are intact and functional, this rod helps protect operators and maintenance personnel from potential injury caused by unexpected structural failure.
The 332106412 Safety Locking Rod features a carefully engineered design that combines high tensile strength, precise fitment, and ease of installation.
The rod is precision-forged and machined from high-strength alloy steel, ensuring a uniform grain structure and superior mechanical properties throughout the component.
A nominal diameter of 25 mm and an overall length of 180 mm provide the necessary reach and strength to securely lock pivot pins in a wide range of mounting configurations.
The locking pin (8 mm diameter) is precisely machined to engage with the corresponding hole in the pivot pin, providing a secure, positive lock that resists shear and tensile loads.
The rod’s ends are chamfered and deburred to facilitate easy insertion and removal during maintenance, while the integrated handle or grip area provides a secure hold for manual installation.
A retaining chain or cable (depending on variant) can be attached to the rod to prevent loss and ensure it is always available when needed for service operations.
The 332106412 Safety Locking Rod is produced using advanced forging, machining, and heat-treatment processes, ensuring consistent dimensional accuracy and mechanical properties.
The alloy steel is first forged to near-net shape, then precision-turned and ground to achieve the final diameter and surface finish within tight tolerances.
Induction hardening is applied to the locking pin and bearing surfaces, creating a deep, wear-resistant case while maintaining a tough, ductile core that resists shock loading.
Each rod is inspected for hardness, dimensional accuracy, surface finish, and concentricity, ensuring that it meets the stringent requirements of XCMG OEM specifications.
The 332106412 Safety Locking Rod is protected by a dual-layer coating system that ensures exceptional corrosion resistance and a professional appearance.
The base layer is a zinc-nickel electroplating that provides sacrificial cathodic protection and offers over 480 hours of salt spray resistance (ASTM B117), significantly outperforming standard zinc plating.
The top coat is a black powder coating that is baked on to form a tough, abrasion-resistant finish. This coating provides excellent resistance to stone chipping, UV degradation, and chemical exposure.
The combination of these coatings ensures that the locking rod retains its protective properties and appearance even after years of service in aggressive mining and construction environments.
The black finish also blends seamlessly with the vehicle’s chassis and other components, maintaining a professional and uniform appearance across the entire machine.
The 332106412 Safety Locking Rod is manufactured from premium 40Cr alloy steel (equivalent to AISI 5140), a material renowned for its excellent hardenability, toughness, and fatigue resistance.
40Cr offers a tensile strength of ≥ 1050 MPa and a yield strength of ≥ 850 MPa, providing the structural integrity required to withstand the extreme loads and impacts encountered during vehicle operation.
The alloying elements – chromium and manganese – enhance hardenability and provide improved wear resistance, making this material ideal for high-load locking and retaining applications.
Each rod is produced in ISO 9001 and ISO 14001 certified facilities, with strict process controls at every stage – from raw material verification to final inspection.
The chemical composition is verified using spectrometer analysis, ensuring it meets the specified requirements for carbon, chromium, manganese, and other alloying elements.
Dimensional accuracy is verified using precision measurement tools, with critical diameter, length, hole position, and surface finish checked against the engineering drawings to ensure a perfect fit.
The result is a locking rod that delivers consistent, reliable performance, with a service life that matches or exceeds that of the original equipment.
The 332106412 Safety Locking Rod plays a vital role in preventing catastrophic failures and ensuring the safety of XCMG articulated dump trucks.
Pivot pins that are not properly secured can work their way loose over time, leading to sudden separation of steering arms, suspension links, or articulation joints, which can cause loss of control.
The locking rod provides a secondary retention mechanism that ensures the pin remains captured even if the primary retention device (such as a cotter pin or retaining ring) fails.
Regular inspection of safety locking rods is essential to identify early signs of wear, bending, or corrosion. Any damaged or deformed rods should be replaced immediately.
Using a genuine XCMG 332106412 safety locking rod ensures that the component meets the original design specifications, providing the intended level of safety and reliability.
When installing a new rod, it is also recommended to inspect the corresponding pivot pin and bushing for wear, and to replace them if necessary to restore the joint to optimal condition.
The 332106412 Safety Locking Rod is specifically designed for use in XCMG articulated dump trucks, including the XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series models.
These vehicles are deployed in a wide range of demanding applications, including open-pit mining, quarrying, heavy construction, water conservancy, harbour operations, and large-scale earthmoving projects.
The locking rod is used to secure pivot pins in articulation joints, steering knuckles, suspension linkages, and various other critical attachment points throughout the chassis and body.
Beyond articulated dump trucks, this rod can also be used in other XCMG equipment that employs similar pivot pin configurations, such as wheel loaders, crawler dozers, excavators, and motor graders.
The rod’s standard dimensions and material properties make it a versatile replacement part for a wide range of heavy machinery, providing flexibility for maintenance and repair operations.
When replacing a worn or damaged locking rod, using the genuine 332106412 part ensures correct fitment, material strength, and coating quality, safeguarding the joint it secures.
It is always recommended to inspect the associated pins, bushings, and seals when installing a new rod, and to replace them if necessary.
Installing the 332106412 Safety Locking Rod is a straightforward process that can be completed with standard hand tools, minimizing downtime and maintenance effort.
Before installation, inspect the rod for any signs of damage or corrosion. Clean the rod and the locking pin bore to remove any dirt, grease, or debris that could affect the fit.
Insert the pivot pin into its mounting lugs and bushing bores, ensuring it is correctly aligned and fully seated. Align the locking hole in the pivot pin with the corresponding hole in the mounting bracket.
Slide the safety locking rod through the mounting hole and into the locking hole of the pivot pin, ensuring it engages fully and provides a positive lock.
Secure the locking rod in place using the provided retaining clip, cotter pin, or chain to prevent it from working loose during operation.
During routine maintenance, inspect the locking rod for signs of wear, bending, or corrosion. Check the retaining mechanism to ensure it is secure and undamaged.
If any damage or significant wear is detected, replace the locking rod immediately. Keeping a spare 332106412 safety locking rod on hand can help minimize downtime during unexpected repairs.
Always follow the manufacturer’s recommended service intervals and torque specifications when performing maintenance on pivot pins and locking mechanisms.
The 332106412 Safety Locking Rod is manufactured in ISO 9001 and ISO 14001 certified facilities, adhering to the highest quality and environmental management standards.
The raw material, 40Cr alloy steel, is sourced from approved mills and undergoes rigorous incoming inspection, including chemical analysis, tensile testing, and impact testing.
The forging, machining, and heat-treatment processes are precisely controlled, with regular tooling maintenance and dimensional checks to ensure consistent part geometry and surface finish.
The zinc-nickel plating and black oxide coating processes are carefully monitored, with coating thickness and adhesion verified using non-destructive testing methods.
Each locking rod is 100% inspected for visual defects, dimensional accuracy, hardness, surface finish, and coating integrity. A sample from each production batch is subjected to salt spray testing and tensile strength verification tests.
These rigorous quality assurance measures guarantee that every 332106412 safety locking rod delivers the reliability, load-bearing performance, and durability expected from a genuine XCMG component.
Using genuine XCMG 332106412 safety locking rods guarantees proper fit, optimal locking function, and compatibility with the vehicle’s pivot and articulation systems.
The 332106412 Safety Locking Rod is an essential component for ensuring the operational safety and structural integrity of XCMG articulated dump trucks.
As a critical non-engine mechanical accessory, this rod provides a robust, reliable locking mechanism that prevents unintended pin disengagement, reducing the risk of catastrophic failure and safety incidents.
Its high-strength alloy steel construction, advanced heat treatment, and corrosion-resistant coating ensure exceptional durability and long-term performance in the most demanding mining, quarrying, and construction environments.
With its precise OEM fitment and uncompromising quality, this locking rod offers outstanding value and peace of mind for fleet operators, maintenance professionals, and equipment owners alike.
Choosing the genuine XCMG 332106412 safety locking rod protects your vehicle’s pivot and suspension systems from failure, reduces maintenance costs, and ensures that your articulated dump truck remains productive, reliable, and safe.
Always source genuine XCMG parts from authorised distributors to guarantee authenticity, compliance with OEM specifications, and long-term performance.
Whether for planned maintenance or emergency repairs, the 332106412 safety locking rod is the trusted choice of professionals who demand the highest standards of quality and reliability in their heavy equipment.
