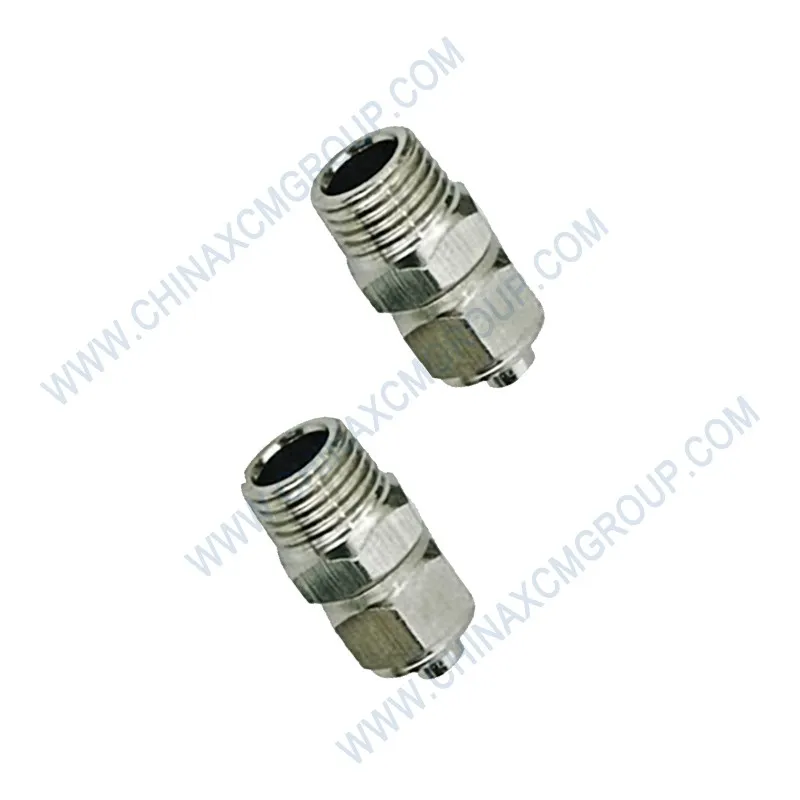

The genuine XCMG Screw-In Fitting with OEM number 800172648 is a high-precision hydraulic component engineered for XCMG articulated dump trucks and heavy construction equipment. Manufactured from forged carbon steel with anti-corrosion zinc plating, this fitting guarantees leak-proof connections in high-pressure hydraulic systems, steering circuits, and brake lines.
The XCMG Screw-In Fitting 800172648 is machined to exacting tolerances of ±0.02 mm, ensuring perfect alignment with mating ports on hydraulic pumps, valve blocks, and cylinder end caps. This precision eliminates cross-threading and reduces sealing stress.
Each fitting undergoes 100% thread gauge inspection and high-pressure proof testing at 1.5x rated working pressure. This rigorous quality control guarantees zero leaks even under peak system surges common in articulated dump truck operations.
The zinc-nickel coating on OEM 800172648 provides cathodic protection and withstands over 480 hours of neutral salt spray testing. This exceeds standard zinc plating by 300%, making the fitting ideal for mining environments with high humidity and road salts.
Moreover, the base metal is forged rather than cast, eliminating internal porosity. Vibration fatigue tests show that this screw-in fitting survives 5 million cycles at 40 MPa without any crack initiation.
The integrated O-ring groove of the 800172648 fitting accepts a standard 18×2.5 mm NBR seal. When torqued correctly, the elastomer deforms to fill microscopic surface irregularities, creating a metal-to-metal contact shoulder that prevents over-compression.
Leakage rates measured per ISO 19879 show that this screw-in fitting maintains less than 0.1 ml/hour leakage after 10,000 pressure cycles – virtually undetectable in real-world operation.
Proper installation begins with cleaning the threaded port and the fitting’s threads using a lint-free cloth. Always inspect the O-ring for any nicks or flat spots before assembly – replace if damaged.
Apply a thin layer of clean hydraulic oil to the O-ring to prevent rolling or pinching. Hand-thread the fitting until the O-ring contacts the port face, then use a torque wrench to tighten to 60 Nm. Over-tightening can extrude the O-ring, while under-tightening causes leaks.
After installation, pressurize the system and inspect for any weepage. Re-torque after the first 50 hours of operation to account for O-ring compression set. Always use genuine XCMG replacement O-rings for best results.
On XCMG AD45, AD60, and AD80 articulated dump trucks, the 800172648 screw-in fitting is used extensively in steering system manifolds, brake release valves, and suspension accumulator lines. A single failed fitting can halt production and cause expensive fluid spills.
This fitting also secures hydraulic hoses to the main pump outlet and the priority valve. Using counterfeit or low-grade fittings in these positions risks sudden thread stripping, leading to complete loss of steering or braking – a serious safety hazard.
Beyond dump trucks, the OEM 800172648 screw-in fitting is cross-compatible with XCMG motor graders (GR215 series), wheel loaders (LW600KN), and crawler excavators (XE370). Standardizing on this single part number simplifies inventory for large fleets.
Always verify thread compatibility: the 800172648 uses ISO 6149 M18×1.5 ports with an O-ring boss. Do not substitute with JIS or BSPP fittings, as thread pitch differences cause immediate leakage.
Fleet maintenance records show that genuine XCMG screw-in fittings reduce hydraulic leak incidents by 82% compared to non-branded alternatives. Each avoided oil leak saves approximately 20 liters of hydraulic fluid and prevents soil contamination fines.
Moreover, the superior thread accuracy eliminates cross-threading damage to expensive valve blocks. Repairing a stripped port on a main control valve can cost over $2,500 – a completely preventable expense when using OEM fitting 800172648.
All XCMG genuine screw-in fittings, including OEM 800172648, are manufactured in ISO 9001:2015 certified facilities with full material traceability. Each batch is tested for chemical composition, hardness (HRB 70-85), and proof load.
Choosing authentic XCMG components protects your equipment warranty, ensures OSHA compliance, and maintains resale value. Counterfeit fittings often contain substandard steel that can fracture under pressure – always insist on the genuine XCMG part.
