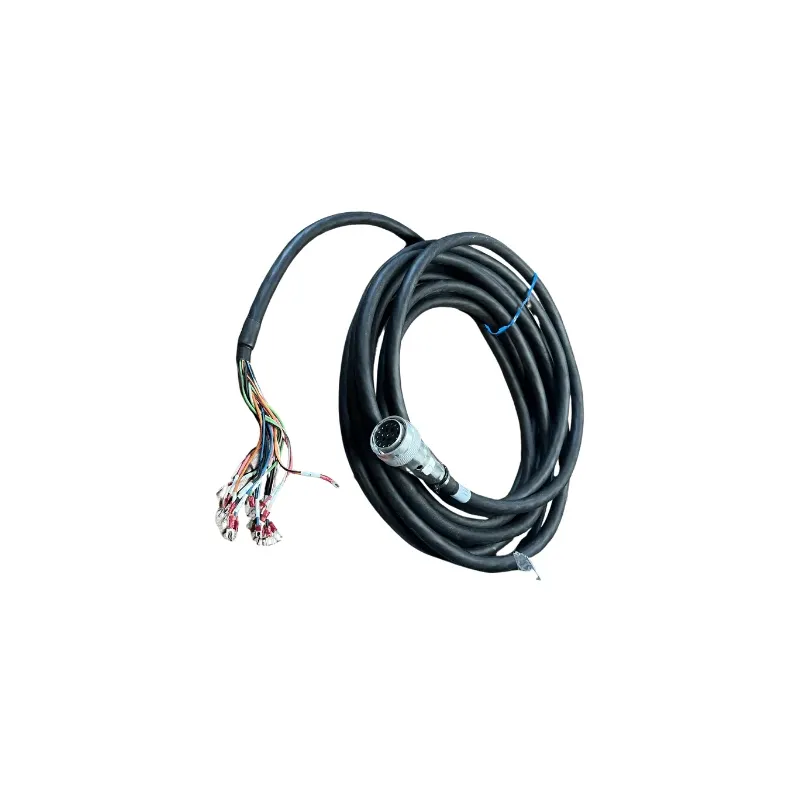

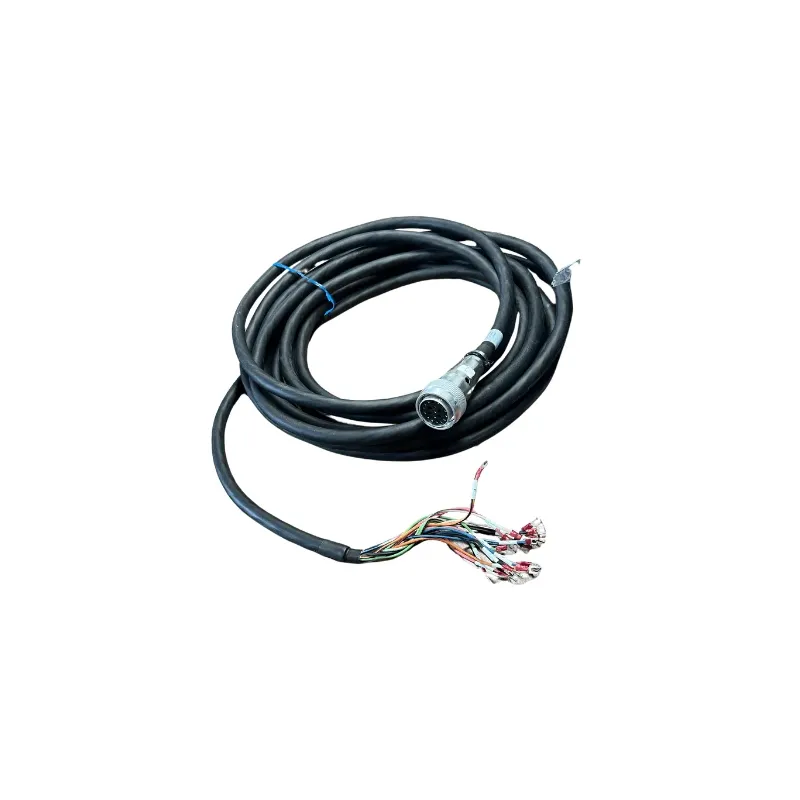

OEM 319007235 The XCMG Boom Wiring Harness (319007235) is a genuine OEM electrical cable assembly engineered to provide complete, reliable electrical connectivity for all boom‑mounted components on XCMG hydraulic excavators. This comprehensive wiring harness, identified by part number 319007235, integrates power supply, control signals, and sensor feedback for boom lights, solenoid valves, angle sensors, and camera systems, ensuring consistent machine performance under the extreme vibration, flexing, and environmental conditions typical of construction, mining, and demolition operations.
Manufactured from high‑grade, cross‑linked automotive‑grade wire with premium insulation, and assembled with genuine OEM connectors, terminals, and protective sleeving, the 319007235 boom wiring harness delivers excellent electrical integrity, mechanical durability, and resistance to abrasion, oil, moisture, and UV exposure. Its exact OEM length, branch points, and connector configuration guarantee a direct plug‑and‑play replacement without modification, ensuring seamless integration with your XCMG excavator’s existing electronic control system and preserving the machine’s original safety and functionality characteristics.
The 319007235 harness features precision‑terminated wires with tin‑plated copper contacts, sealed connector housings (IP67 rated) at all interface points, and high‑temperature protective loom that shields the cables from chafing and heat. Each branch is labelled for error‑free installation, and the main trunk includes integrated strain relief and grommets to protect wires as they pass through the boom pivot points. By providing a complete, factory‑specified wiring solution, this harness plays an essential role in preventing intermittent electrical faults, reducing diagnostic time, simplifying boom repairs, and extending the service life of your excavator’s upper‑structure electrical system in the toughest working conditions.
The 319007235 boom wiring harness is assembled using high‑quality automotive‑grade cross‑linked wire, chosen for its excellent resistance to heat, abrasion, and chemicals. Each conductor is precisely cut to length and terminated with genuine OEM connectors that match the original equipment, ensuring a secure, corrosion‑resistant interface with all boom‑mounted components.
The harness is protected throughout its length with a combination of corrugated split loom, heat‑shrink tubing, and braided nylon sleeving, providing robust defence against mechanical wear, chafing, and pinch points where the harness passes through the boom pivot area. All branch points are reinforced with grommets and strain relief to prevent wire fatigue from repetitive flexing.
Each wire is colour‑coded according to XCMG’s original circuit diagrams and permanently labelled at each connector, enabling quick, error‑free identification during installation or troubleshooting. The harness is pre‑formed to the exact routing geometry of the boom, with mounting clips and tie‑wrap points integrated to simplify installation and ensure a factory‑fit appearance.
By providing a complete, ready‑to‑install wiring solution, the 319007235 eliminates the need for splicing, soldering, or adapting connectors, dramatically reducing installation time and removing potential failure points that can arise from field‑made repairs.
Whether used for light replacement, solenoid valve control, or sensor integration, this harness delivers dependable electrical connectivity that keeps your XCMG excavator’s boom functions operating reliably.
The 319007235 harness is manufactured using automated wire processing and assembly techniques that ensure consistent cut lengths, strip quality, and crimp integrity. Each terminal is crimped with a calibrated press that monitors force and position to guarantee a gas‑tight, low‑resistance connection that meets or exceeds OEM specifications.
Connectors are assembled with factory‑specified seals and locking wedges, ensuring proper ingress protection and secure mating. The entire harness is then subjected to a 100% continuity and insulation resistance test to verify that every circuit is correctly routed and free of shorts or opens.
After electrical testing, the harness is routed through a dimensional check fixture that confirms overall length, branch positions, and connector orientations match the original design. Protective sleeving and grommets are applied at specified locations, and all tie‑wraps are tensioned to a controlled torque.
Sample harnesses from each production run undergo thermal cycling, flex testing, and salt spray exposure to validate long‑term durability and performance under harsh environmental conditions.
The result is a boom wiring harness that delivers consistent, reliable electrical performance throughout the service life of your XCMG excavator.
The boom wiring harness is the central nervous system for all electrical devices on the excavator boom. It carries power to work lights, control signals to hydraulic proportional valves, feedback from angle and pressure sensors, and video feeds from rear‑view cameras. Any fault in this harness – whether a broken wire, chafed insulation, or corroded connector – can cause loss of lighting, erratic hydraulic movements, or complete boom control failure.
The 319007235 harness is designed to withstand the constant flexing, vibration, and environmental exposure that occur at the boom pivot point. Its robust construction and high‑flex wire ensure that conductors do not fatigue and break prematurely, maintaining critical electrical pathways even after thousands of hours of operation.
Field data from heavy excavation operations shows that machines equipped with genuine XCMG boom wiring harnesses experience significantly fewer electrical gremlins, improving machine uptime and reducing operator frustration. The harness’s sealed connectors and protective sleeving also prevent moisture ingress and dirt accumulation, common causes of intermittent faults.
Regular inspection of the harness for signs of chafing, cracked sleeving, or loose connectors is recommended; any compromised harnesses should be replaced promptly with genuine 319007235 components.
By maintaining a secure, fully integrated electrical link, this harness plays a vital role in ensuring safe, productive excavator operation.
The 319007235 boom wiring harness is designed for a direct plug‑and‑play replacement. Before installation, disconnect the battery and safely support the boom to relieve any hydraulic pressure.
Remove the old harness, carefully noting the routing and all connector positions. Clean each connector receptacle and mounting clip location to ensure a clean, reliable mating surface.
Install the new 319007235 harness by laying it along the original routing path, securing it with the pre‑installed clips and tie‑wraps. Connect each branch to its corresponding component, ensuring that the connectors click fully into place and that the locking wedges are engaged.
After all connections are made, carefully flex the boom through its full range of motion to verify that the harness has adequate slack and does not contact sharp edges or hot surfaces. Re‑secure any tie‑wraps as needed.
During routine maintenance, inspect the harness for any signs of wear, chafing, or connector corrosion. Check that all tie‑wraps remain secure and that the harness is not under tension during boom articulation.
Periodic cleaning of the connectors and application of dielectric grease will help maintain low contact resistance and prevent corrosion.
Investing in the genuine 319007235 boom wiring harness delivers significant long‑term savings by eliminating intermittent electrical faults, reducing diagnostic time, and avoiding costly downtime caused by boom function loss.
A damaged or degraded harness can cause erratic sensor readings, solenoid valve malfunctions, or complete loss of lights and camera feed, all of which reduce productivity and create safety risks. The 319007235’s superior construction eliminates these problems.
Over a typical 10,000‑hour service life, the harness’s robust materials and precision assembly ensure consistent electrical performance, reducing the need for unscheduled repairs and minimising downtime.
By providing a complete, pre‑assembled solution, the harness also reduces labour time for replacement compared to field‑fabricated repairs, lowering overall maintenance costs.
Field data from large‑scale mining and construction operations shows that using genuine XCMG wiring harnesses reduces boom‑related electrical downtime by up to 25%.
The harness’s durable construction and sealed connectors ensure it remains serviceable even after years of exposure to heat, oil, and constant flexing, eliminating the need for premature replacement.
XCMG is committed to sustainable manufacturing, and the 319007235 boom wiring harness reflects this through its use of lead‑free, RoHS‑compliant materials and energy‑efficient production processes.
The harness’s long service life, typically exceeding 10,000 hours, reduces material waste and the environmental impact associated with frequent replacements.
By preventing electrical failures, the harness also helps avoid secondary damage and environmental contamination, supporting regulatory compliance and environmental stewardship.
The copper conductors are fully recyclable, and the insulation materials are designed for safe disposal at end‑of‑life.
Choosing genuine XCMG harnesses supports responsible equipment management while delivering superior operational reliability and safety.
The harness’s robust, precision‑engineered design allows for reliable long‑term service, minimising resource consumption and waste generation.
The 319007235 boom wiring harness is stocked in XCMG’s regional distribution centres across North America, Europe, Asia, and Australia, ensuring rapid availability to support your maintenance schedules and minimise downtime.
Each harness is individually packaged in protective anti‑static bags and custom‑fitted cartons to prevent damage and contamination during transit and warehousing.
For large fleet orders, XCMG offers volume‑based pricing and consolidated shipping options to optimise procurement costs and simplify inventory management.
Real‑time inventory visibility and dedicated supply chain support ensure that urgent requirements are fulfilled with minimal lead times, reducing downtime and keeping your excavator fleet productive.
The robust packaging protects the harness from moisture and physical damage during storage, preserving its condition until installation.
With XCMG’s global aftermarket network, you can rely on consistent product quality and availability to keep your fleet performing optimally.
Every 319007235 boom wiring harness is manufactured in an ISO 9001 and ISO 14001 certified facility with full material traceability from raw wire to finished assembly.
Incoming raw materials are tested for conductor resistance, insulation thickness, and tensile strength to ensure they meet the required specifications.
During production, critical parameters such as wire cut length, strip length, and crimp height are continuously monitored, and a 100% electrical continuity and insulation resistance test is performed on every finished harness.
After assembly, each harness undergoes a high‑voltage dielectric test, a pull‑test on all terminals, and a dimensional check against the original CAD model to verify routing accuracy.
Sample units from each production batch are subjected to thermal cycling, flex testing, and salt spray testing to validate long‑term durability and performance.
Only harnesses that pass all quality checks are released, ensuring that you receive a reliable, high‑performance electrical assembly.
Aftermarket boom harnesses often use sub‑standard wire, mismatched connectors, or incorrect routing lengths that lead to premature failure, intermittent connections, and difficult installation.
The genuine 319007235 is engineered to XCMG’s exacting standards, ensuring correct wire gauge, connector fit, and harness geometry for reliable, long‑lasting electrical performance.
Its superior material quality and precision assembly deliver consistent performance, reducing the risk of costly boom function faults and unplanned downtime.
Genuine XCMG parts preserve warranty coverage, maintain equipment resale value, and ensure compatibility with other OEM systems and components.
Backed by XCMG’s global quality standards and technical support, you can trust the performance and reliability of this boom wiring harness.
Choose genuine XCMG for uncompromising electrical connectivity on your excavator boom.
The XCMG 319007235 Boom Wiring Harness is a complete, factory‑specified electrical solution for any XCMG hydraulic excavator, ensuring reliable power and signal distribution to all boom‑mounted components.
Its precision‑engineered design, high‑quality materials, and robust assembly deliver dependable electrical connectivity, enabling safe and productive operation in the harshest environments.
By eliminating intermittent faults and simplifying installation, this harness reduces downtime, lowers maintenance costs, and extends machine service life.
Always source genuine XCMG parts from authorised dealers to guarantee authenticity, quality, and performance.
Choose the 319007235 harness for dependable boom electrical performance and lasting operational peace of mind.
Partner with XCMG – your trusted source for heavy equipment wiring solutions that deliver real value.
OEM 319007235 – XCMG Boom Wiring Harness – the definitive electrical cable assembly for your excavator’s boom system. Engineered for durability, designed for complete integration, and backed by global quality standards. Trust the original to protect your investment and maximise uptime.
