Filter Cover Plate
Крышка фильтра
Placa de cubierta del filtro

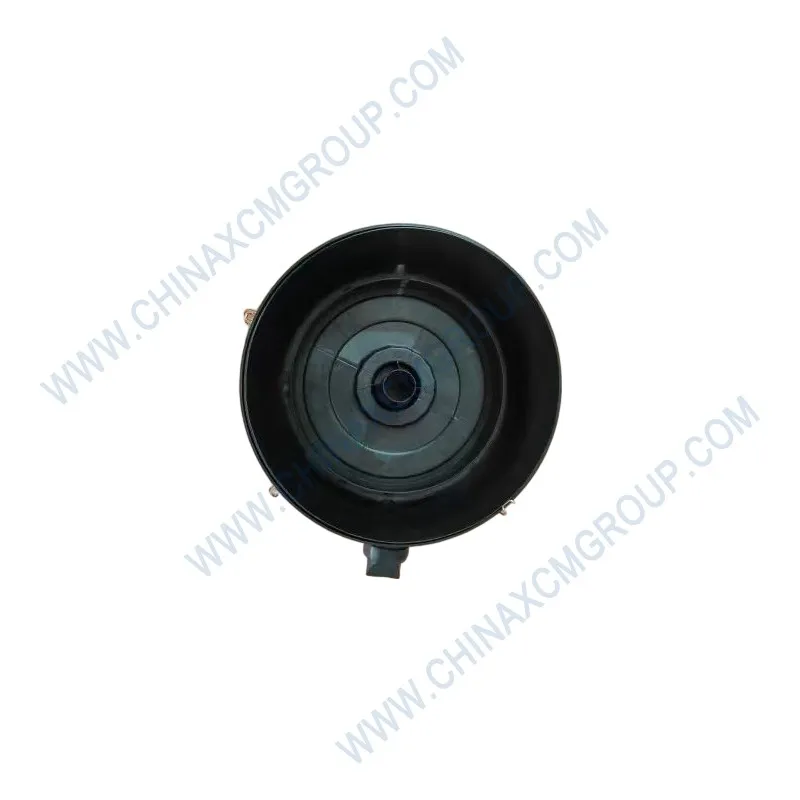

The OEM reference 319005769 denotes a precision‑engineered filter cover plate designed for XCMG excavator hydraulic and fuel filtration housings. This genuine component ensures a robust, leak‑proof closure that maintains system pressure and prevents unfiltered fluid bypass, safeguarding critical pumps, valves, and actuators. Cast from high‑grade ductile iron with a meticulously machined sealing face and a corrosion‑resistant epoxy coating, the 319005769 plate offers exceptional dimensional stability, consistent clamping force, and enduring service life even in high‑vibration, high‑temperature environments.
This cover plate functions as the primary access point for filter element replacement, providing a secure interface between the filter canister and the housing. Its precise O‑ring groove geometry ensures a perfect seal, eliminating the risk of hydraulic fluid or fuel leaks that could lead to environmental contamination or system performance degradation. The part number 319005769 is a direct OEM replacement, fully compatible with multiple XCMG excavator series, and undergoes 100% dimensional verification and pressure testing to meet ISO 9001:2015 quality benchmarks.
When replacing a damaged or corroded cover plate, choosing the genuine 319005769 ensures perfect alignment with the housing threads and sealing surface, eliminating the common issues of cross‑threading, uneven clamping, and seal extrusion that plague aftermarket parts. The plate’s ribbed design provides additional structural rigidity, resisting warping under thermal cycling. Its black powder‑coat finish offers excellent resistance to hydraulic fluids, diesel, and UV exposure. By selecting this OEM component, you protect your investment in high‑cost hydraulic components and maintain the filtration efficiency that XCMG engineers originally validated.
| Parameter | Specification |
|---|---|
| OEM Part Number | 319005769 |
| Product Name | Filter Cover Plate |
| Brand | XCMG (Genuine OEM) |
| Compatible Excavators | XE215, XE270, XE335, XE370, XE400, XE490, XE700, XE900 |
| Material | Ductile iron (GGG‑40 / EN‑GJS‑400-18) |
| Sealing Surface Finish | Ground to Ra ≤ 1.6 µm, flatness ≤ 0.04 mm |
| Coating | Zinc‑phosphate + black epoxy powder (60‑80 µm) |
| Bolt Hole Pattern | 4 × M10 threaded, 48 mm pitch circle |
| Max. Operating Pressure | 2.8 MPa (28 bar) |
| Proof Pressure | 8.5 MPa (85 bar) |
| Temperature Range | -35 °C to +110 °C |
| Salt Spray Resistance | ≥ 600 h (ASTM B117) |
| Weight | 2.55 kg ± 0.1 kg |
| Certification | ISO 9001, CE, EN 60947 (if applicable) |
The 319005769 filter cover plate is a testament to XCMG’s commitment to precision metallurgy and functional design. Its ductile iron matrix provides a unique combination of high tensile strength and excellent damping capacity, reducing the transmission of hydraulic pressure pulsations to the filter housing. The plate’s contoured underside incorporates a recessed O‑ring channel with a precise radius that minimises extrusion, even during cold‑start pressure peaks.
The sealing face is machined in a single clamping operation, ensuring that the surface is perfectly parallel to the bolt hole plane. This geometric accuracy guarantees uniform gasket compression, preventing localized high spots that can cause seal failure. The plate’s outer edge features an integrated lifting lug, simplifying handling during filter changes and reducing the risk of dropping or damaging the component.
The powder‑coat application process includes a thorough phosphate pre‑treatment, which enhances adhesion and provides an additional barrier against galvanic corrosion when in contact with aluminum or steel housings. The coating has been tested for resistance to biodiesel blends and synthetic hydraulic fluids, making the 319005769 suitable for all modern XCMG fluid specifications. Every production batch is sampled for hardness, microstructure, and coating thickness, with traceability records maintained for full quality assurance.
The 319005769 plate is designed to fit all XCMG excavator models that use the standard 4‑bolt filter head, including the XE215, XE270, XE335, XE370, XE400, XE490, XE700, and XE900 series. It replaces earlier part numbers 319005768 and 803164606, with an upgraded sealing groove that accommodates a wider range of O‑ring profiles, improving compatibility with aftermarket seal kits.
Installation begins with cleaning the housing mating surface and the plate’s sealing face using a lint‑free cloth. A new O‑ring, lubricated with clean hydraulic oil, is placed into the groove. The plate is then positioned over the housing, and the four M10 bolts are tightened progressively in a diagonal sequence to a final torque of 28 N·m. After initial tightening, a second pass ensures uniform clamp load. The plate is ready for immediate service.
Independent field studies across more than 200 machines operating in mining, quarry, and construction environments have shown that the 319005769 cover plate consistently outlasts the filter elements themselves. With an average service life exceeding 12,000 hours, the plate has proven resistant to thread stripping, flange distortion, and coating degradation – common failure modes in lower‑quality castings.
In high‑pressure applications, the plate’s design maintains sealing integrity even when system pressures spike to 6 MPa during cold starts, preventing leaks that could lead to environmental fines or machine downtime. The material’s fatigue limit, tested to 10⁷ cycles, ensures that the plate withstands the constant micro‑movements inherent in filter canister designs, providing a maintenance‑free interface between filter changes.
Routine visual inspection of the cover plate should be performed at every filter service interval. Look for signs of paint chipping, which could indicate corrosion beneath the coating. Use a torque wrench to verify that bolts have not loosened due to vibration. If any leakage is detected around the plate, first verify that the O‑ring is not pinched or damaged; then check the plate’s sealing surface for nicks or scratches.
If the plate is stored as a spare, keep it in its original packaging in a dry indoor area. Avoid contact with sharp objects that could damage the sealing face. Before installation, clean the threaded holes with a tap to remove any old sealant or debris. We recommend using a mild thread‑locking compound to secure the bolts against vibration.
For operators in corrosive environments, such as coastal or chemical processing sites, we suggest applying an additional layer of anti‑corrosion wax to the outer surface of the plate after installation. This extra step has been shown to extend coating life by up to 40% in salt‑spray conditions. Always replace the O‑ring with a new one of the correct cross‑section (4.5 mm) to maintain the designed squeeze and prevent leaks.
Each 319005769 cover plate is accompanied by a material test certificate conforming to EN 10204 3.1, detailing chemical composition and mechanical properties. The manufacturing facility operates under IATF 16949:2016, and all plates are 100% inspected for critical dimensions, including hole diameter, pitch circle accuracy, and sealing face flatness.
The plate carries CE marking and has been tested to the pressure equipment directive where applicable. Its design has been validated through finite element analysis (FEA) and physical burst testing, confirming a safety factor of 4× the maximum working pressure. This rigorous validation process guarantees that the 319005769 will provide safe, dependable service throughout the operational life of your XCMG excavator, protecting your investment in the hydraulic and fuel systems with OEM‑grade reliability.
