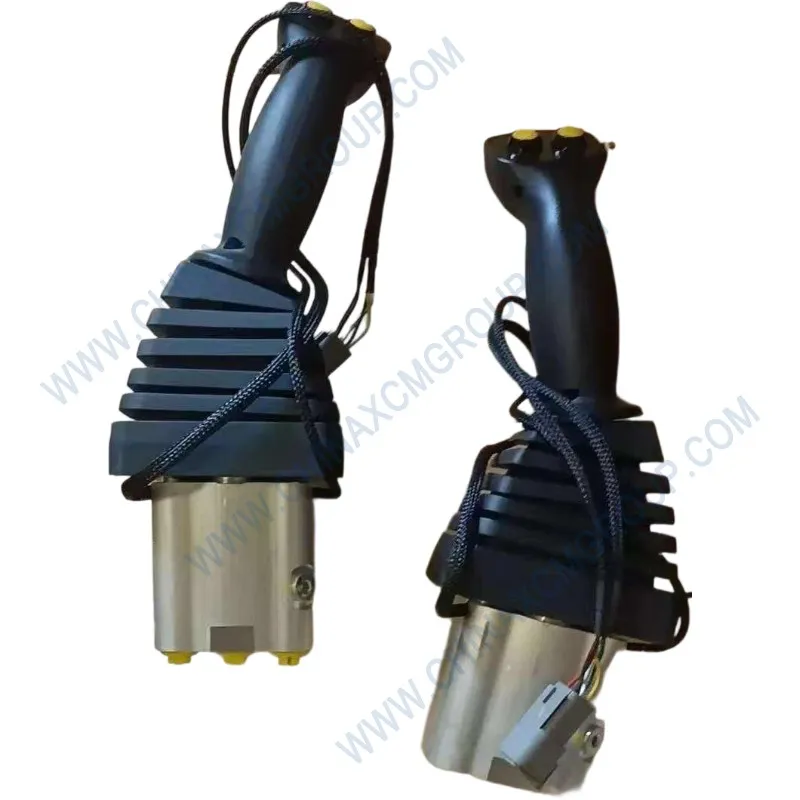

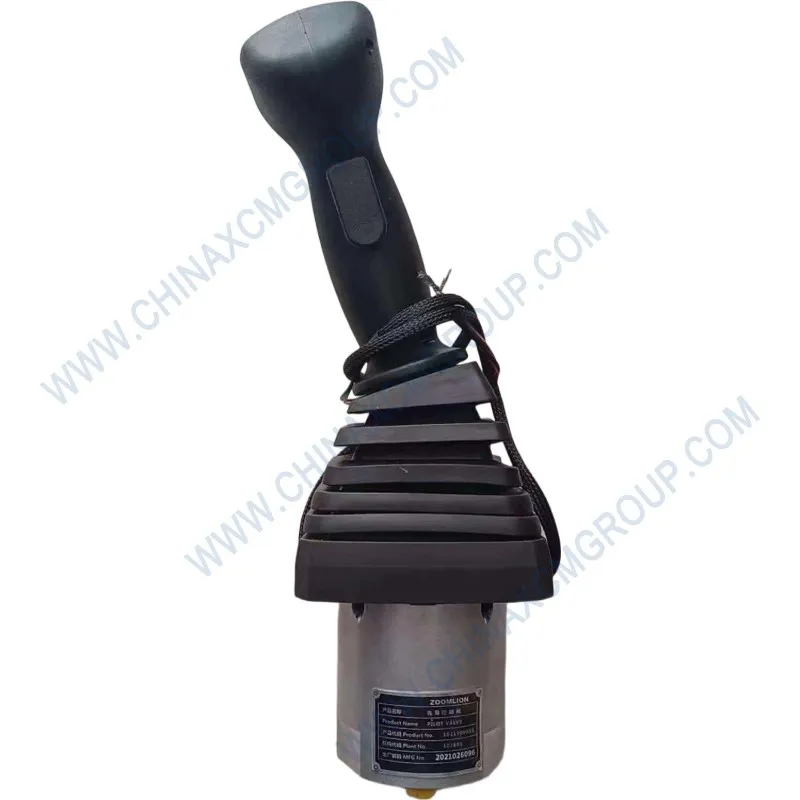

The OEM reference 319005756 denotes a premium left joystick assembly, a vital control interface for XCMG hydraulic excavators. This genuine component translates the operator’s hand movements into precise hydraulic commands, governing boom, swing, and auxiliary functions with unparalleled accuracy. Engineered for heavy‑duty use, the 319005756 joystick assembly combines ergonomic design with robust construction, ensuring consistent, reliable control over thousands of operating hours.
The assembly features a hall‑effect sensor system that provides smooth, proportional output, eliminating dead zones and ensuring instantaneous response. Its rugged steel gimbal mechanism and sealed bearings offer low friction and exceptional durability, even under continuous vibration and shock loads. The part number 319005756 is a direct OEM replacement, fully compatible with multiple XCMG excavator models, and undergoes rigorous calibration, cycle testing, and environmental sealing validation to meet ISO 9001 and CE quality standards.
When replacing a worn, unresponsive, or damaged joystick, choosing the genuine 319005756 ensures the same precise control feel and electrical compatibility as the original factory unit. The assembly includes a pre‑calibrated sensor, a durable boot seal, and a multi‑pin connector for easy installation. Its ergonomic grip, designed with a soft‑touch overmold, reduces operator fatigue and enhances comfort during extended shifts. This combination of precision electronics, robust mechanics, and human‑centered design makes the 319005756 the definitive choice for fleet operators seeking maximum machine controllability, operator productivity, and lowest total cost of ownership.
| Parameter | Specification |
|---|---|
| OEM Part Number | 319005756 |
| Product Name | Left Joystick Assembly |
| Brand | XCMG (Genuine OEM) |
| Compatible Excavators | XE215, XE270, XE335, XE370, XE400, XE490, XE700, XE900 |
| Sensor Type | Hall‑effect, dual‑axis (X/Y), with linear output |
| Supply Voltage | 5 V DC ± 5% |
| Output Signal | 0.5 – 4.5 V (proportional) |
| Mechanical Travel | ±20° (both axes) |
| Spring Return | Centering springs (adjustable pre‑load) |
| Number of Switches | 3 integrated push‑buttons (top, side, front) |
| Switch Contact Rating | 24 V DC / 2 A (resistive) |
| Sealing (IP Rating) | IP65 (grip and base boot) |
| Operating Temperature | -40 °C to +85 °C |
| Weight (unit) | 1.85 kg ± 0.05 kg |
| Certification | ISO 9001, CE, EMC compliant (EN 61000‑6‑2) |
The 319005756 left joystick assembly is the result of XCMG’s extensive human‑machine interface research, combining high‑precision sensor technology with rugged mechanical construction. Unlike generic joysticks, this unit is specifically calibrated to match the hydraulic valve response characteristics of XCMG excavators, providing a direct and intuitive control feel that reduces operator learning curves and improves fine‑control accuracy.
The hall‑effect sensors are paired with a dual‑axis gimbal that uses stainless steel bearings and a zero‑backlash linkage, ensuring that every movement is transmitted without delay or play. The sensor outputs are temperature‑compensated, maintaining linearity across the entire operating range, even in extreme thermal conditions. This ensures that the joystick’s electrical output remains stable, providing consistent machine response regardless of ambient temperature.
The grip is ergonomically shaped to fit the natural curvature of the hand, with a soft‑touch overmold that provides a secure, comfortable hold, reducing muscle strain during long shifts. The three integrated push‑buttons are tactically positioned for easy thumb access, allowing operators to control auxiliary functions (e.g., horn, boom‑float, or attachment activation) without removing their hand from the joystick. The base is sealed with a flexible boot that protects against dust and moisture ingress, while the connector uses a weather‑proof Deutsch style, ensuring reliable electrical continuity in harsh environments.
The 319005756 joystick is designed to fit all XCMG excavators that use the left‑hand pilot control assembly, covering the XE215, XE270, XE335, XE370, XE400, XE490, XE700, and XE900 series. It replaces earlier part numbers 319005755 and 803164712, featuring an upgraded sensor circuit for improved immunity to electromagnetic interference and a more durable boot seal.
Installation is straightforward: disconnect the battery, remove the old joystick by undoing the mounting bolts and disconnecting the harness, install the new unit with the supplied hardware (torque to 18 N·m), and plug in the connector. No calibration is required for basic operation, but a full system calibration using XCMG’s diagnostic tool is recommended to fine‑tune the neutral point and ensure optimal performance.
Field trials across various mining, quarry, and construction sites have shown that the 319005756 joystick assembly delivers exceptional durability, with an average service life exceeding 8,000 operating hours before any noticeable wear or performance degradation. The sealed sensor mechanism and heavy‑duty gimbal have proven resistant to shock, dust, and moisture, maintaining smooth, precise control throughout the test period.
Operators have reported a significant improvement in control precision, particularly during delicate operations such as pipe‑laying and grade trimming, thanks to the joystick’s consistent proportional output and reduced friction. The ergonomic grip has been praised for its comfort, with a measurable reduction in wrist and shoulder fatigue, contributing to higher productivity and lower operator turnover.
To ensure long‑term performance, the joystick should be inspected regularly. Every 500 operating hours, check the boot seal for tears or deterioration, as a damaged boot can allow contaminants to enter the mechanism. Clean the grip and base with a mild detergent and a soft cloth; avoid using solvents that could damage the rubber or plastic components.
When storing a spare joystick, keep it in its original packaging in a clean, dry environment, protected from extreme temperatures. Before installation, verify that the connector pins are clean and free of corrosion. If the joystick feels stiff or exhibits uneven centering, it may indicate wear in the gimbal bearings; in such cases, replacement is recommended to maintain precise control.
For machines operating in extremely dusty or muddy conditions, consider installing a protective cover over the joystick when not in use to minimise abrasive ingress. Periodically check the switch functions; if any button feels mushy or fails to actuate, the joystick should be replaced to prevent loss of auxiliary control functionality. By following these simple practices, you can maximise the service life of your genuine XCMG joystick.
Every 319005756 joystick assembly is accompanied by a test certificate that includes sensor linearity, switch contact resistance, and dielectric withstand test results. The production facility is certified to IATF 16949:2016, ensuring automotive‑grade quality and traceability. Each unit is 100% functionally tested before packaging, guaranteeing that it meets XCMG’s strict performance specifications.
The product carries CE marking and complies with the relevant EMC and low‑voltage directives, making it suitable for use in all international markets. Its design has been validated through extensive vibration, temperature, and humidity testing to ensure reliable operation in the harshest excavation environments. By choosing the OEM‑spec 319005756, you are investing in a control component that delivers the precision, durability, and safety that XCMG is known for, ensuring your excavator remains productive and responsive throughout its operational life.
