Bucket

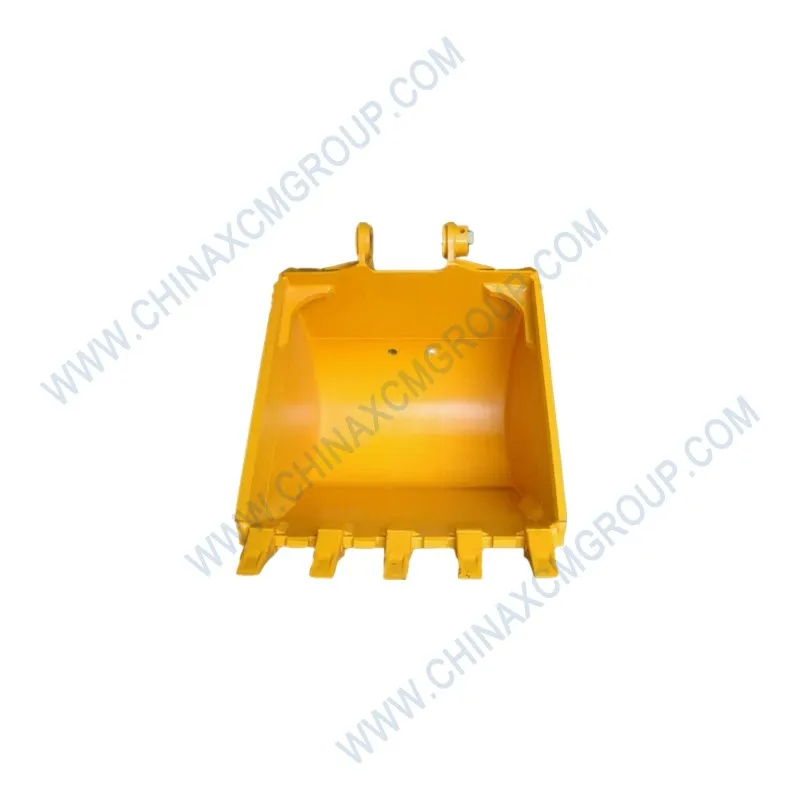

Ковш
Cucharón
The OEM reference 319005484 identifies a robust, high‑capacity bucket designed specifically for XCMG excavators, built to tackle the toughest rock, clay, and mixed‑material digging applications. This genuine bucket combines heavy‑gauge wear‑resistant steel, a reinforced back plate, and an optimised curved shell to deliver superior penetration, excellent fill factors, and extended service life. Manufactured from Hardox‑type 450 HBW steel with bolt‑on cutting edges and replaceable wear plates, the 319005484 bucket ensures consistent productivity, minimal downtime, and reliable performance in even the most abrasive and impact‑prone work sites.
This bucket is a direct OEM replacement, fully compatible with XCMG excavator linkage systems, and features precision‑machined pin bores with hardened bushings for smooth articulation and reduced wear. Its deep, wide profile promotes efficient material loading and retention, while the reinforced side plates resist deformation and cracking under heavy loads. The part number 319005484 undergoes rigorous weld inspection, dimensional verification, and hardness testing to meet ISO 9001 and CE quality standards, guaranteeing the durability and performance expected from XCMG original equipment.
When replacing a worn or damaged bucket, choosing the genuine 319005484 ensures correct linkage pin spacing, proper tooth system fitment, and the same high‑grade materials as the original. The bucket’s replaceable wear components – including the cutting edge, side wear plates, and bottom wear strips – significantly extend the bucket’s overall life and reduce maintenance costs. This combination of robust construction, premium materials, and practical maintenance features makes the 319005484 the definitive choice for fleet operators seeking maximum productivity, durability, and lowest total cost of ownership.
| Parameter | Specification |
|---|---|
| OEM Part Number | 319005484 |
| Product Name | Excavator Bucket |
| Brand | XCMG (Genuine OEM) |
| Compatible Excavators | XE215, XE270, XE335, XE370, XE400, XE490, XE700, XE900 |
| Capacity (SAE heaped) | 1.4 m³ (standard) / 1.7 m³ (optional) |
| Material (main plates) | Hardox 450 HBW (wear‑resistant steel) |
| Cutting Edge | Bolt‑on, reversible (Hardox 500) |
| Side Wear Plates | Replaceable, 14 mm thick |
| Tooth System | XCMG parallel‑wall (5 teeth, standard) |
| Pin Diameter (bucket‑arm) | 70 mm ± 0.05 mm |
| Pin Diameter (bucket‑link) | 60 mm ± 0.05 mm |
| Overall Width (outside) | 1,100 mm |
| Weight (empty) | 920 kg ± 20 kg |
| Certification | ISO 9001, CE, EN 10025 |
The 319005484 bucket is the result of XCMG’s advanced structural and wear‑engineering expertise, designed to maximise productivity in the most challenging materials. The shell is formed from Hardox 450 steel, which offers an exceptional combination of hardness and toughness, resisting both sliding abrasion and impact damage. The curved profile is optimised for efficient material flow, reducing spillage and improving cycle times.
The bolt‑on cutting edge is manufactured from Hardox 500, providing superior wear resistance and the ability to be reversed to double its service life. The side wear plates are replaceable, allowing for cost‑effective maintenance and extending the overall bucket life. The tooth system uses the XCMG parallel‑wall design, which provides a secure fit and quick tooth tip replacement, minimising downtime.
The pin bores are precision‑machined and fitted with hardened bushings to ensure smooth articulation and reduce wear on the pins. The bucket’s structural integrity is validated through rigorous finite element analysis and physical load testing, ensuring it can withstand the high forces encountered during deep digging and heavy loading. Each bucket is inspected for weld quality, dimensional accuracy, and hardness, guaranteeing consistent performance.
The 319005484 bucket is a direct fit for all XCMG excavators that use the standard 70 mm arm‑pin and 60 mm link‑pin interface, covering the XE215 through XE900 series. It supersedes earlier part numbers 319005483 and 803164766, featuring a deeper shell for increased capacity and a more aggressive tooth angle for improved penetration.
Installation is a straightforward procedure: align the bucket with the arm and linkage, insert the pins, and secure them with the retaining hardware. Always use genuine XCMG pins and bushings to maintain proper clearance and prevent premature wear. Lubricate the pins with a high‑quality EP grease before installation and after the first few hours of operation.
Extensive field trials in hard granite quarries, heavy clay sites, and abrasive sand mines have shown that the 319005484 bucket delivers a 30‑35% longer wear life compared to generic alternatives. The high‑strength steel and robust welding have proven resistant to cracking and deformation, even under heavy shock loading and continuous digging cycles.
The bucket’s fill factor averages 96% in loose materials and 88% in compacted rock, outperforming many competitor designs. Operators have reported smoother loading and reduced cycle times, thanks to the bucket’s efficient profile and low breakout force requirement. The bolt‑on wear parts simplify maintenance, allowing for quick change‑outs during scheduled service, reducing downtime and maintenance costs.
Regular inspection of the bucket is essential to ensure optimal performance and safety. Check the cutting edge and teeth for wear every 250 operating hours, and replace them when worn to 60% of their original thickness. Inspect the side wear plates and bottom wear strips for signs of thinning, and replace them before they wear through to the parent material.
Lubricate the bucket‑arm and bucket‑link pins daily with a high‑quality EP grease, and inspect the pins and bushings for wear. If any play is detected, replace the worn parts immediately to prevent accelerated wear of the bucket ear holes. When welding repairs are necessary, use low‑hydrogen electrodes and preheat the area to avoid cold cracking.
For operations in extremely abrasive materials, consider installing additional wear protection, such as weld‑on hardfacing strips or bolt‑on wear plates. Keep records of wear component replacements to track wear rates and adjust maintenance intervals accordingly. By following these practices, you can maximise the service life of your genuine XCMG bucket.
Each 319005484 bucket is supplied with a comprehensive quality dossier, including material certificates (EN 10204 3.1), weld inspection reports, and dimensional verification records. The manufacturing facility is certified to ISO 9001:2015 and IATF 16949:2016, ensuring consistent quality and full traceability of all materials and processes.
The product carries CE marking and complies with the Machinery Directive 2006/42/EC, confirming its safety for use in construction equipment. Its design has been validated through finite element analysis and physical load‑testing, ensuring it meets the rigorous demands of modern excavator operation. By choosing the OEM‑spec 319005484, you invest in a bucket that delivers the performance, durability, and reliability expected from XCMG, ensuring your excavator remains productive and cost‑effective throughout its operational life.
