XCMG Wheel Loaders Working Rod System

Introduction to Working Rod System
The XCMG Wheel Loaders Working Rod System is a pivotal mechanical assembly designed to translate hydraulic power into precise lifting, tilting, and bucket positioning motions. Engineered for durability and efficiency, this system integrates robust components to withstand the high forces and repetitive stress of material handling, ensuring seamless operation in construction, mining, and industrial applications.

Product Description of XCMG Wheel Loaders Working Rod System

Core Mechanical Components
At the heart of the system is the Lift Arm, a high-strength steel structure that supports the bucket and transfers lifting forces from the hydraulic cylinders. It connects to the Pitman Arm via Pitman Arm Pins and Bushings, which allow for articulation while minimizing friction. The Pitman Arm itself links the lift arm to the Link, forming a triangular mechanism that amplifies force for bucket tilting. Bucket Shaft Pins, secured with O-rings and Seal Rings, ensure smooth rotation of the bucket while preventing dust and moisture ingress.
Lubrication and Wear Resistance
Grease Cups are strategically positioned at pivot points—such as the Upper Shaft Pin and Pitman Arm end Pin—to facilitate regular lubrication, reducing wear on Bushings and extending component life. These self-lubricating bushings, combined with precision-engineered pin tolerances, maintain minimal play in the linkage, ensuring accurate control even under heavy loads. The system’s design prioritizes easy access for maintenance, minimizing downtime in demanding worksites.
Fastening and Structural Integrity
High-strength Bolts, Washers, and Lock Washers secure critical connections, resisting vibrations and torque forces that arise during aggressive operation. The Link acts as a load-bearing bridge between the lift arm and bucket, with its forged steel construction ensuring optimal force distribution. Each joint is meticulously aligned to prevent misalignment-induced stress, enhancing the system’s overall durability and reliability.
Engineering Excellence for Heavy-Duty Performance
Every component in the XCMG Working Rod System undergoes rigorous testing for fatigue resistance and dimensional precision. The Bushings are made from abrasion-resistant materials, while the Seal Rings provide a tight barrier against contaminants, ensuring consistent performance in dusty, wet, or icy environments. This attention to detail guarantees that the system maintains peak efficiency over long operational cycles, supporting high productivity in the most challenging conditions.
Conclusion: Reliable Motion Control for Demanding Tasks
The XCMG Wheel Loaders Working Rod System sets a standard for robust, precision-engineered motion control in heavy machinery. By integrating durable materials, intelligent lubrication solutions, and secure fastening systems, it delivers unmatched reliability for lifting, tilting, and material handling—making it an indispensable component for operators who demand excellence from their equipment in harsh, high-intensity worksites.

Product Parameters of XCMG Wheel Loaders Working Rod System

Sr.No.	Part No.	Description	Q’ty	Remark
1	9362537	Lift Arm	1
2	9349216	Bushing	2
3	4905002	Grease Cup	8	JB/T7940.1-1995
4	9301685	Pitman Arm Pin	1
5	4403009	Washer	8	GB96-85
6	4401011	Lock Washer	8	GB93-87
7	4005095	Bolt	8	GB5783-86
8	9301687	Pitman Arm end Pin	2
9	9325039	Pitman Arm	1
10	9358280	Upper Shaft Pin	2
11	9358282	Bushing	2

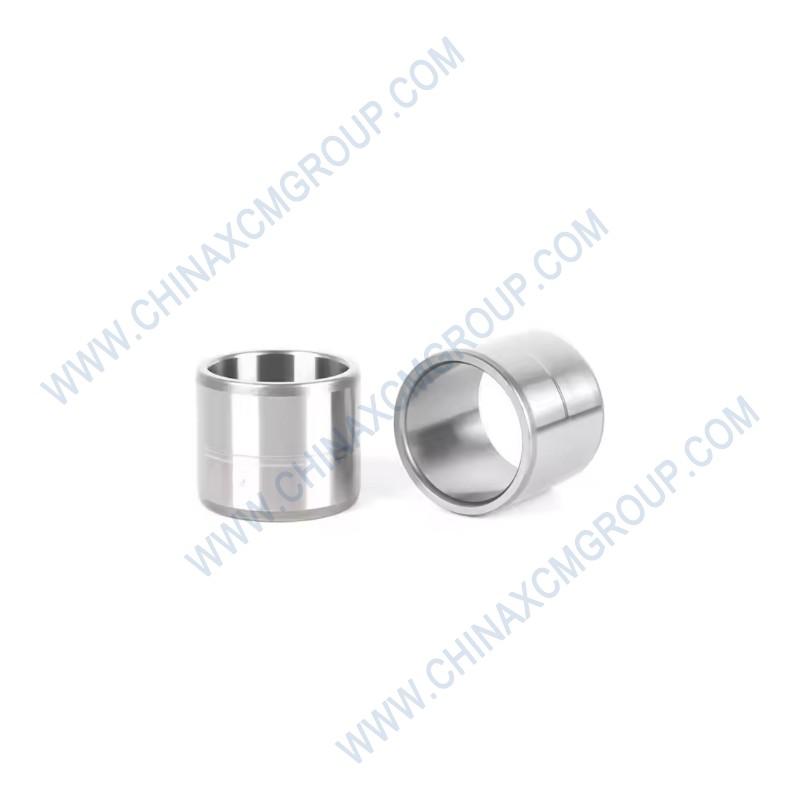

12	9301645	Bushing	2
13	9301691	Bucket Shaft Pin	3
14	9362536	O-ring	8
15	4806971	Seal Ring	8	GB9877.1-88
16	9327562	Bushing	4
17	9364806	Link	1
