XCMG Wheel Loaders Brake Assembly

Introduction to XCMG Wheel Loaders Brake Assembly
The XCMG Wheel Loaders Brake Assembly is a critical safety component engineered for heavy-duty machinery, delivering reliable stopping power under extreme operating conditions. Designed to meet rigorous international standards, this assembly integrates advanced materials and precision components to ensure optimal performance, durability, and operator safety in construction, mining, and material handling applications.

Product Description of XCMG Wheel Loaders Brake Assembly

Core Braking Components
At the heart of the system lies the Brake Disc, a high-strength steel component that provides the friction surface for stopping. Paired with Friction Slices and Friction Plate Soleplates, the disc generates consistent braking force through controlled contact. The Piston, actuated by hydraulic pressure, presses these friction components together, converting kinetic energy into heat and bringing the loader to a safe halt.
Hydraulic System and Sealing
The hydraulic system is optimized for responsiveness and reliability. The Oil Feed Pump Cover and Oil Sealing Pump Cover house the pump mechanism, ensuring precise pressure delivery to the pistons. Rectangular Seals and O-ring 75×3.1 prevent leaks, maintaining system integrity even under high pressure. The Dustproof Ring shields the piston from contaminants, extending component life in harsh environments.
Precision Fastening and Assembly
Robust fastening components ensure the brake assembly’s structural integrity. Bolt M20×60, Bolt M20×55, and Bolt M18×40, secured with Washers 20 and Nut M10, provide high-torque connections for critical components like the Clamp Body. Cylindrical Pins and Pin Shafts maintain alignment, while Hole Plugs seal access points to prevent debris ingress.
Maintenance and Safety Features
The assembly prioritizes ease of maintenance and safety. The Bleeder Nozzle allows air purging from the hydraulic system, ensuring consistent performance, while the Bleeder Nozzle Protector shields it from damage. Steel Balls and Washers 10 secure smaller components, and Bolt M10×35 fasteners enable quick disassembly for inspections. These features minimize downtime and enhance operational safety.
Engineering Excellence for Heavy-Duty Applications
Every component in the XCMG Brake Assembly undergoes rigorous testing to meet international standards for heat resistance, wear, and fatigue. The strategic use of high-grade steel, precision seals, and advanced friction materials ensures reliable performance in extreme temperatures and under heavy loads. This commitment to quality makes the XCMG Brake Assembly a trusted choice for professionals who demand uncompromising safety and durability.
Conclusion: Uncompromising Safety and Reliability
The XCMG Wheel Loaders Brake Assembly delivers unmatched stopping power and durability, engineered to meet the demands of the most challenging worksites. With its robust construction, advanced hydraulic system, and user-friendly maintenance features, this assembly ensures operators can work with confidence, knowing their equipment’s braking system will perform when it matters most.

Product Parameters of XCMG Wheel Loaders Brake Assembly

Sr.No.	Part No.	Description	Q’ty
1	72006561	Brake disc	1
2	55400001	Bleeder nozzle protector	2

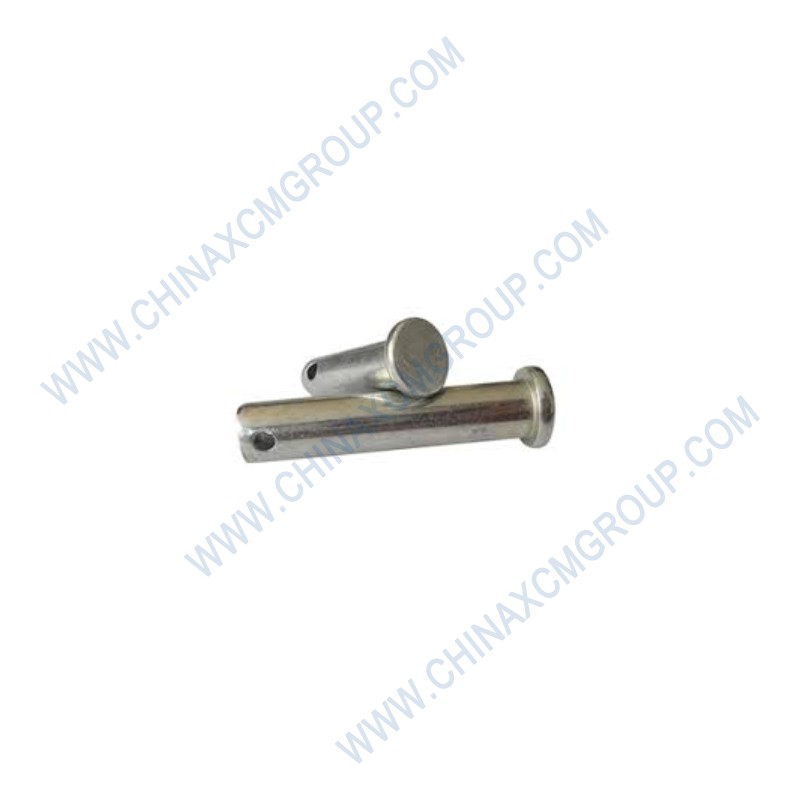

3	75700437	Pin shaft	4
4	75700442	Bleeder nozzle	2
5	53000010	O-ring 75×3.1	2
6	75700436	Clamp body	1
7	75702139	Bolt M20×60	2
8	52020008	Washers 20	6
9	51014003	Nut M10	4
10	75750462	Bolt M10×35	4
11	50009039	Bolt M20×55	4
12	52020007	Washer 18	16
13	54800005	Steel ball	2

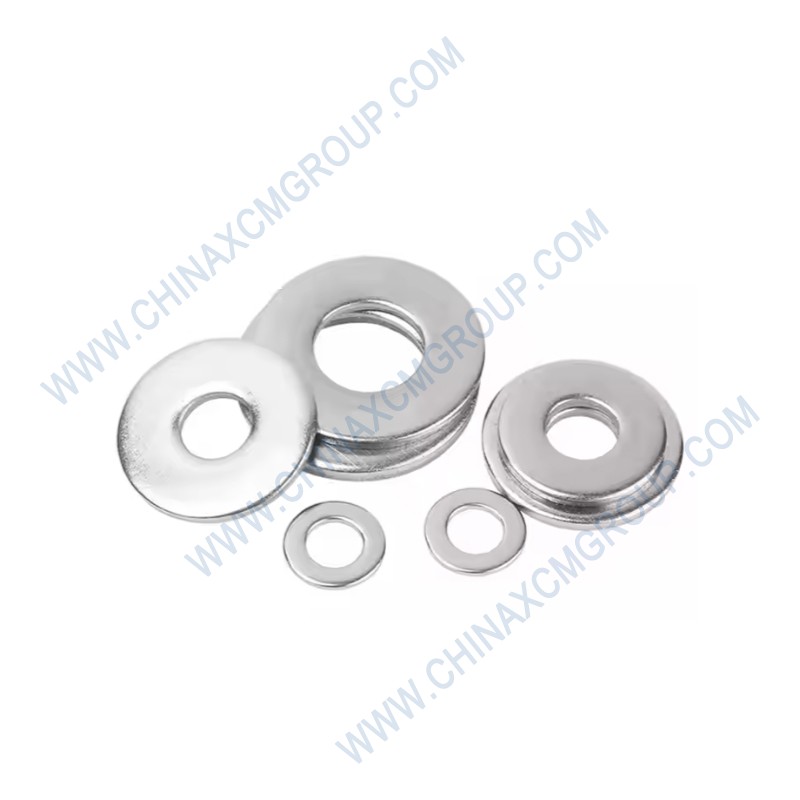

14	52020003	Washer 10	8
15	75502011	Bolt M18×40	16
16	79900278	Cylindrical pin	4
17	50009015	Bolt M10×35	8
18	75700459	Hole Plug	1
19	75700463	Friction slice	2
20	75700435	Friction plate Soleplate	2
21	75700439	Rectangular seal Seal	4
22	75700440	Piston	4
23	75700438	Dustproof ring	4
24	75700458	Oil feed pump cover	1
25	75700443	Oil sealing pump cover	1
