XCMG Hydraulic Pilot Operator System

The XCMG Hydraulic Pilot Operator System is a sophisticated and integral part of XCMG’s heavy – machinery, designed to provide precise and reliable control over various hydraulic functions. It consists of a range of well – crafted components that work in harmony to ensure smooth operation.

Product Description of XCMG Hydraulic Pilot Operator System

Joystick Control
The system features two essential joysticks: the Right Joystick (JOY STICK) and the Left Joystick (JOY STICK). These joysticks are the primary means for operators to control the movement and functions of the machinery. They are ergonomically designed for comfortable handling, allowing for accurate and intuitive control. The joysticks are secured in place using Screw M10×25 (SCREW) and Washers 10 (WASHER). These fasteners ensure the stability of the joysticks during operation, preventing any unwanted movement.
Foot – operated Components
The Foot pilot valve (PEDAL PILOT VALVE) and Foot pedal (PEDAL) offer an additional layer of control. The foot pedal allows operators to control specific hydraulic functions with their feet, providing a hands – free option for certain operations. The foot pilot valve regulates the hydraulic pressure based on the input from the foot pedal, ensuring precise and responsive control.
Handle Assemblies
There are two handle assemblies: the Handle assembly (right) (HANDLE(RH)) and the Handle assembly (left) (HANDLE (LH)). These handle assemblies are used for additional control functions and are fastened using Screw M6×25 (SCREW). They are designed to be easily accessible and operable by the operator, enhancing the overall control experience.
Filtration and Connection
The Strainer connector (FALTRATOR) is an important component for filtering the hydraulic fluid. It helps to remove contaminants from the fluid, protecting the hydraulic system from damage. A variety of Joints (JOINT), Fittings (JOINT), and Fitting ADAPTERs are used to connect different parts of the system. These connections ensure a seamless flow of hydraulic fluid throughout the system. The Plug (PLUG) is used to close off certain openings, preventing fluid leakage.
Diverter and Fastening
The Diverter block (DIFFLUENCE) plays a crucial role in directing the flow of hydraulic fluid. It allows for the distribution of fluid to different parts of the system as needed. Fasteners such as WASHER 8 (WASHER) and Bolt M8×80 are used to secure various components, ensuring the structural integrity of the system.
Hose Assemblies
The system is equipped with multiple Hose assemblies (HOSE). These hoses are responsible for transporting the hydraulic fluid between different components. They are designed to be flexible and durable, withstanding high – pressure conditions and ensuring a reliable flow of fluid.

In conclusion, the XCMG Hydraulic Pilot Operator System is a highly advanced and reliable control solution. Its combination of joysticks, foot – operated components, handle assemblies, filtration, connection, and fastening elements provides operators with precise control over the machinery’s hydraulic functions, enhancing productivity and safety.

Product Parameters of XCMG Hydraulic Pilot Operator System

ITEM	PART NO.	PART NAME	Q’TY	IA	REPLACE PART
ITEM	PART NO.	PART NAME	Q’TY	IA	PART NO.	Q’TY
1	310705481	Right Joystick JOY STICK	1
2	310705480	Left Joystick JOY STICK	1
3	805139858	Screw M10×25 SCREW	4
4	805338279	Washer 10 WASHER	4	I	805339279	0
5	805338260	Washers 10 WASHER	8
6	805046528	Bolt M10×35 BOLT	4
7	803072054	Foot pilot valve PEDAL PILOT VALVE.	2
8	803269117	Foot pedal PEDAL	1
10	803007151	Handle assembly (right) HANDLE(RH)	1
11	805139840	Screw M6×25 SCREW	8
12	803007152	Handle assembly (left) HANDLE (LH)	1
13	803386201	Strainer connector	3
		FALTRATOR
14	803172160	Joint JOINT	15
15	803163572	Fitting JOINT	4
16	803173593	Plug PLUG	2
17	803164850	Fitting ADAPTER	1
18	803007220	Diverter block DIFFLUENCE	1
19	803163582	Fitting JOINT	7
20	805338259	WASHER 8 WASHER	2
21	805046610	Bolt M8×80	2
22	803112685	Hose assembly HOSE	2
23	803176925	Hose assembly HOSE	2
24	803172172	Hose assembly HOSE	2
25	803407996	Hose assembly HOSE	4
26	803165336	Hose assembly HOSE	4
27	803173403	Hose assembly HOSE	2
28	803104166	Hose assembly HOSE	2

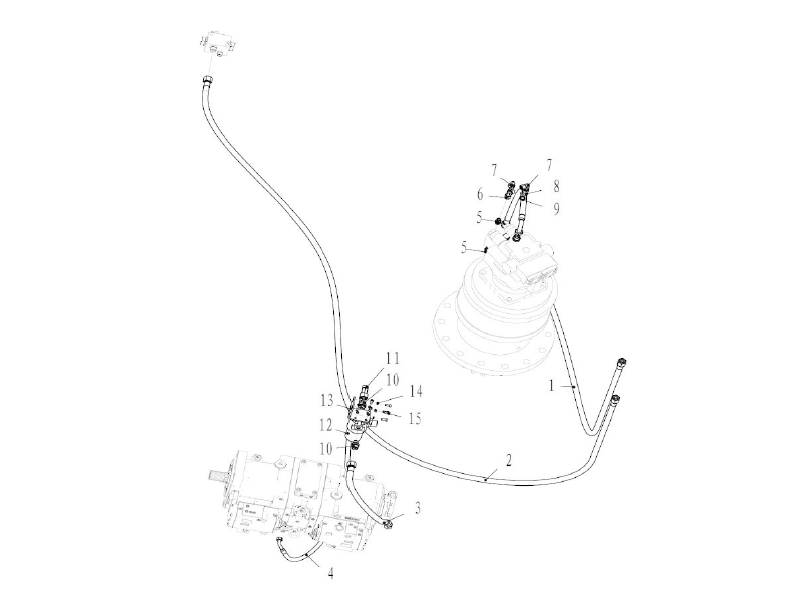

ITEM	PART NO.	PART NAME	Q’TY	IA	REPLACE PART
ITEM	PART NO.	PART NAME	Q’TY	IA	PART NO.	Q’TY
1	803172160	JOINT	15
2	803172161	JOINT	17
3	803172316	JOINT	1
4	803163572	JOINT	1
5	805300024	COMBINED WASHER 14 COMBINED WASHER	1
6	803386201	Strainer connector FALTRATOR	1
7	803172162	Fitting JOINT	1
8	822102936	Hose Assembly HOSE	1
9	803176108	Hose Assembly HOSE	1
10	803172849	HOSE	1
11	803173589	HOSE	1
12	803172205	Hose Assembly HOSE ASSY	2
14	803172395	Hose Assembly HOSE	1
15	803172124	Hose Assembly HOSE	1
16	803182811	Hose assembly HOSE	1

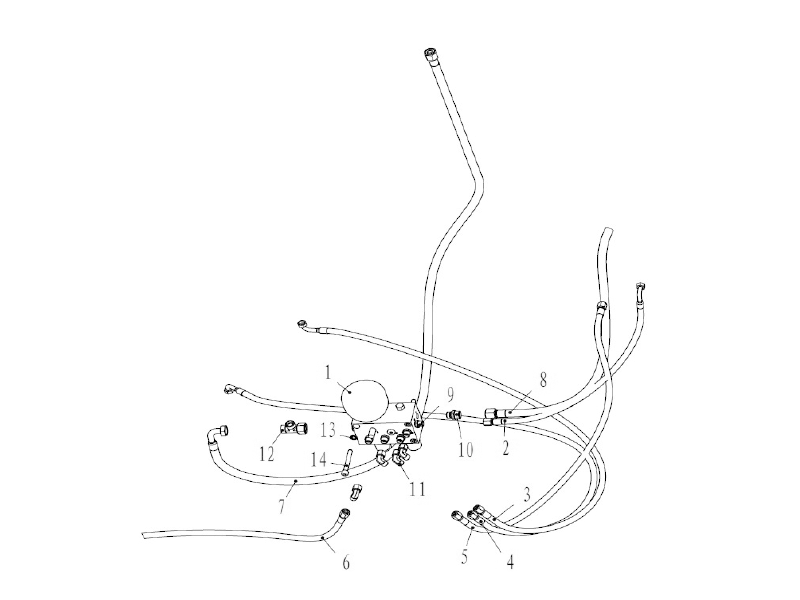

ITEM	PART NO.	PART NAME	Q’TY	IA	REPLACE PART
ITEM	PART NO.	PART NAME	Q’TY	IA	PART NO.	Q’TY
1	803305002	Hose Assemblies	1
2	803169255	Hose Assemblies HOSE	1
3	803410915	Hose Assembly HOSE	1
4	803410914	Hose Assembly HOSE	1
5	803172161	Fitting JOINT	2
6	803162089	Fitting ADAPTER	1
7	803103351	Fitting JOINT	2
8	803172162	Fitting JOINT	1
9	805300024	Combined washer 14 COMBINED WASHER	1
10	803166500	JOINT	2
11	803172037	FITTING ADAPTER	1
12	803085529	FALTRATOR	1
13	310707667	Mounting Block SEAT	1
14	805338258	Washer 6 WASHER	8
15	805140029	Screw BOLT	8
ITEM	PART NO.	PART NAME	Q’TY	IA	REPLACE PART
ITEM	PART NO.	PART NAME	Q’TY	IA	PART NO.	Q’TY
1	803083247	Pilot Valve Assembly	1
2	803172455	Hose Assembly HOSE	1
3	803172849	HOSE	1
4	803175428	Hose Assembly HOSE	1
5	803172915	Hose assembly HOSE	1
6	803165334	Hose assembly HOSE	1
7	803161867	Hose Assembly HOSE	1
8	803191535	Hose Assembly HOSE	1
9	803163582	Fitting JOINT	5
10	803164850	Fitting ADAPTER	2
11	803163572	JOINT	4
12	803172037	Fitting ADAPTER	1
13	805338260	Washer 10 WASHER	3	I	805339279	0
14	805139983	Screw BOLT	3

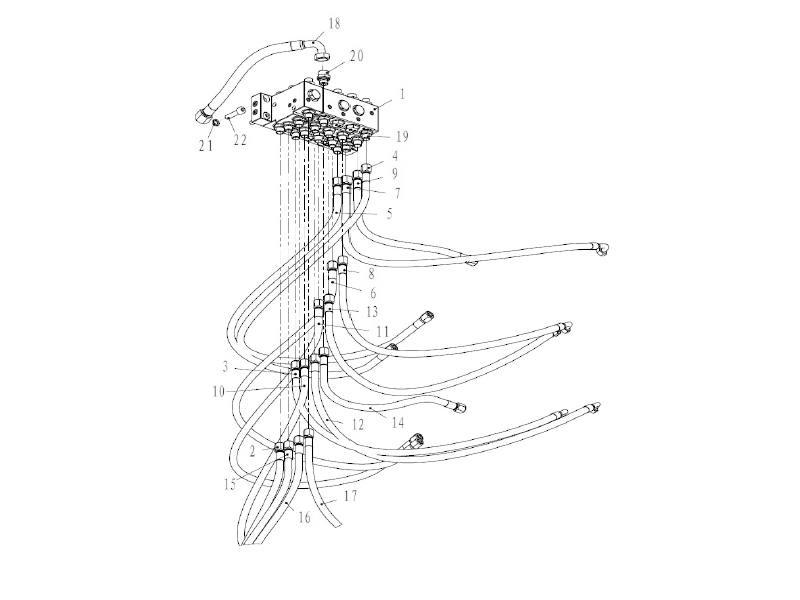

ITEM	PART NO.	PART NAME	Q’TY	IA	REPLACE PART
ITEM	PART NO.	PART NAME	Q’TY	IA	PART NO.	Q’TY
1	803078696	Buffer Valves	1
2	803370309	Hose Assemblies HOSE	2
3	803172359	Hose assembly HOSE	1
4	803404657	Hose assembly HOSE	1
5	803176108	Hose assembly HOSE	2
7	803172334	HOSE	3
8	803177259	HOSE	1
9	803374465	Hose assembly HOSE	1
10	803107564	Hose Assembly HOSE	1
11	803172381	HOSE	3
14	803177207	Hose assembly HOSE	1
18	803406052	Hose Assembly HOSE	1
19	803172160	Fitting JOINT	24
20	819908926	Fitting ADAPTER	1
21	805338260	Washer 10 WASHER	4	I	805339279	0
22	805139929	Screw M10×40 SCREW	4
