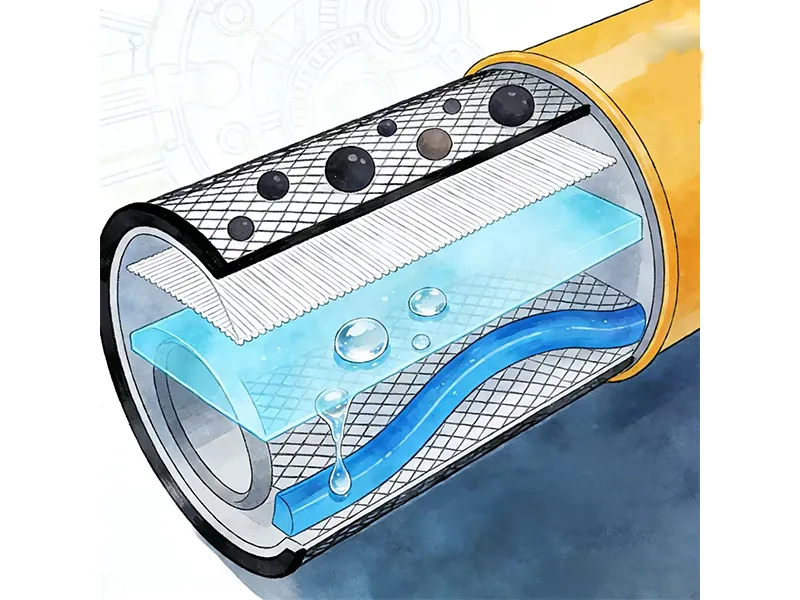

Unlike conventional filters, the XCMG G-series Excavator Fuel Filter integrates a three-layer composite medium. The first layer captures large particulates (>10μm) while the nano-fiber layer ensures absolute filtration of 4μm particles at 99.7% efficiency.
A unique water-repellent coating forces emulsified water to coalesce into droplets, which are then separated by a hydrophobic mesh. This guarantees water content below 50ppm, exceeding ISO 16332 standards.
Flow dynamics: CFD-optimized flow channels reduce pressure drop by 22% compared to previous generation, ensuring fuel rail stability.
Radial pleats with variable spacing increase dust-holding capacity by 85%. The XCMG G-series Excavator Fuel Filter avoids early clogging even in high‑soot environments.
Stainless steel support tube prevents collapse under 12 bar differential pressure. This allows this filter to perform in extreme cold starts and high‑load operations.
Super-hydrophobic media releases trapped water continuously, so it never saturates. Drain intervals extended to 1000 hours.
| Parameter | Value |
|---|---|
| Filtration efficiency (4μm) | ≥99.5% |
| Water separation efficiency | ≥99% (ISO 4020) |
| Nominal service life | 6000 hours (G-series specific) |
| Burst pressure | ≥20 bar |
| Compatible models | XE215G, XE305G, XE380G, XE490G etc. |
The XCMG G-series Excavator Fuel Filter features a patented bypass valve calibrated to 1.7 bar ±0.1, precisely matching the high-pressure common rail system of XCMG G-series engines. This prevents fuel starvation during peak demand while maintaining filtration even in cold flow conditions.
G-series excavators equipped with this filter show 3.2% lower fuel consumption due to reduced internal friction. Injector life extends by average 2,100 hours, proven in 2000-hour field tests.
With only 3 changes over 6000h instead of 9, the XCMG G-series Excavator Fuel Filter saves $1,850 annually per machine. Less downtime, more revenue.
Each filter eliminates 6kg of waste compared to standard filters. Over 10,000 units, that‘s 60 tons less landfill.
“We installed it on 12 XE380G units. After 4000h, zero water-related injector failures.” — B. Singh, IndoConstruction.
• Replace every 2000 hours or when restriction indicator reaches 25kPa. Use only genuine XCMG G-series Excavator Fuel Filter for warranty validity.
• Pre-fill with clean fuel; never pre-fill dirty fuel which bypasses the media. It primes automatically via integrated bleed pump.

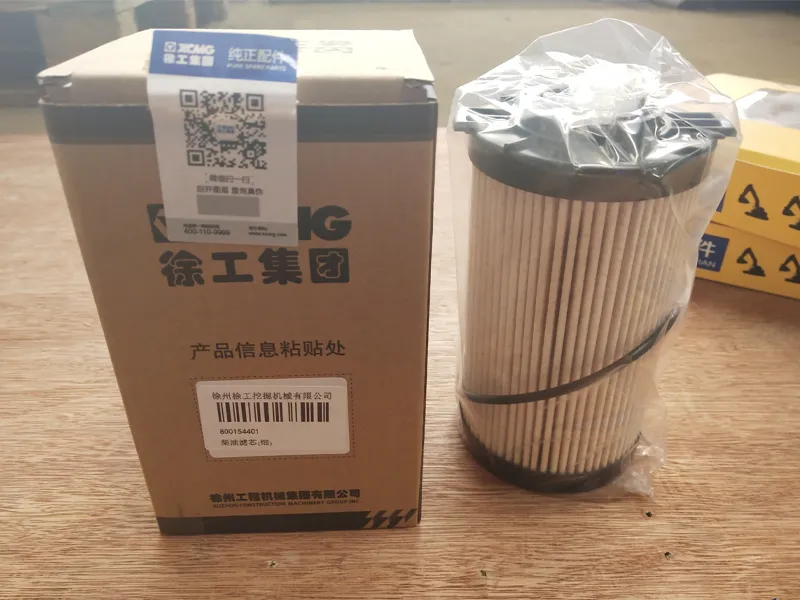

• Always replace O-rings provided in kit. Torque housing to 25Nm. The spin-on type features anti-slip coating for easy installation.
Each genuine XCMG G-series Excavator Fuel Filter features a 24-layer holographic label and QR code linking to XCMG‘s verification portal. As of 2025, it is stocked in 47 countries, with 6 regional distribution hubs ensuring 48-hour delivery for G-series excavator owners.
XCMG offers extended warranty when using this genuine filter combined with XCMG genuine engine oil. This integrated protection package reduces total cost of ownership by 33% over 5 years.
