XCMG Canopy Assembly

The XCMG Canopy Assembly is a crucial part of the machinery, providing protection and functionality. It consists of a variety of components that work together seamlessly to ensure its proper operation.

Product Description of XCMG Canopy Assembly

Door – Related Components
The door is an essential part of the canopy. It is supported by components like the door stay ball and the stopper ball. To secure these parts, M8 nuts are used along with 8 washers. Pins are inserted to hold some elements in place, and stoppers are installed to limit the movement. The door also has guide blocks and guide seats, which are fastened with M6×16 10.9 bolts and accompanied by 6 washers. Sponges are placed around the door to provide cushioning and insulation, preventing noise and vibration.
Structural Components
The frame of the canopy is made up of beams, which are connected using M10×25 bolts and 10 washers. Latex is used in some areas for sealing and protection. Anti – skid plates are added to the structure for safety, and they are covered with plates. Covers are also used to enclose different parts of the assembly, and some of these covers are lined with sponges for additional comfort and protection.
Additional Fasteners and Components
There are various other fasteners involved in the assembly. For example, M12×25 bolts with 12 washers are used for more heavy – duty connections. M10×20 bolts with 10 washers are also employed in specific areas. The canopy also features a hood, which is attached with the help of rubber and gas springs. A support lever is used to hold the hood in place, and it is secured with M8 nuts, 8 washers, and M8×30 bolts. Locks are installed for security, and M8×20 10.9 bolts are used to fasten certain components. Stopper balls and pins are used in multiple locations to control movement and provide stability.
Sealing and Comfort Elements
Sponges are a common feature throughout the XCMG Canopy Assembly. They are used not only around the door but also in other areas to provide a soft and comfortable environment. They also help in reducing noise and protecting the internal components from dust and debris. Covers are often lined with sponges to enhance the overall quality of the canopy.

The XCMG Canopy Assembly is a well – engineered structure that combines multiple components to provide a safe, comfortable, and functional space for the operator. Each part plays a vital role in the overall performance of the canopy.

This description is optimized for Google SEO by including all the specified keywords in a natural and relevant way, providing detailed information about the XCMG Canopy Assembly, and using proper headings and formatting to improve readability.

Product Parameters of XCMG Canopy Assembly

ITEM	PART NO.	PART NAME	Q’TY
1	310705758	DOOR	1
2	310705768	STAY BALL	2
3	801905669	STOPPER BALL	2
4	805238378	M8 NUT	2
5	805338266	8 WASHER	6
6	805603536	PIN	4
7	310705901	STOPPER	1
8	805338268	10 WASHER	2
9	805011330	M10×25 BOLT	2
10	805338264	6 WASHER	6
11	805238370	M6 NUT	6
12	310705902	PLATE	2
13	819908621	GUIDE SEAT	2
14	805046481	M6×16 10.9 BOLT	10
15	310705900	SPONGE	1
16	805338270	12 WASHER	4
17	805046469	M12×25 BOLT	4
18	310705773	DOOR	1
19	310705779	SPONGE	1
20	310705778	SPONGE	1
21	310705767	SPONGE	1
22	819908620	GUIDE BLOCK	2

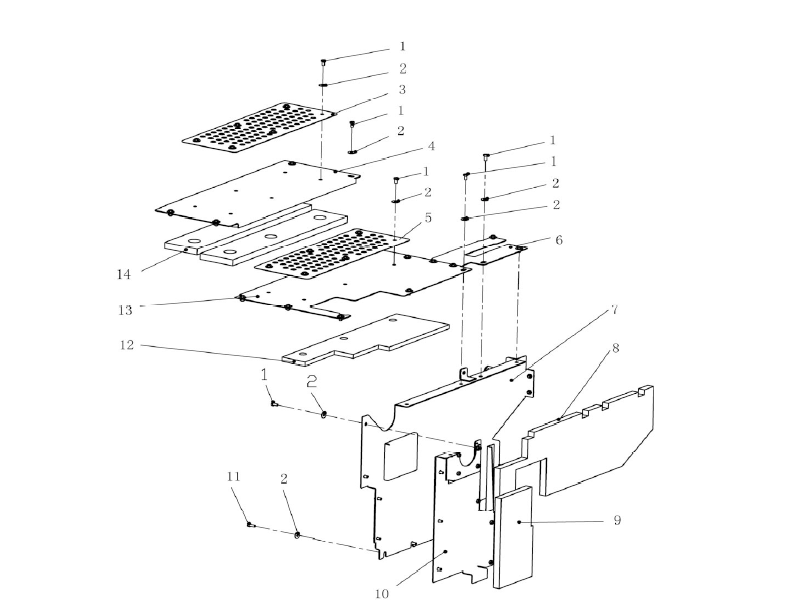

ITEM	PART NO.	PART NAME	Q’TY
1	805046525	M10×20	44
2	805338268	10 WASHER	44
3	310705906	ANTI-SKID PLATE	1
4	310705889	COVER	1
5	310705907	PLATE	1
6	801971131	LATEX	2
7	801905669	STOPPER BALL	2
8	310705892	COVER	1
9	310705872	SPONGE	1
10	310705869	BEAM	1
11	310705805	FRAME	1
12	805011330	M10×25 BOLT	3
13	310705870	BEAM	1
14	310705812	FRAME	1
15	801970569	LATEX	1
16	310707208	COVER	1
17	310705849	WASHER	1

ITEM	PART NO.	PART NAME	Q’TY
1	805046525	M10×20	35
2	805338268	10 WASHER	38
3	310705905	ANTI-SKIDPLATE	6
4	310705885	COVER	1
6	310705875	PLATE	1
7	310705858	COVER	1
8	310707007	SPONGE	1
9	310705873	SPONGE	1
10	310705855	COVER	1
11	805011330	M10×25 BOLT	3
12	310705882	SPONGE	1
13	310705877	COVER	1
14	310705888	SPONGE	2

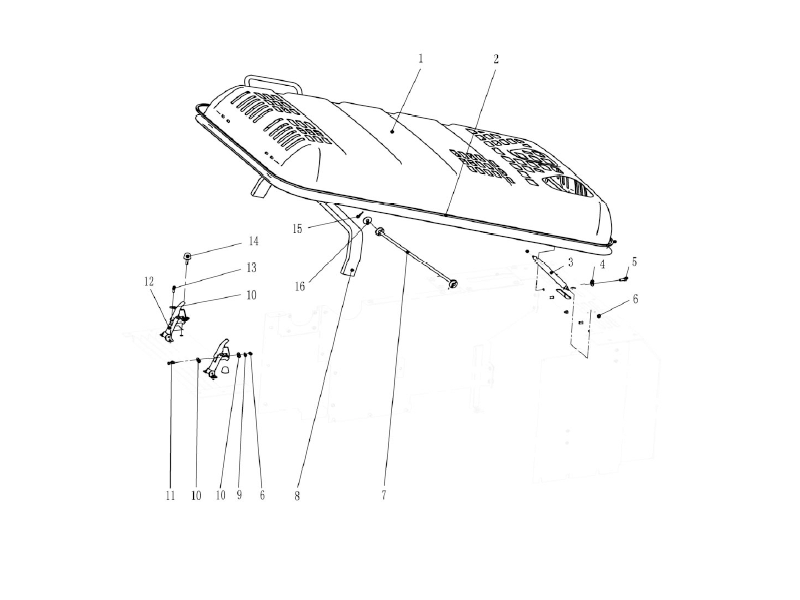

ITEM	PART NO.	PART NAME	Q’TY
1	310705787	hood	1
2	801905543	RUBBER	1
3	801737245	GAS SPRING	2
4	805338268	10 WASHER	4
5	805011330	M10×25 BOLT	4
6	805238378	M8 NUT	4
7	310705903	SUPPORT LEVER	1
8	310705803	SPONGE	1
9	805338259	8 WASHER	4
10	805338266	8 WASHER	12
11	805046511	M8×30 BOLT	4
12	801503870	LOCK	2
13	805046508	M8×20 10.9 M8×20 BOLT	4
14	801905669	STOPPER BALL	2
15	310705904	PIN	4
16	805338272	14 WASHER	4

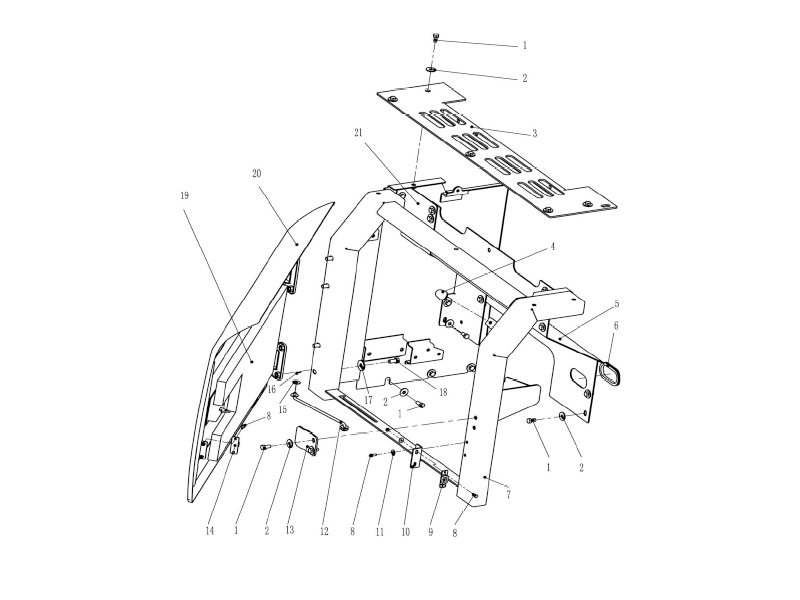

ITEM	PART NO.	PART NAME	Q’TY
1	805011330	M10×25	24
2	805338268	10 WASHER	24
3	310705770	COVER	1
4	801905669	STOPPER BALL	1
5	310705853	COVER	1
6	801970372	LATEX	1
7	310707023	FRAME	1
8	805046481	M6×16 10.9 BOLT	6
9	819908621	GUIDE SEAT	1
10	310705902	PLATE	1
11	805338264	6 WASHER	6
12	310705768	STAY BALL	1
13	310705901	STOPPER	1
14	819908620	GUIDE BLOCK	1
15	805338266	8 WASHER	2
16	805603536	PIN	2
17	805338270	12 WASHER	4
18	805046469	M12×25 BOLT	4
19	310705785	SPONGE	1
20	310705781	DOOR	1
21	310705867	COVER	1
