XCMG Bucket Cylinders

The XCMG Bucket Cylinders are integral components in heavy – duty machinery, engineered to offer outstanding performance and reliability during the operation of buckets. These cylinders are a prime example of XCMG’s advanced engineering and high – quality manufacturing.

Product Description of XCMG Bucket Cylinders

Core Structural Components
The heart of the XCMG Bucket Cylinders is the Cylinder, which provides a sturdy housing for all the internal parts. Inside the cylinder, the Piston rods move with precision, converting hydraulic energy into mechanical force to drive the bucket’s movement. The Piston, working in tandem with the piston rods, is designed to fit snugly within the cylinder, ensuring efficient power transfer. The End caps enclose the cylinder, protecting the internal components from external contaminants and providing a stable structure.
Buffer and Protection Mechanisms
To safeguard the cylinders from excessive impact and wear, several buffer and protection components are incorporated. The Bucket cushion D80 CUSHION absorbs the shock when the bucket reaches the end or start of its stroke, reducing stress on the entire system. The Buffer ring CUSHION also plays a crucial role in dampening the impact, enhancing the longevity of the cylinders. The Baffle ring D80/Φ99×2 RING,BACK – UP and Retaining ring D80/Φ91×3.5 RING,BACK – UP help to keep the internal components in place and prevent leakage.
Sealing and Dust – proof Components
Sealing is of utmost importance in the XCMG Bucket Cylinders to prevent hydraulic fluid leakage and maintain the system’s efficiency. The Shaft sealing ring SEAL – RING and Seal ring for hole SEAL – RING create a tight seal around the piston rods and other openings. The Dust seal Φ80×Φ94×8/11 DUST SEAL, along with multiple other dust seals, prevents dust and debris from entering the cylinder, protecting the internal components from abrasion and damage. The O – rings and Drainage ring SEAL also contribute to the overall sealing performance.
Fasteners and Support Components
A variety of fasteners are used to assemble and secure the different parts of the cylinders. Hexagon socket head cap screws such as M16×75 SCREW, M10×35 SCREW, and Screw M12×12 provide a strong and reliable connection. Bolts like Bolt M10×40 and Bolt M10×50, paired with Spring washer Φ10, further enhance the stability of the assembly. Nuts such as Nut M64×3 and Nut M10 are used to tighten the connections. The BUSHINGs are used at various points to reduce friction between moving parts and provide support.
Fluid – related Components
The Hose assembly A PIPE and Hose assembly B PIPE are responsible for transporting hydraulic fluid to and from the cylinders, ensuring smooth operation. The Clamp kit CLIP and PRESSING PLATE are used to secure the hoses, preventing any leakage or disconnection. The Oil cup M10×1 OILER allows for easy lubrication of the moving parts, maintaining their smooth movement. The Steel ball Φ8 STEEL BALL may be used in some valve or check mechanisms to ensure proper fluid flow.

In conclusion, the XCMG Bucket Cylinders are a well – engineered and comprehensive solution for heavy – machinery applications. With their robust structure, effective buffer and protection mechanisms, reliable sealing, and proper fluid – handling components, these cylinders offer high – performance and long – term durability.

Product Parameters of XCMG Bucket Cylinders

ITEM	PART NO.	PART NAME	Q’TY
1	860121025	Piston rods	1
2	860121026	End caps	1
3	860121027	Cylinder	1
4	860121028	Bucket cushion D80 CUSHION	1
5	860121029	Piston	1
6	860121031	Gasket WASHER	1
7	860121030	Nut M64×3	1
8	860121034	Hose assembly A PIPE	1
9	860121035	Hose assembly B PIPE	1
10	860121036	Clamp kit CLIP	1
11	860121037	PRESSING PLATE	1
12	860121038	Oil cup M10×1 OILER	2
13	860121039	Baffle ring D80/Φ99×2RING,BACK-UP	1
14	860121040	Dust seal Φ80×Φ94×8/11DUST SEAL	1
15	860121041	Shaft sealing ring SEAL-RING	1
16	860121042	Retaining ring (open) RING,BACK-UP	1
17	860121043	Buffer ring CUSHION	1
18	860121044	Hexagon socket head cap screw M16×75SCREW	12
19	860121045	BUSHING	1
20	860121046	Retaining ring D80/Φ91×3.5RING,BACK-UP	1
21	860121047	O-ring	1
22	860121048	Retaining ring RING,BACK-UP	1
23	860121051	Drainage ring SEAL	2
24	860121049	Forming guide ring GUIDE SLEEVE	2
25	860121050	Seal ring for hole SEAL-RING	1

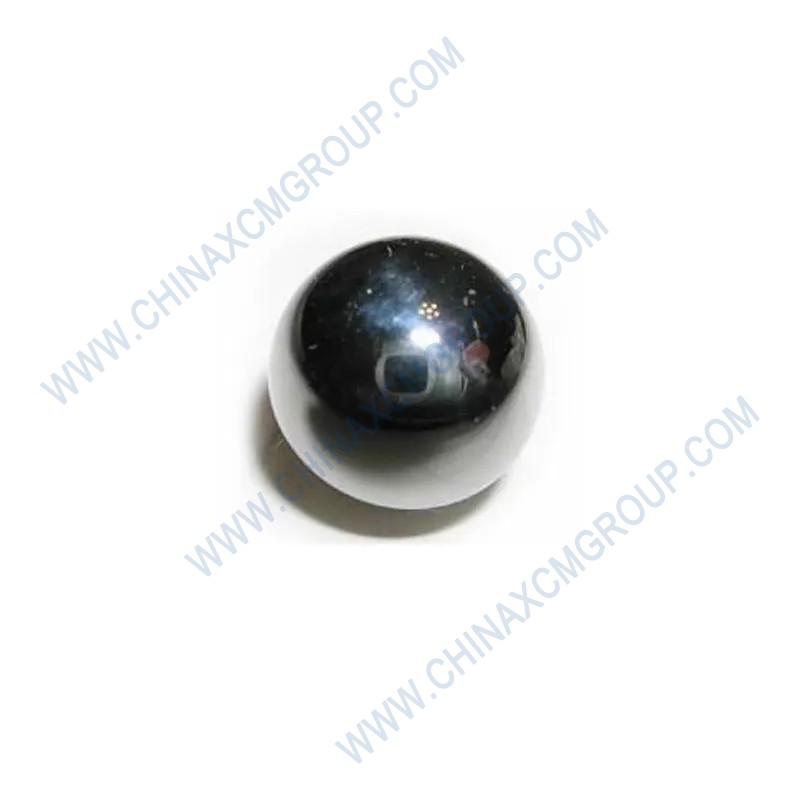

26	860121053	Steel ball Φ8 STEEL BALL	1
27	860121052	Screw M12×12	1
28	860121056	Hexagon socket head cap screw M10×35 SCREW	8
29	860121055	O-ring	2
30	860121058	Bolt M10×40	2
31	860121060	Spring washer Φ10	2
32	860121061	Bolt M10×50	1
33	860121054	Dust seal	2
34	860121057	Dust seal	2
35	860121059	Nut M10	2
36	860121062	Spring washer Φ10	1
37	860121032	BUSHING	1
38	860121033	BUSHING	1
