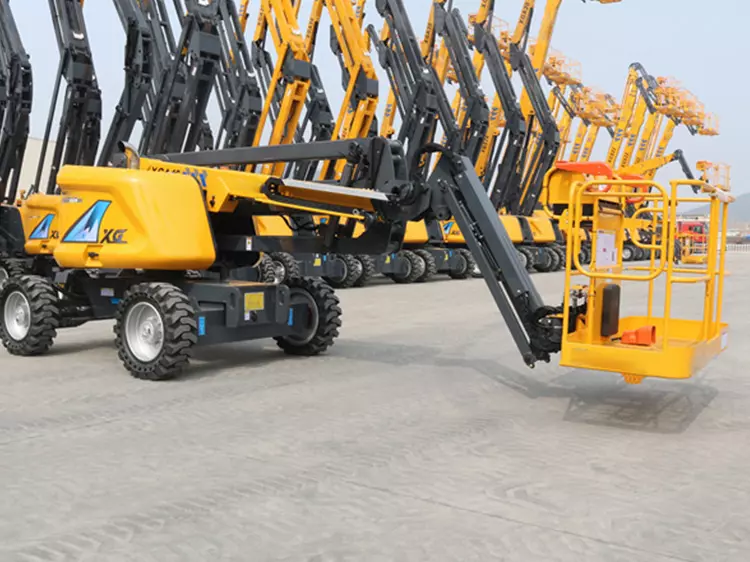

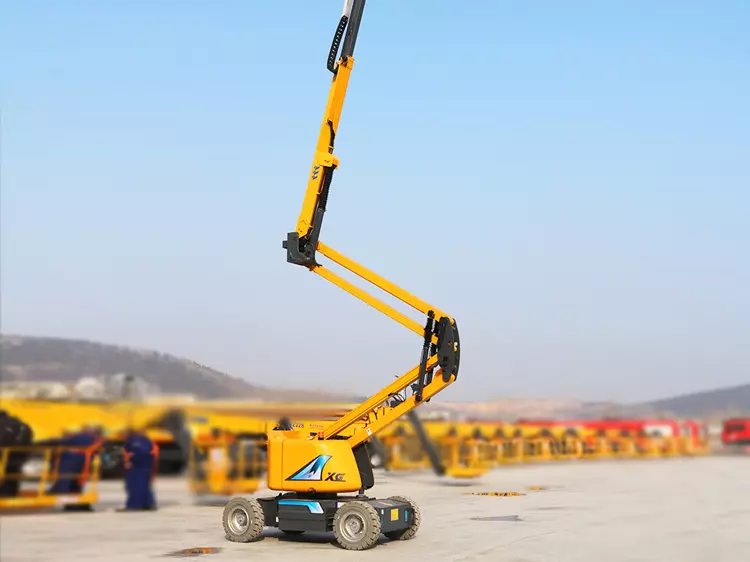

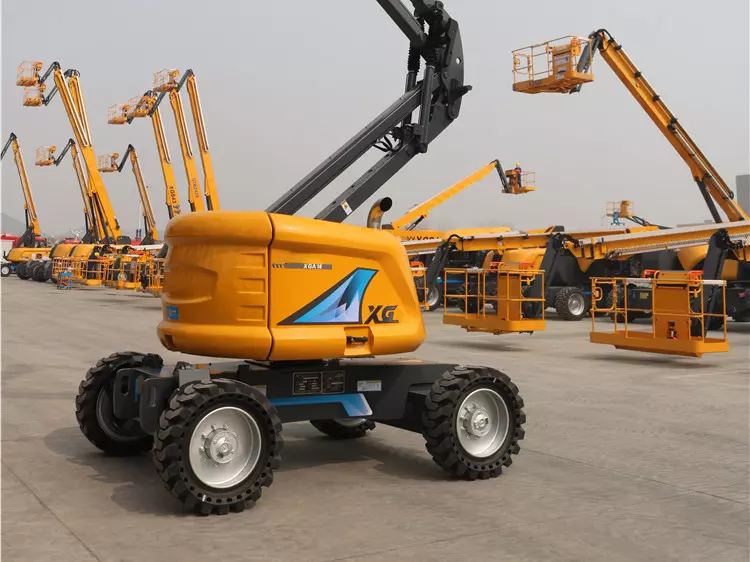

XGA16E(CE) Articulating Boom Lifts

Product Feature

  • Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles; the platform can turn 160°, creating a wider operation area; compact and narrow turntable eliminates tail swing and improves operation efficiency.
  • Off-road chassis, 4W drive system, solid off-road wide tire, full-time axle balance system, 38kw power, excellent adaptation to any terrain. Work platform is enable to extend out, enlarging the work space, together with the foldable fence making the transportation easier.
  • Full – range work; direct and friendly control panel easy to control; precise and effective electric-hydraulic proportional
    system Chassis tilting protection, platform overloading warning, emergent lowering, safety speed limit, flexible start/stop
    technologies.

Product Parameters

Item Unit Parameter
Load capacity kg 240
Load capacity of extended platform kg 100
Max.Occupant Capacity 2
Max.Working height m 5.9
Max.Platform height m 3.9
Overall length(no ladder) mm 1290
Overall width mm 760
Overall height(platform folded) mm 1660
Working platform dimension(Length x Width) mm 1290*700
Length of extension platform mm 600
Min.ground clearance(pit protector rising/descending) mm 65/15
Wheel base mm 1030
Min.turning radius(inner/outer wheel) m 0.4/1.55
Driving motor kW 0.45
Lifting motor kW 1.3
Max.Traveling speed at low level km/h 4
Max.Traveling speed at high level km/h 0.5
Lifting/Descending duration of platform s 27~37
Max.gradeability % 25
Tilt warning angle (side/front and rear) ° 1.5/3
Battery v/Ah 2×12/75
Charger v/A 24/15
Tire specification 254×76
Total machine weight kg 900
