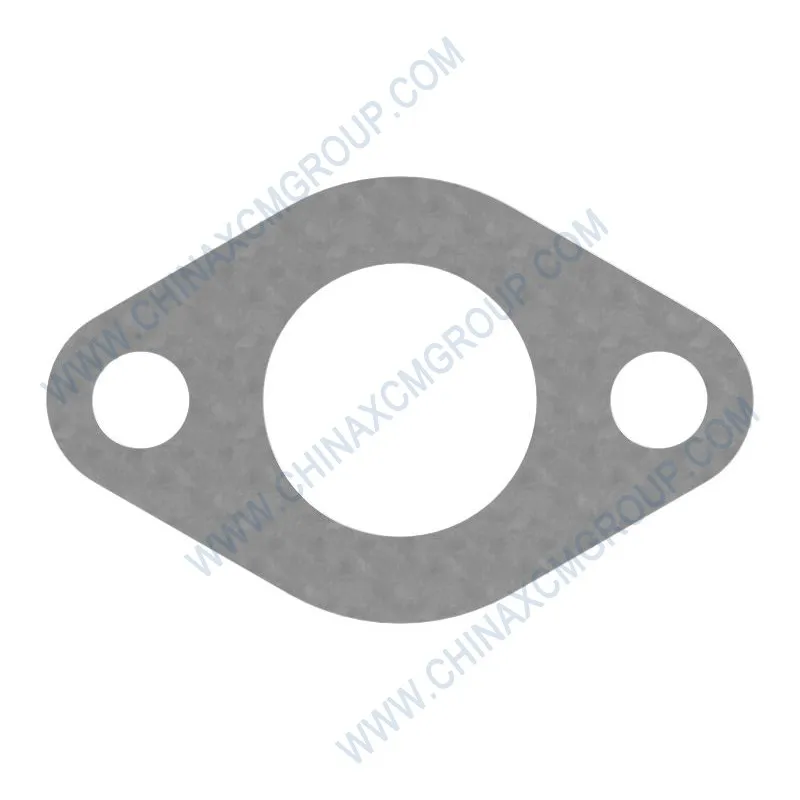

The genuine XCMG 860517059 Paper Gasket is a high‑quality, precision‑cut sealing component manufactured for XCMG GR series motor graders. This OEM paper gasket is installed between static flanges on engine oil pans, timing covers, transmission side plates, and hydraulic tank access covers to prevent oil, coolant, or fuel leakage. Made from high‑density cellulose fiber with a nitrile rubber binder, the 860517059 paper gasket provides excellent conformability to irregular flange surfaces, compensating for minor machining imperfections. The gasket is laser‑cut to exact dimensions, ensuring perfect alignment with bolt holes and fluid passages on GR135, GR165, GR180, GR215, GR260, GR300, GR350, and GR2003 motor graders.
The 860517059 paper gasket features a uniform thickness of 0.8 mm (±0.05 mm) and a smooth surface finish that provides optimal compression under flange bolt torque. The cellulose/NBR composite resists swelling and softening when exposed to mineral oils, synthetic engine oils, transmission fluids, diesel, and coolant. The material has a compressibility of 15–25% and recovery of ≥45%, ensuring a lasting seal even after repeated thermal cycles from -40°C to +120°C. The gasket is asbestos‑free and environmentally compliant.
A deteriorated or blown paper gasket causes external fluid leaks, oil drips, pressure loss, and potential contamination of adjacent systems. Replacing a failed gasket with genuine XCMG 860517059 restores original sealing integrity and eliminates costly fluid loss. Keep this gasket in your parts inventory for rapid repair of engine or transmission cover leaks.
| Parameter | Specification |
|---|---|
| OEM Number | 860517059 |
| Brand | XCMG (Genuine Original Equipment) |
| Product Type | Static Seal – Paper Gasket (Cellulose/NBR) |
| Overall Dimensions (approx.) | 380 mm × 120 mm (custom die‑cut per application) |
| Thickness (nominal) | 0.80 mm (±0.05 mm) |
| Material | High‑density cellulose fiber + NBR binder (asbestos‑free) |
| Density | 0.85–1.05 g/cm³ |
| Compressibility (ASTM F36) | 15–25% @ 34.5 MPa |
| Recovery (ASTM F36) | ≥45% |
| Tensile Strength (MD) | ≥15 MPa |
| Maximum Working Pressure (static) | 2.5 MPa (25 bar / 362 psi) – typical for covers |
| Temperature Range | -40°C to +120°C (-40°F to +248°F) |
| Fluid Compatibility | Engine oil, ATF, diesel, coolant, water, hydraulic oil |
| Oil Swell (IRM 903, 5h @ 100°C) | ≤20% (thickness change) |
| Flange Surface Finish (recommended) | Ra 1.6–6.3 μm (no scratches or nicks) |
| Standards Compliance | ISO 9001, XCMG Q/XCMG 1095-2023 |
| Compatible Models | XCMG GR135, GR165, GR180, GR215, GR260, GR300, GR350, GR2003 |
| Superseded Part Numbers | 860516800, 860517000, 860517055, 860517058 |
The 860517059 paper gasket is installed between the engine oil pan and cylinder block, preventing crankcase oil from leaking onto the ground. It also seals the timing gear cover, keeping oil inside the engine while excluding dust and debris. A failed gasket creates messy oil drips and can lead to low oil level if ignored.
In transmission applications, this gasket seals the side cover and PTO access plates. ATF leaks from these joints can cause transmission overheating and slipping. The paper gasket’s conformability ensures a tight seal even on cast surfaces that are not perfectly flat, reducing the need for excessive bolt torque that could distort housings.
Hydraulic tank access covers also use this gasket. With oil temperatures reaching 90°C, the cellulose/NBR material resists ageing and maintains its sealing force. Replacing a hardened or cracked gasket with genuine XCMG 860517059 stops leaks and extends component life.
XCMG manufactures the 860517059 gasket from a high‑density cellulose fiber sheet that is calendered to precise thickness. The material is then compression‑molded with an NBR binder, creating a homogenous composite with uniform density. The sheet is cured in an oven to complete vulcanisation.
Using a CNC laser cutter, the gasket shape is cut from the sheet to exact 2D contours. Laser cutting eliminates burrs and guarantees smooth edges, preventing loose fibres from entering the oil system. The bolt holes are dimensionally accurate to ±0.1 mm, ensuring perfect alignment with the flange.
Quality control includes thickness verification with a micrometer and hardness testing (Shore A 70–80). Samples are oil‑aged for 168 hours at 100°C and then checked for swell and tensile retention. Genuine XCMG gaskets maintain integrity, while aftermarket versions often delaminate or become brittle. Each 860517059 gasket is individually inspected for flaws before packaging.
Before installing a new 860517059 gasket, clean both flange surfaces thoroughly with a gasket scraper and non‑chlorinated solvent. Remove all old gasket residue, RTV silicone, and oil film. The surfaces must be dry and free from nicks or deep scratches. Light scratches can be smoothed with fine emery paper.
Position the gasket over the locating dowels or bolt holes. No additional sealant is required for most applications – the gasket is designed to seal dry. However, a thin film of high‑temperature grease may be used to hold the gasket in place during assembly. Do not use RTV silicone, as it can prevent proper compression.
Tighten the retaining bolts in a crossing pattern to the torque specified in the service manual (typical M8 bolts: 18–22 Nm). Re‑torque after 1 hour of operation if specified. Keep spare 860517059 gaskets in your workshop for oil pan or transmission cover removal jobs – using a new gasket ensures a leak‑free assembly.
Aftermarket paper gaskets are often made from low‑density cardboard that absorbs oil and swells, causing the gasket to extrude from the joint. Many use recycled fibre with poor tensile strength, leading to blowout under even low pressure. Some contain asbestos, a health hazard, and are banned in many countries.
Counterfeit gaskets may have inaccurate bolt hole placement, forcing the installer to enlarge holes – this can lead to cracking or misalignment of oil passages. They also have poor recovery (compression set >60%), meaning they flatten and leak after the first heat cycle. Genuine XCMG gaskets maintain thickness and sealing force.
XCMG provides a 12‑month warranty against manufacturing defects. Each gasket is individually bagged with the OEM part number and is asbestos‑free. The modest extra cost of an OEM gasket is far outweighed by the labour cost of replacing a leaking aftermarket gasket. Choose genuine for reliability and safety.
Visible oil weeping around the flange joint, oil drips on the floor beneath the machine, or oil stains on the engine/transmission exterior. Also, if the gasket has hardened and cracked, or if the cover feels loose due to gasket compression loss, immediate replacement is required.
Preventive replacement is recommended every 2,000 operating hours or during any engine or transmission overhaul. Even if the gasket appears intact, it may have lost its elasticity. The cost of a new gasket is minimal compared to the cost of an oil leak clean‑up or engine fire from oil spraying onto hot exhaust.
Keep a stock of 860517059 gaskets in your fleet warehouse. When removing a cover for any reason (e.g., oil pan inspection or valve adjustment), always install a new gasket – never reuse a compressed paper gasket. Proactive replacement eliminates repeat leaks and ensures clean, safe operation.
The XCMG 860517059 Paper Gasket is stocked in regional distribution centers: Houston (USA), Rotterdam (Netherlands), Dubai (UAE), and Shanghai (China). Standard air freight delivers within 2–5 business days worldwide. Expedited courier (DHL/FedEx) provides 1–2 day shipping for urgent engine or transmission repairs.
Bulk orders of 20+ gaskets receive volume discounts and can be shipped by sea freight. Each gasket is individually packed in a labeled, anti‑static bag to prevent moisture absorption. For large fleets, consignment stock programs ensure immediate availability. Technical installation instructions and torque specifications are available upon request.
Don’t tolerate oil leaks that waste expensive fluids and dirty your worksite. Order the genuine XCMG 860517059 Paper Gasket today and restore leak‑free sealing on your motor grader’s engine, transmission, or hydraulic tank covers. This simple component is critical for clean, safe, and efficient operation.
Upgrade your grader’s sealing reliability with XCMG genuine paper gaskets. Engineered for conformability, oil resistance, and long‑term compression recovery. Use the buttons above to request a quote or email our parts specialists. Keep your XCMG grader leak‑free – choose 860517059 OEM gasket.
