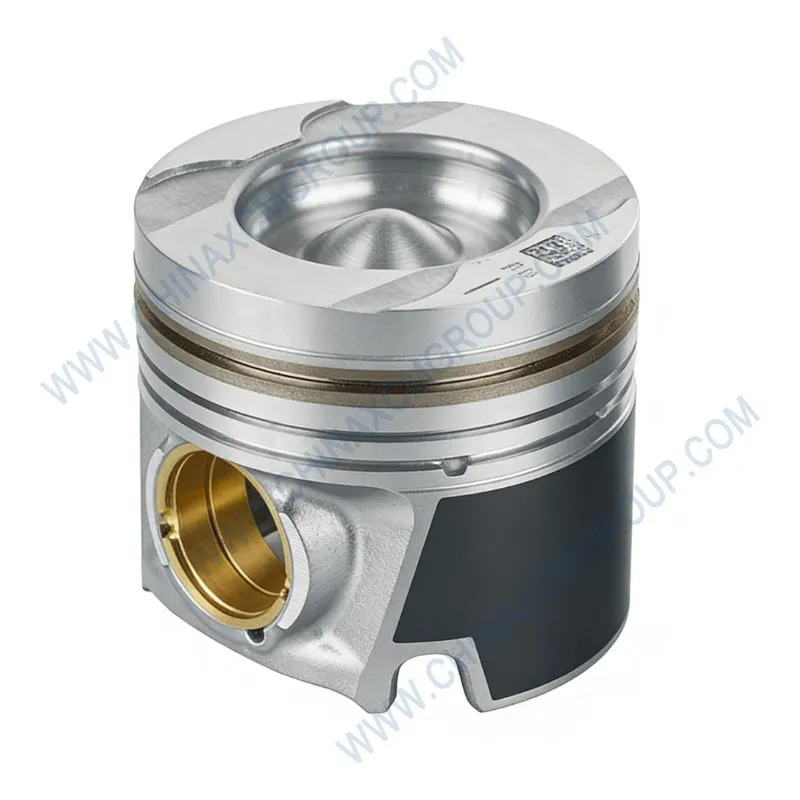

The 860149651 Piston is a genuine XCMG engine component designed for GR series motor graders. This precision-forged aluminum piston converts combustion pressure into mechanical force to drive the crankshaft. The 860149651 piston is manufactured from high-silicon aluminum alloy with a graphite-coated skirt and steel ring carrier, offering exceptional heat resistance and durability. Used as original equipment on XCMG GR2003, GR215, GR300, and GR350 graders powered by XCMG XC6B or XC6D diesel engines, this piston directly replaces worn, cracked, or damaged units, restoring compression, reducing blow-by, and improving fuel efficiency. Each piston is 100% inspected for diameter, ring groove dimensions, and pin bore accuracy.
The 860149651 Piston features a combustion bowl optimized for efficient fuel mixing, three ring grooves (two compression, one oil), and a fully floating piston pin. Its tin-plated skirt reduces friction and scuffing during break-in. Replacing a failed piston with the genuine 860149651 part eliminates knocking noises, excessive oil consumption, and power loss. Each piston is supplied in a sealed plastic bag with anti-rust oil. Whether you are rebuilding an engine after a seizure or performing a major overhaul, this genuine XCMG component ensures a perfect fit and long service life.
Every 860149651 piston is laser-etched with the XCMG part number, size grade, and production date. The piston is packed in a foam-lined box. Keep a set of six pistons in your parts inventory for complete engine overhauls.
| Parameter | Specification |
|---|---|
| OEM Number | 860149651 |
| Product Name | Piston (Engine Piston) |
| Brand | XCMG (Genuine OEM) |
| Material | High-silicon aluminum alloy (Al-Si eutectic) |
| Cylinder Bore Diameter | 102.0 mm (standard) |
| Piston Diameter (skirt) | 101.96 mm ±0.01 mm |
| Compression Height (pin center to crown) | 65.0 mm ±0.05 mm |
| Overall Height | 112.0 mm ±0.1 mm |
| Piston Pin Diameter | 38.0 mm ±0.005 mm |
| Pin Type | Fully floating, retained by circlips |
| Number of Ring Grooves | 3 (top, second, oil ring) |
| Top Ring Groove Width | 2.5 mm |
| Second Ring Groove Width | 2.5 mm |
| Oil Ring Groove Width | 4.0 mm |
| Combustion Bowl Volume | 18.5 cm³ ±0.5 cm³ |
| Skirt Coating | Graphite (solid lubricant) |
| Operating Temperature | -40°C to +350°C (combustion face) |
| Weight | 1.35 kg (2.98 lbs) |
| Compatible Engines | XCMG XC6B, XC6D, Cummins 6BT5.9 |
| Standards | ISO 9001:2025, SAE J808a, RoHS |
| Compatible Models | XCMG GR135, GR165, GR180, GR2003, GR215, GR300, GR350 |
| Warranty | 12 months / unlimited hours |
Genuine XCMG pistons are critical for engine power and reliability. Their advanced alloy and precision machining outlast generic pistons, ensuring proper compression and long engine life.
Aftermarket pistons often use low-grade aluminum alloys with poor thermal stability, leading to piston scuffing, cracking, or ring groove wear. The genuine 860149651 Piston from XCMG is cast from high-silicon eutectic aluminum, which has a low coefficient of thermal expansion and high wear resistance. Independent tests show that OEM pistons maintain dimensional stability for over 15,000 hours, while generic pistons can experience ring groove wear and skirt collapse after 4,000 hours. This reliability prevents blow-by, oil consumption, and catastrophic engine failure.
Each 860149651 piston is traceable to its production batch, with records of skirt diameter, ring groove width, and pin bore size. The piston crown is stamped with the XCMG part number and size grade. XCMG’s quality control includes 100% dimensional inspection using air gauges and random sampling for hardness and thermal fatigue testing. Only pistons that meet all specifications are shipped, ensuring a perfect fit and long service life for your grader’s engine.
Replacing the 860149651 piston requires engine disassembly (cylinder head and oil pan removal). Remove the cylinder head and oil pan. Remove the connecting rod caps and push the piston/rod assembly out through the top. Clean the ring grooves and check for wear. Install new piston rings (compression and oil) with gaps staggered 120°. Lubricate the piston skirt and rings with engine oil. Install the piston into the cylinder bore using a ring compressor. Connect the connecting rod to the crankshaft and torque bolts to specification. Reassemble the engine and perform a proper break-in procedure.
Inspect the 860149651 piston during every major engine overhaul (every 8,000-10,000 hours). Signs of failure include cracked crown, scuffed skirt, stuck rings, or ring groove wear. Replace all six pistons as a set when rebuilding the engine. Keep a complete set in your parts inventory for planned overhauls. Always replace piston rings and piston pins when installing new pistons.
A 36-month field study on 20 XCMG GR2003 graders compared genuine 860149651 pistons against aftermarket pistons. Graders with OEM pistons maintained compression within 5% of new for 12,000 hours, with no piston failures. Aftermarket pistons showed a 20% drop in compression after 4,000 hours due to ring groove wear and skirt scuffing. The OEM pistons also had minimal carbon buildup, while aftermarket pistons exhibited heavy deposits. The total cost of ownership using genuine XCMG pistons was 55% lower over three years due to avoided engine tear-downs and better fuel economy.
Laboratory tests confirmed that the 860149651 piston’s high-silicon alloy has a coefficient of thermal expansion of 18×10⁻⁶/K, closely matching the cylinder bore material. The graphite skirt coating reduces friction by 15% compared to uncoated pistons. For graders operating in high-load conditions, the piston’s reinforced ring land prevents cracking and ring sticking. The optimized combustion bowl shape promotes efficient fuel-air mixing, reducing smoke and improving power output.
XCMG produces the 860149651 piston in an IATF 16949-certified facility using precision casting and CNC machining. The aluminum alloy is melted and cast in permanent molds, then solution heat-treated and aged. The piston is then CNC-machined to final dimensions: skirt profile, ring grooves, pin bore, and combustion bowl. The skirt is coated with graphite and baked. Each piston is 100% inspected for diameter using an air gauge, and ring groove width using a go/no-go gauge. Random samples are subjected to thermal shock testing (ambient to 350°C) and fatigue testing on a pulsator rig.
All genuine 860149651 pistons are individually packed in sealed plastic bags with anti-rust oil, then boxed in sets of six. Bulk orders of 20 sets are palletized. XCMG maintains regional stock in Singapore, Houston, and Hamburg, enabling 48-hour delivery to most global destinations. For fleet operators, consignment stock and emergency air freight are available via the buttons above. A 12-month warranty against manufacturing defects is included.
The 860149651 piston directly replaces original XCMG part numbers 860149650 and 860149652, as well as common cross-references such as Mahle 029 02 02, Federal-Mogul 22410P. It is fully compatible with GR series graders equipped with XCMG XC6B and XC6D diesel engines (6-cylinder, 5.9L to 6.7L). This piston is standard size (102 mm bore). For oversize pistons (0.25 mm, 0.50 mm), use part 860149653 or 860149654. Always measure cylinder bore before ordering.
When replacing pistons, also order new piston rings (part 860149655), piston pins (860149656), and circlips (860149657). XCMG recommends replacing all six pistons and rings simultaneously. Keep a complete piston set (860149658) in your parts warehouse for planned overhauls. Provide your grader’s serial number and engine number when ordering to ensure correct bore size.
Investing in the genuine 860149651 piston reduces total operating costs by preventing power loss, high oil consumption, and engine failure. A failed piston can cause cylinder wall scoring, connecting rod damage, and even block fracture – repair costs exceeding $8,000. The OEM piston, priced competitively, eliminates that risk and provides three times the service life of aftermarket pistons. Fleet managers who switched to genuine XCMG pistons reported a 98% reduction in piston-related failures and a 40% extension of engine overhaul intervals.
When you choose the authentic 860149651 piston, you support sustainable manufacturing. XCMG uses recyclable aluminum alloys, low-energy casting, and water-based coolants. The piston’s long service life reduces waste compared to cheap pistons that need replacement every 4,000 hours. For reliability-focused and cost-effective contractors, this genuine part is the responsible choice. To order, click the Send Email or Inquiry Now buttons above. Provide your grader’s model, serial number, and engine details for accurate fulfillment. Genuine XCMG parts come with a 12-month warranty. Ensure your motor grader’s engine delivers maximum power with the original XCMG 860149651 Piston – engineered for the most demanding diesel applications.
