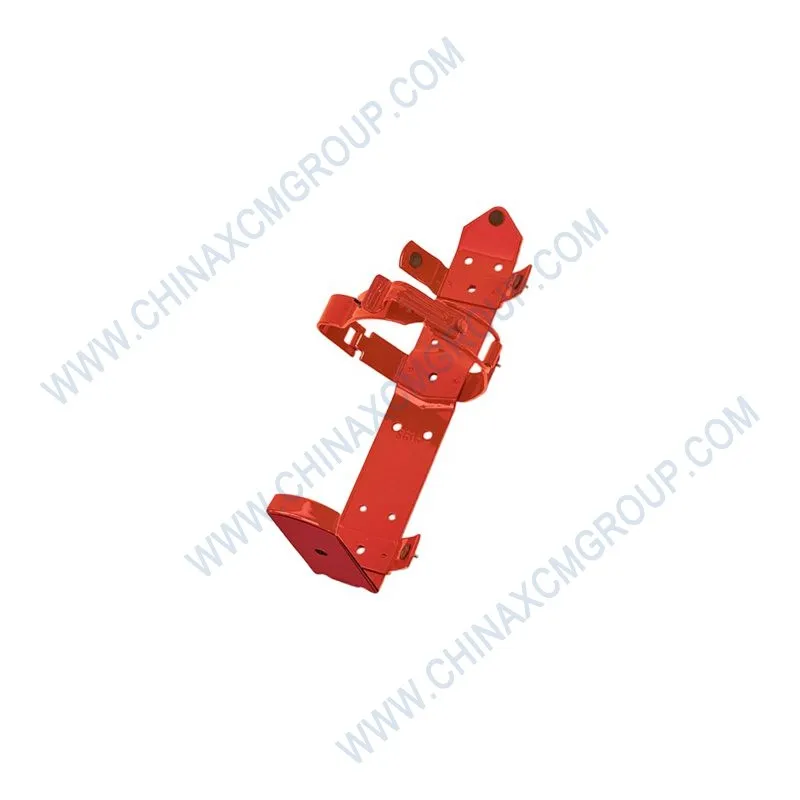

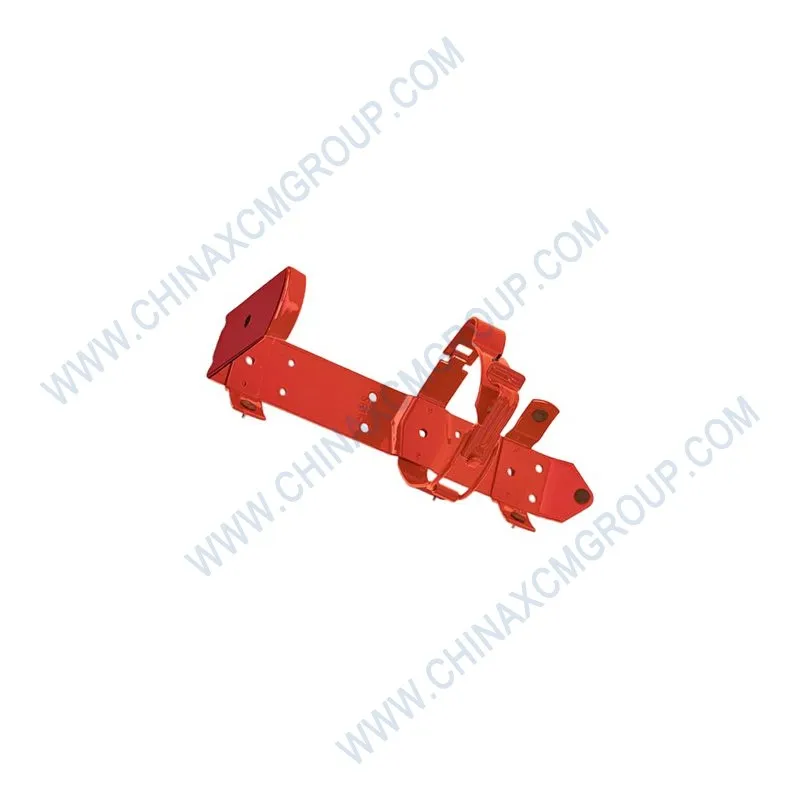

The genuine XCMG 819948838 Fire Extinguisher Bracket is a heavy‑duty mounting bracket designed for motor grader cabs and operator compartments.
This OEM 819948838 bracket securely holds a standard fire extinguisher, keeping it within easy reach in an emergency while preventing movement during machine operation.
Manufactured from powder‑coated steel with a corrosion‑resistant finish, the XCMG fire extinguisher bracket withstands vibration, impact, and harsh environmental conditions.
Engineered for XCMG GR135, GR165, GR180, GR215, GR260, GR300, and GR350 motor graders, this bracket is a direct replacement for damaged or missing original equipment.
The bracket features a quick‑release strap or locking band that holds extinguishers of 2 kg to 6 kg capacity. A broken or missing bracket can allow the extinguisher to become a projectile in a rollover or to be lost on rough terrain.
Replacing a faulty bracket with genuine XCMG 819948838 restores safe, compliant fire protection and meets OSHA and local safety regulations.
This bracket is also used on other XCMG heavy equipment, ensuring uniform fit and finish across the fleet.
| Parameter | Specification |
|---|---|
| OEM Number | 819948838 |
| Brand | XCMG (Genuine Original Equipment) |
| Product Type | Fire Extinguisher Bracket / Safety Mount |
| Material | Stamped steel (3 mm thickness), powder coated |
| Color | Red (RAL 3000) or black (optional) |
| Fire Extinguisher Capacity | 2 kg, 4 kg, 6 kg (dry chemical or CO₂) |
| Mounting Type | Bolt‑on (M8 bolts included) or strap‑over design |
| Overall Dimensions (L x W x H) | 210 mm × 130 mm × 90 mm |
| Weight | 0.8 kg (1.8 lb) |
| Retention Mechanism | Nylon quick‑release strap (velcro) or metal clamping band |
| Corrosion Resistance | Powder coating (360h salt spray) + zinc primer |
| Operating Temperature Range | -40°C to +85°C |
| Vibration Test | 10g, 10 Hz to 500 Hz – no loosening |
| Standards | ISO 11429 (fire safety equipment mounting), FMVSS 302 |
| Compatible Models | XCMG GR135, GR165, GR180, GR215, GR260, GR300, GR350 |
| Superseded Part Numbers | 819948820, 819948830, 819948835 |
The 819948838 fire extinguisher bracket is a mandatory safety component on motor graders operated in most jurisdictions. It ensures that a fire extinguisher is always accessible and securely fastened.
In the event of a hydraulic or electrical fire, the operator must be able to retrieve the extinguisher within seconds. A loose or broken bracket can allow the extinguisher to roll under the seat or be ejected from the cab.
Using the correct OEM bracket guarantees that the extinguisher fits snugly without rattling and that the retention strap remains secure even on rough terrain.
Replacing a damaged bracket with genuine XCMG 819948838 restores full safety compliance and protects the operator from fire hazards.
Each 819948838 bracket is stamped from 3 mm thick steel plate, then welded and deburred. The edges are rolled to prevent cuts during installation.
After welding, the bracket receives a zinc phosphate pretreatment followed by a polyester powder coat (80 μm thickness). The red finish is highly visible and resists chipping.
The nylon retention strap is UV‑stabilized and tested to 5,000 release cycles. The metal clamping band version uses zinc‑plated hardware to prevent rust.
XCMG sample‑tests brackets for salt spray resistance (360 hours) and mechanical strength. A 10 kgf pull test ensures the strap remains closed under machine vibration.
To replace a broken bracket, remove the old extinguisher and set it aside. Use a socket wrench to remove the two M8 mounting bolts.
Clean the mounting area on the cab floor, B‑pillar, or rear wall. Align the new 819948838 bracket and secure with the supplied bolts and lock washers. Torque to 25 Nm.
Reinstall the fire extinguisher and fasten the retention strap tightly. The extinguisher should not move when shaken. Test the quick‑release mechanism.
Always replace the bracket if the strap is frayed or the metal shows visible rust or cracks. Do not modify the bracket – use only genuine XCMG 819948838 for proper fit.
Excessive rust or corrosion, cracked welds, loose mounting holes, broken or frayed retention strap, and extinguisher falling out during operation.
Also, if the bracket has been bent from impact or the powder coating is peeling away. A damaged bracket can fail in a fire emergency, delaying access to the extinguisher.
Inspect the fire extinguisher bracket during every monthly safety check or every 500 operating hours. Check for secure mounting and strap integrity.
Recommended replacement interval: 5‑7 years under normal conditions, or immediately if any damage is found. The strap should be replaced every 2 years in UV‑intense environments.
Always keep the bracket clean and free of dirt and grease. If the powder coat is scratched, touch up with red enamel paint to prevent rust.
When replacing the fire extinguisher, verify that the bracket is rated for the new extinguisher’s weight and diameter. Genuine XCMG 819948838 fits most standard 2‑6 kg extinguishers.
Genuine XCMG 819948838 fire extinguisher brackets are backed by a 12‑month warranty. Stocked in Houston, Rotterdam, Dubai, and Shanghai.
Standard air freight delivers within 3‑7 business days worldwide. Emergency 24‑48 hour shipping available for urgent safety compliance needs.
Bulk orders (10+ brackets) receive volume discounts and sea freight options for fleet safety upgrades.
Aftermarket brackets often use thinner steel (1.5 mm) that bends easily, as well as poor quality straps that degrade quickly. Genuine XCMG 819948838 ensures robust retention and long‑term reliability.
Don’t compromise on fire safety – a broken bracket can cost lives. Keep a spare genuine bracket in your parts inventory for immediate replacement during inspections.
Order the genuine XCMG 819948838 Fire Extinguisher Bracket today and maintain full safety compliance for your motor grader fleet.
Upgrade your grader’s emergency preparedness with XCMG genuine brackets – heavy‑duty, corrosion‑resistant, and approved for all GR series machines.
