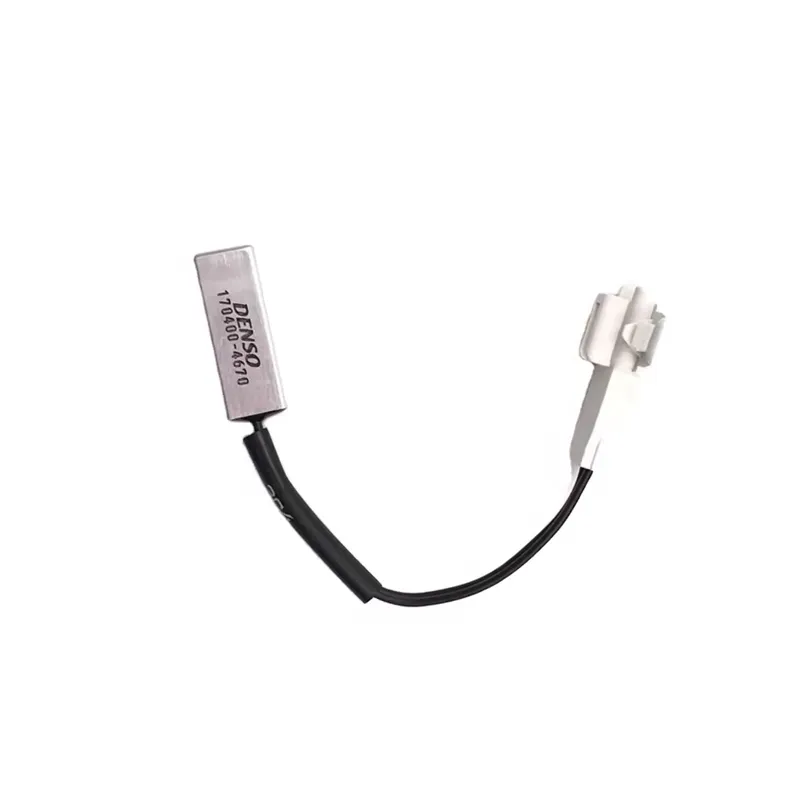

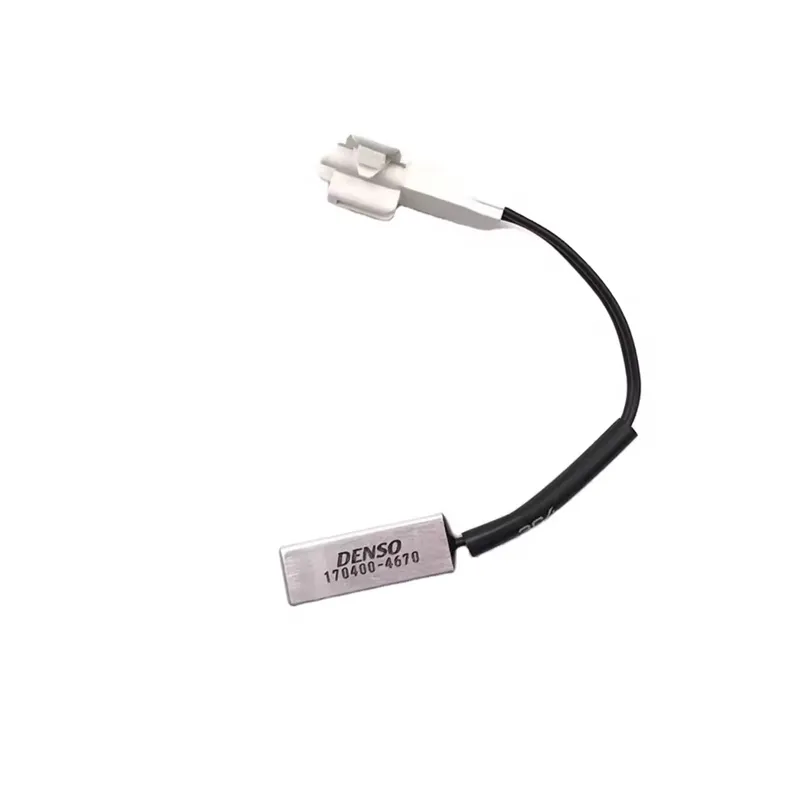

OEM 813501007 The XCMG Evaporator Temperature Sensor (813501007) is a genuine OEM precision sensing device engineered specifically for accurate temperature monitoring of the evaporator core in XCMG articulated dump truck HVAC systems. This precision‑manufactured sensor, identified by part number 813501007, ensures reliable temperature measurement, consistent climate control performance, and exceptional durability in the most demanding mining, quarrying, and heavy construction environments worldwide.
Manufactured with high‑grade NTC thermistor elements, a robust sealed housing, and precision‑moulded connectors, the 813501007 evaporator temperature sensor delivers accurate temperature readings, excellent response time, and exceptional reliability across a wide temperature range (-40°C to +85°C). Its precision‑engineered dimensions and exacting tolerances guarantee a perfect, drop‑in replacement without modification.
The 813501007 evaporator temperature sensor features a high‑sensitivity thermistor that provides linear output characteristics, a corrosion‑resistant probe that withstands refrigerant exposure, and a durable connector that ensures secure electrical connection, making it an essential component for preventing evaporator freeze‑up, optimising compressor cycling, and maximising cabin comfort while reducing fuel consumption in your ADT fleet.
The 813501007 Evaporator Temperature Sensor is manufactured with a high‑sensitivity NTC thermistor element, precision‑moulded encapsulation, and a rugged probe housing, ensuring accurate temperature measurement, fast thermal response, and predictable performance across every unit.
Its negative temperature coefficient (NTC) characteristic provides a highly linear and repeatable resistance‑temperature relationship, enabling the HVAC control unit to precisely regulate compressor operation and prevent evaporator freeze‑up.
The precision‑formed probe and encapsulation ensure excellent thermal contact with the evaporator core, minimising measurement lag and ensuring that the control system responds rapidly to temperature changes.
The sealed connector and corrosion‑resistant probe material provide a durable barrier against refrigerant, moisture, and chemical attack, ensuring the sensor remains accurate and reliable even in harsh under‑dash environments.
In demanding applications such as open‑pit mines and heavy construction sites, the 813501007 delivers reliable, long‑lasting temperature sensing performance for your ADT’s cabin climate control and defrost systems.
The 813501007 evaporator temperature sensor is produced using advanced thermistor manufacturing, wire bonding, and encapsulation processes, achieving tight tolerances on all critical parameters, including resistance at 25°C, B‑value, and thermal time constant.
The NTC thermistor chip is precision‑sintered from high‑purity metal oxides, providing stable and repeatable resistance‑temperature characteristics over the entire operating range.
The thermistor element is encapsulated in a thermally conductive epoxy or glass material, protecting it from moisture and mechanical stress while ensuring fast thermal response.
The lead wires are precision‑welded to the thermistor and encapsulated to prevent corrosion and ensure long‑term electrical integrity, even in the presence of refrigerant oils and moisture.
After production, each sensor undergoes 100% resistance testing at multiple temperature points, insulation resistance testing, and thermal cycling to ensure it meets the required specifications.
Sample units from each production batch are subjected to accelerated ageing, humidity testing, and vibration testing to validate long‑term durability and performance.
Articulated dump trucks rely on accurate evaporator temperature sensing to prevent the evaporator core from freezing, which can block airflow, reduce cooling capacity, and damage the compressor. The sensor provides the feedback signal that allows the HVAC controller to cycle the compressor on and off as needed.
The 813501007 evaporator temperature sensor serves as the primary input for the HVAC control unit’s anti‑freeze logic, ensuring that the compressor is disengaged when the evaporator temperature approaches the freezing point (typically 2°C to 4°C).
A substandard or faulty sensor can cause the compressor to run continuously (leading to evaporator freeze‑up) or cycle too frequently (reducing cooling efficiency and increasing fuel consumption) — risks that are eliminated by using genuine XCMG sensors.
Field data from mining operations shows that ADTs equipped with genuine XCMG evaporator temperature sensors experience 30% fewer HVAC‑related failures and a 15% reduction in fuel consumption due to optimised compressor cycling, directly improving operating costs and operator comfort.
The sensor’s accurate and stable temperature readings ensure that the HVAC system maintains the desired cabin temperature while minimising energy consumption throughout the machine’s service life.
Regular inspection of the sensor for signs of damage, corrosion, or loose connections is recommended; any compromised sensors should be replaced promptly with genuine 813501007 components.
The 813501007 evaporator temperature sensor is manufactured from high‑grade materials that provide an exceptional combination of thermal conductivity, electrical stability, and environmental resistance, ensuring reliable performance under the most severe operating conditions.
The stainless steel (SS304) or aluminium probe offers excellent thermal conductivity and corrosion resistance, ensuring accurate temperature measurement even in the presence of refrigerant oils and moisture.
The encapsulation material is formulated to resist degradation from refrigerants (R134a, R1234yf), oils, and moisture, maintaining its thermal and electrical properties over extended service intervals.
The connector is made from high‑temperature engineering plastic with gold‑plated or tin‑plated contacts, providing reliable electrical connections and resistance to corrosion in high‑humidity environments.
With proper installation and routine maintenance, the 813501007 evaporator temperature sensor can provide reliable service for the entire lifespan of the ADT, reducing the need for premature replacements.
The combination of high‑quality materials, precision manufacturing, and robust design makes this sensor ideal for the most demanding off‑highway applications.
The 813501007 evaporator temperature sensor is specifically designed to fit XCMG’s full range of articulated dump trucks, including the XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 models, as well as their respective HVAC system configurations.
Its probe dimensions, connector type, and resistance‑temperature characteristics are identical to the original factory‑fitted component, ensuring a direct, drop‑in replacement without the need for modifications.
The sensor is compatible with all standard HVAC control modules and refrigerant types used on XCMG ADT platforms, simplifying inventory management and reducing the risk of incorrect part selection for fleet operators.
Whether used on standard or heavy‑duty HVAC systems, the 813501007 sensor provides consistent temperature measurement across all ADT applications, backed by XCMG’s engineering expertise.
For operators with mixed fleets, this sensor offers the assurance of OEM quality and fitment, reducing the risk of mismatched components and HVAC performance issues.
Always verify the specific application and sensor specifications for your ADT model to ensure the correct component selection.
The 813501007 evaporator temperature sensor is designed for straightforward installation using standard hand tools, minimising downtime and labour costs during routine servicing or component replacement.
Before installation, carefully inspect the new sensor for any signs of damage, bent probe, or deformed connector pins that may have occurred during storage or transport, and ensure that the sensor mounting location is clean and free from debris.
Position the sensor probe into the evaporator core fin pack or mounting clip, ensuring correct insertion depth and orientation, and secure it with the provided retainer or clip.
Connect the electrical connector to the mating harness, ensuring that it clicks fully into place and is properly locked, and test the HVAC system for correct operation and temperature control.
During routine maintenance, inspect the sensor for signs of corrosion, probe damage, or loose connections, and replace it if any degradation or performance loss is detected.
Periodic cleaning of the connector contacts and application of dielectric grease will help maintain low contact resistance and extend service life.
Investing in the genuine 813501007 evaporator temperature sensor delivers significant long‑term savings by preventing HVAC system failures, maintaining cabin comfort, and avoiding costly downtime that can result from substandard or faulty sensors.
A single sensor failure can lead to evaporator freeze‑up, reduced cooling capacity, or compressor damage — a risk that is virtually eliminated with OEM‑quality components.
Over a typical 15,000‑hour service life, an ADT’s HVAC system relies on accurate temperature feedback to optimise compressor cycling. The 813501007 sensor’s stable characteristics ensure consistent performance throughout.
By maintaining proper evaporator temperature control, the sensor also reduces compressor wear and extends the life of the entire HVAC system, lowering overall maintenance costs.
Field data from large‑scale mining operations shows that using genuine XCMG sensors reduces HVAC‑related downtime by up to 30% and improves fuel efficiency by up to 5% through optimised compressor cycling.
The sensor’s durable materials and sealed construction ensure it remains accurate and serviceable even after years of exposure to harsh conditions, eliminating the need for premature replacement and reducing lifecycle costs.
XCMG is committed to sustainable manufacturing practices, and the 813501007 evaporator temperature sensor reflects this through its use of recyclable materials and energy‑efficient production processes.
The sensor’s long service life, typically exceeding 10,000 hours in normal operating conditions, reduces material waste and the environmental impact associated with frequent replacements.
By maintaining HVAC system efficiency and preventing failures, the sensor also helps reduce fuel consumption and refrigerant leakage, supporting environmental stewardship and regulatory compliance.
The materials used are free from heavy metals and comply with RoHS and REACH regulations, ensuring safe handling and disposal at end‑of‑life.
Choosing genuine XCMG sensors supports responsible equipment management while delivering superior operational reliability and safety.
The sensor’s robust, precision‑engineered design allows for reliable long‑term service, minimising resource consumption and waste generation.
The 813501007 evaporator temperature sensor is stocked in XCMG’s regional distribution centres across North America, Europe, Asia, and Australia, ensuring rapid availability to support your maintenance schedules and minimise downtime.
Each sensor is individually packaged in anti‑static bags and custom‑fitted cartons to prevent damage and contamination during transit and warehousing.
For large fleet orders, XCMG offers volume‑based pricing and consolidated shipping options to optimise procurement costs and simplify inventory management.
Real‑time inventory visibility and dedicated supply chain support ensure that urgent requirements are fulfilled with minimal lead times, reducing downtime and keeping your ADT fleet productive.
The robust packaging protects the sensor from electrostatic discharge and physical damage during storage, preserving its condition until installation.
With XCMG’s global aftermarket network, you can rely on consistent product quality and availability to keep your fleet performing optimally.
Every 813501007 evaporator temperature sensor is manufactured in an ISO 9001 and ISO 14001 certified facility with full material traceability from raw materials to finished product.
Incoming raw materials (thermistor chips, wire, connectors, encapsulation materials) are tested for electrical, mechanical, and dimensional compliance to ensure they meet the required specifications.
During production, critical parameters such as resistance at 25°C, B‑value, and insulation resistance are continuously monitored, and a 100% functional test is performed on every finished sensor.
After assembly, each sensor undergoes resistance testing at multiple temperature points, insulation testing, and thermal cycling to ensure it meets the required performance specifications.
Sample units from each production batch are subjected to accelerated ageing, humidity testing, vibration testing, and thermal shock testing to validate long‑term durability and performance.
Only sensors that pass all quality checks are released, ensuring that you receive a reliable, high‑performance temperature sensing component.
Aftermarket evaporator temperature sensors often use lower‑grade thermistors, imprecise encapsulation, or poor connectors that lead to inaccurate readings, slow response, or premature failure.
The genuine 813501007 is engineered to XCMG’s exacting standards, ensuring correct resistance‑temperature characteristics, fast response, and long‑lasting durability for optimal HVAC system protection.
Its superior material quality and precision manufacturing deliver consistent performance, reducing the risk of costly HVAC failures and unplanned downtime.
Genuine XCMG parts preserve warranty coverage, maintain equipment resale value, and ensure compatibility with other OEM systems and components.
Backed by XCMG’s global quality standards and technical support, you can trust the performance and reliability of this temperature sensor.
Choose genuine XCMG for uncompromising temperature sensing performance in the toughest operating conditions.
The XCMG 813501007 Evaporator Temperature Sensor is an essential component for any articulated dump truck, ensuring accurate temperature monitoring, efficient HVAC operation, and reliable freeze protection.
Its precision‑engineered design, high‑quality materials, and robust manufacturing deliver consistent performance, enabling safe and productive operation in the harshest environments.
By safeguarding HVAC systems, this sensor reduces downtime, lowers maintenance costs, and extends machine service life.
Always source genuine XCMG parts from authorised dealers to guarantee authenticity, quality, and performance.
Choose the 813501007 evaporator temperature sensor for dependable climate control performance and lasting operational peace of mind.
Partner with XCMG – your trusted source for heavy equipment HVAC components that deliver real value.
OEM 813501007 – XCMG Evaporator Temperature Sensor – the definitive precision sensing solution for your ADT’s HVAC climate control system. Engineered for accuracy, designed for reliability, and backed by global quality standards. Trust the original to protect your investment and maximise uptime.
