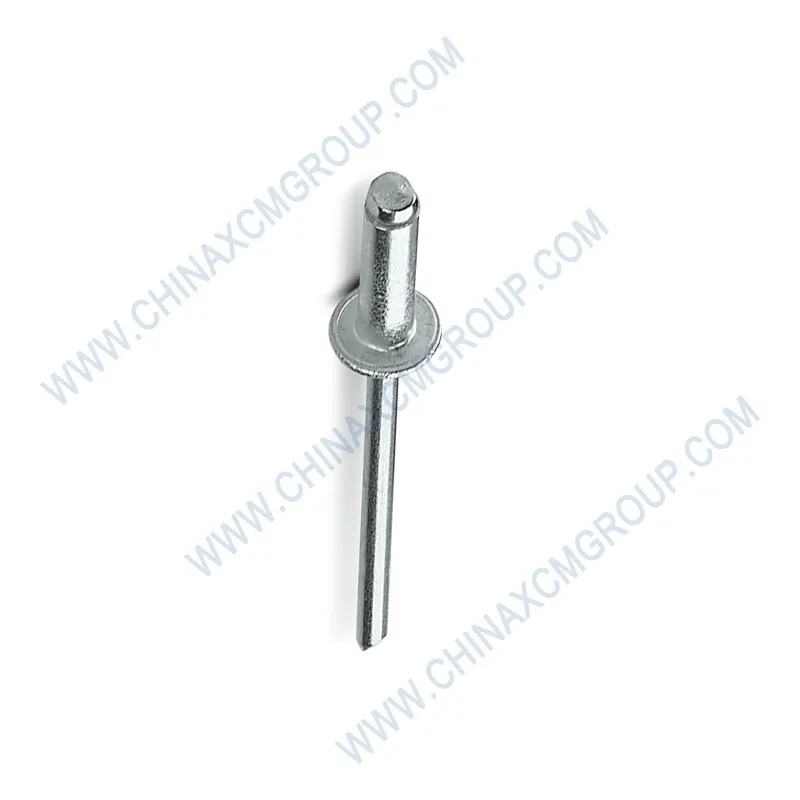

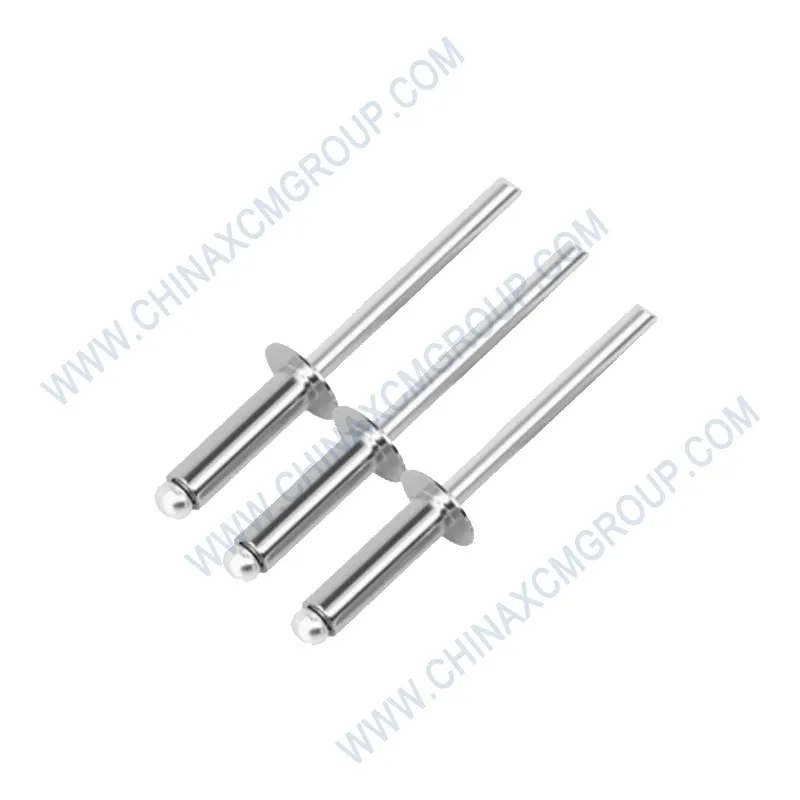

The genuine XCMG 805500034 Rivet 3×10 is a precision‑manufactured blind rivet designed for secure fastening of nameplates, serial number tags, trim panels, and interior cladding on XCMG motor graders. This OEM 805500034 rivet features a 3 mm diameter and 10 mm grip length, providing a vibration‑resistant, tamper‑evident joint that will not loosen under heavy equipment operation. Constructed from corrosion‑resistant aluminum alloy with a steel mandrel, the XCMG blind rivet delivers consistent clamping force and excellent shear strength. The 805500034 rivet is an essential spare part for XCMG GR135, GR165, GR180, GR215, GR260, GR300, and GR350 motor graders, used wherever permanent, blind‑side fastening is required.
Typical applications include attaching the machine identification plate to the frame, securing warning decals, mounting instrument cluster brackets, and fastening access panel trim. The 805500034 rivet’s low profile head prevents snagging, while the steel mandrel breaks flush, leaving a clean finish. A missing or loose rivet allows plates to rattle, fall off, or become illegible, causing compliance issues and potential loss of critical information.
Replacing a lost or damaged rivet with genuine XCMG 805500034 restores original fastening integrity, ensures nameplates remain attached, and maintains the professional appearance of your grader’s cab and exterior panels.
| Parameter | Specification |
|---|---|
| OEM Number | 805500034 |
| Brand | XCMG (Genuine Original Equipment) |
| Product Type | Blind Rivet / Pop Rivet – Open end |
| Nominal Diameter | 3.0 mm (0.118 in) |
| Grip Range (Material Thickness) | 2.5 – 4.5 mm (optimal 3.0 mm) |
| Overall Length (before setting) | 10.0 mm ±0.3 mm |
| Flange Diameter (Head) | 6.0 mm ±0.2 mm (countersunk head optional) |
| Head Height | 1.2 mm (low profile dome) |
| Material – Body | Aluminum alloy (5056 / 5154) anodized |
| Material – Mandrel | Carbon steel (zinc‑plated, 8.8 grade) |
| Shear Strength (min) | 1.2 kN (270 lbf) |
| Tensile Strength (min) | 0.9 kN (200 lbf) |
| Setting Tool Requirement | 3 mm nose piece (manual or pneumatic riveter) |
| Break Mandrel Style | Flush break (mandrel head remains inside) |
| Corrosion Resistance | Salt spray 360h (ASTM B117) – no white rust |
| Operating Temperature Range | -50°C to +150°C |
| Standards | ISO 15977, DIN 7337, IFI 114 |
| Compatible Models | XCMG GR135, GR165, GR180, GR215, GR260, GR300, GR350 motor graders |
| Superseded Part Numbers | 805500022, 805500028, 805500051 |
The 805500034 blind rivet is the primary fastener for attaching permanent identification plates to the grader frame. These plates include the serial number, CE certification, and emissions labels required for legal operation.
Without secure rivets, plates can be torn off by branches or pressure washer jets, leaving no trace of the machine’s identity. This creates major problems for parts ordering, warranty claims, and site access.
The rivet is also used for cab interior trim, floor mat retainers, and control panel brackets. A loose rivet causes rattles and premature wear of the fastened components.
Each 805500034 rivet is cold‑headed from high‑purity aluminum wire, then heat‑treated to enhance ductility. The mandrel is made from low‑carbon steel with a zinc‑nickel coating for corrosion resistance.
The rivet body is anodized to prevent galvanic corrosion when installed in aluminum or steel panels. The mandrel breaking groove is precision‑machined to ensure consistent break load between 1.8 and 2.2 kN.
XCMG tests each batch for grip range, head formation, and mandrel retention. A sample is set into a test coupon and pull‑tested to verify shear and tensile values.
To replace a missing or loose rivet, drill out the old rivet shank using a 3.2 mm drill bit. Do not enlarge the original hole. Remove any burrs with a deburring tool.
Insert a new 805500034 rivet into the hole. Place the rivet tool nose piece over the mandrel. Squeeze the tool handles fully until the mandrel breaks. The rivet body will expand and clamp the materials together.
Inspect the set rivet: the head should be flush with the top material, and the mandrel should break flush. If the rivet spins or does not set, the hole may be oversized or the grip length incorrect.
Missing rivet entirely, plate rattling, visible gap between the plate and panel, corrosion around the rivet head causing the plate to lift, and broken mandrel protruding above the head.
If the rivet head is cracked or the body is loose, replace it immediately to avoid losing the attached component. Use genuine XCMG 805500034 for consistent grip and strength.
XCMG recommends inspecting all riveted nameplates and trim every 1,000 operating hours. Check for looseness by trying to rotate the plate. If any rivet is missing, replace it promptly.
Keep a supply of 805500034 rivets in your service truck. They are inexpensive but critical for maintaining identification and preventing water ingress behind loose panels.
When replacing a nameplate, always use new rivets – never reuse old ones, as the expanded body cannot be reset. Use an electric or pneumatic riveter for high‑volume installation.
Genuine XCMG 805500034 rivets are supplied in packs of 50, 200, or 1000. Each rivet is backed by a 12‑month warranty. Regional hubs in Houston, Rotterdam, Dubai, and Shanghai maintain deep stock.
Air freight delivery: 3‑7 business days worldwide. Emergency 24‑48 hour shipping available. Bulk orders receive volume discounts. Aftermarket rivets often break at the wrong load, fail to set properly, or corrode quickly.
Genuine XCMG 805500034 rivets guarantee correct mandrel break strength, proper grip range, and long‑term corrosion protection. Order genuine today to keep your grader’s nameplates and trim securely attached for years.
Don’t let a missing rivet cost you a lost nameplate or a rattling cab interior. Keep 805500034 rivets in your parts inventory and replace any missing or loose fasteners immediately. A small rivet secures vital information and maintains the professional finish of your XCMG motor grader.
Upgrade your grader’s fastening reliability with genuine XCMG blind rivets. Cold‑headed, anodized, and 100% tested – order the 805500034 Rivet 3×10 now and ensure every nameplate and trim panel stays exactly where it belongs for the life of your machine.
