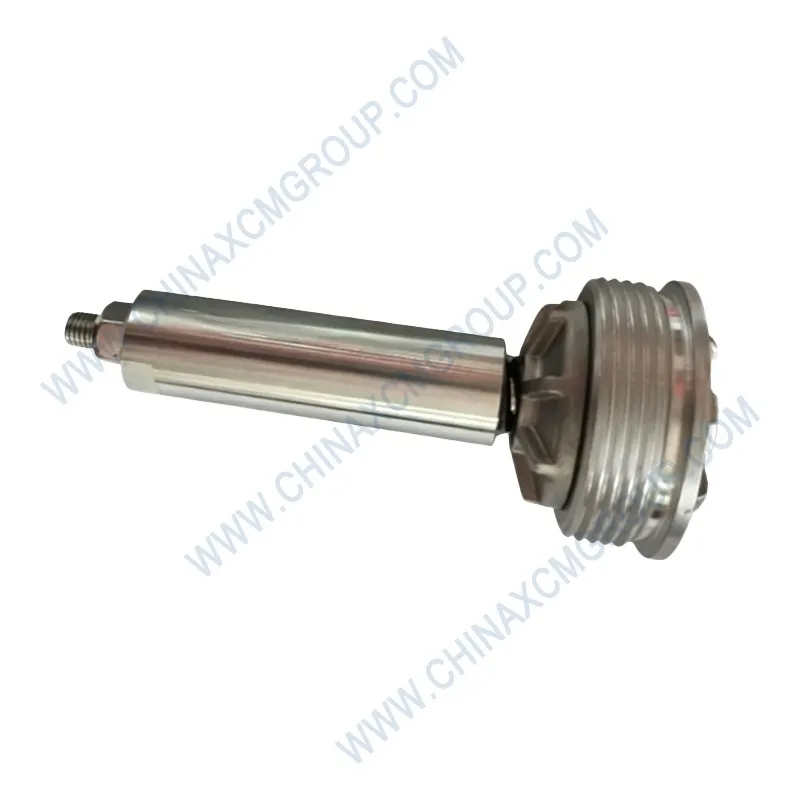

The 804049052 Check Valve Spool is a genuine XCMG precision‑machined hydraulic poppet designed to provide reliable, zero‑leakage sealing in one‑way flow applications on articulated dump trucks and heavy equipment. This OEM spool, identified by part number 804049052, features a hardened steel body with a ground conical sealing surface, a stainless steel spring, and a nitrile O‑ring, ensuring consistent cracking pressure and positive shut‑off under extreme pressures, vibration, and temperature fluctuations.
Engineered for the demanding conditions of mining, quarrying, and heavy construction, the 804049052 check valve spool delivers exceptional durability, minimal pressure drop, and long service life, making it an essential replacement component for maintaining hydraulic circuit integrity, preventing reverse flow, and ensuring safe, reliable machine operation in the toughest operating environments.
The 804049052 Check Valve Spool is a precision cartridge‑type valve element that provides unidirectional flow control in hydraulic circuits on XCMG articulated dump trucks.
This genuine XCMG spool is engineered to be installed directly into a machined cavity in a valve block or manifold, offering a compact, leak‑free solution for preventing reverse flow.
Its hardened conical poppet and ground seat ensure positive, bubble‑tight sealing even after millions of cycles, while the stainless steel spring provides consistent cracking pressure.
The zinc‑nickel plated body resists corrosion from moisture, salt, and hydraulic fluids, ensuring reliable operation in the most aggressive mining environments.
This component is a direct OEM replacement, restoring the original check valve function of the machine’s hydraulic manifold.
Regular inspection of the spool for wear or contamination is recommended; replace immediately if any signs of leakage or seat damage are evident.
Modern hydraulic systems on heavy equipment often use cartridge‑type valves integrated into compact manifolds to reduce space and improve reliability. The check valve spool is a key component in these systems, preventing reverse flow that could cause load drift or component damage.
The 804049052 spool is commonly used in pilot circuits, brake release systems, and cylinder holding valves, where a positive shut‑off is essential for safety and precision.
A worn or sticking spool can allow reverse flow, leading to unpredictable cylinder movement, loss of braking pressure, or reduced system efficiency – all of which pose significant safety risks.
By using a genuine XCMG check valve spool, operators ensure that the original flow control characteristics and reliability are maintained, protecting both the machine and the operator.
Its cartridge design allows for quick replacement without disassembling entire valve blocks, minimising downtime during service.
The 804049052 check valve spool is engineered with a focus on sealing performance, low hysteresis, and long-term durability.
The poppet features a precision‑ground conical seat that mates with a hardened insert in the manifold, providing a metal‑to‑metal seal that is both wear‑resistant and pressure‑tight.
The spring is custom‑wound from stainless steel and shot‑peened to relieve internal stresses, ensuring consistent force over the life of the valve and preventing fatigue failure.
An external nitrile O‑ring provides a static seal between the spool body and the manifold cavity, preventing external leakage and allowing easy installation.
The spool body is case‑hardened to resist wear from the sliding action during opening and closing, while the zinc‑nickel plating protects against corrosion and chemical attack.
All critical dimensions are held to tight tolerances to ensure proper fit in the standard cartridge cavity, with a 100% functional check before shipment.
The 804049052 spool is constructed from materials selected for their ability to withstand the harsh conditions of mining and construction.
The body is made from high‑strength carbon steel with a case‑hardening depth of 0.5‑0.8 mm, providing excellent resistance to indentation and wear from the poppet impact.
The zinc‑nickel plating offers superior corrosion protection compared to standard zinc, with salt‑spray resistance exceeding 300 hours per ASTM B117.
The stainless steel spring is corrosion‑resistant and tested to maintain its force characteristics after over 100,000 cycles, ensuring consistent cracking pressure over time.
The nitrile O‑ring is compatible with a wide range of hydraulic fluids and temperatures, providing a durable, leak‑free seal even after prolonged service.
The 804049052 check valve spool is used extensively in XCMG articulated dump trucks, wheel loaders, excavators, and motor graders for critical check valve functions in pilot and main hydraulic circuits.
It is typically installed in manifold blocks to control flow to brake release actuators, cylinder holding valves, and accumulator charge circuits.
In underground mining, the spool’s compact cartridge design and corrosion‑resistant finish make it ideal for use in confined, damp environments where space is at a premium.
Its reliable sealing performance ensures that hydraulic loads are held securely, preventing unintended movement of booms, buckets, or suspension systems.
By using genuine XCMG check valve spools, operators can reduce the risk of load drift and improve the safety of lifting and holding operations.
Every 804049052 check valve spool is manufactured in an ISO 9001 and ISO 14001 certified facility, with full material traceability and process control.
Incoming steel bars are tested for chemical composition, hardness, and grain structure to ensure they meet the required specifications.
During machining, critical dimensions are checked with precision gauges, and the sealing surfaces are inspected with profilometers to verify surface finish.
Each spool is 100% tested for cracking pressure, seating integrity, and leakage in both directions using a calibrated test stand.
A sample from each production batch is subjected to endurance cycling (over 100,000 open‑close cycles) to validate wear life and spring performance.
Only spools that pass all tests are released, guaranteeing consistent quality and reliability.
The 804049052 check valve spool is a direct replacement for the original spool in the cartridge cavities of XCMG articulated dump trucks, including XDA30, XDA40, XDA45, XDA45U, XDA60, TA30, and many other models.
It is also compatible with various XCMG wheel loaders, excavators, and motor graders that use the same standard cartridge cavity (19 mm diameter).
The spool’s dimensions and sealing geometry are precisely matched to the OEM cavity, ensuring a drop‑in fit without modifications.
For cross‑brand applications, verify that the cavity diameter, depth, and porting arrangement match your specific manifold.
Always consult your machine’s parts manual to confirm the correct part number before ordering.
Replacing the 804049052 check valve spool requires basic tools and careful handling to avoid contaminating the cartridge cavity. Always depressurise the system before starting work.
Remove the retaining ring or plug securing the spool in the cavity, then carefully extract the old spool using a suitable extraction tool or magnetic pick‑up.
Clean the cavity thoroughly with a lint‑free cloth and flushing oil, ensuring no debris or old seal material remains.
Inspect the new spool for any damage and lubricate the O‑ring with clean hydraulic oil. Insert the spool into the cavity, ensuring it seats fully against the internal stop.
Reinstall the retaining ring or plug to the specified torque. Pressurise the system and check for leakage around the cavity.
During routine maintenance, inspect the spool for signs of wear, scoring, or contamination. Replace immediately if any leakage or damage is detected.
Keep a spare spool on hand to minimise downtime during unexpected failures.
The 804049052 check valve spool complies with SAE J527, which specifies performance and test methods for hydraulic cartridge check valves.
It is manufactured in accordance with ISO 9001 quality management and ISO 14001 environmental standards.
The spool is CE marked and RoHS compliant, meeting international safety and environmental regulations.
Using genuine XCMG spools ensures compliance with original equipment safety and performance specifications, protecting both the machine and the operator.
Always replace faulty spools with genuine parts to maintain hydraulic system safety and reliability.
Aftermarket check valve spools often use softer steel, imprecise grinding, or inferior springs, leading to leakage, chattering, or premature wear.
The genuine 804049052 spool is engineered to XCMG’s exacting specifications, ensuring the correct cracking pressure, sealing geometry, and cavity fit.
Its high‑quality materials and precision manufacturing deliver reliable, long‑lasting service, reducing the risk of hydraulic circuit failure and contamination.
Genuine XCMG parts preserve warranty coverage and maintain the resale value of your equipment.
Choose genuine XCMG for safety, reliability, and peace of mind.
The XCMG 804049052 Check Valve Spool is a precision component that ensures reliable one‑way flow control in hydraulic manifolds on articulated dump trucks and heavy equipment.
Its hardened steel construction, accurate sealing, and corrosion‑resistant finish deliver dependable performance in the harshest mining and construction environments.
By replacing worn or damaged spools with genuine XCMG parts, you maintain system pressure, prevent load drift, and reduce downtime.
Always source genuine XCMG components from authorised dealers to guarantee authenticity and quality.
Choose the 804049052 check valve spool for dependable flow control and lasting value.
Invest in genuine XCMG – your partner in reliability and safety.
