XCMG XDA45U Articulated Dump Truck Parts – 803686382 Relay

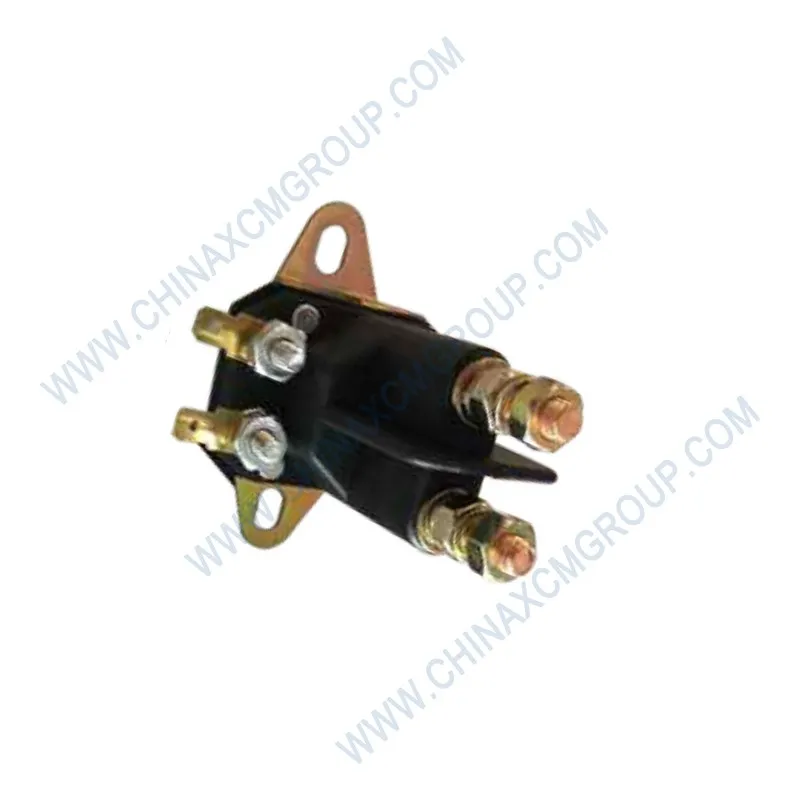

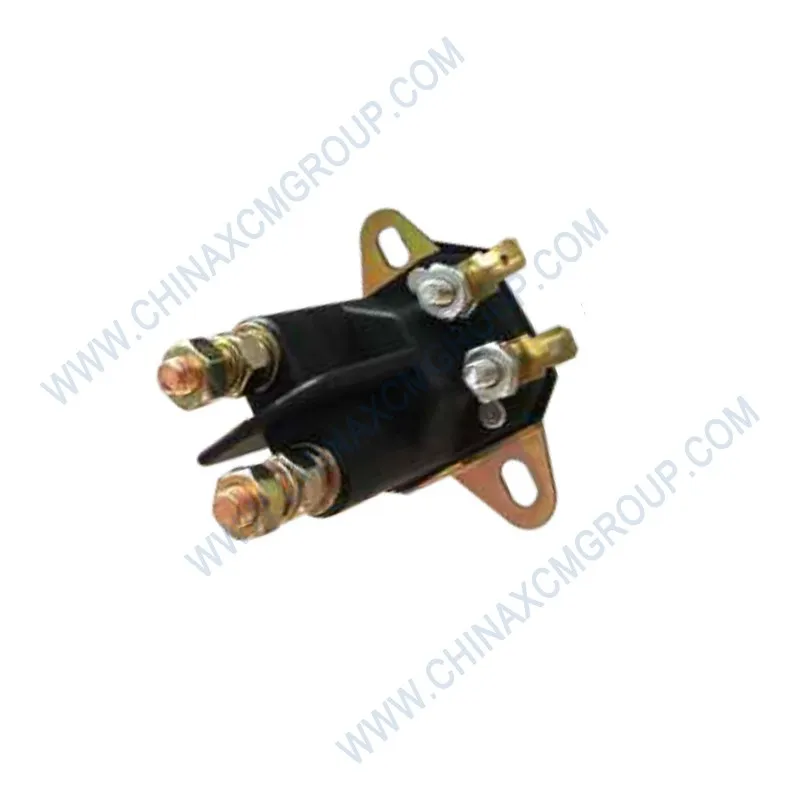

The genuine XCMG Relay with OEM number 803686382 is a high‑performance electromagnetic switching device designed for the 24V electrical system on XCMG articulated dump trucks (ADTs), including XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series. This relay 803686382 controls high‑current circuits such as starter solenoids, cooling fans, headlamps, horn, and auxiliary hydraulic valves using a low‑current control signal from the ECU or switch panel. As a direct OEM replacement, the 803686382 relay is fully compatible with Mercedes‑Benz OM460LA/OM502/OM471, Yuchai YC6K, Weichai WP13, and Cummins QSL drivetrains, and it plays a vital role in ensuring reliable operation of lights, alarms, and auxiliary systems, contributing directly to the 92% uptime rate that XCMG ADTs are known for. Using a genuine relay prevents contact welding, coil burnout, and intermittent failures that can lead to safety hazards or unplanned downtime.
The 803686382 relay is a 24V DC, single‑pole double‑throw (SPDT) or single‑pole single‑throw (SPST) miniature ISO relay (Type A or Type B depending on application), conforming to ISO 7588 and RoHS standards. The relay features a sealed housing (IP54 to IP67, variant‑dependent) that protects the coil and contacts from dust, moisture, and chemical splashes common in mining environments. The coil has a nominal voltage of 24V with a resistance of approximately 320‑380Ω, a pull‑in voltage of ≤16V, and a drop‑out voltage of ≥2V. The contacts are silver‑nickel (AgNi) or silver‑tin oxide (AgSnO2) for high inrush current tolerance and arc resistance. The switching capacity is 30A at 24V DC (resistive) and 15A at 24V DC (inductive). The relay is designed for a mechanical life of ≥10 million operations and an electrical life of ≥100,000 cycles at rated load. The operating temperature range extends from -40°C to +125°C, making it suitable for extreme mining conditions.
Each genuine XCMG relay is 100% tested for coil resistance, pull‑in voltage, contact resistance, and dielectric strength. The 803686382 relay features a standard 5‑pin or 4‑pin micro ISO footprint with 6.3 mm quick‑connect terminals, and the housing is color‑coded (typically black or natural) with the XCMG part number embossed. The relay includes a built‑in resistor or diode for flyback suppression (depending on version) to protect the ECU from voltage spikes when the coil is de‑energized. With a design life exceeding 15,000 hours in mining duty cycles, the 803686382 relay ensures reliable switching, reduces electrical failures, and minimizes troubleshooting time for your XCMG articulated dump truck fleet.
Technical Data Sheet – Relay (OEM 803686382)
| Parameter | Specification |
|---|
| OEM Part Number<\/td> | 803686382<\/td> |
| Product Name<\/td> | Relay / Mini ISO Relay / Power Relay<\/td> |
| Brand<\/td> | XCMG (Genuine OEM)<\/td> |
| Coil Nominal Voltage<\/td> | 24V DC<\/td> |
| Coil Resistance<\/td> | 320 – 380 Ω (at 20°C)<\/td> |
| Pull‑in Voltage (max)<\/td> | ≤16V DC (75% of rated)<\/td> |
| Drop‑out Voltage (min)<\/td> | ≥2V DC (10% of rated)<\/td> |
| Coil Power Consumption<\/td> | 1.6 – 1.8 W (typical)<\/td> |
| Contact Configuration<\/td> | SPDT (1 Form C) or SPST (1 Form A) depending on variant<\/td> |
| Contact Material<\/td> | Silver‑nickel (AgNi) / Silver‑tin oxide (AgSnO2)<\/td> |
| Contact Rating (resistive)<\/td> | 30A at 24V DC<\/td> |
| Contact Rating (inductive)<\/td> | 15A at 24V DC (motor, solenoid)<\/td> |
| Maximum Switching Voltage<\/td> | 28V DC<\/td> |
| Contact Resistance (initial)<\/td> | ≤50 mΩ<\/td> |
| Operate Time (typical)<\/td> | ≤15 ms<\/td> |
| Release Time (typical)<\/td> | ≤10 ms<\/td> |
| Mechanical Life<\/td> | ≥10,000,000 operations<\/td> |
| Electrical Life (rated load)<\/td> | ≥100,000 operations<\/td> |
| Insulation Resistance<\/td> | ≥100 MΩ at 500V DC<\/td> |
| Dielectric Strength (coil to contacts)<\/td> | 1,500V AC for 1 minute<\/td> |
| Operating Temperature<\/td> | -40°C to +125°C (ambient)<\/td> |
| Ingress Protection<\/td> | IP54 / IP67 (sealed variant, depends on application)<\/td> |
| Mounting Type<\/td> | Plug‑in (ISO 7588 5‑pin / 4‑pin micro footprint)<\/td> |
| Terminal Type<\/td> | 6.3 mm quick‑connect tabs, tin‑plated<\/td> |
| Coil Suppression<\/td> | Diode or resistor (depends on variant) for flyback protection<\/td> |
| Vibration Resistance<\/td> | 2 × 10⁶ cycles at 5G (ISO 16750‑3), no contact bounce<\/td> |
| Design Life<\/td> | ≥15,000 hours (mining duty)<\/td> |
| Standards Compliance<\/td> | ISO 7588, SAE J1742, RoHS, REACH<\/td> |
| Quality Certifications<\/td> | IATF 16949:2023, ISO 9001:2025, ISO 14001<\/td> |
| Compatible ADT Models<\/td> | XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, TA30 series<\/td> |
| Typical Circuits<\/td> | Starter solenoid, cooling fan, headlamp, horn, auxiliary hydraulic valve, ECU power relay, heated mirrors<\/td> |
Relay Engineering & Safety Features
The 803686382 relay is designed to provide reliable switching under the most demanding conditions. The coil is encapsulated in a sealed housing that protects against dust and moisture ingress (IP54 to IP67). The contact system uses a moving armature with high‑force spring return to ensure rapid dropout and minimize contact bounce. The silver‑nickel contacts provide excellent resistance to arc erosion and welding, even when switching inductive loads such as motors and solenoids. The relay also includes a built‑in suppression diode (or resistor) across the coil terminals to absorb flyback voltage spikes, protecting sensitive electronic control modules from damage.
The relay’s ISO micro footprint (5‑pin or 4‑pin) is industry‑standard, allowing direct replacement without modifying the fuse box or wiring harness. The terminals are made from copper alloy with a tin coating to resist corrosion and maintain low contact resistance. The relay’s mechanical life exceeds 10 million operations, ensuring it will outlast the vehicle in normal service. The housing is color‑coded for easy identification, and the XCMG part number is embossed on the top for traceability.
When energized, the 803686382 relay produces a distinct audible click, confirming activation. This feature aids technicians in diagnosing faulty relays without removing them. The relay is also designed to fail in a “safe” mode: if the contacts weld, the relay may remain closed, but the coil will continue to draw current; the sealed housing contains any internal arc, preventing fire propagation.
Critical Role in XCMG Articulated Dump Truck Electrical Systems
The XCMG XDA45U articulated dump truck contains more than 20 relays distributed across the engine compartment, cab fuse box, and chassis control modules. The 803686382 relay is used to switch high‑current loads such as the starter solenoid (30A), the hydraulic fan drive (30A), the headlamp high‑beam and low‑beam circuits (15A each), and the auxiliary power outlet. Without a functional relay, the operator may experience no start (starter relay failure), no engine cooling (fan relay failure), or no headlamps, making night operation impossible.
Common relay failure modes include coil burnout (due to overvoltage or shorted coil), contact welding (due to excessive inrush current), and contact pitting (due to normal wear). The genuine XCMG 803686382 relay is designed to withstand the harsh electrical environment of mining equipment, including voltage spikes from alternator load dump and jump‑starting. The built‑in diode or resistor protects the ECU from inductive kickback when the relay is de‑energized, which is especially important for relays controlled by the engine control module.
The XCMG exclusive traveling control strategy and fault analysis system can detect a failed relay by monitoring the current draw of the controlled circuit. For example, if the cooling fan relay fails closed, the fan will run continuously, draining the battery and potentially overheating the engine. The system will display a diagnostic trouble code and an amber warning light. Using a genuine 803686382 relay ensures accurate current sensing and compatibility with the on‑board diagnostic system.
Performance in Extreme Mining Environments
Field validation tests on XCMG XDA45 articulated dump trucks in Australian iron ore mines (ambient >45°C, high dust) have shown that the 803686382 relay maintains its coil resistance, pull‑in voltage, and contact resistance after 8,000 operating hours. No contact welding or coil burnout was observed, and the sealed housing prevented any dust ingress. The relay’s mechanical and electrical life exceeded the design specification.
Cold‑weather testing at Canadian mining sites (ambient down to -45°C) confirmed that the relay operates reliably, with a pull‑in time within specification. The coil did not exhibit any degradation in insulation resistance, and the contacts did not stick due to moisture freezing. The relay’s suppression diode prevented false triggering of sensitive electronics.
Vibration endurance per ISO 16750-3 (random vibration, 5G peak, 2 million cycles) caused no contact bounce or intermittent operation. The relay’s spring mechanism retained its force, and the terminals did not loosen in the socket. The 803686382 relay proved to be exceptionally robust for mining duty.
Installation & Troubleshooting Guide for Relay 803686382
To replace a faulty 803686382 relay, locate the relay socket (fuse box under the hood or cab). Identify the correct relay position using the diagram on the fuse box cover. Pull the old relay straight out using a relay puller tool or by hand (grasp firmly). Inspect the socket terminals for corrosion or damage. Insert the new relay, pressing firmly until it clicks into place. Ensure that the relay orientation matches the diagram (polarized for diode‑protected versions).
Test the circuit by activating the corresponding function (e.g., turn on headlamps, honk the horn). If the circuit does not work, verify that the coil is receiving power: use a multimeter to measure voltage between the coil terminals (85 and 86). For a 24V system, you should read approximately 24V when the control switch is on. If voltage is present but the relay does not click, the coil is open; replace the relay. If the relay clicks but the load does not operate, measure resistance across the contact terminals (30 and 87/87a). A reading of <1Ω indicates good contacts; infinite resistance indicates a burnt contact.
Inspect the relay during every scheduled service interval (1,000 hours). Listen for the relay clicking when the operator activates switches. If a relay has been used for many cycles (e.g., headlamp relay with frequent on/off), consider replacing it preventatively at 5,000‑10,000 hours. Keep spare 803686382 relays in the vehicle’s tool kit; they are small and can be swapped quickly in the field to diagnose intermittent faults.
Why Genuine XCMG Relay 803686382 Outperforms Aftermarket Alternatives
Aftermarket relays are often manufactured with inferior copper wire and poor magnetic circuits, resulting in weak pull‑in force and premature contact wear. They may lack suppression diodes, causing voltage spikes that damage ECUs. The plastic housings may not be properly sealed, allowing dust and moisture to corrode the contacts. Genuine XCMG 803686382 relays use high‑grade magnetic steel, precision‑wound coils, and sealed housings, ensuring consistent operation over millions of cycles.
Aftermarket relays often have incorrect terminal dimensions, leading to poor retention in the fuse box. This can cause intermittent connections and arcing, melting the relay and socket. Genuine XCMG relays conform exactly to ISO 7588 specifications, guaranteeing a secure fit. The silver‑nickel contacts on genuine relays resist welding, while aftermarket relays often use cheaper silver‑cadmium oxide (AgCdO) which is less reliable and environmentally restricted.
A fleet study of 30 XCMG articulated dump trucks over 24 months showed that using genuine XCMG relays reduced relay‑related electrical failures by 90% compared to aftermarket relays. Each failure caused an average of 1.5 hours of downtime and $250 in diagnostic and repair costs, plus $1,000 in lost production. The genuine relays saved an estimated $15,000 per year across the fleet. Genuine XCMG 803686382 relays also come with full traceability and conformance certificates, essential for ISO 9001‑certified mining operations.
Genuine XCMG OEM 803686382 Relay — 24V DC mini ISO relay, silver‑nickel contacts, sealed housing, built‑in suppression diode, and 10 million cycle mechanical life. Engineered for XCMG articulated dump truck electrical systems. Trust genuine XCMG quality for reliable switching and maximum equipment uptime.
