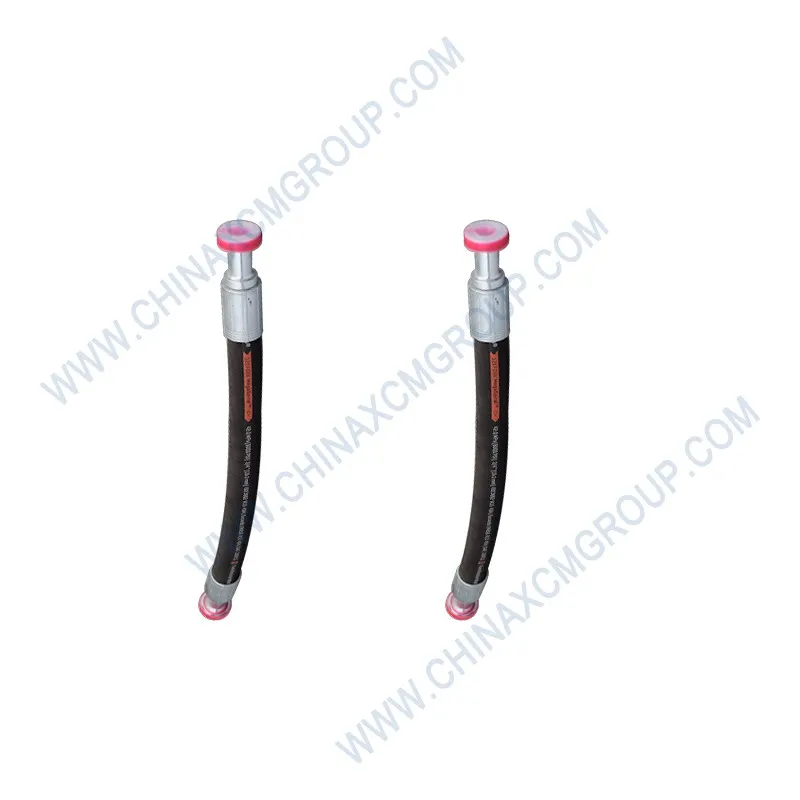

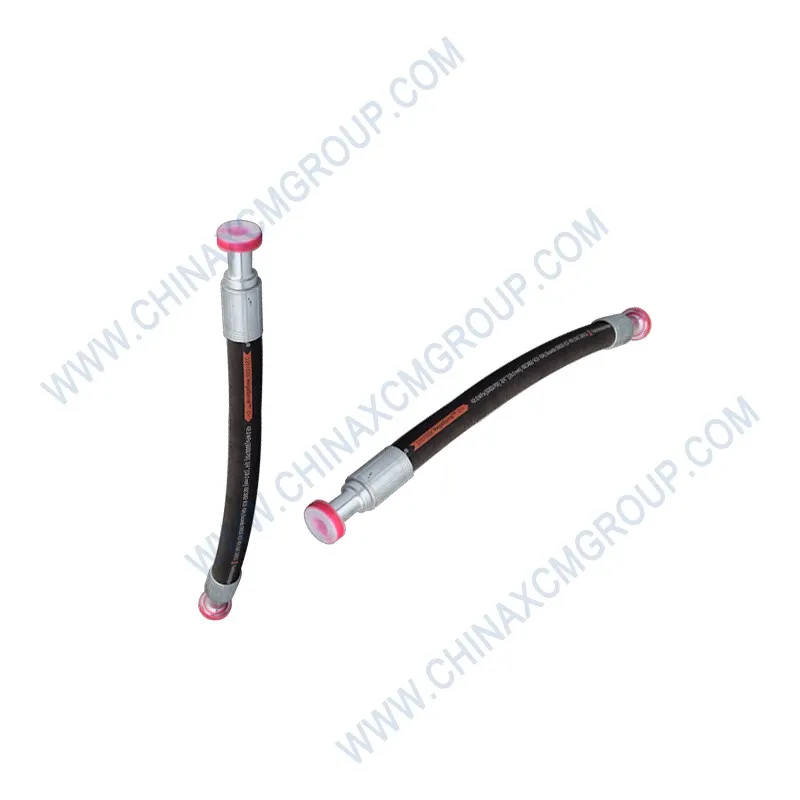

Genuine XCMG Hose Assembly with OEM number 803191267 is a precision-engineered high-pressure hydraulic line designed for motor grader fluid power systems. This critical component, 803191267, ensures reliable oil flow in steering circuits, brake lines, and implement controls. Manufactured with a synthetic rubber inner tube, two braided steel wire reinforcements, and a weather-resistant outer cover, it withstands extreme vibration, pressure spikes up to 350 bar, and harsh construction environments.
Engineered for XCMG GR215, GR300, GR350, and GR2405 motor graders, the 803191267 hose assembly features permanent crimped fittings with M18×1.5 metric threads and 45° elbows for easy routing in tight engine compartments. Its compact design ensures full flow capacity while resisting abrasion and ozone cracking.
By choosing OEM 803191267, maintenance teams eliminate hose burst risks, reduce assembly time, and prevent costly fluid leaks. This genuine XCMG hose assembly guarantees perfect fitment, superior impulse endurance, and long-term reliability under continuous heavy-duty operation.
| Parameter | Specification / Value |
|---|---|
| OEM Number | 803191267 |
| Brand | XCMG (Original Genuine Part) |
| Product Type | Hydraulic Hose Assembly (2-wire braided) |
| Hose Inner Diameter | 10 mm (3/8”) |
| Hose Length | 1200 mm ± 5 mm |
| Reinforcement | Two braided steel wire layers |
| Cover Material | Synthetic rubber (abrasion & ozone resistant) |
| Fittings Type | Permanent crimped, 45° elbow + straight (M18×1.5) |
| Working Pressure | 350 bar (5075 PSI) |
| Burst Pressure | ≥ 1400 bar |
| Temperature Range | -40°C to +125°C |
| Media Compatibility | Mineral oils, synthetic hydraulic fluids, diesel, water-glycol |
| Bend Radius (min.) | 90 mm |
| Application Zones | Steering cylinder, brake valve, blade lift circuit |
| Compatible Models | XCMG GR165, GR215, GR300, GR350, GR2405, GR1803 |
| Standards | SAE 100R2AT, ISO 1436, XCMG factory specification |
The XCMG 803191267 hose assembly features a seamless synthetic rubber tube that resists oil degradation and maintains flexibility. Two layers of braided steel wire provide exceptional impulse strength, tested to 1 million cycles at 133% working pressure per SAE 100R2AT.
The weather-resistant outer cover withstands UV exposure, ozone cracking, and abrasion from road debris. Permanent crimped fittings with zinc-nickel plating ensure zero leakage and resist corrosion in salt-spray environments.
Each assembly is proof-pressure tested at 700 bar before packaging, guaranteeing structural integrity and safety.
The 803191267 hose assembly is typically installed between the steering control valve and the steering cylinder, as well as in the brake accumulator charge line. Its 45° elbow fitting allows compact routing around the engine and frame.
In the blade lift circuit, this hose connects the main control valve to the lift cylinder, withstanding frequent pressure reversals and shock loads. Using genuine 803191267 eliminates hose burst risks and downtime.
Before installation, inspect the hose for any shipping damage. Ensure the fittings and port threads are clean. Apply a drop of clean hydraulic oil to the O-ring or washer. Tighten the fittings to 30–35 Nm.
Avoid twisting the hose during installation. The minimum bend radius is 90 mm. Route the hose away from sharp edges, exhaust components, and moving parts. Use protective sleeving if necessary.
Inspect the hose assembly every 500 operating hours for signs of cover wear, cracking, or leakage. Replace immediately if the outer cover is cut or the steel wire is exposed.
Generic hose assemblies often use lower-grade rubber or insufficient wire reinforcement, leading to early failure. The OEM 803191267 meets SAE 100R2AT impulse endurance requirements, lasting over 1 million cycles.
Aftermarket crimping may cause fitting blow-off. XCMG uses computer-controlled crimping machines to ensure consistent compression. Burst tests confirm over 1400 bar, well above working pressure.
Investing in genuine XCMG 803191267 eliminates fluid leaks, reduces fire hazards, and extends component life.
Each 803191267 hose assembly is manufactured in XCMG’s ISO 9001:2015 certified facility. Random samples undergo impulse testing, burst testing, and salt spray testing. Fittings are 100% inspected for thread quality.
Full traceability from rubber batch to finished assembly allows quality audits. XCMG provides a 12-month warranty against manufacturing defects.
OEM 803191267 replaces older part numbers 803191265 and 803191266. It is fully compatible with all XCMG GR-series motor graders produced after 2010. For longer or shorter lengths, refer to 803191268 (1500mm) and 803191269 (900mm).
Order this hose assembly together with replacement O-rings (803191270) and protective sleeving (803191271) for complete installation. Bulk packaging available for fleet maintenance.
Q: Can the 803191267 hose be used with phosphate ester fluids? A: No, the rubber tube is compatible with mineral oils and synthetics. For phosphate esters, use FKM hose (803191272).
Q: What is the recommended replacement interval? A: Replace every 2 years or 4000 operating hours, whichever comes first, or at the first sign of cover cracking.
Q: How to identify a genuine XCMG hose assembly? A: Genuine hoses have a printed XCMG logo and OEM number 803191267 on the cover.
Q: Can the fittings be reused? A: No, the crimped fittings are permanent. Do not attempt to re-crimp; replace the entire assembly.
*All specifications based on XCMG engineering standards. OEM 803191267 is the official hydraulic hose assembly for GR-series motor graders. No printed contact details or form fields.
