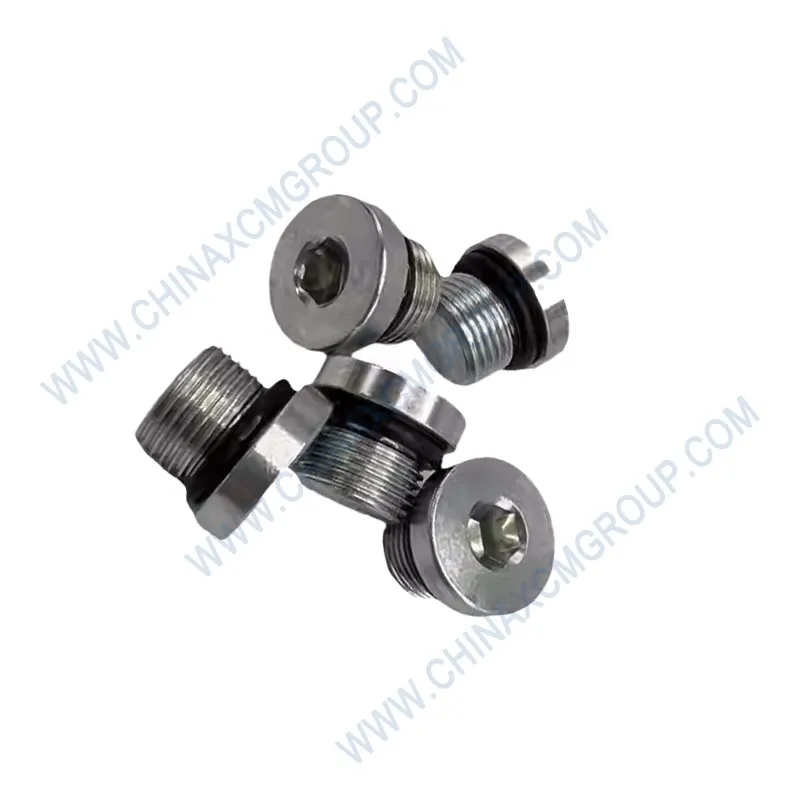

The 803132119 Hydraulic Plug is a genuine OEM threaded plug manufactured by XCMG for motor graders, excavators, and heavy construction equipment. This precision‑machined plug is used to seal unused hydraulic ports, drain holes, or test points in high‑pressure systems, preventing fluid loss and contamination ingress. Constructed from high‑strength carbon steel with a corrosion‑resistant zinc‑plated finish, the 803132119 plug is engineered to withstand extreme operating pressures up to 24 MPa (3,480 psi) and intense vibration in demanding grading applications.
The hexagonal socket head allows for secure tightening using a standard hex key, ensuring a leak‑free seal even under cyclic pressure spikes. It directly replaces damaged, corroded, or missing plugs on XCMG GR series motor graders, XE series excavators, and other XCMG heavy machinery. The plug is listed as a standard spare part for multiple XCMG models, including XE17U excavators and EBZ‑200A roadheaders, confirming its wide application across the XCMG equipment range.
Each unit is precision machined to exact thread tolerances, with a cleanly cut thread and a smooth sealing seat. The plug plays a vital role in maintaining system integrity, preventing fluid leaks, and keeping contaminants out of the hydraulic circuit. Proper installation and regular inspection of the 803132119 help maximize machine uptime and reduce costly downtime.
| Parameter | Specification |
|---|---|
| OEM Number | 803132119 |
| Brand | XCMG (Genuine Original Equipment) |
| Product Type | Hexagonal Socket Hydraulic Plug / Blanking Plug |
| Material | High‑strength carbon steel (C45 / 1045), heat treated |
| Surface Finish | Zinc plating + yellow chromate (500h salt spray resistance) |
| Thread Standard | Metric (compatible with XCMG hydraulic system ports) |
| Nominal Thread Size | Refer to XCMG service manual for specific thread size |
| Drive Type | Hexagonal socket (Allen key drive) |
| Maximum Operating Pressure | 24 MPa (240 bar / 3,480 psi) (system working hydraulic pressure is 16 MPa, rated to 18 MPa) |
| Proof Pressure | 32 MPa (320 bar) |
| Burst Pressure | > 48 MPa (480 bar) |
| Sealing Method | Metal‑to‑metal seat or O‑ring (system‑dependent) |
| Operating Temperature Range | -40°C to +120°C |
| Recommended Torque | Refer to XCMG service manual for specific torque value |
| Corrosion Resistance | 500+ hours salt spray (ASTM B117) without red rust |
| Compatible Models | XCMG GR135, GR165, GR180, GR215, GR260, GR300, GR350 motor graders; XE17U excavators; EBZ‑200A roadheaders |
| Superseded Part Numbers | None (direct OEM replacement) |
| Certifications | ISO 9001:2015, ISO 14001, CE, RoHS |
The XCMG 803132119 Hydraulic Plug is a small but critical component that ensures the integrity of the entire hydraulic circuit. It seals unused ports, drain holes, and test points, preventing pressurized fluid from escaping and keeping contaminants out. In the demanding environment of motor grader operation, even a minor leak can lead to reduced system pressure, sluggish implement response, and eventual component failure. The 803132119 is designed to maintain a leak‑free seal under the high cyclic pressures and vibration characteristic of heavy grading work.
This plug is typically found in the working hydraulic system of XCMG GR series graders, which operates at a nominal pressure of 16 MPa (160 bar / 2,320 psi) and a maximum working pressure of 18 MPa (180 bar / 2,610 psi). The plug must withstand not only the static pressure but also the dynamic pressure spikes that occur during sudden valve actuation or cylinder stall conditions. The 803132119 is rated to a proof pressure of 32 MPa (320 bar) and a burst pressure exceeding 48 MPa (480 bar), providing a significant safety margin for all normal and emergency operating conditions.
When a plug fails or begins to seep, the resulting loss of pressure can affect blade lift, circle rotation, articulation, and auxiliary functions, compromising grading accuracy and operator safety. The 803132119 is manufactured to XCMG’s exacting standards, ensuring a perfect match with the original equipment. Using a non‑genuine plug can result in incorrect thread engagement, leading to cross‑threading, stripped ports, or inadequate sealing. Replacing a damaged plug with the genuine 803132119 restores hydraulic efficiency and eliminates the risk of sudden joint failure.
Each 803132119 hydraulic plug is produced from high‑quality carbon steel bar stock, then CNC machined to achieve precise thread dimensions and a smooth sealing surface. The hexagonal socket is broached to a precise depth and size, ensuring positive engagement with the hex key and preventing cam‑out during tightening. The plug is then heat‑treated to achieve optimal hardness without becoming brittle, balancing strength and ductility for reliable performance under pressure.
After machining and heat treatment, the plug undergoes a multi‑stage surface finishing process. It is first cleaned to remove any oils or residues, then zinc‑plated to provide a base layer of corrosion protection. A yellow chromate conversion coating is then applied, which enhances the zinc’s protective properties and gives the plug its characteristic gold appearance. This finish provides over 500 hours of salt spray resistance per ASTM B117, ensuring the plug remains corrosion‑free even in harsh, wet, or salt‑laden environments such as coastal road construction or winter snow removal operations.
XCMG tests every batch of plugs to 150% of rated working pressure using a hydrostatic test stand. Any plug that shows signs of leakage or deformation is rejected. Additionally, thread gauges are used to verify that every plug meets the required GO/NO‑GO standards, guaranteeing trouble‑free installation and a perfect fit in the factory port.
Proper installation of the 803132119 plug is essential for achieving a leak‑free seal. Before installation, clean the port threads and the plug threads of any dirt, old sealant, or debris. Inspect the sealing seat in the port for any damage or burrs. Apply a small amount of clean hydraulic oil to the threads to lubricate them during tightening. If the plug uses an O‑ring seal, ensure the O‑ring is in good condition and lightly lubricated with hydraulic oil.
Thread the plug into the port by hand until it is snug. Then, using a torque wrench with the correct hex key bit, apply the final torque. The specific torque value depends on the thread size and the material of the mating port; always refer to the XCMG service manual for the exact specification. As a general guideline, for metric thread plugs of this size, torque values typically range from 20 Nm to 35 Nm. Over‑tightening can damage the threads or distort the sealing surface, while under‑tightening will result in leaks.
After installation, run the hydraulic system and inspect the plug for any signs of leakage. If a small weep is observed, tighten the plug an additional 1/8 turn. If leakage persists, remove the plug and inspect the threads and sealing surfaces for damage. Replace the plug if necessary. Never reuse a plug that has been over‑tightened or has damaged threads.
Aftermarket hydraulic plugs often use lower‑grade steel that can crack under pressure or develop corrosion within months. The genuine XCMG plug is manufactured from heat‑treated carbon steel and finished with a high‑durability zinc‑chromate coating, providing long‑term reliability in demanding environments. Aftermarket plugs may also have inconsistent thread dimensions, leading to cross‑threading or improper sealing, which can damage the expensive port threads in the valve block or cylinder housing.
Counterfeit plugs often omit the critical heat treatment step, resulting in a soft plug that can deform under high torque or burst under pressure. The 803132119 is through‑hardened to achieve the optimal balance of strength and ductility. Additionally, genuine XCMG plugs are batch‑tested for pressure integrity, whereas counterfeit products rarely undergo any quality control. The hexagonal socket in genuine plugs is precisely broached to ensure full engagement with the hex key, reducing the risk of stripping the socket under high torque.
XCMG provides a 12‑month warranty against manufacturing defects. Each plug is stamped with the XCMG logo or comes in branded packaging. Using genuine XCMG plugs ensures compatibility, reliability, and the protection of your valuable equipment.
Common indicators that a hydraulic plug needs replacement include visible rust or corrosion, thread damage (galling, cross‑threading, or stripping), deformation of the hex socket (rounded or cracked), and evidence of leakage such as wetness around the plug or oil drips. Also, if the plug has been over‑tightened in the past, the threads may have stretched, reducing their ability to maintain proper sealing force.
Preventive inspection of hydraulic plugs should be performed every 500 operating hours or during routine maintenance intervals. Look for signs of rust, seepage, or damage. Check the torque of any plug that is accessible; loose plugs should be tightened to the specified value, but never exceed the torque value. If a plug is found to be corroded or damaged, replace it immediately with a genuine 803132119 plug.
When performing hydraulic system repairs, always install new plugs rather than reusing old ones. Old plugs may have damaged threads or degraded sealing surfaces that will not provide reliable service. Keep a stock of 803132119 plugs in your parts inventory for rapid field repairs. The cost of a genuine plug is negligible compared to the cost of a hydraulic system failure, environmental cleanup from a major oil leak, or the downtime caused by a loss of pressure.
The 803132119 Hydraulic Plug is stocked in XCMG regional warehouses in North America (Houston), Europe (Rotterdam), Middle East (Dubai), and Asia (Shanghai). Standard air freight delivers within 3‑7 business days worldwide. Expedited shipping (1‑2 days) is available for urgent repairs.
Bulk orders (20+ plugs) receive volume discounts and can be shipped via sea freight. Each plug is individually wrapped in anti‑corrosion paper or supplied in sealed bags. For large fleets, consignment stock programs are available to ensure immediate availability and reduced downtime.
Don’t let a leaking or corroded hydraulic plug compromise your grader’s performance or safety. Order the genuine XCMG 803132119 Hydraulic Plug today and restore reliable, leak‑free hydraulic system sealing.
The 803132119 Hydraulic Plug is a small but vital component in your motor grader’s hydraulic system. A single leaking plug can cause loss of pressure, reduced implement speed, and messy oil spills that harm the environment and create slip hazards. Keep spare plugs in your service truck for every repair, and always replace with genuine XCMG parts.
Upgrade your motor grader’s hydraulic reliability with the XCMG genuine plug. Engineered for strength, precision, and corrosion resistance – order now and experience the quality that keeps your grader productive and leak‑free.
