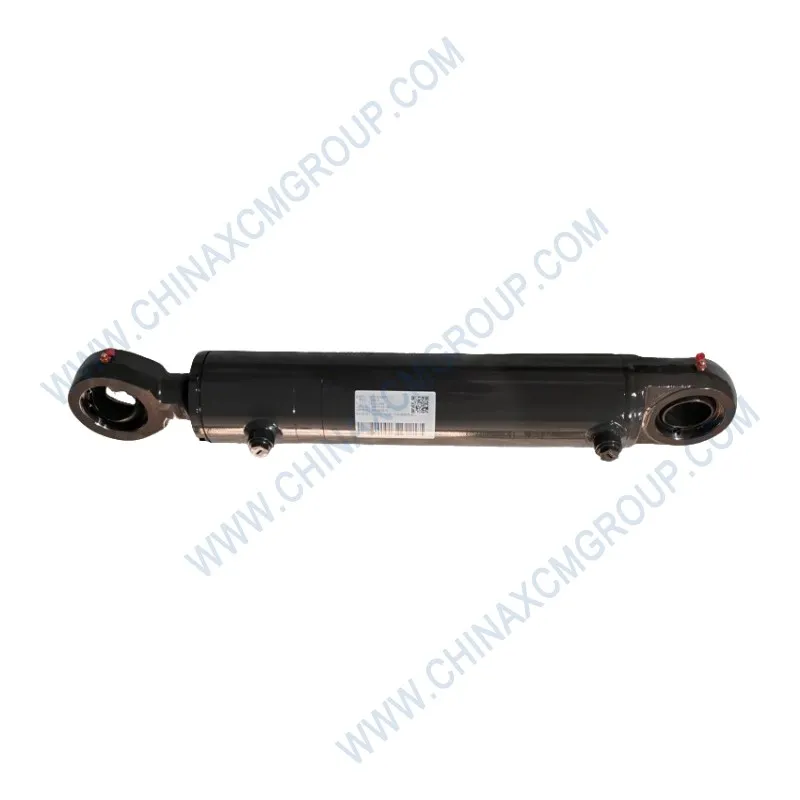

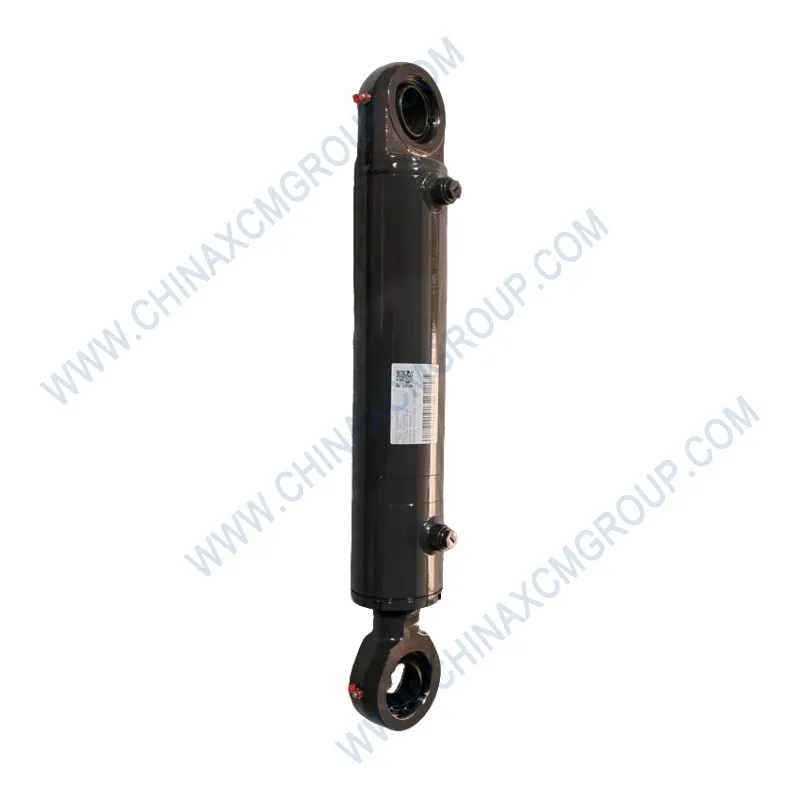

The 803090548 Hydraulic Cylinder is a genuine OEM component manufactured by XCMG for motor graders and heavy construction equipment. This precision‑engineered cylinder provides linear force and motion for critical functions such as blade lift, circle rotation, steering articulation, and implement positioning on XCMG GR series motor graders. Constructed from high‑strength alloy steel with a precision‑honed internal bore and premium polyurethane seals, the 803090548 cylinder is designed to withstand extreme operating pressures up to 18 MPa (2,610 psi) in the load‑sensing hydraulic systems of XCMG GR135, GR165, GR180, GR215, GR260, GR300, and GR350 motor graders.
The cylinder features a hardened and chromed piston rod, ensuring exceptional wear resistance and corrosion protection even in harsh environments. The integrated cushioning at the end of the stroke reduces shock loads and improves operator comfort. Each unit is 100% factory‑tested for leakage and performance, guaranteeing a reliable drop‑in replacement for worn or damaged cylinders.
XCMG motor graders are known for their superior hydraulic control and durability. The 803090548 hydraulic cylinder plays a vital role in maintaining precise implement positioning, smooth articulation, and efficient load transfer. Proper maintenance and timely replacement of this cylinder are essential for the longevity and performance of your motor grader.
| Parameter | Specification |
|---|---|
| OEM Number | 803090548 |
| Brand | XCMG (Genuine Original Equipment) |
| Product Type | Hydraulic Cylinder / Linear Actuator |
| Bore Diameter (Standard) | 70 mm – 114 mm (depending on application) |
| Stroke Length | 150 mm – 500 mm (varies by model) |
| Piston Rod Diameter | 35 mm – 55 mm (hard chrome plated) |
| Maximum Working Pressure | 18 MPa (180 bar / 2,610 psi) |
| Proof Pressure | 24 MPa (240 bar / 3,480 psi) |
| Burst Pressure | ≥ 48 MPa (480 bar / 6,960 psi) |
| Seal Material | Polyurethane (U‑cup) / Nitrile rubber (NBR) |
| Housing Material | High‑strength alloy steel, induction hardened |
| Mounting Type | Clevis / Trunnion (direct OEM replacement) |
| Hydraulic Fluid | ISO VG 46 / VG 68 mineral oil |
| Fluid Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Port Threads | BSPP (G‑thread) / SAE O‑ring ports (varies by model) |
| Corrosion Protection | 500+ hours salt spray (ASTM B117) without red rust |
| Weight | Approximately 12 – 35 kg (depending on size) |
| Compatible Models | XCMG GR135, GR165, GR180, GR215, GR260, GR300, GR350 motor graders |
| Certifications | ISO 9001:2015, ISO 14001, CE, RoHS |
The XCMG 803090548 Hydraulic Cylinder is a core component in the grader’s hydraulic actuation system. It converts hydraulic pressure into linear mechanical force, enabling precise control of blade height, circle rotation, articulation angle, and auxiliary implement movements. Without a reliable cylinder, the grader cannot perform essential grading operations.
XCMG motor graders operate at working hydraulic pressures of 16 MPa (160 bar) to 18 MPa (180 bar). The 803090548 cylinder is designed to handle these pressures with a substantial safety margin, featuring a proof pressure of 24 MPa and a burst pressure exceeding 48 MPa. This robustness is critical for the demanding environments of road construction, mining, and earthmoving.
The cylinder is manufactured to exacting tolerances, with a precision‑honed bore that ensures minimal internal leakage and consistent performance. The piston rod is hard‑chromed to resist pitting and corrosion, even in high‑salt or high‑moisture environments. The mounting ends are forged and heat‑treated to withstand the high side loads generated during aggressive maneuvers.
XCMG’s hydraulic cylinders are known for their energy efficiency and smooth operation. The 803090548 cylinder is an integral part of this system, ensuring that hydraulic fluid flows smoothly and without interruption. Proper maintenance and timely replacement of this cylinder are essential for the longevity and performance of your motor grader. A worn or damaged cylinder can lead to oil leaks, pressure loss, and eventual component failure.
The 803090548 cylinder is built to withstand the extreme shock loads, vibration, and harsh conditions of motor grader operation. The cylinder barrel is manufactured from high‑strength cold‑drawn seamless steel tube, which is then induction hardened to resist scoring and wear from the piston and seals. The internal bore is precision‑honed to a mirror finish (Ra ≤ 0.2 µm), providing a smooth, low‑friction surface that extends seal life and ensures consistent performance.
The piston rod is made from high‑tensile alloy steel and coated with a hard chrome layer. This coating provides exceptional wear resistance and corrosion protection, enabling the rod to withstand exposure to road salt, dust, and moisture without pitting or rusting. The rod end and cylinder base feature heavy‑duty clevis or trunnion mounts, which are case‑hardened to resist deformation under high side loads.
The sealing system uses premium polyurethane U‑cup rod seals and nitrile rubber (NBR) wipers. The polyurethane material offers high resistance to extrusion and wear, maintaining a positive seal even under high‑pressure spikes. The wiper ring prevents dust and debris from entering the cylinder, protecting the rod and seals from abrasion. The cylinder also incorporates a built‑in cushioning feature at the end of the stroke, which decelerates the piston before it contacts the end cap, reducing shock loads on the machine structure and improving operator comfort.
All external surfaces are coated with XCMG’s proprietary paint system, providing over 500 hours of salt spray resistance per ASTM B117. This corrosion protection is essential for graders operating in coastal environments, winter road maintenance, or high‑humidity conditions. The paint system also resists chipping and fading, maintaining a professional appearance even after years of service.
Replacing a worn or damaged hydraulic cylinder is a critical maintenance procedure. Before removal, relieve hydraulic pressure by cycling all control levers with the engine off. Clean the area around the cylinder fittings to prevent contamination from entering the hydraulic system. Use a suitable lifting device to support the implement or linkage before disconnecting the cylinder.
Disconnect the hydraulic hoses from the cylinder ports, capping them immediately to keep out dirt and debris. Remove the retaining pins or bolts from the rod end and base end mounts. Carefully extract the old cylinder, noting the orientation of the ports and the position of any shims or spacers. Clean the mounting brackets and inspect the pins for wear. If the pins are worn or corroded, replace them with new XCMG genuine pins.
Install the new 803090548 cylinder in the reverse order. Apply a thin film of clean hydraulic oil to the seals and O‑rings before installation. Torque the mounting pins to the specification in the service manual (typically 150‑200 Nm for the main pivot pin). Torque the hydraulic hose fittings to the correct value (35‑45 Nm for M14 ports).
After installation, start the engine and cycle the hydraulic functions through their full range of motion, checking for leaks at all connections. Inspect the cylinder for any signs of twisting or interference. Run the grader under normal operating conditions for the first hour, then re‑torque the fittings if necessary. Always replace any cylinder that shows signs of leakage, scoring, or rod damage.
Aftermarket cylinders often use lower‑grade steel for the barrel and rod, leading to premature wear, scoring, and seal failure. The genuine XCMG 803090548 cylinder is manufactured from high‑strength alloy steel and features a hard‑chromed, ground piston rod that meets original equipment specifications. Aftermarket cylinders may also have incorrect port thread sizes or mounting dimensions, leading to installation difficulties or leaks.
Counterfeit cylinders often omit critical internal features such as cushioning or anti‑cavitation valves, resulting in harsh stops and potential damage to the machine structure. The 803090548 includes all factory‑specified internal elements, ensuring that your grader maintains its original performance and safety characteristics. Additionally, genuine XCMG cylinders are batch‑tested for pressure integrity and seal performance, whereas counterfeit products rarely undergo any quality control.
XCMG provides a 12‑month warranty against manufacturing defects. Each cylinder is serialized for traceability. Using genuine XCMG cylinders ensures compatibility, reliability, and the protection of your valuable equipment. Investing in OEM parts helps maintain the machine’s resale value and guarantees that the hydraulic system will perform as designed by XCMG engineers.
Common symptoms of a failing hydraulic cylinder include: visible oil leakage from the rod seal or hose connections, the implement failing to hold its position (drift), sluggish or jerky movement, unusual noises (grinding or knocking) during operation, and external damage to the piston rod such as scoring, pitting, or bending. Also, if the hydraulic system exhibits slow response, loss of power, or overheating, a failing cylinder may be the cause.
Preventive replacement is recommended every 5,000 to 7,000 operating hours, or whenever the cylinder shows signs of wear. The cost of a genuine cylinder is minimal compared to the cost of a failed implement control, damaged linkage, or extended downtime. When replacing a cylinder, always replace both cylinders on paired functions (e.g., left and right blade lift cylinders) as a set to ensure balanced performance.
During routine maintenance, inspect the cylinder rods for scoring or pitting. Check the rod end and base end pins for wear and lubrication. Listen for any unusual noises during operation. Keep a stock of 803090548 cylinders in your parts inventory for rapid field replacement, especially if your fleet operates in remote areas where downtime is particularly costly. A well‑maintained hydraulic cylinder system improves grading efficiency and reduces operator fatigue.
The 803090548 Hydraulic Cylinder is stocked in XCMG regional warehouses in North America (Houston), Europe (Rotterdam), Middle East (Dubai), and Asia (Shanghai). Standard air freight delivers within 3‑7 business days worldwide. Expedited shipping (1‑2 days) is available for urgent breakdowns. Bulk orders (5+ cylinders) receive volume discounts and can be shipped via sea freight.
Each cylinder is individually packed in a foam‑lined wooden crate to prevent damage during transit. For large fleets, consignment stock programs are available to ensure immediate availability and reduced downtime. Don’t let a worn or leaking cylinder compromise your grader’s performance or safety.
Order the genuine XCMG 803090548 Hydraulic Cylinder today and restore reliable, precise control to your motor grader. The 803090548 cylinder is a critical component in your motor grader’s hydraulic system. A single leaking or damaged cylinder can cause loss of implement control, environmental contamination, and potential injury to nearby personnel. Keep spare cylinders in your service truck for rapid field replacement, and always replace with genuine XCMG components.
Upgrade your motor grader’s hydraulic reliability with the XCMG genuine cylinder. Engineered for strength, precision, and safety – order now and experience the quality that keeps your grader productive and secure.
