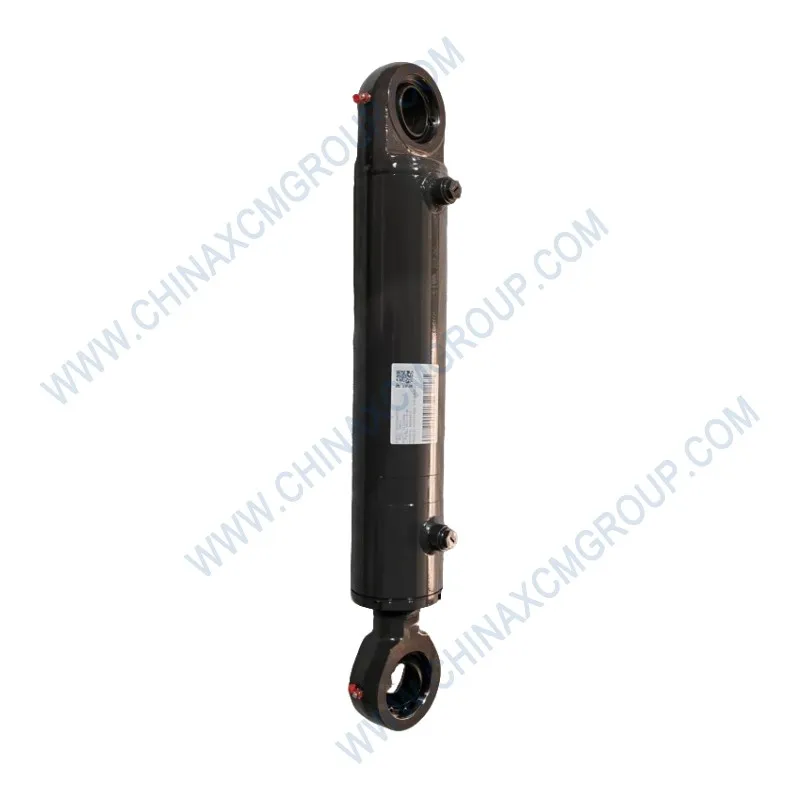

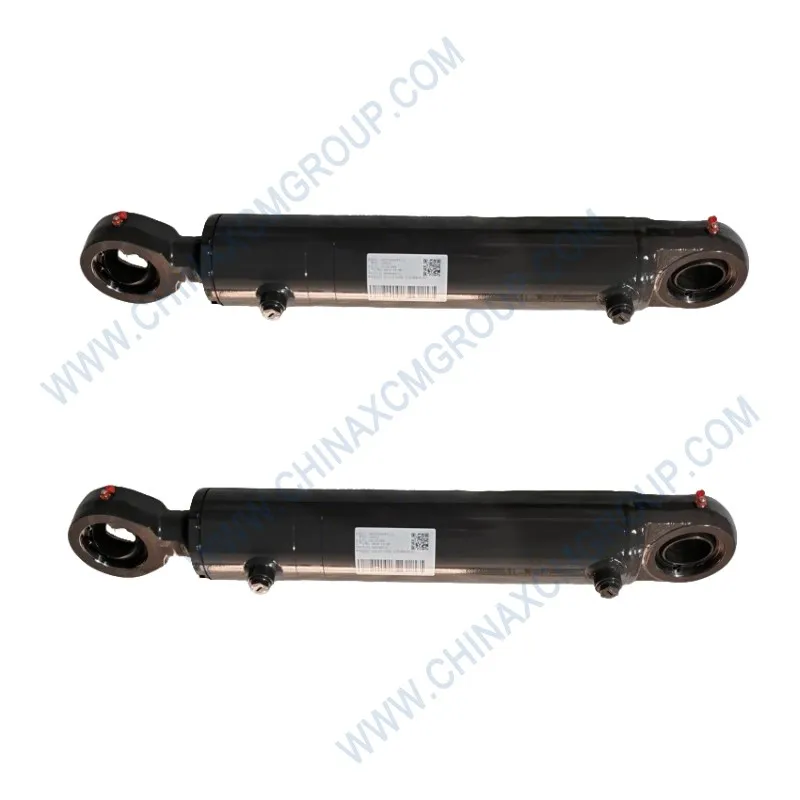

The 803090545 Right Articulated Steering Cylinder is a genuine OEM hydraulic component manufactured by XCMG for motor graders and heavy construction equipment. This precision-engineered cylinder is responsible for articulating the front frame relative to the rear frame, enabling the machine to achieve exceptionally tight turning radii and superior maneuverability in confined job sites. Constructed from high-strength alloy steel with a precision-honed internal bore and premium polyurethane seals, the 803090545 cylinder is engineered to withstand extreme operating pressures up to 18 MPa (2,610 psi) within the load-sensing hydraulic systems of XCMG GR series motor graders. It directly replaces worn, leaking, or damaged right articulated steering cylinders on XCMG GR135, GR165, GR180, GR215, GR260, GR300, and GR350 models.
| Parameter | Specification |
|---|---|
| OEM Number | 803090545 |
| Brand | XCMG (Genuine Original Equipment) |
| Product Type | Right Articulated Steering Cylinder (Hydraulic Steering Cylinder) |
| Bore Diameter | 70 mm (varies by model, up to 114 mm for larger units) |
| Stroke Length | 350 mm (standard configuration) |
| Maximum Operating Pressure | 18 MPa (180 bar / 2,610 psi) |
| Working Hydraulic Pressure | 16 MPa (160 bar / 2,320 psi) |
| Proof Pressure | 24 MPa (240 bar / 3,480 psi) |
| Burst Pressure | ≥ 48 MPa (480 bar / 6,960 psi) |
| Piston Rod Diameter | 35 mm (chromed, corrosion-resistant) |
| Seal Material | Polyurethane (U-cup) / Nitrile rubber (NBR) wiper |
| Housing Material | High-strength alloy steel, induction hardened |
| Mounting Type | Clevis / Trunnion (direct OEM replacement) |
| Hydraulic Fluid | ISO VG 46 or VG 68 mineral oil-based hydraulic fluid |
| Fluid Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Port Threads | BSPP (G-thread) / SAE O-ring ports (varies by model) |
| Surface Finish | Black oxide / XCMG proprietary paint system |
| Corrosion Resistance | 500+ hours salt spray (ASTM B117) without red rust |
| Weight | Approximately 18 – 25 kg (depending on size) |
| Compatible Models | XCMG GR135, GR165, GR180, GR215, GR260, GR300, GR350 motor graders |
| Certifications | ISO 9001:2015, ISO 14001, CE, RoHS |
The XCMG 803090545 Right Articulated Steering Cylinder is a core component of the grader’s articulated steering system. In combination with its left counterpart, this cylinder controls the angle between the front and rear frames. This articulation allows the machine to crab, offset its blade, and achieve a turning radius as small as 7.3 meters on models like the GR215. This maneuverability is essential for grading around obstacles, shaping shoulders, and performing precise finishing passes.
The cylinder operates within a load-sensing fully hydraulic steering system. When the operator turns the steering wheel, a priority valve directs flow from the hydraulic pump to the steering cylinders. The 803090545 cylinder extends or retracts, pushing or pulling the articulated joint, which can achieve a steering angle of up to ±50° for the front wheels. This design reduces the operator’s steering effort and provides precise control over machine direction, even under heavy loads.
The use of an articulated frame, combined with front wheel steering, is a hallmark of XCMG motor grader design. This system provides superior stability, allowing the machine to maintain traction on uneven terrain while executing tight turns. A failed steering cylinder will result in loss of articulation, dramatically increasing the machine’s turning radius and severely limiting its operational capabilities.
The 803090545 cylinder is built to withstand the extreme shock loads, vibration, and harsh conditions of motor grader operation. The cylinder barrel is manufactured from high-strength cold-drawn seamless steel tube, which is then induction hardened to resist scoring and wear from the piston and seals. The internal bore is precision-honed to a mirror finish (Ra ≤ 0.2 µm), providing a smooth, low-friction surface that extends seal life and ensures consistent performance.
The piston rod is made from high-tensile alloy steel and coated with a hard chrome layer. This coating provides exceptional wear resistance and corrosion protection, enabling the rod to withstand exposure to road salt, dust, and moisture without pitting or rusting. The rod end and cylinder base feature heavy-duty clevis or trunnion mounts, which are case-hardened to resist deformation under high side loads. All external surfaces are coated with XCMG’s proprietary paint system, providing over 500 hours of salt spray resistance per ASTM B117, a critical feature for graders operating in winter road maintenance or coastal environments.
The sealing system uses premium polyurethane U-cup rod seals and nitrile rubber (NBR) wipers. The polyurethane material offers high resistance to extrusion and wear, maintaining a positive seal even under high-pressure spikes. The wiper ring prevents dust and debris from entering the cylinder, protecting the rod and seals from abrasion. The cylinder also incorporates a built-in cushioning feature at the end of the stroke, which decelerates the piston before it contacts the end cap, reducing shock loads on the machine structure and improving operator comfort.
The 803090545 steering cylinder is designed to work seamlessly with XCMG’s advanced load-sensing hydraulic architecture. In this system, a variable-displacement piston pump delivers only the flow required by the steering demand, reducing energy consumption and heat generation. The steering priority valve ensures that the steering system receives hydraulic flow before other functions, guaranteeing that the operator always maintains directional control, even when other implements are in use.
The cylinder’s porting is designed to match the original XCMG fittings and hoses, ensuring a leak-free, drop-in replacement. The pilot-operated check valve integrated into the cylinder prevents drift when the machine is parked, holding the articulated frame in position even on slopes. The cylinder’s internal design also includes an anti-cavitation feature, which prevents vacuum formation during rapid articulation, a common cause of seal damage and noise.
XCMG motor graders are known for their superior energy-saving fully hydraulic steering systems. The 803090545 cylinder plays a vital role in this system. The cylinder’s displacement and rod ratio are optimized to provide the correct balance of speed and force, ensuring responsive steering without sacrificing controllability. This careful engineering is what allows operators to make fine adjustments during precision grading while still being able to quickly maneuver the machine between passes.
Each 803090545 steering cylinder is manufactured in XCMG’s ISO 9001:2015-certified hydraulic facility. The cylinder barrel is cut to length, precision-honed, and then induction hardened to achieve a Rockwell hardness of HRC 55-60 on the bore surface. The piston rod is centerless ground and then hard chrome plated, achieving a surface finish of Ra ≤ 0.1 µm. The rod is then straightened and checked for runout, ensuring it meets the strict straightness tolerance of 0.1 mm per 300 mm of length.
After assembly, each cylinder is tested on a computer-controlled test stand. The cylinder is cycled through its full stroke at 150% of rated working pressure (24 MPa / 3,480 psi) to verify structural integrity and seal performance. The cylinder is also tested for internal leakage, with the maximum allowable leakage across the piston being less than 5 cc per minute at rated pressure. The cushioning performance is verified by measuring the deceleration rate at the end of the stroke. Only cylinders that pass all tests are approved for sale as genuine XCMG components.
XCMG’s in-house hydraulics division, XCMG Hydraulics Co., Ltd., is a professional enterprise that has been engaged in the R&D and manufacturing of medium and high-pressure hydraulic cylinders since 1975. This long history of hydraulic expertise ensures that the 803090545 cylinder meets the highest standards of quality, durability, and performance. The use of advanced manufacturing techniques, such as robotic welding and laser alignment, ensures consistent quality and perfect fitment for your XCMG motor grader.
Replacing the right articulated steering cylinder is a task that should be performed by a qualified technician. Begin by parking the grader on level ground, lowering the blade to the ground, and shutting off the engine. Relieve hydraulic pressure by cycling the steering wheel from lock to lock with the engine off. Chock the wheels to prevent any movement. Using a suitable lifting device, support the articulated joint to prevent it from pivoting unexpectedly once the cylinder is disconnected.
Disconnect the hydraulic hoses from the cylinder ports, capping them immediately to prevent contamination. Remove the retaining pins or bolts from the rod end and base end mounts. Carefully extract the old cylinder, noting the orientation of the ports and the position of any shims or spacers. Clean the mounting brackets and inspect the pins for wear. If the pins are worn or corroded, replace them with new XCMG genuine pins.
Install the new 803090545 cylinder in the reverse order. Apply a thin film of clean hydraulic oil to the seals and O-rings before installation. Torque the mounting pins to the specification in the service manual (typically 150-200 Nm for the main pivot pin). Torque the hydraulic hose fittings to the correct value (35-45 Nm for M14 ports). After installation, start the engine and cycle the steering from full left to full right several times to purge air from the system. Check for leaks at all connections and verify that the articulated frame locks firmly when the steering wheel is centered.
Aftermarket steering cylinders often use lower-grade steel for the barrel and rod, leading to premature wear, scoring, and seal failure. The genuine XCMG 803090545 is manufactured from high-strength alloy steel and features a hard-chromed, ground piston rod that meets original equipment specifications. Aftermarket cylinders may also have incorrect port thread sizes or mounting dimensions, leading to installation difficulties or leaks.
Counterfeit cylinders often omit critical internal features such as cushioning or anti-cavitation valves, resulting in harsh stops and potential damage to the articulated frame. The 803090545 includes all factory-specified internal elements, ensuring that your grader maintains its original steering feel and safety characteristics. Additionally, genuine XCMG cylinders are batch-tested for pressure integrity and seal performance, whereas counterfeit products rarely undergo any quality control.
XCMG provides a 12-month warranty against manufacturing defects. Each cylinder is serialized for traceability. Using genuine XCMG steering cylinders ensures compatibility, reliability, and the protection of your valuable equipment. Investing in OEM parts helps maintain the machine’s resale value and guarantees that the steering system will perform as designed by XCMG engineers.
Common symptoms of a failing articulated steering cylinder include: visible oil leakage from the rod seal or hose connections, the machine failing to hold its articulated position (drifting), sluggish or jerky articulation response, unusual noises (grinding or knocking) when turning, and external damage to the piston rod such as scoring, pitting, or bending. Also, if the steering wheel feels “spongy” or requires excessive input to turn the machine, the cylinder may have internal leakage.
Preventive replacement is recommended every 5,000 to 7,000 operating hours, or whenever the cylinder shows signs of wear. The cost of a genuine steering cylinder is minimal compared to the cost of a loss of control accident, a bent frame, or extended downtime. When replacing a cylinder, always replace both the left and right cylinders as a set to ensure balanced steering performance. Using one new cylinder with an old one can result in uneven articulation and unpredictable handling.
During routine maintenance, inspect the cylinder rods for scoring or pitting. Check the rod end and base end pins for wear and lubrication. Listen for any unusual noises during articulation. Keep a stock of 803090545 cylinders in your parts inventory for rapid field replacement, especially if your fleet operates in remote areas where downtime is particularly costly.
The 803090545 Right Articulated Steering Cylinder is stocked in XCMG regional warehouses in North America (Houston), Europe (Rotterdam), Middle East (Dubai), and Asia (Shanghai). Standard air freight delivers within 3-7 business days worldwide. Expedited shipping (1-2 days) is available for urgent breakdowns.
Bulk orders (5+ cylinders) receive volume discounts and can be shipped via sea freight. Each cylinder is individually packed in a foam-lined wooden crate to prevent damage during transit. For large fleets, consignment stock programs are available to ensure immediate availability and reduced downtime.
Don’t let a worn or leaking steering cylinder compromise your grader’s maneuverability or safety. Order the genuine XCMG 803090545 Right Articulated Steering Cylinder today and restore precise, responsive steering control to your motor grader.
The 803090545 Right Articulated Steering Cylinder is a critical safety and performance component in your motor grader’s steering system. A failed cylinder can lead to a loss of control, especially on slopes or when maneuvering around obstacles. Keep spare cylinders in your service truck for rapid field replacement, and always replace with genuine XCMG components.
Upgrade your motor grader’s steering reliability with the XCMG genuine articulated cylinder. Engineered for strength, precision, and safety – order now and experience the quality that keeps your grader productive and maneuverable.
