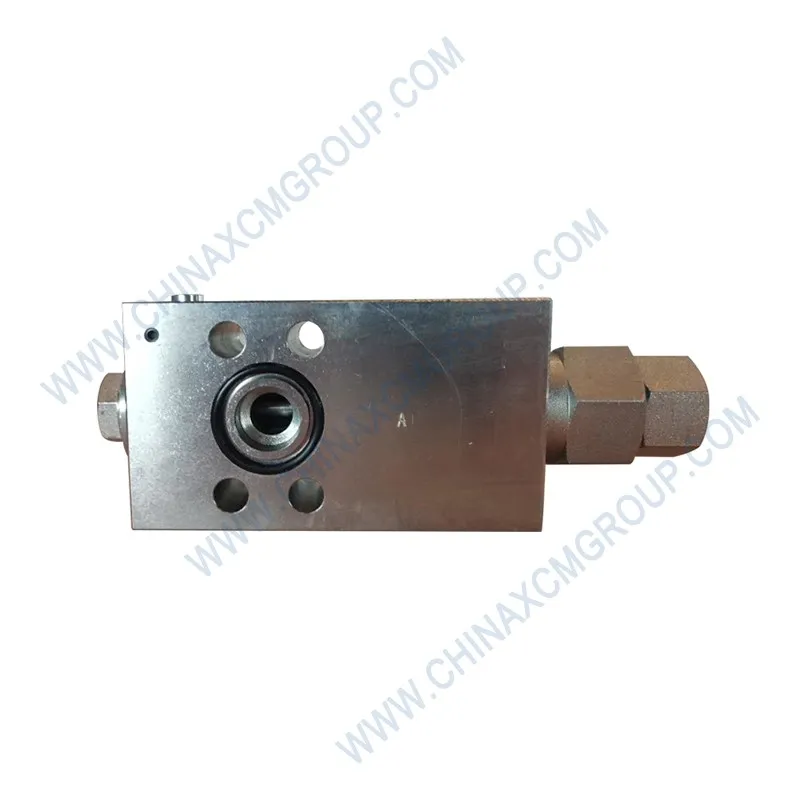

The 803086806 Relief Valve is a genuine XCMG hydraulic pressure control component engineered to protect the hydraulic systems of articulated dump trucks from overpressure conditions that can cause catastrophic component failure.
This OEM relief valve, identified by part number 803086806, is precision‑manufactured from high‑strength steel and features a hardened poppet and seat design that provides accurate, repeatable pressure regulation.
Designed for the extreme pressures and flow rates of mining and construction equipment, the 803086806 relief valve ensures that hydraulic pressure remains within safe operating limits, protecting pumps, cylinders, and valves from damage.
Its robust construction and precise calibration make it the ideal replacement for worn or malfunctioning relief valves, restoring system protection and reliability to XCMG articulated dump trucks.
The 803086806 Relief Valve is a critical safety component that protects the hydraulic system of XCMG articulated dump trucks from damaging overpressure events.
This genuine OEM valve is designed to open when system pressure exceeds a preset limit, diverting excess flow to the tank and preventing pressure spikes from damaging pumps, cylinders, or valves.
The valve’s direct‑acting poppet design provides fast response times and precise pressure control, ensuring system stability during sudden load changes.
Constructed from high‑grade steel with hardened internal components, the 803086806 valve withstands the abrasive effects of hydraulic oil and the mechanical stresses of continuous operation.
A faulty relief valve can lead to catastrophic system failure. The 803086806 valve eliminates this risk with reliable, precision‑engineered performance.
In XCMG articulated dump trucks, the hydraulic system operates at high pressures to power steering, braking, and suspension functions.
The relief valve is the last line of defence against overpressure, which can occur due to thermal expansion, pump overspeed, or actuator lock‑up.
Without a properly functioning relief valve, pressure can rise beyond component ratings, leading to blown hoses, damaged seals, and even structural failure.
The 803086806 valve is calibrated to open at 21 MPa, protecting the system while allowing normal operating pressures to remain stable.
Its quick response time ensures that pressure spikes are contained before they can cause damage, safeguarding both the equipment and the operator.
The 803086806 relief valve features a direct‑acting, poppet‑type design that offers simple, reliable operation with minimal moving parts.
The poppet is precision‑ground from hardened steel and mates with a replaceable seat, ensuring a tight seal when closed and consistent cracking pressure.
A coil spring, pre‑set to the required pressure, holds the poppet closed until system pressure overcomes the spring force.
The valve body is machined from high‑strength steel with corrosion‑resistant zinc plating, protecting against rust and external damage.
The adjustment screw allows for fine‑tuning of the set pressure, enabling the valve to be optimized for specific hydraulic circuits.
The 803086806 relief valve uses a hardened steel poppet and a lapped seat to achieve a leak‑free seal when the valve is closed.
The poppet’s conical geometry ensures that the opening force increases progressively with pressure, providing a smooth transition from closed to fully open.
The seat is replaceable, allowing the valve to be rebuilt if wear occurs, extending its service life.
The spring is made from high‑grade chrome‑silicon steel, providing consistent force over millions of cycles without fatigue.
The valve is designed with a damping orifice that prevents chattering and ensures stable operation at high flow rates.
The 803086806 relief valve is used extensively in XCMG articulated dump trucks and other heavy equipment in surface mining, underground mining, and large‑scale construction.
It is commonly installed in the main hydraulic circuit, protecting the pump and valves from overpressure during high‑demand operations.
The valve is also used in steering, brake, and suspension circuits to limit pressure in individual subsystems.
Its robust design makes it suitable for use in dusty, wet, and high‑vibration environments where reliable pressure control is essential.
The 803086806 valve is also compatible with other XCMG equipment, including wheel loaders and excavators that use similar hydraulic circuits.
Every 803086806 relief valve is manufactured in an ISO 9001‑certified facility under strict quality control procedures.
Incoming materials, including steel bar stock and spring wire, are tested for chemical composition and mechanical properties.
During machining, each component is inspected for dimensional accuracy, surface finish, and thread quality.
Finished valves undergo 100% pressure testing, verifying cracking pressure, reseat pressure, and flow capacity at multiple settings.
Leak‑tightness is confirmed using hydraulic oil at 1.5 times the set pressure, ensuring the valve holds pressure without leakage.
This comprehensive quality assurance guarantees that every 803086806 valve meets XCMG’s exacting standards for safety and reliability.
The 803086806 relief valve is designed as a direct replacement for the original valve on XCMG articulated dump trucks, including models XDA30, XDA40, XDA45, XDA45U, XDA60, TA30, AD45, AD60, and other variants.
Its G 1/2” BSPP ports match the factory hydraulic lines, and the valve’s compact dimensions fit within the existing mounting envelope.
The valve is supplied with the correct sealing washers and installation hardware for a trouble‑free replacement.
For cross‑brand applications, verify that the port size, pressure rating, and flow capacity are compatible with your specific hydraulic system.
Always consult the parts manual to confirm the correct valve for your machine.
Proper installation of the 803086806 relief valve is essential to ensure correct pressure protection. Begin by depressurizing the hydraulic system and blocking the machine to prevent unintended movement.
Remove the old valve and clean the mounting surfaces and ports thoroughly. Inspect the threads for damage and apply a suitable thread sealant.
Install the new valve, ensuring the flow direction arrow (if marked) aligns with the system flow. Torque the valve to the recommended value (typically 30‑40 N·m).
If the valve is adjustable, set the cracking pressure using a calibrated test gauge, adjusting the screw until the desired pressure is achieved, then tighten the locknut.
Pressurize the system and check for leaks around the valve. Verify that the valve opens at the set pressure by slowly increasing system pressure.
During routine maintenance, inspect the valve for external leaks, damage, or signs of corrosion. Test the crack pressure annually or if system performance changes.
If the valve fails to hold pressure or opens too early, replace it with a new genuine XCMG part.
The 803086806 relief valve complies with SAE J1850 and EN 982, ensuring it meets the stringent safety and performance requirements for hydraulic components in off‑highway equipment.
It is designed to withstand the pressure spikes and fatigue loads encountered in mining and construction applications.
The materials used are free from restricted substances and comply with RoHS and REACH regulations.
Using genuine XCMG relief valves like the 803086806 helps maintain compliance with equipment safety and warranty requirements.
Aftermarket relief valves often use inferior materials, imprecise springs, or incorrect port sizes, leading to poor pressure control and premature failure.
The genuine 803086806 valve is engineered to the exact specifications of XCMG, ensuring correct pressure settings, proper flow capacity, and reliable operation.
Using genuine valves reduces the risk of hydraulic system damage, unplanned downtime, and costly repairs.
Genuine XCMG parts also preserve the warranty and resale value of your equipment.
When you choose the 803086806, you invest in proven reliability and long‑term cost savings.
The XCMG 803086806 Relief Valve is an essential safety component that protects the hydraulic system of articulated dump trucks from destructive overpressure.
Its robust construction, precise calibration, and proven reliability make it the trusted choice for mining, quarrying, and construction applications.
Whether you are replacing a failed valve or performing preventive maintenance, this genuine component delivers the performance and durability you expect from XCMG.
Always source genuine XCMG components from authorised dealers to guarantee authenticity and quality.
With the 803086806 relief valve, you can ensure safe, reliable hydraulic operation, reduce downtime, and protect your equipment investment.
Choose genuine – choose XCMG for all your hydraulic system needs.
