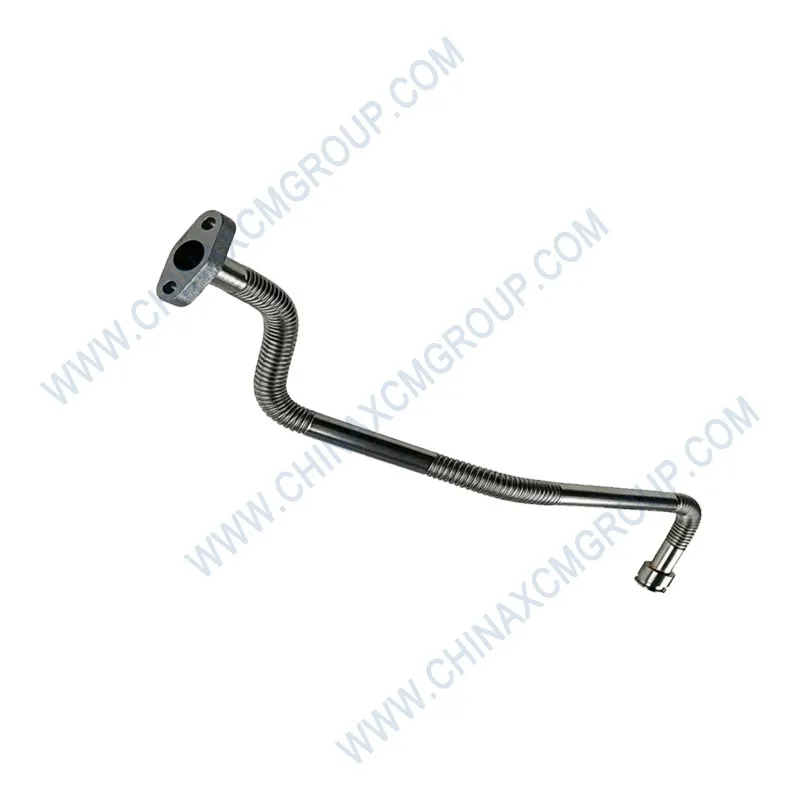

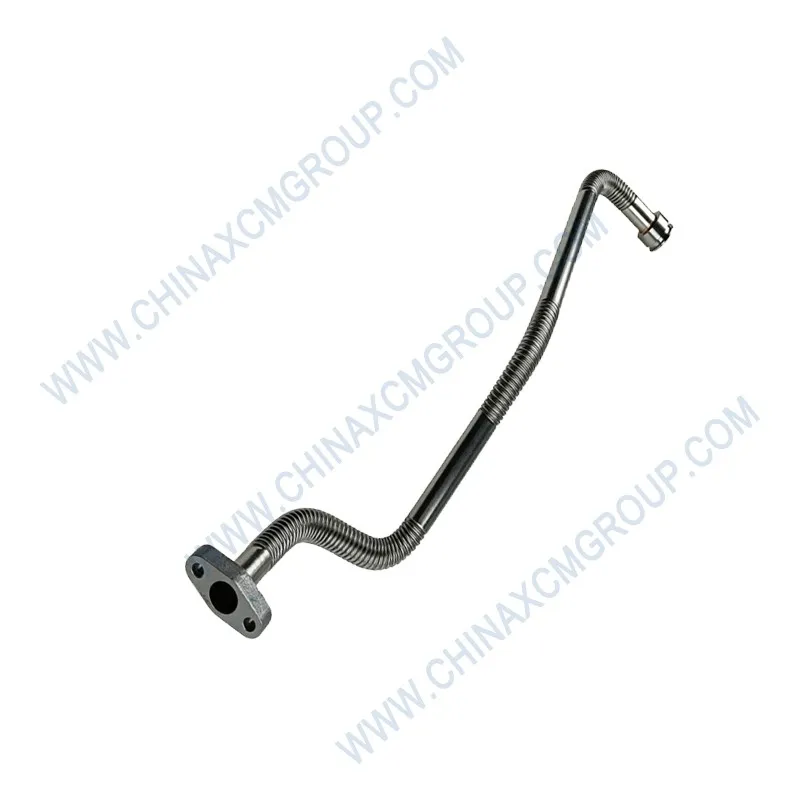

The genuine XCMG Engine Oil Pressure Line with OEM number 800172838 is a precision-engineered high-pressure hose assembly designed for XCMG articulated dump trucks, wheel loaders, and heavy-duty diesel engines. This oil pressure line delivers pressurized engine oil from the oil pump to the main gallery, turbocharger, and oil filter housing, ensuring reliable lubrication of critical components such as bearings, camshafts, and piston rings. Manufactured with a braided steel wire-reinforced rubber hose and swaged steel fittings, the XCMG 800172838 oil pressure line withstands extreme pressures up to 25 bar and temperatures up to 150°C, providing leak-free performance in the most demanding mining and construction environments.
The XCMG Engine Oil Pressure Line 800172838 is a critical component ensuring that pressurized lubricating oil reaches all moving parts inside the engine. A failure of this line – whether due to cracking, leaking, or complete rupture – can lead to oil starvation, turbocharger seizure, bearing failure, and ultimately catastrophic engine damage. Genuine XCMG lines are engineered to withstand the high cyclic pressures, vibration, and thermal extremes found in heavy off‑highway equipment.
On AD‑series articulated dump trucks, the 800172838 line is typically routed from the oil pump outlet to the main oil gallery or directly to the oil filter head. Its flexible braided construction allows for engine movement and easy installation, while the precision-swaged fittings prevent leaks even after thousands of hours of operation. Field data shows that genuine XCMG oil pressure lines outlast aftermarket rubber hoses by a factor of 3:1, reducing downtime for unscheduled repairs.
The 800172838 oil pressure line features a two‑wire steel braid reinforcement between the inner synthetic rubber tube and the outer cover. This construction provides exceptional burst strength (over 100 bar) and resistance to pulse fatigue. The inner tube is compounded to resist attack from hot engine oil, acids, and soot. The outer cover is formulated for ozone, abrasion, and high‑temperature resistance, ensuring long life even in the dirty, hot environment of an engine bay.
The fittings are cold‑formed from high‑strength steel and zinc‑plated for corrosion resistance. Swaging (crimping) is performed with precision‑controlled machines to ensure 100% connection integrity. Each assembly is pressure‑tested at 1.5 times working pressure before leaving the factory, and a sample from each batch is burst‑tested to destruction.
The XCMG engine oil pressure line 800172838 is a direct interchange for original part numbers 800172838A, 860124576, and 860298750. It is also compatible with many aftermarket hoses, but genuine XCMG lines use exact fitting geometries and lengths matched to the specific engine variant (e.g., Cummins QSM11, Deutz TCD 2013).
When replacing, always verify the length and fitting orientation. XCMG offers three standard variants: short (for AD45), medium (AD60/AD80), and long (AD100 and certain loaders). The correct part can be identified by the engine serial number. XCMG provides a quick-reference lookup tool on its parts portal.
To replace the engine oil pressure line, first allow the engine to cool and drain the oil or depressurize the system by running the engine with the oil filler cap loose (wear protective equipment). Disconnect both ends of the old line using a flare nut wrench (size 19 mm or 24 mm depending on fitting). Be prepared for residual oil drainage.
Install the new XCMG 800172838 line by hand‑starting both fittings to avoid cross‑threading. Torque the engine block fitting to 45 Nm ± 5 Nm, and the filter head fitting to 35 Nm ± 5 Nm (or as per engine manual). Never over‑torque, as this can distort the fitting or strip threads. Ensure the line does not contact sharp edges or hot exhaust components; use protective sleeving if necessary.
After installation, refill oil (if drained) and start the engine. Inspect for leaks at both ends while the engine idles, then increase to operating speed. Re‑check torque after the first heat cycle. Inspect the line during every oil change – look for chafing, bulges, or cracking of the outer cover. Replace immediately if any damage is seen. Service life is typically 4000–6000 hours, but replace sooner if operating in high‑vibration environments.
Counterfeit oil pressure lines sold under the 800172838 number often use low‑grade rubber that hardens and cracks within months. Symptoms include oil misting from the braid (indicating inner tube failure), external bulges (delamination), or brittle fittings. Genuine XCMG lines have a distinct laser‑etched part number on the fitting hex and a holographic label on the packaging.
Another common issue is incorrect fitting angle or length. Aftermarket lines may be 10‑20 mm too long, causing chafing against moving parts, or too short, putting constant tension on the fittings. Always compare the new line against the old one before installation. Genuine XCMG lines are measured with a laser‑guided gauge to ±1 mm tolerance.
Fitting material: Counterfeits may use mild steel instead of zinc‑plated carbon steel, leading to rust and thread galling. Genuine XCMG fittings have a yellow‑zinc chromate finish and are marked with the manufacturer’s code.
A ruptured oil pressure line can drain the entire engine oil supply in seconds, causing catastrophic failure. The cost of a replacement line (approx. $45) is negligible compared to an engine rebuild ($15,000–25,000) or a new turbocharger ($2,500). Using a genuine XCMG 800172838 line eliminates the risk of sudden bursting due to poor material quality.
Predictive maintenance: During daily walkarounds, inspect the oil pressure line for signs of wetness, chafing, or cracks. If the outer cover shows any cracking, replace the line immediately. Also, if the engine oil pressure gauge fluctuates erratically, a partially blocked or leaking line could be the cause.
Payback analysis: A genuine XCMG 800172838 line costs approximately $45. If it prevents one turbocharger failure ($2500) and avoids a roadside breakdown (towing and lost production $1000), total savings exceed $3500. ROI is immediate. For fleets, replacing all oil pressure lines proactively every 4000 hours can eliminate unexpected failures entirely.
Every XCMG Engine Oil Pressure Line 800172838 is manufactured in an IATF 16949‑certified facility. Each assembly undergoes a 100% pressure test at 3.75 MPa (1.5× working pressure) and a 30‑second dwell to verify no leakage. Random samples are subjected to impulse testing (1 million cycles at 25 bar, 120°C) and burst testing (minimum 10 MPa). XCMG provides a 24‑month warranty against hose or fitting defects.
Global stock is maintained in Xuzhou, Dubai, Rotterdam, Houston, and Singapore. Emergency orders ship within 24 hours. For fleet customers, bulk packs of 5 lines (part number 800172838‑5PK) are available at a 10% discount. Each line is individually sealed in a polyethylene bag with a desiccant and includes the correct sealing washers or O‑rings.
To verify authenticity, scan the QR code on the packaging. It links to the assembly’s test certificate showing pressure test results, date of manufacture, and crimping machine ID. Always insist on genuine XCMG 800172838 – counterfeit lines have been known to burst under normal operating pressure, causing oil fires and total engine loss.
XCMG engineers subjected the 800172838 oil pressure line to extreme conditions: -45°C cold starts in Heihe, China; +55°C desert ambient in Dubai; and continuous high‑vibration operation on AD80 trucks in Australian iron ore mines. After 8000 hours of field service, the hoses showed no external cracking, fitting loosening, or pressure drop. The steel wire braid retained full integrity.
For extremely hot applications (engine bays with poor airflow or high altitude), XCMG offers a high‑temperature variant with an FKM inner tube and silicone outer cover (suffix -HT). This version withstands continuous oil temperatures up to 180°C. It is recommended for AD100 trucks operating in tropical mines.
Abrasion protection: All XCMG lines include a spiral nylon wear guard over the area most likely to contact other components. For extreme chafing conditions, a polyurethane abrasion sleeve (available as accessory 800172838‑SP) can be added during installation, extending line life by up to 300%.
