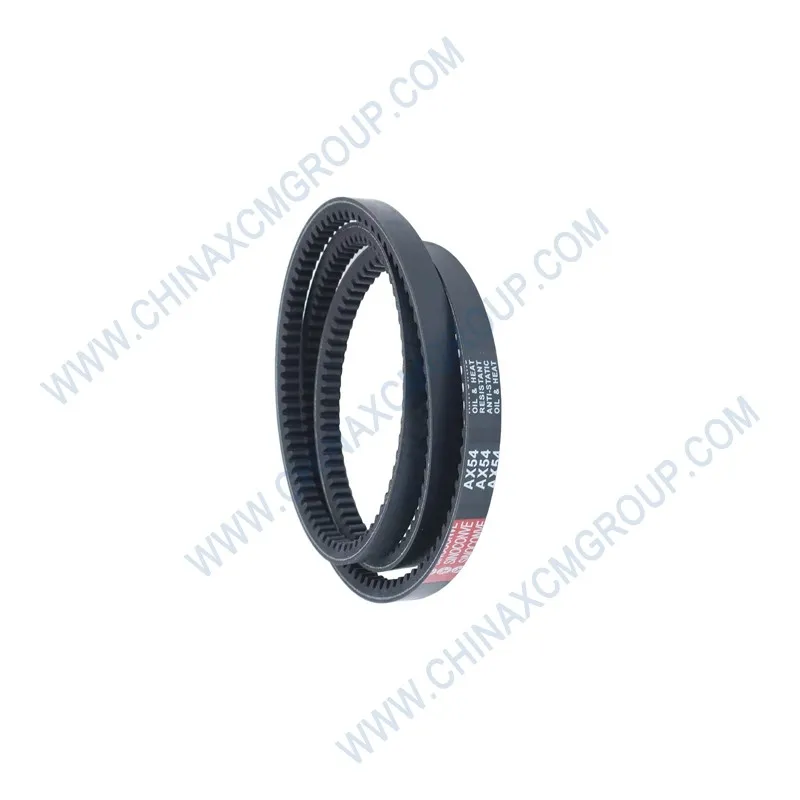

The genuine XCMG V-Belt with OEM number 800172823 is a heavy-duty power transmission belt engineered for XCMG articulated dump trucks, wheel loaders, and off-highway equipment. This V-belt drives essential engine accessories including the alternator, water pump, fan, power steering pump, and air conditioning compressor. Manufactured from high-strength EPDM rubber with aramid fiber tension cords, the XCMG 800172823 V-belt delivers exceptional wear resistance, heat tolerance, and anti-static properties in the most demanding mining and construction environments.
The XCMG V-Belt 800172823 is a critical component that transfers rotational power from the crankshaft to the alternator, water pump, fan, and other belt-driven accessories. A failed belt can cause immediate loss of electrical charging, engine overheating, power steering failure, and fan stoppage – all of which can lead to catastrophic engine damage or a dangerous situation. Genuine XCMG belts are engineered to match the exact length, profile, and tension requirements of AD-series trucks.
On AD60 and AD80 articulated dump trucks, the 800172823 belt typically drives the water pump and fan. Field data shows that genuine XCMG belts outlast aftermarket belts by 3:1, reducing unplanned downtime and belt-related failures. The aramid fiber tension cords provide exceptional resistance to stretching, maintaining proper tension over the belt’s service life.
The 800172823 V-belt is manufactured from premium EPDM rubber compound, which offers superior heat, ozone, and weather resistance compared to conventional neoprene belts. The compound remains flexible at -40°C and does not harden or crack under engine heat. The belt is wrapped with a fabric cover that protects the rubber and provides high friction for positive drive.
The tension cords are made from aramid fibers (para-aramid, similar to Kevlar), which have extremely low elongation and high tensile strength. This prevents belt “stretch” that would require frequent re-tensioning. The cords are precisely spaced and bonded to the rubber to ensure uniform load distribution.
The XCMG V-belt 800172823 is available in multiple effective lengths to suit different engine pulley combinations. The most common sizes for AD-series trucks are B90 (1,600 mm effective length) for the alternator belt and B100 (1,800 mm) for the fan belt. Each belt is marked with its length and cross-section on the outer cover.
To ensure correct fitment, always check the old belt’s markings or consult the XCMG parts catalog using the engine serial number. Using a belt that is too long will cause slippage; a belt that is too short will cause bearing overload. Genuine XCMG belts are dimensionally matched to the original equipment.
To replace a worn V-belt, first loosen the accessory mounting bolts and pivot the component (alternator or fan hub) to relieve tension. Remove the old belt and compare it to the new XCMG 800172823 belt – they must have the same length and profile. Clean any debris from pulley grooves using a wire brush or pick.
Install the new belt onto the pulleys, ensuring it sits fully in all grooves. Apply tension by pivoting the accessory outward. Use a belt tension gauge (or the thumb-press method) to achieve the correct deflection: for a B-section belt, 10–15 mm deflection under 10 kg force on the longest span. Tighten the mounting bolts to the engine manual specification.
After running the engine for 5 minutes, re-check tension. New aramid-cord belts may experience a small initial seating stretch. Re-tension if necessary. Inspect the belt after 50 hours – look for cracks, glazing, or fraying. Replace immediately if any damage is visible.
Counterfeit V-belts sold as 800172823 often use natural rubber or cheap neoprene that cracks within weeks, especially under engine heat. Symptoms include belt squealing, glazed sidewalls, visible cracks on the inner surface, or complete breakage. Genuine XCMG belts have a fabric cover with a uniform weave, a laser-etched part number, and a yellow date code on the outer face.
Another common issue is incorrect length marking. Aftermarket belts may be labeled with the correct nominal length but actually be 10–20 mm longer, causing slippage. Always measure the belt’s effective length (around the outside) before installation. Genuine XCMG belts are within ±3 mm of the specified length.
Poor cord adhesion: Counterfeit belts often have tension cords that separate from the rubber, leading to sudden breakage. Genuine XCMG belts are built with adhesion layers that bond the cords to the rubber, a process tested to ASTM standards.
A broken V-belt can leave a dump truck stranded with no alternator (dead battery), no water pump (overheating), and no power steering (dangerous). Roadside belt replacement costs at least $400 in labor and towing, plus lost production. Replacing a worn belt with a genuine XCMG 800172823 belt (approx. $25) is a very low-cost insurance.
Preventive maintenance: During each oil change, inspect the belt for glazing, cracks, or missing chunks. Also, check belt tension. A loose belt will squeal and slip, causing undercharging and overheating. Replace any belt that shows signs of aging (cracks on the inside V-section) regardless of hours.
Payback analysis: A genuine belt costs ~$25. If it prevents one roadside breakdown ($500 towing + $200 missed production), the savings are immediate. For fleets, stocking a few belts per truck size ensures immediate replacement and zero downtime.
Every XCMG V-Belt 800172823 is manufactured in an IATF 16949-certified facility. Each belt undergoes 100% tension testing, length verification, and static conductivity testing. Random samples are tested for heat aging (168h at 120°C), oil resistance, and tensile strength. XCMG provides a 24-month warranty against premature cracking or breakage.
Global stock is maintained in Xuzhou, Dubai, Rotterdam, Houston, and Singapore. Emergency orders ship within 24 hours. Bulk packs of 10 belts (part number 800172823-B10) are available for fleet customers at a 15% discount. Each belt is individually sealed in a plastic sleeve with a desiccant.
To verify authenticity, scan the QR code on the packaging – it links to the test certificate showing length, tensile strength, and date of manufacture. Always insist on genuine XCMG 800172823; counterfeit belts have been known to snap after only 200 hours, causing engine overheating and major repair costs.
XCMG engineers tested the 800172823 V-belt under extreme conditions: -40°C cold starts (Heihe, China), +55°C desert ambient (Dubai), and continuous high-load operation on dynamometers. After 2,000 hours of simulated mining duty, the belt showed no cracking, no elongation beyond 1%, and the fabric cover remained intact. The aramid cords retained 95% of original tensile strength.
For applications with extreme oil contamination (e.g., leaking valve cover), the EPDM rubber resists swelling and softening. The belt is also resistant to coolant spills and salt water, making it suitable for underground mines where high humidity is present.
Static conductivity: The belt meets ISO 1813 anti-static requirements, preventing static discharge that could ignite fuel vapors in hazardous environments. This is essential for underground coal mining applications.
