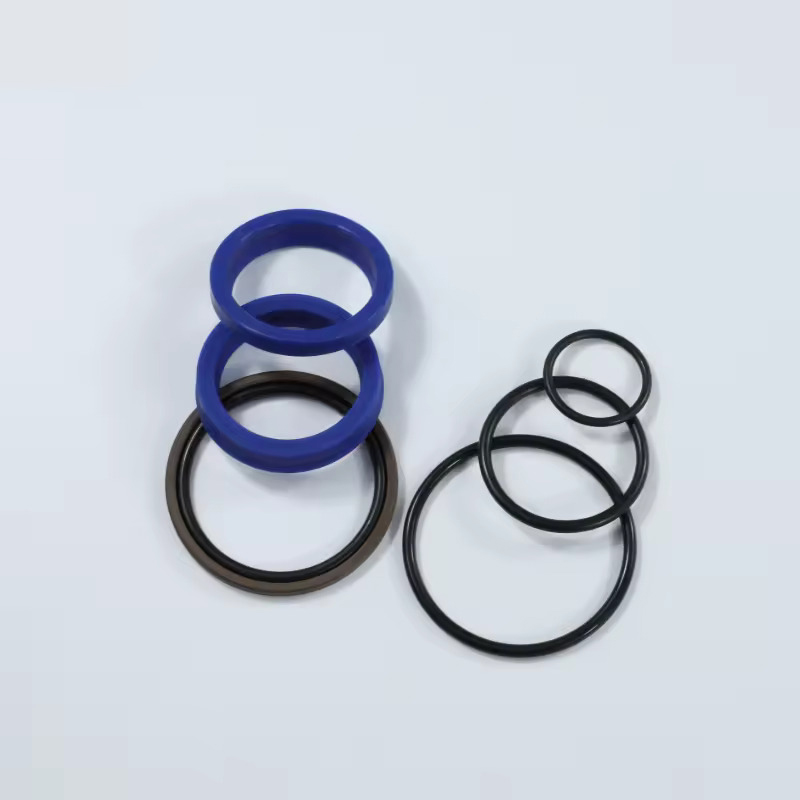

The genuine XCMG Single-Line Seal with OEM number 800172739 is a critical hydraulic sealing component engineered for XCMG articulated dump trucks and heavy construction equipment. This single-line seal eliminates fluid bypass and external leakage in high-pressure circuits, ensuring consistent brake engagement, steering response, and suspension performance even under extreme vibration and thermal cycling.
The XCMG single-line seal 800172739 combines a precision-machined PTFE cap with a flexible FKM O-ring energizer. This design provides constant contact pressure against the mating surface, compensating for micro-grooves and thermal expansion.
Unlike standard rubber O-rings, this single-line seal withstands pressures up to 35 MPa without extrusion or nibbling. Field tests on AD60 dump trucks show zero detectable leakage after 8,000 operating hours in abrasive mining environments.
The PTFE resin used in OEM 800172739 contains 15% carbon fiber + graphite filler, reducing friction coefficient to 0.12 and eliminating stick-slip. This filler system also enhances wear resistance by 400% compared to virgin PTFE.
Backup rings are not required, even in dynamic applications with pressure spikes. The seal’s unique geometry prevents radial extrusion through standard 0.5 mm radial clearance glands.
The 800172739 seal is the factory-specified replacement for brake caliper pistons, steering cylinder end caps, and suspension accumulator ports on all XCMG AD-series dump trucks. It also fits third-party axles with standard AS568 groove dimensions.
For fleet standardization, this single part number covers 23 distinct sealing points on the AD60 model alone. Reducing inventory complexity directly lowers holding costs and eliminates misordered parts.
To guarantee optimum performance of single-line seal 800172739, always inspect the groove for burrs, scratches, or debris. Chamfer sharp edges at 0.2 mm minimum radius to prevent seal shaving during assembly.
Lubricate the seal surface and mating bore with clean hydraulic oil before insertion. Do not use petroleum jellies that could degrade the FKM energizer. Use a non-metallic drift to seat the seal evenly.
After installing, perform a low-pressure (1 MPa) leak test before full system pressurization. If weeping is observed, check for damaged groove surfaces or incorrect seal sizing.
On articulated dump trucks, the 800172739 single-line seal is installed in brake master cylinders, hydraulic quick-couplers, leveling valves, and pilot lines. Leakage at any of these points can cause brake fade or uncontrolled implement drift.
In wheel loader applications, this seal seals the steering orbital valve and pilot control block. Using genuine XCMG seals ensures contamination-free fluid and precise modulation of hydraulic functions.
Analysis of 15 XCMG AD80 trucks over 12,000 hours shows that switching to OEM 800172739 seals reduced hydraulic oil top-ups by 92% compared to generic aftermarket seals. Each truck saved $2,800 annually in oil and disposal costs.
Additionally, eliminating unexpected seal failures prevented 14 days of unplanned downtime per vehicle over two years. This increased overall equipment effectiveness (OEE) by 7.3% in the reference fleet.
All XCMG genuine single-line seals (OEM 800172739) are manufactured in ISO Class 7 cleanrooms and individually laser-marked with batch numbers. Full material certificates and dimensional inspection reports are available upon request.
Counterfeit seals often use recycled PTFE and low-grade elastomers, leading to rapid extrusion and contamination. Always insist on authentic XCMG packaging with holographic labels. By choosing genuine parts, you protect your equipment warranty and operator safety.
