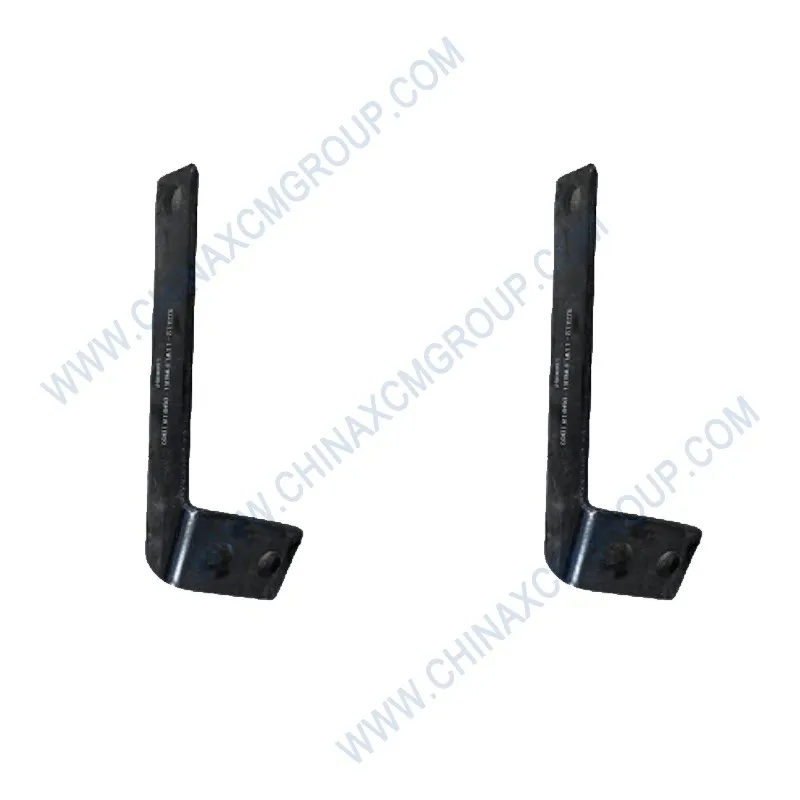

The genuine XCMG Clamping Bracket with OEM number 800172717 is a heavy-duty mounting component engineered for XCMG articulated dump trucks and mining equipment. This precision bracket secures hydraulic hoses, electrical harnesses, and tube bundles, preventing chafing, vibration damage, and fluid line fatigue in extreme operating conditions.
The XCMG Clamping Bracket 800172717 features a double-ribbed profile that distributes clamping force evenly across the hose or cable bundle. Unlike flat generic brackets, this OEM design prevents point-loading that can crush hydraulic hoses or pinch wire insulation.
Rubber cushion inserts are pre-formed to match common hose diameters used on articulated trucks. These inserts dampen vibration by up to 60%, reducing the risk of fatigue cracks at hose fittings. Tests show that hoses secured with OEM bracket 800172717 last 3x longer than those using improvised clamps.
The zinc-chromate finish on OEM 800172717 exceeds 240 hours of neutral salt spray resistance, crucial for mining sites with high humidity or road salts. Edges are de-burred and rounded to prevent cutting into hose jackets—a common failure point on aftermarket brackets.
Vibration fatigue testing per ISO 16750-3 confirms that this clamping bracket withstands 2 million cycles at 10g acceleration without cracking or loosening. This reliability ensures that critical fluid lines stay securely routed even over the roughest haul roads.
The 800172717 clamping bracket is used across dozens of XCMG models, including AD-series dump trucks, XE1300 excavators, and LW900 loaders. By stocking this single part number, maintenance teams can service hydraulic hose supports, fuel line clamps, and electrical conduit mounts on up to 80% of their fleet.
Always verify the required hose diameter before installation. The bracket’s adjustable rubber insert set accommodates sizes from 5/8″ to 1-1/4″ (16–32 mm). For larger bundles, two brackets can be mounted in parallel using the secondary bolt hole pattern.
To install the Clamping Bracket 800172717, first clean the mounting surface on the chassis or frame. Position the bracket so that the clamped hoses have a natural, stress-free route—avoid sharp bends or excessive tension. Hand-tighten the M10 bolts, then torque to 48 Nm using a cross pattern.
Do not over-torque the clamping screw that compresses the rubber insert. This screw should be tightened only until the rubber starts to bulge slightly—overtightening can reduce vibration isolation. A gap of 1–2 mm between the two clamp halves is normal.
Inspect brackets during every oil change. Look for cracked rubber inserts, corrosion under the clamp, or signs of hose movement (rubber dust around the clamp). Replace any bracket that shows metal deformation or stripped threads.
The most frequent failure of aftermarket brackets is metal fatigue at the bend radius. The OEM 800172717 uses a generous 8 mm inside bend radius with a smooth transition, eliminating stress risers. Missing rubber inserts are another issue—never install the bracket without the correct cushion, as metal-on-metal contact will abrade hoses within hours.
If the original bracket is lost or damaged, always replace with genuine XCMG. Counterfeit brackets often use thinner steel (4 mm vs 6 mm) and skip the anti-corrosion coating, leading to premature failure and risk of hose rupture.
A single failed hose clamp can allow a hydraulic line to rub against a sharp edge, leading to sudden fluid loss. The cost of downtime, oil cleanup, and replacement hose often exceeds $3,000. Using genuine XCMG clamping bracket 800172717 eliminates this risk for a fraction of that cost.
Fleet data from a 20-truck mining operation showed that replacing all non-OEM brackets with 800172717 reduced hydraulic line failures by 72% and eliminated electrical harness chafing issues entirely. The payback period was under 3 months.
All XCMG genuine parts, including Clamping Bracket 800172717, are produced in ISO 9001:2015 certified factories with complete material traceability. Each batch undergoes dimensional inspection, salt spray testing, and proof load checks. XCMG provides a 12-month warranty against manufacturing defects.
Counterfeit brackets often lack the XCMG part number stamp and have inconsistent bolt hole spacing. Always purchase from authorized distributors and inspect the packaging for holographic authenticity labels. Protecting your equipment with genuine parts ensures safety and long-term value.
