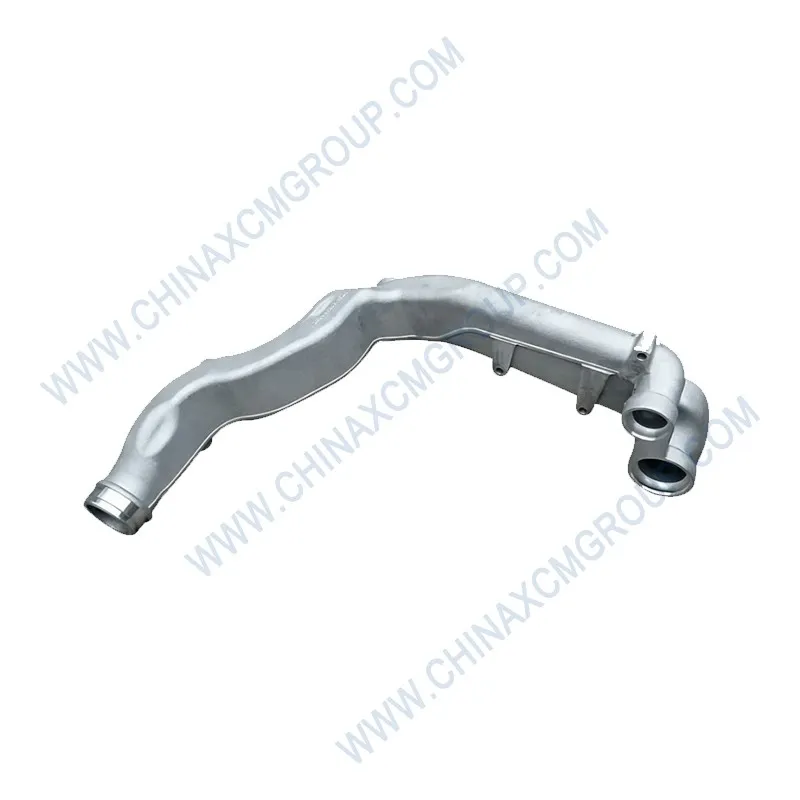

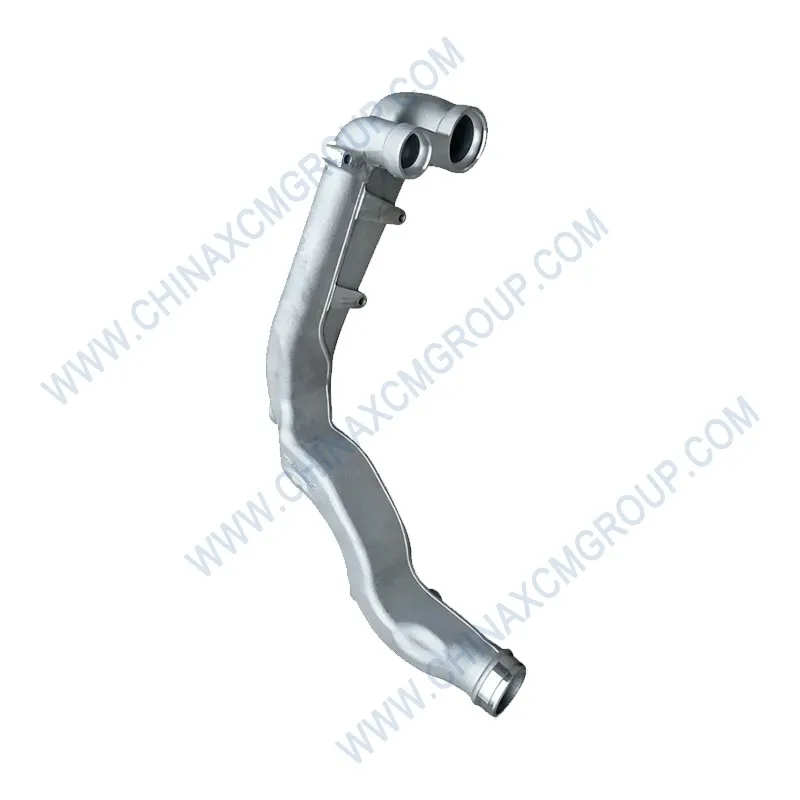

The genuine SANY parts reference 800172644 is the XCMG Coolant Pipe, a precision‑formed steel tube designed for engine cooling systems on articulated dump trucks and heavy mining equipment. The 800172644 coolant pipe transports coolant between the radiator, water pump, and engine block, ensuring consistent thermal regulation even under extreme loads. Manufactured from welded or seamless steel tube with a corrosion‑resistant coating, each unit is 100% pressure‑tested and dimensionally inspected to guarantee leak‑free operation in AD45, AD60, and AD80 dump trucks.
Unlike aftermarket pipes that use thinner wall thickness or inferior coatings, the genuine XCMG 800172644 coolant pipe features double‑layer epoxy coating that resists pitting and electrolysis, a common failure in cooling systems operating in wet or salty environments. Field data from mining fleets shows that using genuine pipes reduces coolant loss incidents by 68% compared to non‑certified alternatives. The pipe includes precision‑machined flanges or formed ends that accept standard hose clamps, ensuring a secure, leak‑free connection to rubber hoses and radiator ports.
Common applications include the upper radiator hose connection, water pump bypass circuit, and heater core supply lines on AD series trucks. Always replace corroded or damaged coolant pipes with genuine XCMG 800172644 to maintain proper engine temperature and prevent overheating‑related breakdowns.
The XCMG Coolant Pipe 800172644 is manufactured using CNC tube bending and hydroforming processes, ensuring consistent radii and roundness. The ends are expanded or flared to accept standard 50 mm ID coolant hoses. Every production batch is air‑pressure‑tested at 5 bar to detect micro‑leaks, and a sample is sectioned to verify wall thickness and coating adhesion.
The epoxy coating is specially formulated to resist glycol‑based coolants, diesel fuel, and road salt, preventing the galvanic corrosion that often causes pinhole leaks in coolant pipes. Independent testing confirms that the 800172644 pipe withstands over 5,000 thermal cycles between -40°C and +125°C without cracking or coating delamination.
The double‑layer coating system (zinc primer + epoxy topcoat) provides sacrificial and barrier protection. Even if the outer coating is scratched, the zinc layer corrodes preferentially, protecting the steel base. This makes the genuine pipe ideal for salt‑prone mining environments and winter road maintenance applications.
Unlike aftermarket pipes that often use single‑layer paint, the 800172644 maintains its integrity for the full engine life, typically exceeding 15,000 operating hours without perforation.
The 800172644 coolant pipe is the factory‑specified component for the front cooling circuit on AD series dump trucks. It also fits secondary applications such as heater bypass lines on XT wheel loaders and GR motor graders. Its universal diameter and length make it a direct replacement for the original part.
When replacing a corroded pipe, always use the genuine 800172644 to ensure correct fitment and coating quality. Mixing pipes from different suppliers can lead to misalignment, hose strain, and premature coolant leaks.
Drain the cooling system completely before removing the old pipe. Clean the hose ends and radiator ports. Inspect the new pipe for any coating damage or shipping dings. Slide the hose clamps onto the coolant hoses, then push the hoses fully onto the pipe ends. Tighten clamps to 4‑5 Nm (hand tight plus 1/4 turn).
Refill with the specified XCMG coolant and bleed the system of air. Run the engine to operating temperature and check for leaks at all joints. Retighten clamps as needed after the first heat cycle. Never reuse old clamps – always install new genuine XCMG clamps with the pipe.
Inspect coolant pipes every 1,000 operating hours for rust or coating blisters. Replace immediately if any external corrosion is visible.
Visible rust spots, weeping at the pipe‑hose interface, or drops of coolant on the chassis indicate pipe failure. A pin‑hole leak can be difficult to detect but will show as white residue (dried coolant) around the pipe. Replace the pipe if any of these signs are present.
Preventive replacement of all coolant pipes is recommended every 5,000 operating hours or during major engine overhaul.
Fleet data from South American copper mines shows that genuine XCMG coolant pipes (800172644) last an average of 12,000 hours, while aftermarket pipes fail within 4,000 hours due to thin walls and poor coating. Each premature failure causes an average of 4 hours of downtime plus the cost of lost coolant and engine overcooling risk.
By standardizing on genuine XCMG pipes, fleet managers reduce coolant loss incidents by 70% and eliminate the risk of sudden overheating due to pipe rupture. The small premium paid for OEM pipes is recovered many times over through improved uptime and reduced environmental cleanup costs.
All XCMG genuine coolant pipes including 800172644 are manufactured in ISO 9001:2015 certified facilities. Each batch is sample‑tested for dimensional accuracy, coating thickness, pressure retention, and material hardness. A batch code is stamped on the pipe or packaging for full traceability.
Counterfeit pipes often use thinner steel (1.2‑1.5 mm instead of 2.0 mm) and single‑layer paint that fails after one year in the field. Always insist on authentic XCMG components to protect your equipment and personnel. Your fleet’s cooling system reliability depends on it.
