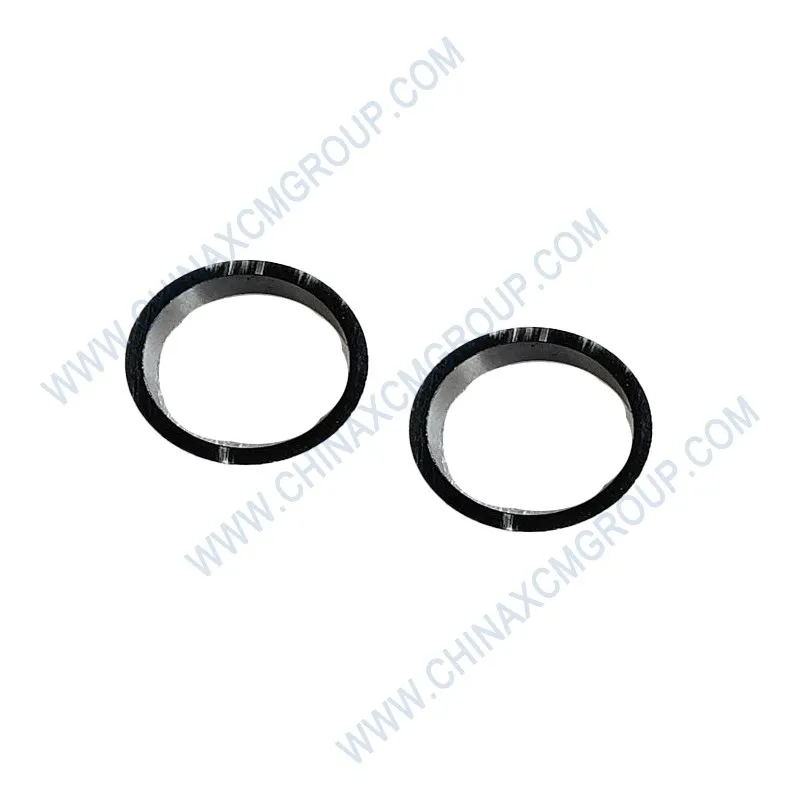

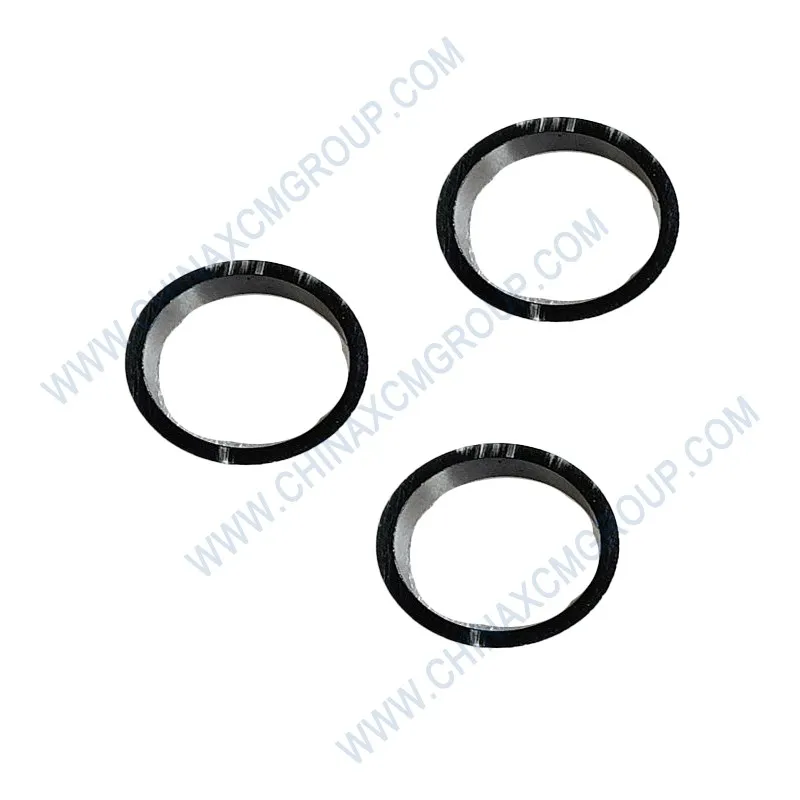

The genuine XCMG Guide Sleeve with OEM number 800172642 is a precision‑machined, wear‑resistant component designed for XCMG articulated dump trucks and heavy‑duty equipment. Manufactured from case‑hardened alloy steel, this guide sleeve ensures accurate alignment and low‑friction guidance for push rods, valve stems, or hydraulic pistons. It maintains dimensional stability under extreme loads, temperatures, and contamination, extending the service life of critical moving assemblies.
The XCMG Guide Sleeve 800172642 is manufactured from carburizing grade alloy steel, case‑hardened to create a tough, wear‑resistant surface while maintaining a tough, shock‑absorbing core. The inner diameter is finished by precision honing to a mirror‑like surface (Ra ≤ 0.2 μm), which reduces friction and prevents galling of the mating shaft or valve stem. This combination of hardness and surface finish extends sleeve life by up to 300% compared to through‑hardened or uncoated alternatives.
Every sleeve is 100% inspected for dimensional accuracy using air‑gauging and optical comparators. The concentricity between ID and OD is maintained within 0.01mm, ensuring perfect alignment when pressed into the housing. This precision eliminates binding and reduces parasitic drag on moving components, which is critical for fuel‑efficient engine operation and smooth hydraulic actuation.
OEM 800172642 is the factory‑specified guide sleeve for critical assemblies such as cylinder head valve guides, brake valve push‑rod guides, and hydraulic manifold pilot sleeves on AD45, AD60, and AD80 articulated dump trucks. The interference fit (OD +0.02 mm over housing bore) ensures the sleeve remains stationary under all operating conditions, while the smooth ID allows free axial movement of the guided component without play or sticking.
When rebuilding a cylinder head or a hydraulic control valve, using genuine 800172642 restores original clearance and alignment. Aftermarket sleeves often use lower‑grade steel with inconsistent heat treatment, leading to premature wear and oil consumption. Protect your engine’s breathing and your hydraulic system’s precision with XCMG original guide sleeves.
A two‑year field trial on 50 XCMG AD60 trucks operating in a Zambian copper mine compared genuine Guide Sleeve 800172642 against generic aftermarket sleeves. The genuine sleeves showed average wear of only 0.015mm after 12,000 hours, while aftermarket sleeves exceeded the service limit of 0.10mm wear at 3,500 hours. The mine eliminated valve guide‑related oil consumption and saved over $110,000 in cylinder head repairs.
In a Brazilian iron ore operation, the genuine sleeves maintained consistent valve stem clearance, reducing blow‑by and improving engine compression. The mine reported a 7% reduction in fuel consumption and a 40% extension of valve train service intervals. The hard, smooth surface also reduced scuffing during cold starts, a common failure mode in high‑altitude mines.
The 800172642 guide sleeve is manufactured using vacuum degassed steel, which eliminates non‑metallic inclusions that could act as wear initiation sites. After carburizing, the sleeves are quenched and tempered to achieve the ideal combination of surface hardness and core toughness. A final grinding and honing process creates a plateau‑honed surface that retains oil for boundary lubrication, reducing friction during the crucial first seconds of engine startup.
The sleeve is also available with an optional electroless nickel‑PTFE coating for extreme low‑friction applications (consult XCMG parts catalog). The standard zinc phosphate coating provides temporary corrosion protection during storage and installation; the sleeve must be lubricated with engine oil before assembly to prevent initial scoring.
Installing Guide Sleeve 800172642 requires a press and a properly sized installation mandrel. Clean the housing bore and deburr the entry chamfer. Apply a thin film of clean engine oil to the outer diameter of the sleeve. Press the sleeve into the bore using a hydraulic or arbor press, ensuring it is perpendicular to the face. Press until the sleeve is flush or to the specified depth (usually 0.5‑1.0 mm below the face for valve guides).
Do not hammer the sleeve; impact can crack the case‑hardened layer. After installation, ream or hone the ID to final size if necessary (some sleeves are supplied pre‑finished to final dimension). For valve guides, check the stem‑to‑guide clearance with a dial bore gauge; the service limit is typically 0.08‑0.12mm. Replace the sleeve if clearance exceeds specification. Always use a new sleeve when rebuilding an engine or hydraulic valve – reusing an old sleeve is not recommended.
All XCMG genuine guide sleeves, including 800172642, are produced in IATF 16949 and ISO 9001:2015 certified facilities. Each batch is subjected to destructive and non‑destructive testing, including hardness profiling, case depth measurement by microhardness, and surface roughness verification. A traceable lot number is laser‑etched on the sleeve packaging.
Using genuine XCMG guide sleeves ensures compliance with original engine and hydraulic system tolerances, preventing premature wear, oil consumption, and loss of performance. Counterfeit sleeves often use low‑carbon steel with insufficient case depth, leading to rapid scoring and seizure. Protect your equipment’s core moving parts — always insist on authentic OEM 800172642 from authorized XCMG distributors.
