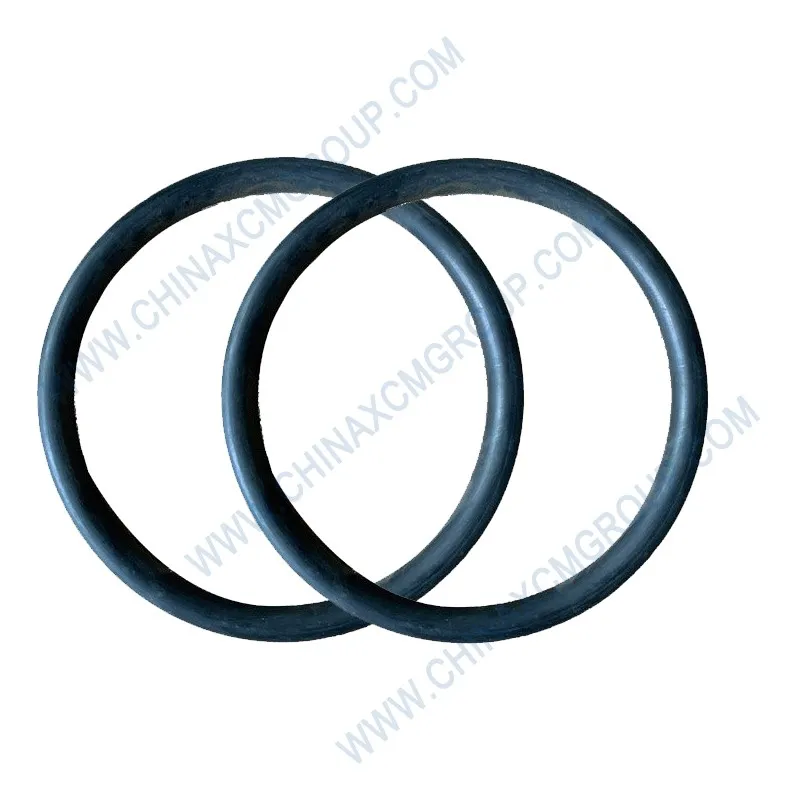

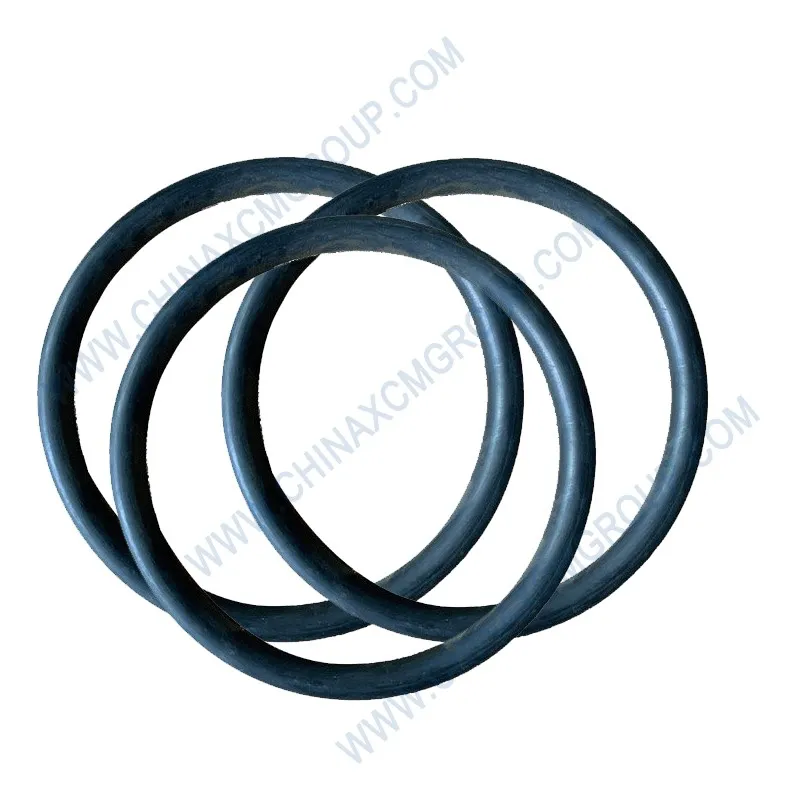

XCMG O-Ring OEM 800172446 – Precision Hydraulic Seal for Articulated Dump Truck Systems
O-Ring
Уплотнительное кольцо
Junta tórica
The XCMG O-Ring 800172446 is a precision‑molded elastomeric seal used in the high‑pressure hydraulic systems, powertrains, and fuel circuits of XCMG articulated dump trucks (ADTs). This genuine XCMG 800172446 O‑ring prevents fluid leakage, blocks contaminant ingress, and maintains system pressure integrity under extreme vibration, temperature fluctuations, and shock loads typical of mining and heavy construction operations. XCMG XDA30, XDA40, XDA45, XDA45U, and TA30 ADTs depend on 800172446 for long‑term reliability, replacing old seals during hydraulic cylinder rebuilds, valve block servicing, or flange joint disassembly. Manufactured from premium NBR rubber, the seal offers excellent resistance to mineral oils, hydraulic fluids, diesel, and coolant, delivering leak‑free performance for thousands of operating hours.
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM460LA six‑cylinder diesel engine delivering 360 kW (483 hp) at 1,900 rpm and 2,300 N·m of torque at 1,300 rpm. Its high‑pressure load‑sensing hydraulic system operates at working pressures of up to 35 MPa. At every critical junction—valve block ports, hydraulic cylinder end caps, and pump mounting flanges—the O‑ring 800172446 ensures a leak‑free seal, safeguarding system performance and preventing costly fluid loss. The XCMG XDA40, powered by a Mercedes‑Benz OM502 V8 diesel engine producing 350 kW (475 hp) and 2,300 N·m of torque, uses the same O‑ring to seal engine oil passages, fuel system connections, and hydraulic manifold interfaces.
The O‑ring 800172446 is manufactured from premium nitrile butadiene rubber (NBR), a material widely used in heavy‑duty hydraulic sealing due to its excellent resistance to mineral oils, hydraulic fluids (ISO VG 46/68), diesel fuel, and lubricating greases. With a Shore A hardness of 70 ± 5 and a continuous operating temperature range of −40 °C to +100 °C (intermittent to +120 °C), this NBR compound maintains consistent elasticity and sealing integrity even after prolonged exposure to thermal cycling and high‑system pressures. The material exhibits low compression set (≤ 25% after 100 h at 100 °C), ensuring that the seal retains sufficient radial force against the gland walls throughout its service life.
Precision Manufacturing of OEM 800172446
The XCMG O‑ring 800172446 is dimensionally manufactured to meet ISO 3601‑1 Class A tolerances, ensuring precise gland fill and optimal compression (typically 15–25% for static sealing applications). Whether installed in a static flange joint or a low‑speed dynamic application such as a piston rod seal, the O‑ring provides the required interference fit that prevents both under‑compression (which leads to leakage) and over‑compression (which can cause extrusion or excessive friction). The molded surface finish minimizes wear on mating metal surfaces and reduces the risk of seal damage during assembly. Each production batch is 100% dimensionally inspected using laser micrometers, and material hardness is verified per ISO 48‑2.
XCMG field data from XDA40 and XDA45U ADT fleets operating in Australian iron ore mines and Chilean copper mines demonstrates that the genuine O‑ring 800172446 achieves an average service life exceeding 12,000‑15,000 hours when installed correctly and used with recommended fluids. Aftermarket O‑rings manufactured from lower‑grade materials or with less precise dimensional tolerances often fail prematurely due to hardening, cracking, extrusion, or loss of sealing force, leading to fluid leaks, system inefficiency, and environmental contamination. The superior material quality and precision molding of the genuine XCMG seal directly contribute to reduced maintenance costs and extended overhaul intervals for ADT operators.
Proper Installation of the 800172446 O-Ring
Proper installation of the O‑ring 800172446 is critical for achieving its rated service life. Before installation, inspect the gland for burrs, sharp edges, scratches, or contamination that could damage the O‑ring. Apply a thin film of clean hydraulic oil or assembly lubricant to the O‑ring and mating surfaces to prevent pinching and ensure smooth seating. Use rounded plastic picks or dedicated seal installation tools; never use sharp metal tools that could cut the elastomer. Ensure the O‑ring sits evenly in the groove without twisting. For flange fittings, tighten bolts gradually in a crossing pattern to the manufacturer torque specification (typically 35‑40 N·m for M8 bolts). Never reuse old O‑rings—always install new genuine seals when disassembling hydraulic components.
Regular inspection of the O‑ring during scheduled maintenance can detect early signs of wear or damage. Look for visible fluid weeping at the flange interface, which may indicate that the O‑ring has lost its compression force or has been damaged. Check for hardening, cracking, swelling, or deformation of the rubber body—caused by thermal aging or chemical incompatibility with the fluid being sealed. If the gland surface shows a visible imprint or flat spot on the O‑ring, the seal should be replaced. XCMG recommends replacing all static and dynamic O‑rings during any major hydraulic component overhaul or whenever the joint is disassembled.
For applications involving unconventional fluids such as phosphate ester hydraulic fluids, high‑temperature environments exceeding 120 °C, or exposure to aggressive chemicals, XCMG offers FKM (Viton®) variants of the O‑ring 800172446. The FKM material provides extended thermal stability up to 200 °C and superior chemical resistance, making it suitable for specialized ADT configurations deployed in extreme industrial environments. For low‑temperature operation below −40 °C, specialized low‑temperature NBR or silicone compounds are available. Contact the XCMG parts department via the inquiry button for application‑specific material recommendations.
Compatibility Across XCMG ADT Range and Global Supply Chain
The O‑ring 800172446 is compatible with the full range of XCMG articulated dump trucks, including the XDA30 (30‑ton payload, Yuchai YC6K engine), XDA40 (39‑ton payload, OM502 V8), XDA45 (45‑ton payload), XDA45U (41‑ton payload, OM460LA inline‑6), TA30 (30‑ton payload), and XDA60 (60‑ton payload). It is also used in XCMG wheel loaders (LW series), motor graders (GR215, GR300, GR350), and excavators (XE series) that share the same hydraulic and fuel system architecture. Using the genuine XCMG O‑ring eliminates external seepage, internal cross‑leakage, and premature seal extrusion, ensuring that hydraulic circuits remain separate and system efficiency is maintained.
XCMG’s manufacturing facility for the O‑ring 800172446 is certified to IATF 16949:2023 (automotive quality management) and ISO 9001:2025. Each production batch undergoes 100% dimensional inspection using laser micrometers, and material hardness is verified per ISO 48‑2. Random samples per batch are tested for tensile strength (≥ 14 MPa), elongation at break (≥ 200%), and compression set (≤ 25% after 100 h at 100 °C) to ensure compliance with global sealing standards. The genuine O‑ring is stocked in regional distribution centers in the United States (Houston), Netherlands (Rotterdam), South Africa (Johannesburg), Australia (Perth), and China (Xuzhou). Standard lead times are 2‑5 business days. Use the inquiry button above to request a quote or place an order for genuine XCMG O‑ring 800172446.
XCMG and the XCMG logo are registered trademarks of Xuzhou Construction Machinery Group Co., Ltd.
OEM part number 800172446 is an original manufacturer reference for a genuine XCMG O‑ring sealing component. All specifications are derived from XCMG engineering standards and field validation data.
