XCMG Seal OEM 800172412 – Precision Elastomeric Sealing for Articulated Dump Truck Hydraulic Systems
Seal
Уплотнение
Sello

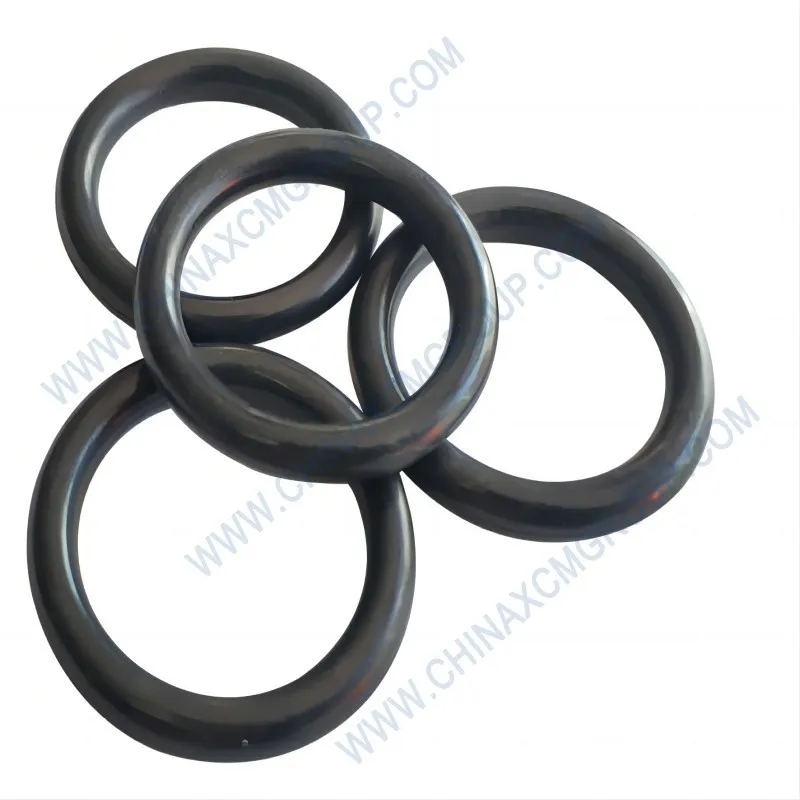

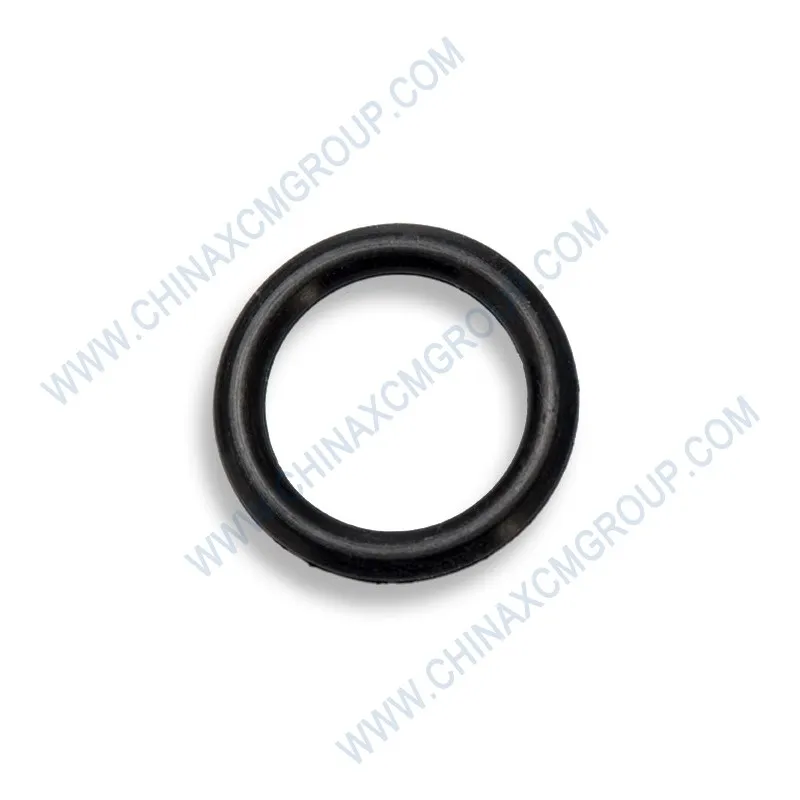

The XCMG Seal with OEM number 800172412 is a precision‑molded elastomeric O‑ring designed for high‑pressure hydraulic systems, powertrain assemblies, and fuel system components in XCMG articulated dump trucks (ADTs). This genuine XCMG 800172412 seal is manufactured from premium nitrile butadiene rubber (NBR), offering excellent resistance to mineral oils, hydraulic fluids, diesel fuel, and lubricating greases. XCMG XDA30, XDA40, XDA45, XDA45U, and TA30 ADTs depend on 800172412 for leak‑tight integrity and long‑term reliability under extreme vibration, temperature swings, and shock loads typical of mining and heavy construction operations, ensuring that hydraulic circuits remain separate and system efficiency is maintained.
Critical Function of the 800172412 Seal in Common Rail Systems
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM460LA six‑cylinder diesel engine delivering 360 kW (483 hp) at 1,900 rpm and 2,300 N·m of peak torque at 1,300 rpm. Its high‑pressure load‑sensing hydraulic system operates at working pressures of up to 35 MPa. The seal 800172412 is used in critical junctions such as valve block ports, hydraulic cylinder end caps, pump mounting flanges, and fuel system connections. By preventing fluid leakage and blocking contaminant ingress, the seal maintains system pressure integrity and eliminates cross‑circuit contamination. A single failed seal can lead to oil loss, reduced lubrication, and catastrophic component failure, making the genuine seal essential for fleet reliability.
The XCMG XDA30 articulated dump truck is powered by a Yuchai YC6K engine rated at 290 kW (389 hp) at 2,100 rpm, with maximum torque of 1,900 N·m at 1,100‑1,400 rpm. Throughout the ADT range, seal 800172412 is used in hydraulic pump joints, valve block interfaces, and cylinder end caps. The XDA40 model uses the Mercedes‑Benz OM502 V8 diesel engine rated at 350 kW (475 hp) at 1,800 rpm and 2,300 N·m of torque at 1,300 rpm, and the same seal is used in its high‑pressure common rail fuel system, which incorporates a high‑pressure pump to continually generate system pressure.
Advanced Manufacturing of OEM 800172412
The seal 800172412 is manufactured from premium nitrile butadiene rubber (NBR), a material widely used in heavy‑duty hydraulic sealing due to its excellent resistance to mineral oils, hydraulic fluids, diesel fuel, and lubricating greases. With a Shore A hardness of 70 ±5 and a continuous operating temperature range of −40°C to +100°C (intermittent to +120°C), this NBR compound maintains consistent elasticity and sealing integrity even after prolonged exposure to thermal cycling and high system pressures. The material exhibits low compression set (≤ 25% after 100 h at 100°C), ensuring that the seal retains sufficient radial force against the gland walls throughout its service life.
This genuine XCMG seal is dimensionally manufactured to meet ISO 3601‑1 Class A tolerances, ensuring precise gland fill and optimal compression (typically 15–25% for static sealing applications). The molded surface finish minimizes wear on mating metal surfaces and reduces the risk of seal damage during assembly. Each production batch undergoes 100% dimensional inspection using laser micrometers, and material hardness is verified per ISO 48‑2. Random samples per batch are tested for tensile strength (≥ 14 MPa), elongation at break (≥ 200%), and compression set to ensure compliance with global sealing standards.
Field Performance of 800172412 vs. Aftermarket
XCMG field data from XDA40 and XDA45U ADT fleets operating in Australian iron ore mines demonstrates that the genuine seal 800172412 typically exceeds 12,000‑15,000 hours of service life when installed correctly. The XDA45U achieves an uptime rate exceeding 92% and fuel consumption 7% lower than competing models in the same weight class, with the reliability of its sealing components being a major contributing factor. Aftermarket seals manufactured from lower‑grade materials often fail prematurely due to hardening, cracking, extrusion, or loss of sealing force, leading to fluid leaks, system inefficiency, and environmental contamination. The superior material quality and precision molding of the genuine XCMG seal directly contribute to reduced maintenance costs and extended overhaul intervals.
For applications involving unconventional fluids such as phosphate ester hydraulic fluids, high‑temperature environments exceeding 120°C, or exposure to aggressive chemicals, XCMG offers FKM (Viton®) variants of seal 800172412. The FKM material provides extended thermal stability up to 200°C and superior chemical resistance, making it suitable for specialized ADT configurations deployed in extreme industrial environments. For low‑temperature operation below −40°C, specialized low‑temperature NBR or silicone compounds are available.
Proper Installation of the 800172412 Seal
Installing the seal 800172412 correctly is essential for achieving its rated service life. Before installation, inspect the gland for burrs, sharp edges, scratches, or contamination that could damage the seal. Apply a thin film of clean hydraulic oil or assembly lubricant to the seal and mating surfaces to prevent pinching and ensure smooth seating. Use rounded plastic picks or dedicated seal installation tools; never use sharp metal tools that could cut the elastomer. Ensure the seal sits evenly in the groove without twisting.
For flange fittings, tighten bolts gradually in a crossing pattern to the manufacturer torque specification (typically 35‑40 N·m for M8 bolts). Never reuse a removed seal, as it will have taken a compression set and will not seal properly. Regular inspection of seals should be part of every scheduled maintenance. Look for weeping fluid, hardened or cracked rubber, or a flat spot on the seal’s cross‑section. If any of these signs are present, replace the seal immediately. XCMG recommends replacing all seals whenever a hydraulic component is disassembled, regardless of apparent condition, as heat and pressure cycles degrade elastomers over time.
Compatibility Across XCMG ADT Range and Global Availability
The seal 800172412 is compatible with all current XCMG articulated dump trucks, including the XDA30 (30‑ton payload, Yuchai YC6K engine), XDA40 (39‑ton payload, OM502 V8), XDA45 (45‑ton payload), XDA45U (41‑ton payload, OM460LA inline‑6), TA30 (30‑ton payload), and XDA60 (60‑ton payload). It is also used in XCMG wheel loaders (LW series) and motor graders (GR215, GR300, GR350) that share the same hydraulic and fuel system architecture. Using the genuine XCMG seal eliminates external seepage, internal cross‑leakage, and premature seal extrusion, ensuring that hydraulic circuits remain separate and system efficiency is maintained.
For the Yuchai YC6K and Weichai WP13 engine platforms used in certain ADT configurations, the seal 800172412 is dimensionally compatible. The Weichai WP13 features electronic control high‑pressure common rail technology and a four‑valve structure, and the seal meets all OE specifications for the high‑pressure fuel and lubrication systems. XCMG’s manufacturing facility is certified to IATF 16949:2023 and ISO 9001:2025. The seal is stocked in regional warehouses in the United States (Houston), Netherlands (Rotterdam), South Africa (Johannesburg), Australia (Perth), and China (Xuzhou). Standard lead times are 2‑5 business days. Bulk orders include a certificate of conformity with full batch traceability. Use the inquiry button above to request a quote or place an order for genuine XCMG seal 800172412.
XCMG and the XCMG logo are registered trademarks of Xuzhou Construction Machinery Group Co., Ltd.
OEM part number 800172412 is an original manufacturer reference for a genuine XCMG sealing component. All specifications are derived from XCMG engineering standards and field validation data.
