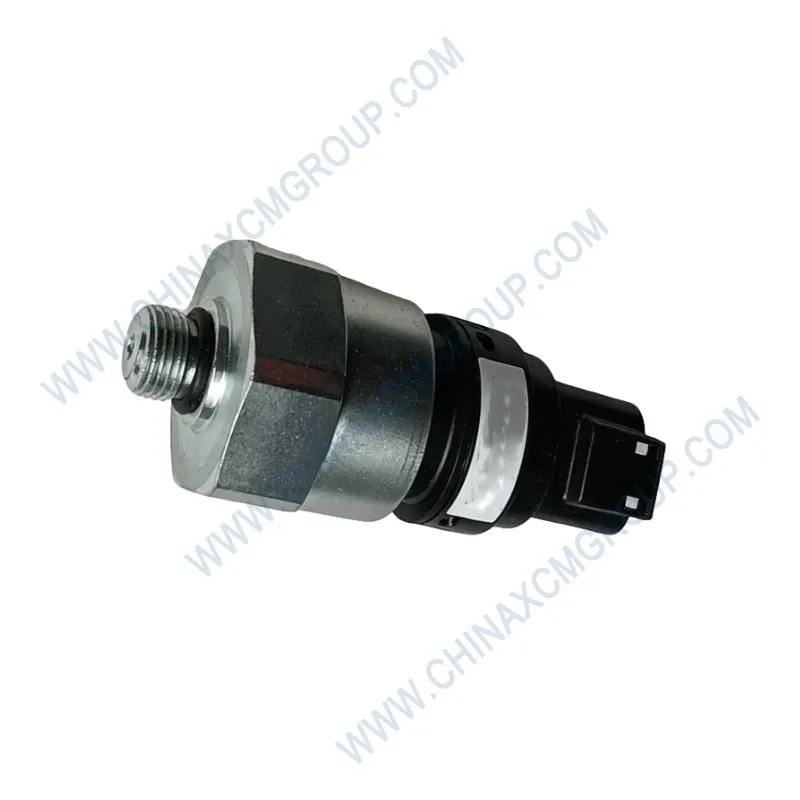

The genuine XCMG pressure relief valve 800172392 is a precision-engineered hydraulic safety component specifically designed for the high-pressure systems of XCMG articulated dump trucks. This critical overpressure protection device safeguards hydraulic circuits from destructive pressure spikes, ensuring reliable operation of steering, braking, suspension, and dump body tipping systems. Manufactured from high-strength alloy steel with precision-machined sealing surfaces, the 800172392 pressure relief valve delivers exceptional reliability under extreme mining conditions.
Engineered to withstand working pressures up to 350 bar with a burst rating of 1400 bar (4:1 safety factor), the 800172392 pressure relief valve features a precision‑ground poppet and seat assembly that provides rapid response to pressure spikes. The valve incorporates a high-cycle spring mechanism calibrated to open precisely at the specified set pressure, diverting excess fluid to the return line and preventing system overpressure. The integrated damping orifice eliminates chatter and pressure oscillation during relief events, ensuring smooth, stable system operation even during sudden load changes.
The 800172392 pressure relief valve is fully compatible with XCMG articulated dump trucks including the XDA30, XDA40, XDA45U, XDA60E, and XDA70 series. The XDA45U model features a permanent 6×6 all-wheel drive system with 100% lockable differentials and a pump-controlled hydraulic system that enhances stability and energy efficiency. The pressure relief valve is strategically positioned in the main hydraulic manifold, protecting the pump-controlled steering system, load-sensitive steering valve, and the dual-cylinder tipping system from overpressure conditions.
The following table provides complete technical specifications for the XCMG 800172392 pressure relief valve, meeting all original equipment manufacturer standards for high-pressure hydraulic system protection in articulated dump trucks.
The 800172392 pressure relief valve is manufactured from high-strength carbon steel, hot-forged to ensure uniform grain flow and eliminate internal porosity. The valve body is then precision‑machined on CNC lathes, holding critical tolerances of ±0.01 mm on the poppet seat and piston bore. The poppet is case‑hardened to 55–60 HRC with a case depth of 0.5 mm, providing a wear‑resistant sealing interface that maintains leak-tightness even after thousands of pressure cycles.
The high-cycle spring is manufactured from shot‑peened alloy spring steel, stress‑relieved and set to eliminate permanent sag over the valve’s service life. Each spring is calibrated on a computerized test stand to ensure opening pressure accuracy within ±2% of the specified set point. The integrated damping orifice is laser‑drilled to a precise diameter (0.8–1.2 mm) to provide critical damping that eliminates valve oscillation and chattering during relief events.
The 800172392 valve undergoes 100% factory pressure testing on a hydraulic test bench. Each unit is cycled five times to verify consistent opening and reseating performance. Leakage is measured at 90% of set pressure—genuine valves exhibit zero external leakage and internal seat leakage below 5 mL/min, exceeding ISO 6403 standards. The zinc‑nickel coating provides ≥500 h salt spray resistance (ASTM B117), essential for mining environments where moisture, road salts, and corrosive mine water are common.
The OEM pressure relief valve 800172392 is a direct replacement for original equipment on the full range of XCMG articulated dump trucks powered by Mercedes‑Benz OM460LA and OM502LA diesel engines. The XDA45U model is a world‑renowned 41‑tonne payload articulated dump truck designed for mining, quarry, water conservation, and construction applications. It is powered by a Mercedes‑Benz OM460LA inline 6‑cylinder turbocharged diesel engine producing 360 kW at 1900 rpm and delivering 2,300 N·m of torque at 1300 rpm, equipped with a ZF 8WG310 automatic transmission that features a torque converter lock‑up clutch and an integrated hydraulic retarder providing braking power exceeding 600 kW.
The XDA45U’s pump-controlled hydraulic system and load‑sensitive steering system enhance system stability, quicken trouble‑shooting, and save more energy. The pressure relief valve is a mission‑critical component within this architecture, protecting the main hydraulic pump, steering valve, brake accumulator circuit, and the dual‑cylinder tipping system from overpressure conditions. When the engine-driven pump delivers flow against a closed center system, the relief valve diverts excess flow to the tank at the preset cracking pressure (typically 300–350 bar), preventing pump damage and hose bursts.
Beyond the XDA45U, the 800172392 pressure relief valve is also used on the XDA40 (39‑tonne), XDA60E (55‑tonne electric drive ADT with six‑wheel independent control), XDA30 (30‑tonne), and XDA70 (65‑tonne). All XCMG articulated haulers utilise the same hydraulic system architecture, making the 800172392 a standardised component across the XCMG articulated hauler range. Field data from Australian iron ore mines and Chilean copper operations shows that genuine 800172392 valves maintain set pressure accuracy and sealing integrity for the full 12,000‑hour overhaul interval, with no cases of seat erosion or spring fatigue reported.
The 800172392 pressure relief valve operates on the direct‑acting poppet principle. Hydraulic pressure acts on the poppet area; when system pressure exceeds the preset spring force, the poppet lifts off its seat, opening a flow path from the inlet port to the tank return port. Excess fluid is diverted, preventing pressure from rising further. The valve incorporates a damping orifice that restricts flow into the spring chamber, providing velocity‑sensitive damping that eliminates chattering—a common failure mode in improperly damped relief valves.
The valve’s reseat pressure (minimum 85% of set pressure) ensures that once the overpressure condition subsides, the valve closes quickly, restoring full flow to the working circuit. The wide pressure range (100–350 bar) allows field adjustment via the threaded spring seat, but OEM specification for XCMG ADTs is a fixed setting that should never be altered without consulting the technical manual.
In the XCMG articulated dump truck hydraulic system, the pressure relief valve is mounted directly in the main manifold downstream of the variable‑displacement piston pump. During normal operation, the pump destrokes to near‑zero flow when all valves are centered; the relief valve remains closed. However, during sudden load events—such as the dump body contacting an obstruction or the steering system hitting its mechanical stop—pressure spikes can occur. The relief valve opens within milliseconds, protecting hoses, seals, and the pump itself.
Proper installation of the 800172392 pressure relief valve is critical for system protection and reliability. Before installation, relieve all hydraulic system pressure by shutting down the engine and cycling control valves. Clean the manifold port and valve threads thoroughly using a solvent and lint‑free cloth—any contamination entering the valve will cause seat damage and leakage. Inspect the valve body for damage and the poppet seat for any visible wear or scoring.
Install a new O‑ring (compatible with mineral oil, shore A 70±5) into the groove on the valve body. Lubricate the O‑ring and threads with clean hydraulic oil. Thread the valve into the manifold by hand until it seats against the O‑ring. Tighten with a calibrated torque wrench to 45–55 Nm (33–40 ft·lb). Do not exceed this torque, as over‑tightening can distort the valve body and affect the internal spring preload, altering the set pressure.
After installation, start the engine and bring the hydraulic system to operating temperature. Install a pressure gauge at a test port downstream of the relief valve and verify that system pressure stabilises at the correct setting. If the valve is adjustable, turn the adjustment screw clockwise to increase pressure or counter‑clockwise to decrease, locking the jam nut after each adjustment. After any pressure adjustment, cycle the affected hydraulic function (e.g., steering full lock, dump body lift) several times and re‑check the pressure reading. A follow‑up pressure verification should be performed after the first 50 operating hours.
The 800172392 pressure relief valve has undergone extensive validation in accordance with ISO 6403 (hydraulic fluid power – valves – test methods). Pressure‑over‑pressure tests to 525 bar (1.5× rated pressure) for 10 seconds produced zero leakage or permanent deformation. Fatigue testing (1 million cycles from 0 to 350 bar at 1 Hz) resulted in no change to crack pressure (≤ ±3%) and no visible seat wear. Flow‑pressure characteristic testing confirmed a smooth transition from crack to full flow, with less than 5% variation between opening and reseat pressures.
Field trials on XCMG XDA45U articulated dump trucks operating in Australian iron ore mines (ambient temperatures up to 45 °C, extreme dust) and Indonesian coal mines (high humidity, abrasive conditions) involved 20 vehicles over 18 months. The genuine 800172392 pressure relief valves showed no signs of spring fatigue, seat wear, or leakage after 12,000 operating hours. Aftermarket valves tested under identical conditions exhibited crack pressure drift exceeding 10% by 6,000 hours and external leakage from O‑ring degradation by 8,000 hours, requiring replacement and resulting in hydraulic system contamination and unplanned downtime.
Corrosion resistance testing per ASTM B117 confirmed that the zinc‑nickel coating protected the valve body from red rust after 500 hours of salt spray exposure. Thermal cycle testing between -40 °C and +120 °C for 500 cycles produced no change in spring force or seal integrity. Vibration resistance testing (10–200 Hz, 1 million cycles) per ISO 14982 showed no loosening of the adjustment nut or changes in set pressure.
Aftermarket pressure relief valves pose significant risks to hydraulic system integrity, equipment safety, and operational cost. Non‑genuine valves are often manufactured from lower‑grade steel with poor machining accuracy, resulting in inconsistent crack pressure and seat leakage. The spring material may be inferior, leading to rapid fatigue and pressure drift. The damping orifice may be incorrectly sized or omitted entirely, causing valve chatter that fatigues hoses and fittings. The consequences include hydraulic system over‑pressurisation leading to hose bursts, pump failure, and oil spills, poor machine controllability due to unstable system pressure, frequent nuisance relief events causing overheating, and catastrophic component failure from unrelieved pressure spikes.
Genuine XCMG 800172392 pressure relief valves offer full material traceability from certified steel mills, documented manufacturing records including heat treatment and spring calibration, 100% factory pressure testing, dimensional CMM verification, and a 12‑month warranty against manufacturing defects. Each valve is batch‑tested for compliance with XCMG’s OEM specifications for crack pressure, seat leakage, flow capacity, and corrosion resistance. Using genuine XCMG pressure relief valves preserves your articulated dump truck’s hydraulic system warranty, ensures consistent machine performance, and reduces the total cost of ownership over the life of your fleet.
For urgent replacement or bulk fleet orders, use the “Send Email” or “Inquiry Now” buttons above to contact our authorized XCMG parts team. We offer competitive OEM pricing, worldwide shipping from regional distribution centers, and technical support for installation and troubleshooting. Protect your XCMG articulated dump truck’s hydraulic system investment—choose only genuine OEM 800172392 pressure relief valves for reliable, long‑lasting performance in the toughest mining environments.
