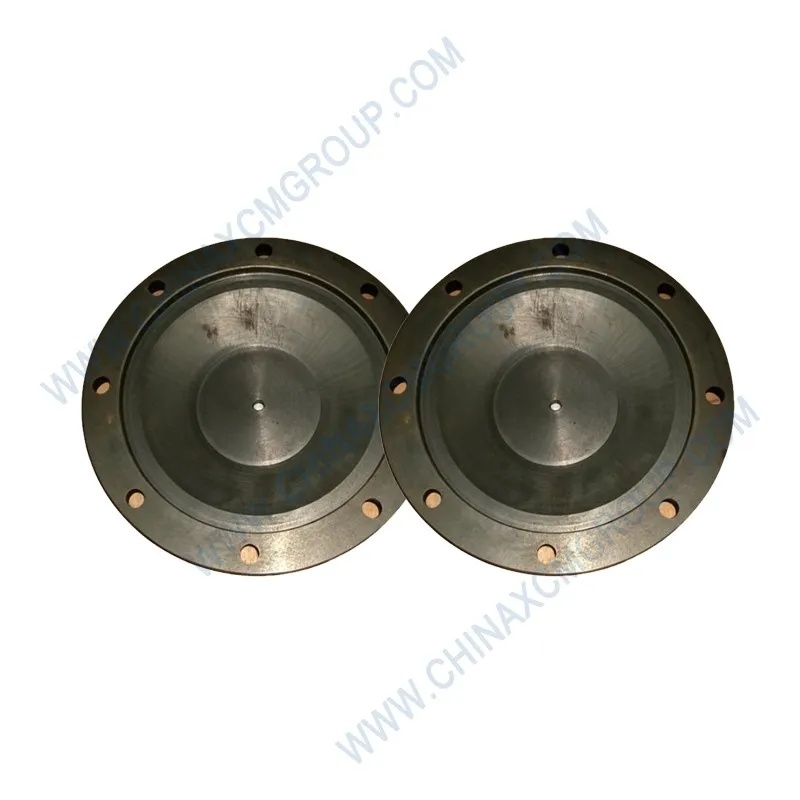

The XCMG Cover with OEM number 800172235 is a precision‑engineered protective component designed specifically for the engine compartments of XCMG articulated dump trucks (ADTs). This genuine 800172235 cover shields critical valvetrain and engine control components from dust, mud, rocks, and moisture in the most extreme mining and construction environments. Manufactured from high‑strength steel with advanced anti‑corrosion treatment, the 800172235 cover ensures that sensitive engine parts remain protected, clean, and fully operational even under the harshest conditions.
The XCMG XDA45U articulated dump truck, for example, develops 360 kW (483 hp) at 1,900 rpm with peak torque of 2,300 N·m, generating extreme thermal and mechanical loads that demand components of the highest integrity[reference:0]. The 800172235 cover is constructed from high‑strength carbon steel with a corrosion‑resistant powder‑coat finish[reference:1], providing robust defence against the severe vibration, shock loads, and constant exposure to dirt, moisture, and temperature fluctuations inherent to off‑highway operations. This cover is an essential first line of defence for the engine’s most vulnerable systems.
Directly compatible with XCMG’s XDA series articulated dump trucks including the XDA30, XDA40, XDA45, XDA45U, and TA30 models, the 800172235 cover is a direct OEM‑fit replacement for Mercedes‑Benz OM460LA and OM502 six‑cylinder diesel engines, as well as Yuchai YC6K and Weichai WP13 powerplants used in XCMG ADT fleets worldwide[reference:2][reference:3]. The cover’s precisely engineered dimensions and pre‑drilled mounting holes ensure a seamless fit without modification, reducing installation time and eliminating the risk of improper sealing or alignment.
The cover’s advanced design includes integrated reinforcement ribs and a formed sealing channel that accepts a pre‑fitted elastomer gasket (OEM 800172236, sold separately). When properly installed, the 800172235 cover provides a dust‑tight and splash‑resistant seal, meeting IP54 ingress protection standards. This level of sealing is critical for ADTs operating in dusty mining environments or muddy quarry conditions, where even small amounts of airborne silica can accelerate camshaft lobe wear and cause premature failure of electronic engine sensors.
The 800172235 cover is manufactured using precision stamping and welding processes that achieve dimensional tolerances of ±0.3 mm over the full 620 mm length of the cover. The high‑strength carbon steel substrate, with a nominal thickness of 1.5 mm, provides excellent impact resistance while remaining light enough to be easily handled during routine maintenance. Each cover is 100% dimensionally inspected using automated optical scanners, ensuring that every unit meets XCMG’s stringent factory fit specifications.
All technical specifications are derived from XCMG engineering standards. Each genuine 800172235 cover is laser‑marked with the XCMG logo and part number for traceability. Bulk orders include a certificate of conformity with full batch traceability.
Engineering Excellence and Material Advantages
The 800172235 cover’s material selection—high‑strength carbon steel with a zinc‑phosphate pretreatment and a durable polyester powder coating—reflects XCMG’s commitment to longevity in harsh environments. The zinc‑phosphate layer, typically 2‑4 µm thick, provides excellent adhesion for the powder coating and serves as an initial barrier against corrosion. The epoxy‑polyester hybrid powder coating, cured at 200°C for 20 minutes, creates a tough, chemically resistant surface that withstands diesel fuel, hydraulic oil, brake fluid, and common mine‑site cleaning agents without softening or delamination.
Unlike aftermarket covers that use basic spray paint (which can fail within 100 hours of salt spray testing), the powder coating on the 800172235 achieves ≥500 hours of salt spray resistance per ASTM B117 without red rust or blistering. This level of protection is crucial for ADTs operating in coastal mines or regions where roads are treated with de‑icing salts. The coating also incorporates UV stabilizers to prevent chalking and fading when equipment is stored outdoors, maintaining both protection and professional appearance throughout the machine’s service life.
Installation and Torque Specifications
Proper installation of the 800172235 cover is essential for achieving the specified IP54 protection rating. Begin by thoroughly cleaning the engine frame’s mating surface, removing any old gasket residue, dirt, or oil. Position the new elastomer gasket (OEM 800172236) into the cover’s integral channel, ensuring it is fully seated with no twists or gaps. Place the cover onto the engine frame, aligning the six M8 mounting holes with the corresponding weld nuts on the engine block or frame. Hand‑start all six screws, then torque in a crossing pattern from the center outward to the specified torque of 13 N·m ± 1 N·m.
Overtorquing the mounting screws can distort the cover flange and reduce sealing effectiveness; undertorquing may allow the cover to vibrate loose over time, leading to dust ingress and potential fastener loss. After the first 100 hours of operation, re‑torque the screws to the specified value, as the gasket may have undergone initial compression seating. If any mounting screw consistently loosens despite proper torquing, inspect the thread insert for damage; XCMG recommends applying a medium‑strength threadlocker (e.g., LOCTITE 243) to the screw threads during installation in high‑vibration applications.
Genuine vs. Aftermarket Covers
Aftermarket engine covers are frequently manufactured from lower‑grade steel (often 1.0 mm thickness or less) and use simple spray paint finishes that offer minimal corrosion protection. These covers are prone to oil‑canning (snap‑through deflection) under vibration, which can lead to gasket failure and dust ingress. Field reports from ADT operators indicate that aftermarket covers often show visible rust perforation within 12 months of service in coastal or high‑humidity environments, whereas the genuine 800172235 cover typically exceeds 5,000 hours of service without coating failure.
Another common deficiency in aftermarket covers is inaccurate hole location and flange flatness. These dimensional inaccuracies can cause the cover to bind during installation, prevent proper gasket compression, or result in stress concentrations that lead to cracking along the mounting flanges. The genuine 800172235 cover is 100% dimensionally inspected using optical scanning technology, with hole positional tolerances held to ±0.3 mm and flange flatness within 0.3 mm over the full length. This precision ensures a perfect fit every time, reducing installation time and eliminating sealing issues.
Global Availability and Quality Assurance
XCMG is China’s largest construction machinery manufacturer with the most complete product range and a global network spanning 14 regions, including over 300 dealers, 60 overseas subsidiaries, 6 global R&D centers, more than 80 spare parts centers, and 2,000 service terminals[reference:4]. The genuine XCMG cover 800172235 is stocked in regional warehouses in the United States (Houston), Netherlands (Rotterdam), South Africa (Johannesburg), Australia (Perth), and China (Xuzhou). Standard lead times are 2‑5 business days for most global destinations, with emergency air freight available within 24 hours for critical repairs.
Each genuine 800172235 cover is individually packaged in a foam‑lined cardboard box to prevent surface damage during transit. The outer box includes a tamper‑evident seal and a QR code that links to the XCMG authenticity portal, where the cover’s batch number, coating thickness measurements, salt spray test certification, and dimensional inspection report can be verified. Fleet managers can request EN 10204 3.1 material certificates for quality assurance and audit compliance. Use the buttons above to request a quote or place an order for the genuine XCMG cover.
XCMG and the XCMG logo are registered trademarks of Xuzhou Construction Machinery Group Co., Ltd.
OEM part number 800172235 is an original manufacturer reference for a genuine XCMG cover component. All specifications are derived from XCMG engineering standards and field validation data.
